ACOUSTIC ARCHITECTURE
Engineered for a Clean Keystroke
Three sound-dampening layers inside the carbon frame absorb hollow rattle into a tidy, low-pitched keystroke — no ping, no hollowness.
Comfortable TypingDesigned with purpose
Lab Series
EPOMAKER

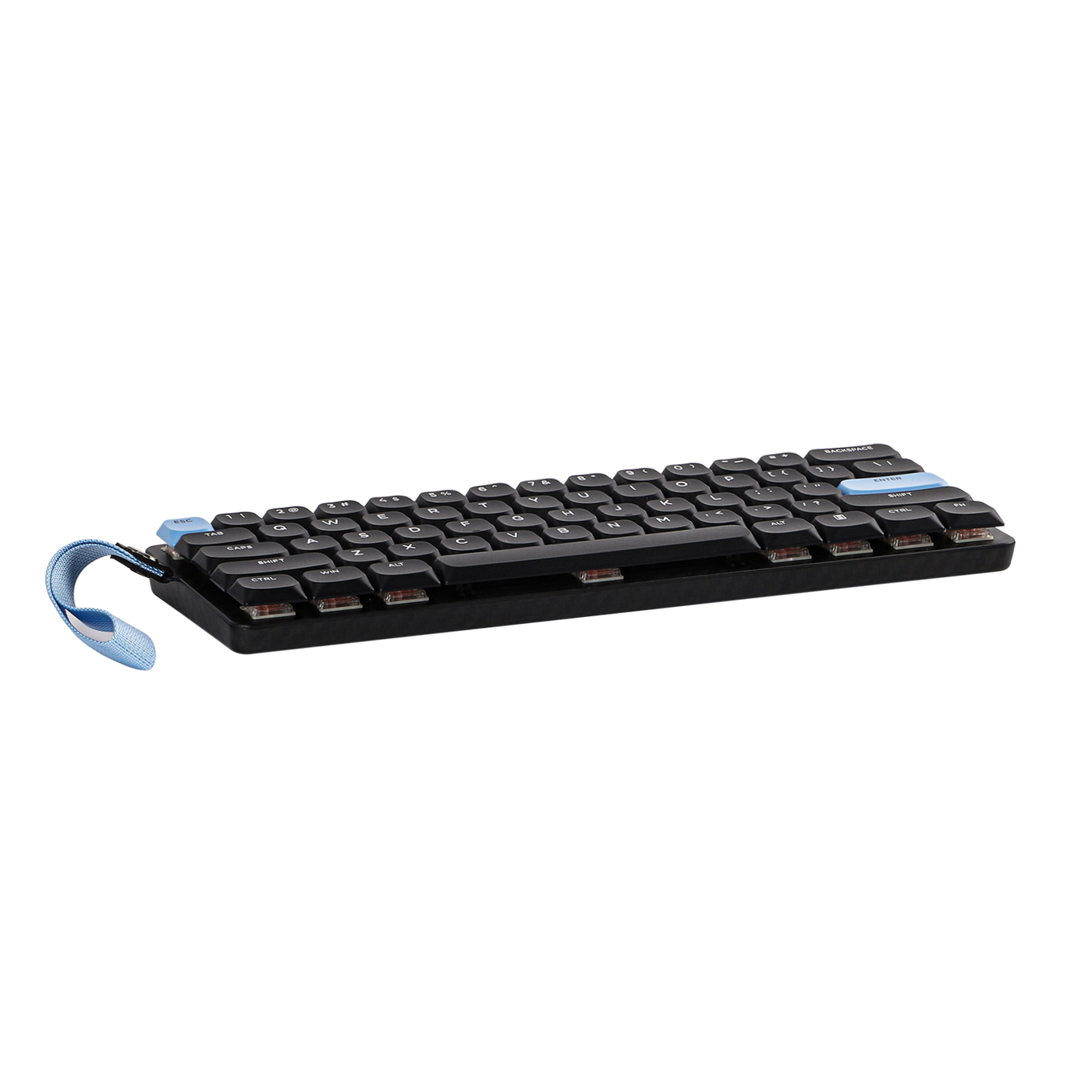

Carbon60

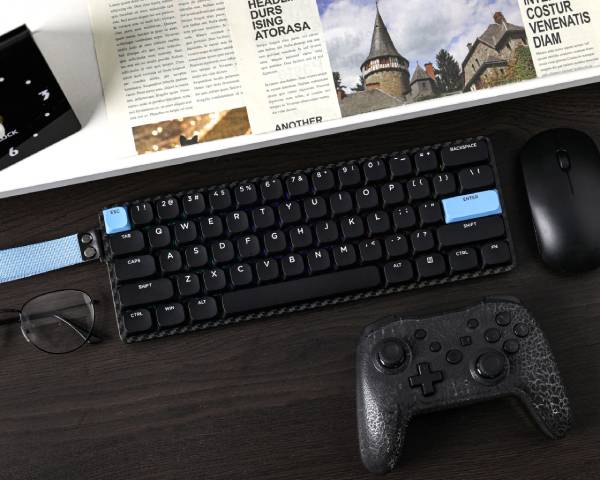

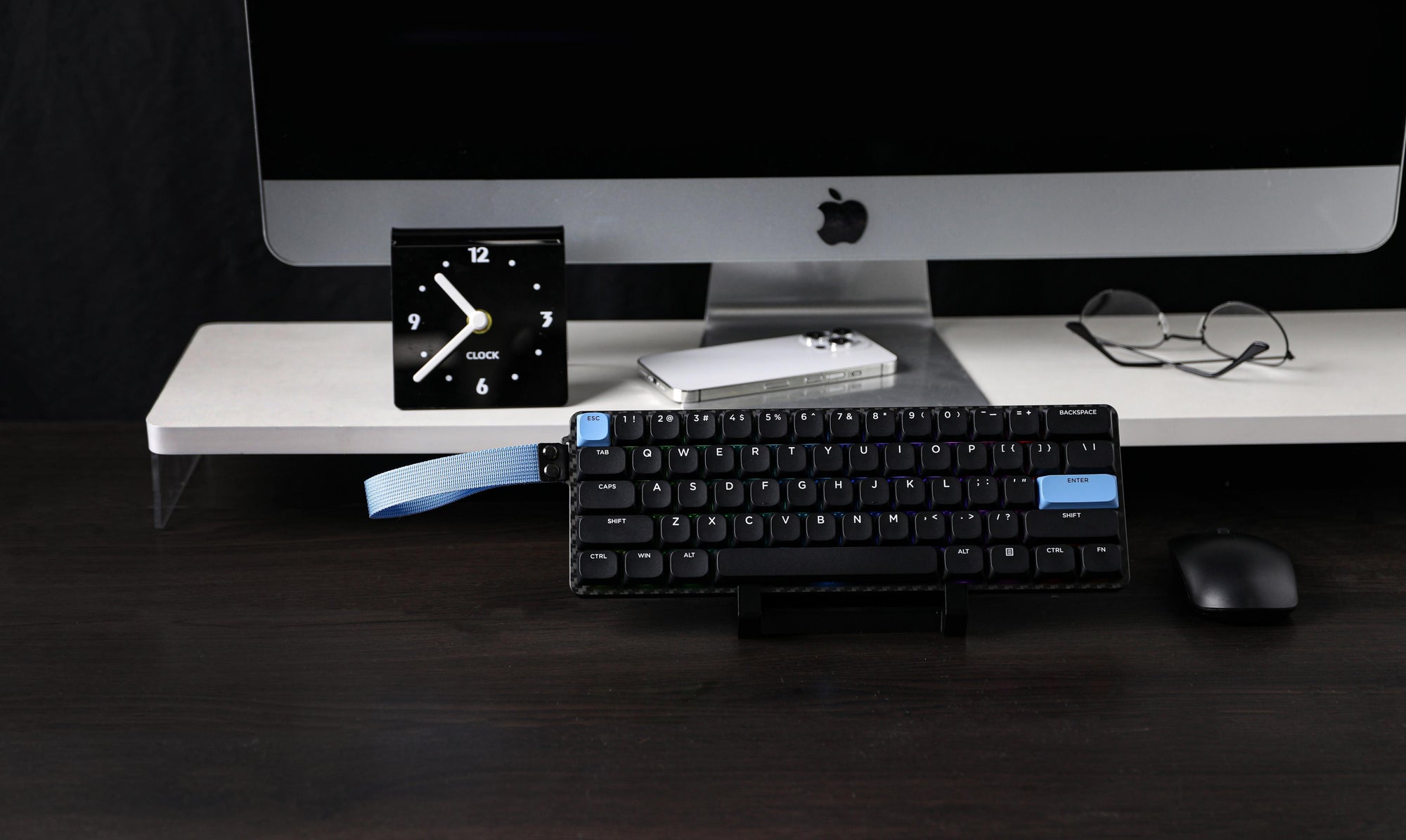

Compact 60% 61-key · carbon fiber case & plate · DSA low-profile keycaps · tri-mode wireless. A featherweight, low-slung linear board built for minimalist desks and life on the move.
$129.99
Recommended Products
Carbon Fiber Build
Carbon case + plate · rigid, light 0.5kg body with a modern spray finish
Low-Profile Typing
DSA double-shot caps · low-slung Gateron Red Low linears for an easy reach
Tri-Mode Wireless
USB-C / 2.4GHz / BT 5.0 · 3000mAh · up to 176h with the lights off
Hot-Swap · QMK/VIA
3/5-pin hot-swap PCB · fully remappable in QMK/VIA (QMK over wired)
Typing Feel — Sound Design
A low-profile board that still sounds tuned.
Three damping layers — a sandwich pad, switch pad and bottom foam — sit inside the rigid carbon frame to soak up hollow rattle, leaving the light Gateron Red Low linears crisp and clean.
3 Damping LayersTuned Acoustics
DSA Low-Profile CapsSmooth Typing
Built with Purpose
Designed for EveryKeystroke.
Comfortable TypingDesigned with purpose
CARBON FIBER
Rigid, light, built to last.

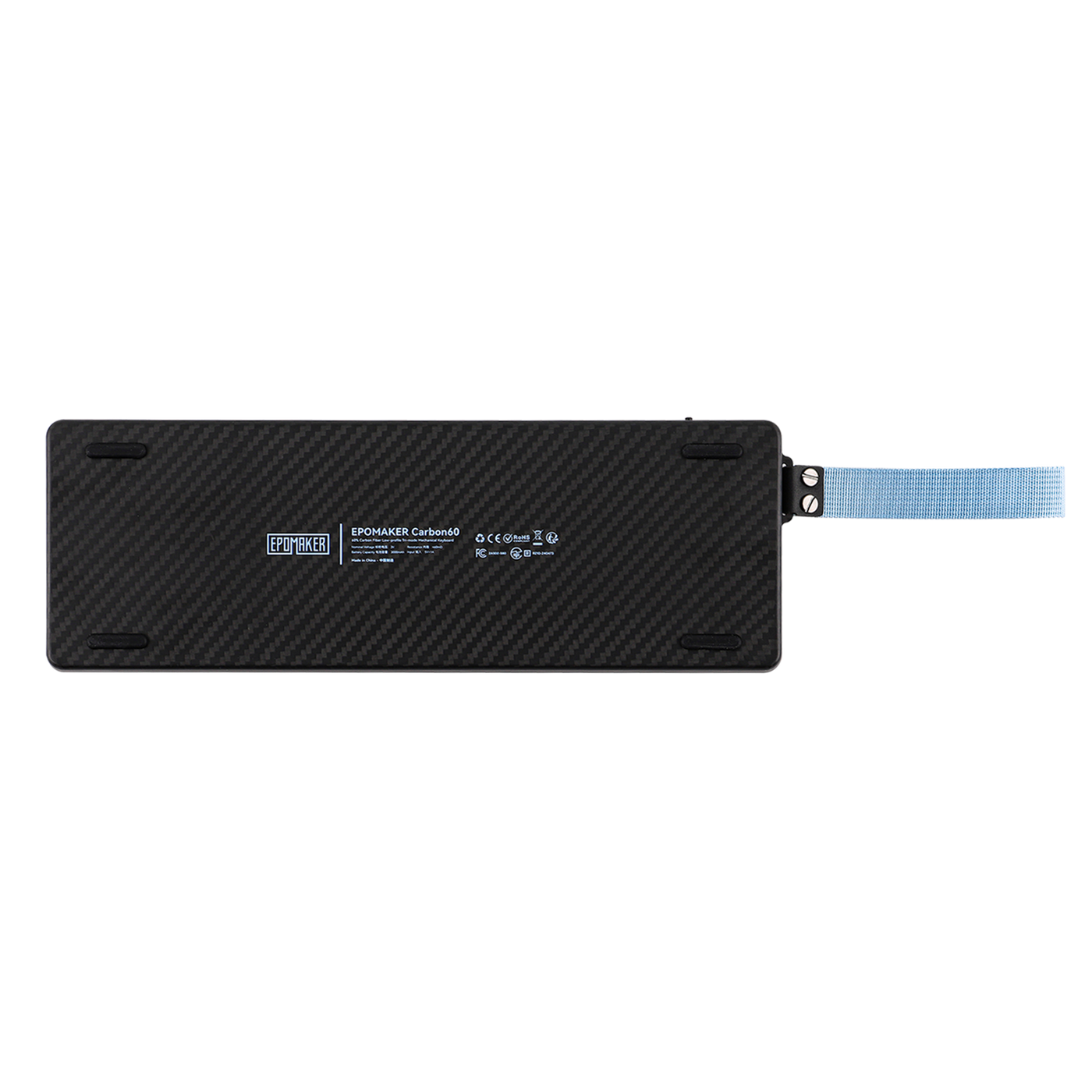

A carbon fiber case and plate keep the board stiff yet featherweight at just 0.5kg, finished with a modern spray-paint coat that resists daily wear.
Durable BuildCarbon Case & Plate
TRI-MODE
Connect any way you like.
USB-C, Bluetooth 5.0 and 2.4GHz on a 3000mAh cell — 1000Hz polling over 2.4G, low-latency input and on-board memory that keeps your maps.
Triple-Mode2.4G · BT · Wired
HOT-SWAP · VIA
Rebuild and remap in seconds.
Hot-swap 3/5-pin switches with no soldering, then remap every key in QMK/VIA to fit your workflow (QMK runs over wired).
Hot-SwappableNo Soldering Needed
About this Product
Well Thought.Design Features.
UP TO176HOURS
Up to 176.4 hours of wireless typing with the backlight off (23.6h with RGB on)
ONLY61KEYS

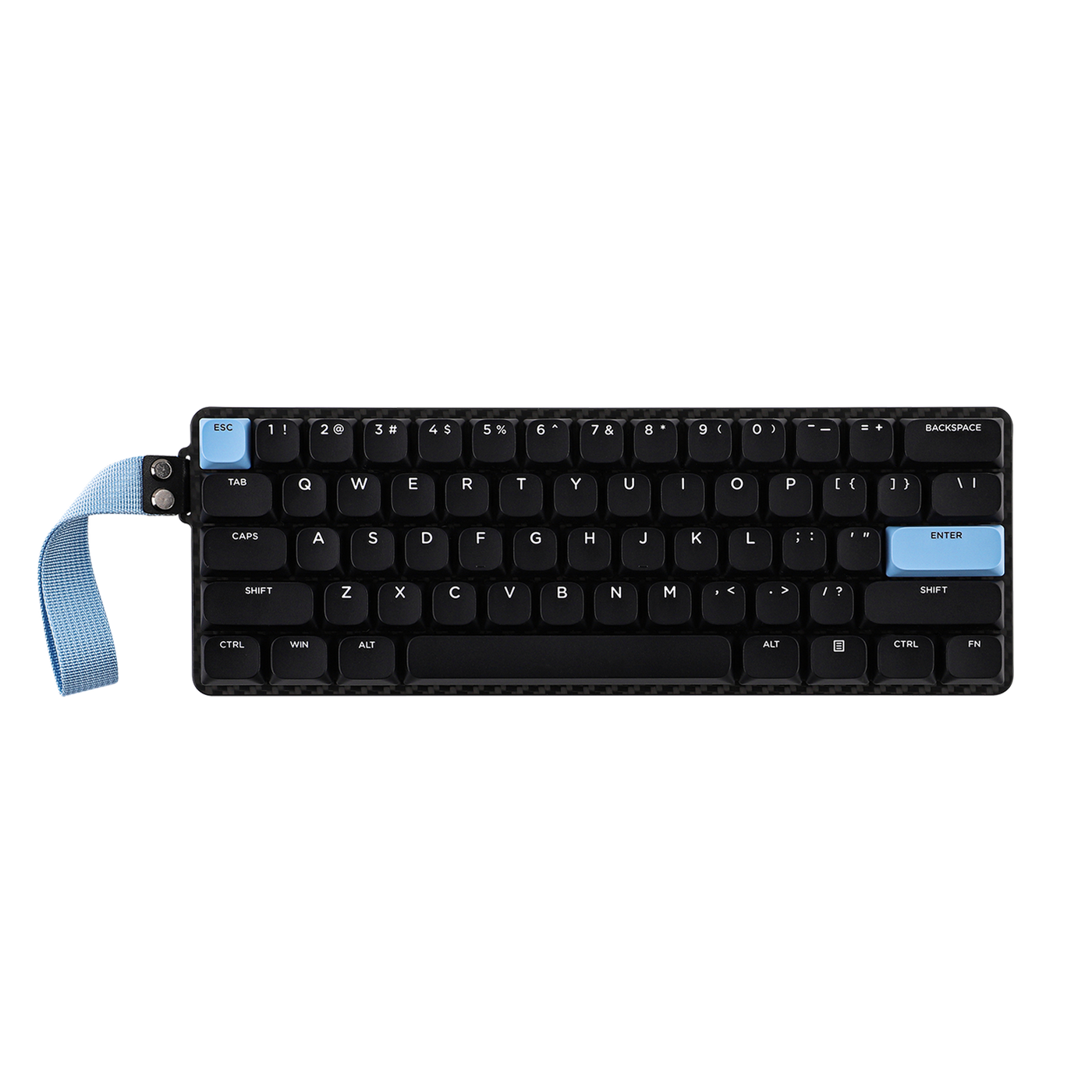

A compact 60% ANSI layout in a 0.5kg carbon body
Mac, Windows & Linux ready
Fully programmable in QMK/VIA

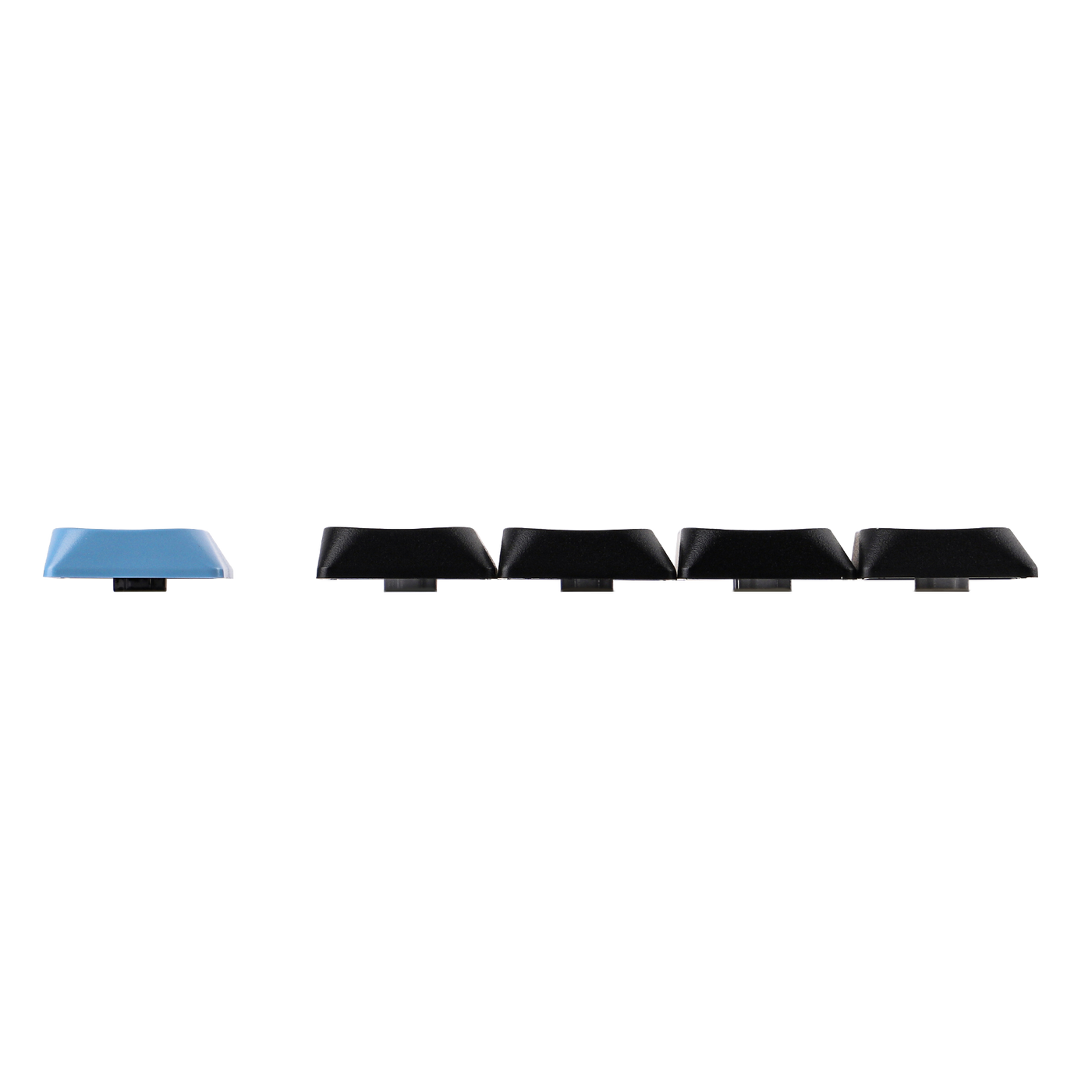

DSA Low-Profile Keycaps
Double-shot ABS in a low, flat DSA profile for an easy reach and legends that never fade.

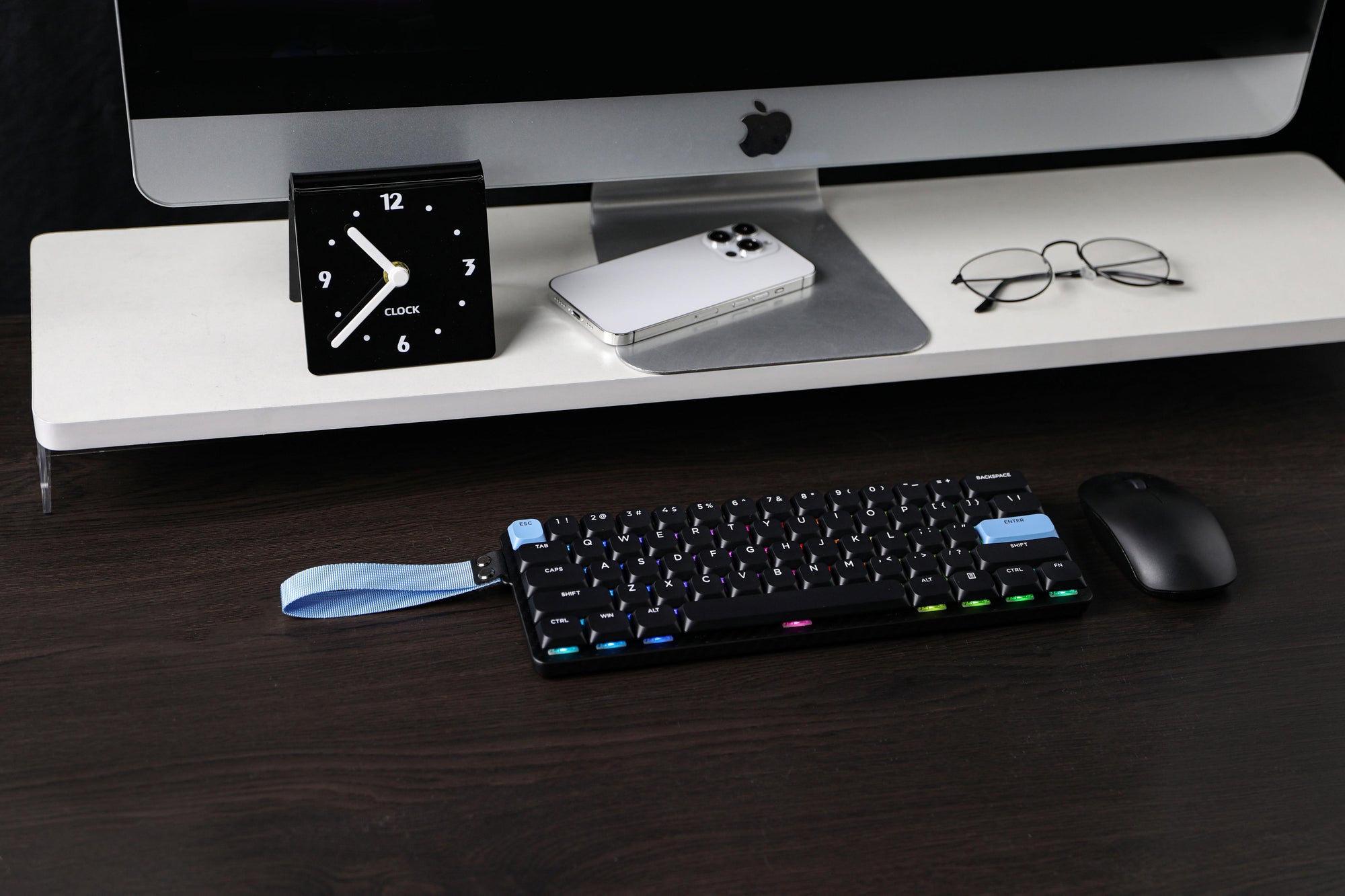

South-Facing Per-Key RGB
South-facing LEDs light every legend clearly, with per-key effects you can tune to your setup.
Carbon Fiber Case & Plate
A rigid carbon build with a spray-paint finish — light at 0.5kg, tough enough for daily carry.
Tri-Mode Wireless
USB-C, Bluetooth 5.0 and 2.4GHz on a 3000mAh battery, with 1000Hz polling on wired and 2.4G.
Hot-Swap · QMK/VIA
Drop in any 3/5-pin switch and remap every key — no soldering, fully programmable.
Engineered structure isolates vibration into dampening layers, turning every keystroke into a clean creamy thock.
Sound-Dampening Layers
PORON, IXPE switch pad, silicone base and PET sound-enhancer kill different frequencies of hollow rattle.
Lubed Stabilizers
Plate-mount stabilizers come pre-lubed and tuned, so spacebars and shifts hit clean and balanced.
Why theCarbon60Sounds this good.
The Carbon60 achieves its clean, low-pitched sound through a rigid carbon frame and layered dampening designed for its slim low-profile build — no modifications needed.
- Carbon fiber case & plate for a stiff, controlled tone
- Three-layer foam dampening (sandwich pad / switch pad / bottom foam)
- Low-profile Gateron Red Low linear switches
- DSA double-shot ABS keycaps
- South-facing per-key RGB
New Generation Switches
Compare Versions.Switch Differences.
Switch
Type
Feel
Sound
Best For
Sound Profile
Gateron Low Red Switch 2.0
Linear
Smooth
Clean & Light
Gaming / Fast Typing
LOW
Mid
High
V-High
Gateron Low Brown Switch 2.0
Tactile
Light Tactile
Crisp & Quiet
Office / Everyday Typing
LOW
Mid
High
V-High
3D Model View
Smart Design.Made in House.
Drag to Rotate / Scroll to Zoom
About This Product
Technical Specifications.Quality Delivered.
Brand
Epomaker
Model
Carbon60
Layout
60% ANSI US Layout
Number of Keys
61 Keys
Connectivity
Type-C Cable, 2.4GHz, Bluetooth 5.0
Compatibility
Mac/WIN/Linux
Battery
3000mAh
Battery Life
23.6 hours with Backlight on, and 176.4 hours with Backlight off.
Case Material
Carbon Fiber

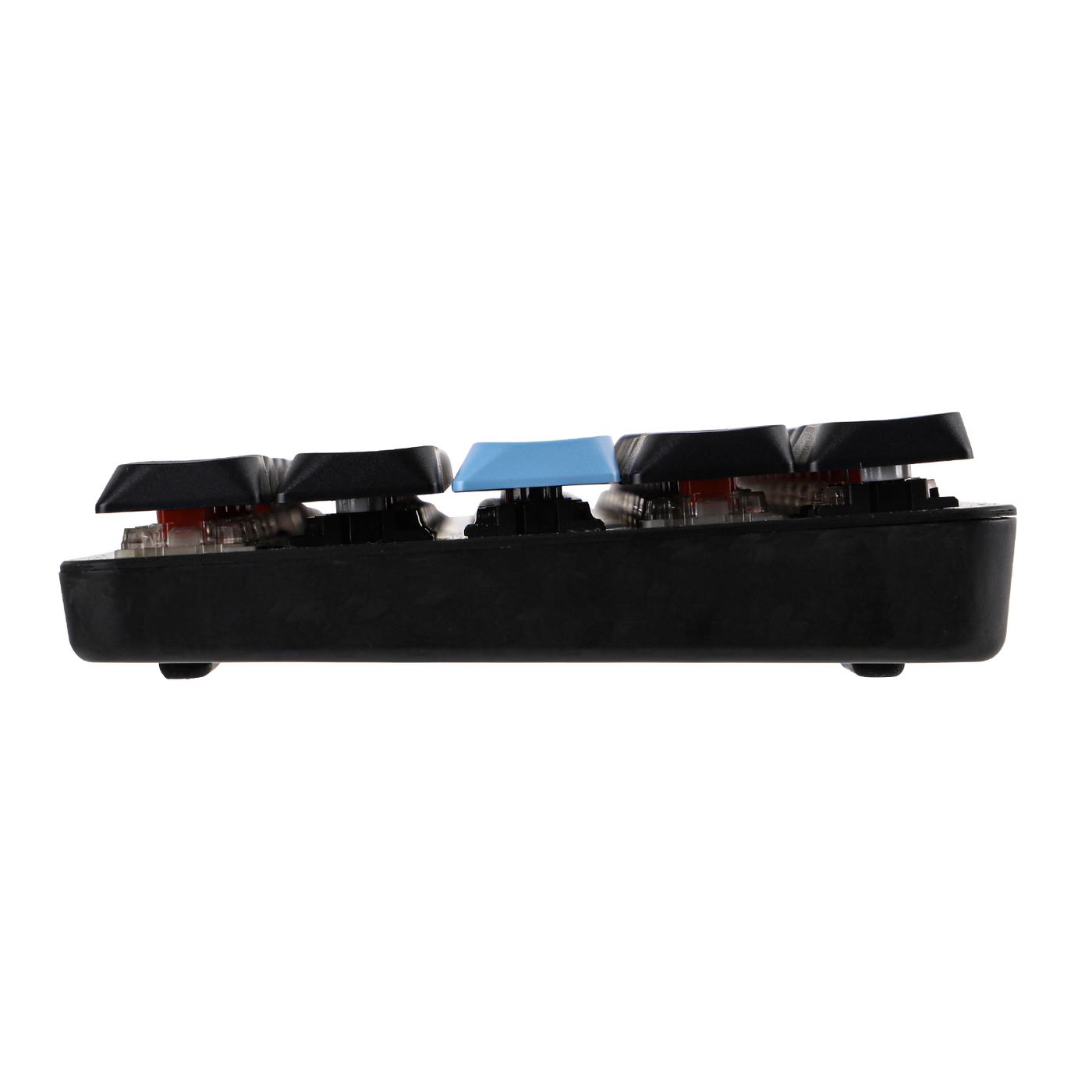

Front Height
22.5mm
Back Height
26.7mm
Flex-Cut
No Flex-Cut
Plate Material
Carbon Fiber
Sound Dampening
3 layers: Sandwich Pad, Switch Pad, Bottom Foam
Keycaps Profile
DSA Low Profile
Keycaps Material
ABS Plastic
Keycaps Manufacturing technique
Double-Shot
Hot swappable
Yes
RGB
South-facing, per-key RGB
Polling Rate
1000Hz (USB, 2.4Ghz), 125Hz (Bluetooth 5.0)
Latency
4ms (USB), 10ms (2.4Ghz wireless), 22ms (Bluetooth 5.0)
Anti-Ghosting
N-Key Rollover(Win)/6-Key Anti-Ghosting(Mac)
Keyboard Dimensions
297*102.3*26.7mm
Keyboard Weight
0.5kg
Gateron Low Red Switch 2.0
Linear switch with POM stem, PC top, and nylon bottom, offering a 50±15gf operating force and 60±5gf bottom-out, pre-travel 1.7±0.4mm, total 3.2±0.2mm, factory lubed for smoothness.
Switch TypeLinear
Trigger Force50±15gf
Bottom-out Force60±5gf
Pre-Travel1.7±0.4mm
Total Travel3.2±0.2mm
Light DiffuserNo Light Diffuser
Gateron Low Brown Switch 2.0
Tactile 3-pin switch with POM stem, PC top, nylon PA66 bottom, and 13.5mm two-stage spring, factory lubed for smooth operation; features 55±15gf operating force, 60±5gf bottom-out, 1.7±0.4mm pre-travel, and 3.2±0.2mm total travel.
Switch TypeTactile
Trigger Force55±15gf
Bottom-out Force60±5gf
Pre-Travel1.7±0.4mm
Total Travel3.2±0.2mm
Light DiffuserNo Light Diffuser
Product Downloads
Keep your Keyboard.Up to Date.
Ready to Use

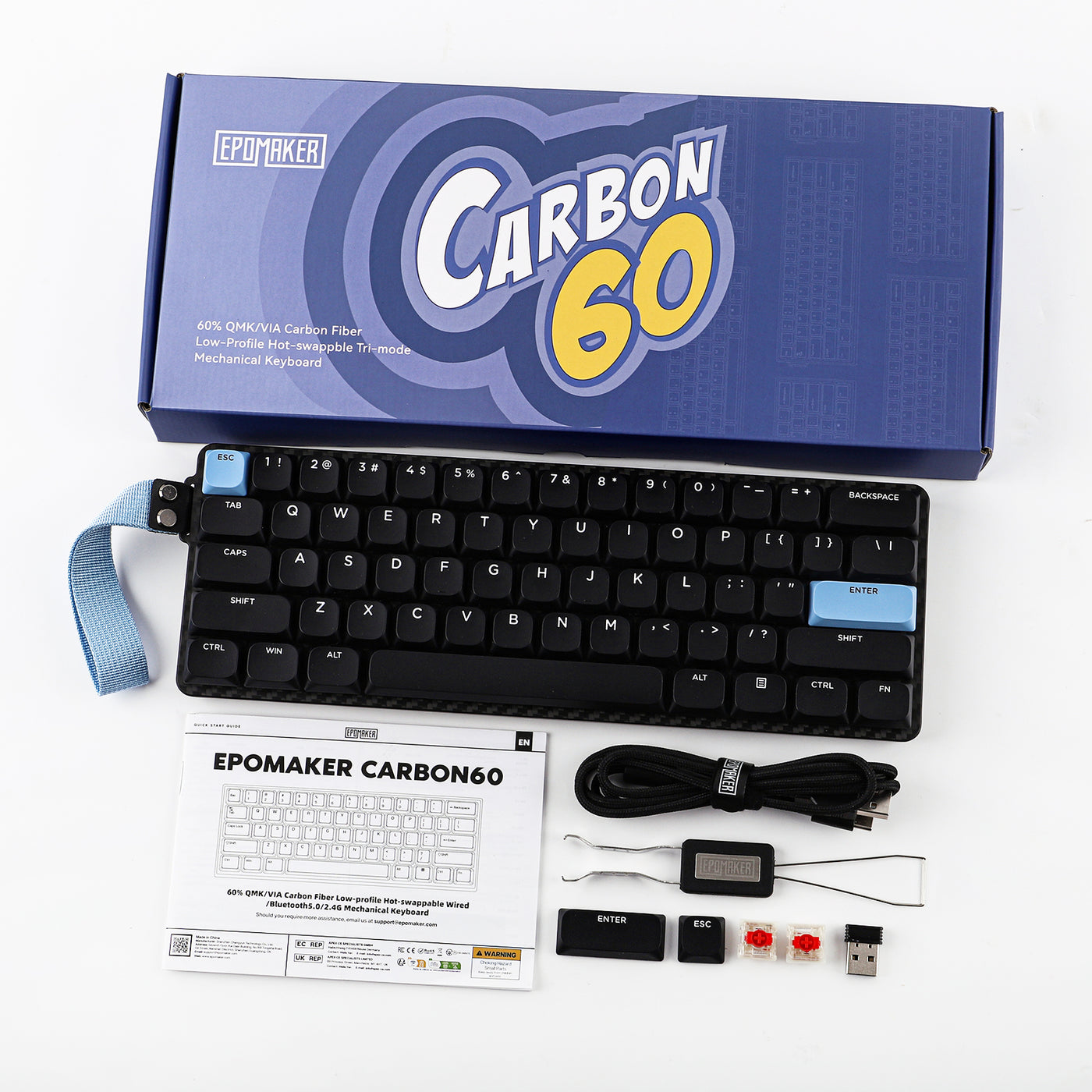

Everything you Need.Inside the Box.
The EPOMAKER Carbon60 60% Wireless Mechanical Keyboard
Keycap & Switch Removal Tool
USB-C Cable
Pictures for reference only. Packaging and included accessories may differ slightly from what you get delivered.
Content List
- 1xKeyboard
- 1xDetachable USB-C Cable
- 1x2-in-1 Switch & Keycap Puller
- 1xMultilingual User Manual
Your Desk Setup
Perfect Pairings.Complete your Setup.
Around the World
Media Reviews.Product Unboxing.
Honest Unfiltered Opinions
4.8 Stars out of 5
Based on 11 reviews
D
https://x.com/KapitanKloze/status/2045073297335898402?s=20
L
I bought as a dedicated Xbox console board, and it’s been a handy little peripheral for my gaming (Crunchyroll surfing)
B
EPOMAKER Carbon60
G
The Epomaker Carbon60 is a compact keyboard that combines premium materials, high performance, and surprising versatility, all in an extremely portable package. Despite a few compromises (such as the ABS keycaps, which may show signs of wear over time), the overall experience is top-notch, especially for its price.
Whether for work, gaming, or simple everyday use, the Carbon60 effortlessly adapts to any situation, bringing with it style, practicality, and functionality. It's a product that doesn't simply follow the trend of compact mechanical keyboards, but interprets it with a mature and well-balanced twist.
https://www.zazoom.it/news-notizia/post/844552/2025-07-16-recensione-epomaker-carbon--17-17/
Х
Epomaker Carbon60
The Keyboard For You
See the Differences.Meet The Lineup.
TH Series

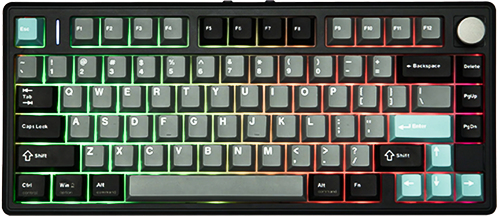

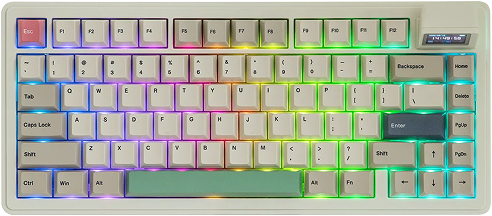

TH80
75%
Compact desk setup
Gasket
Compact with knob
$99.99 USD
RT Series
TH80
75%
Compact desk setup
Gasket
Gasket
$99.99 USD
Selected
TH Series

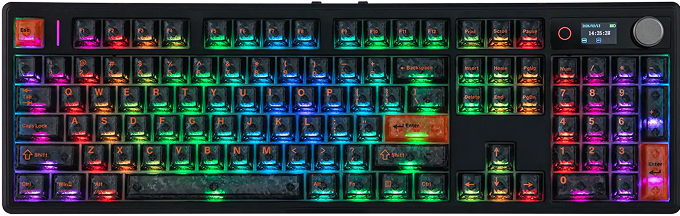

TH108 V2 PRO
