ACOUSTIC ARCHITECTURE
Engineered for Premium Sound
Gasket Mount, Sandwich Foam, IXPE Switch Pad, PET Sound Enhancement Pad, Bottom Silicone
Comfortable TypingLayered dampening
HE Series
EPOMAKER

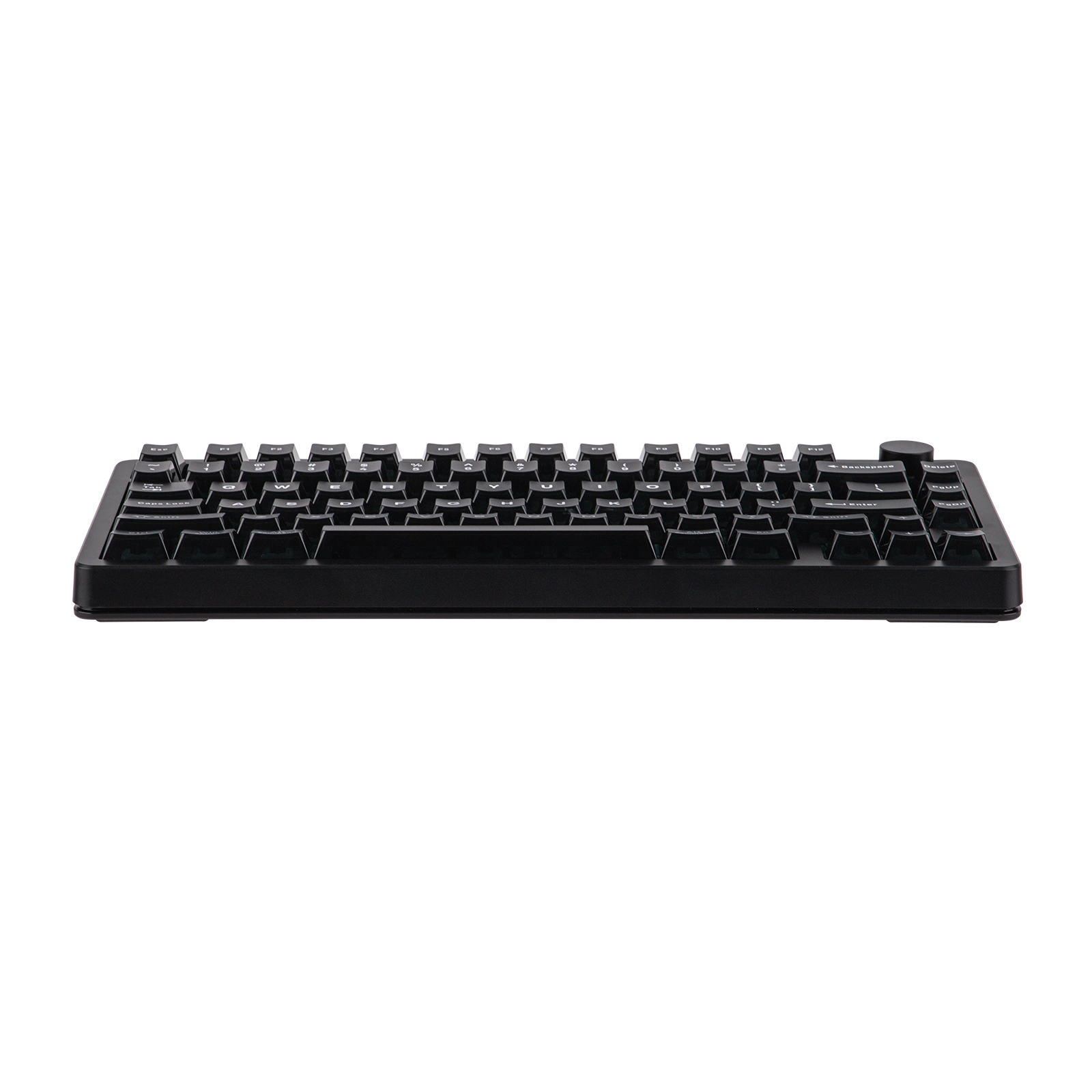

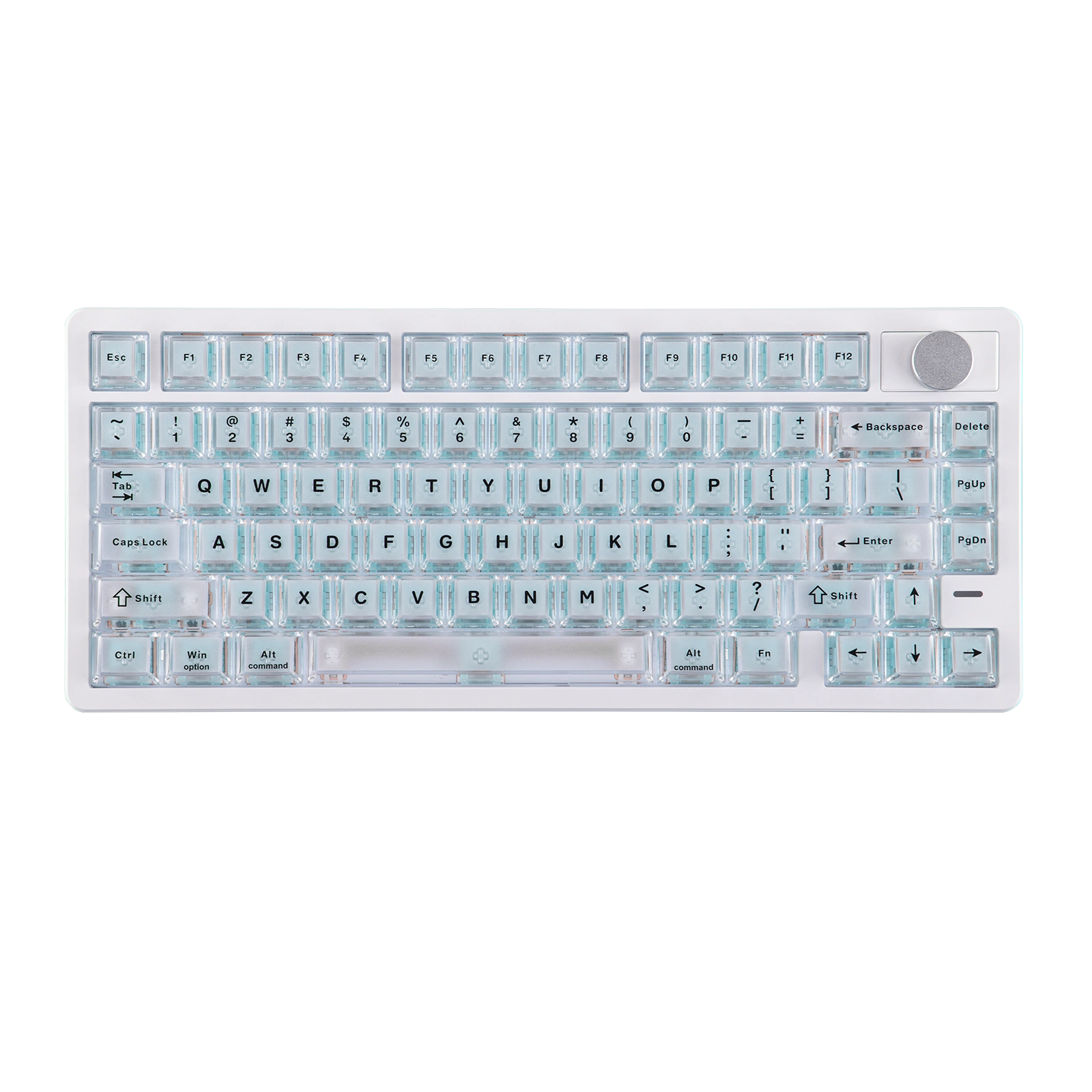

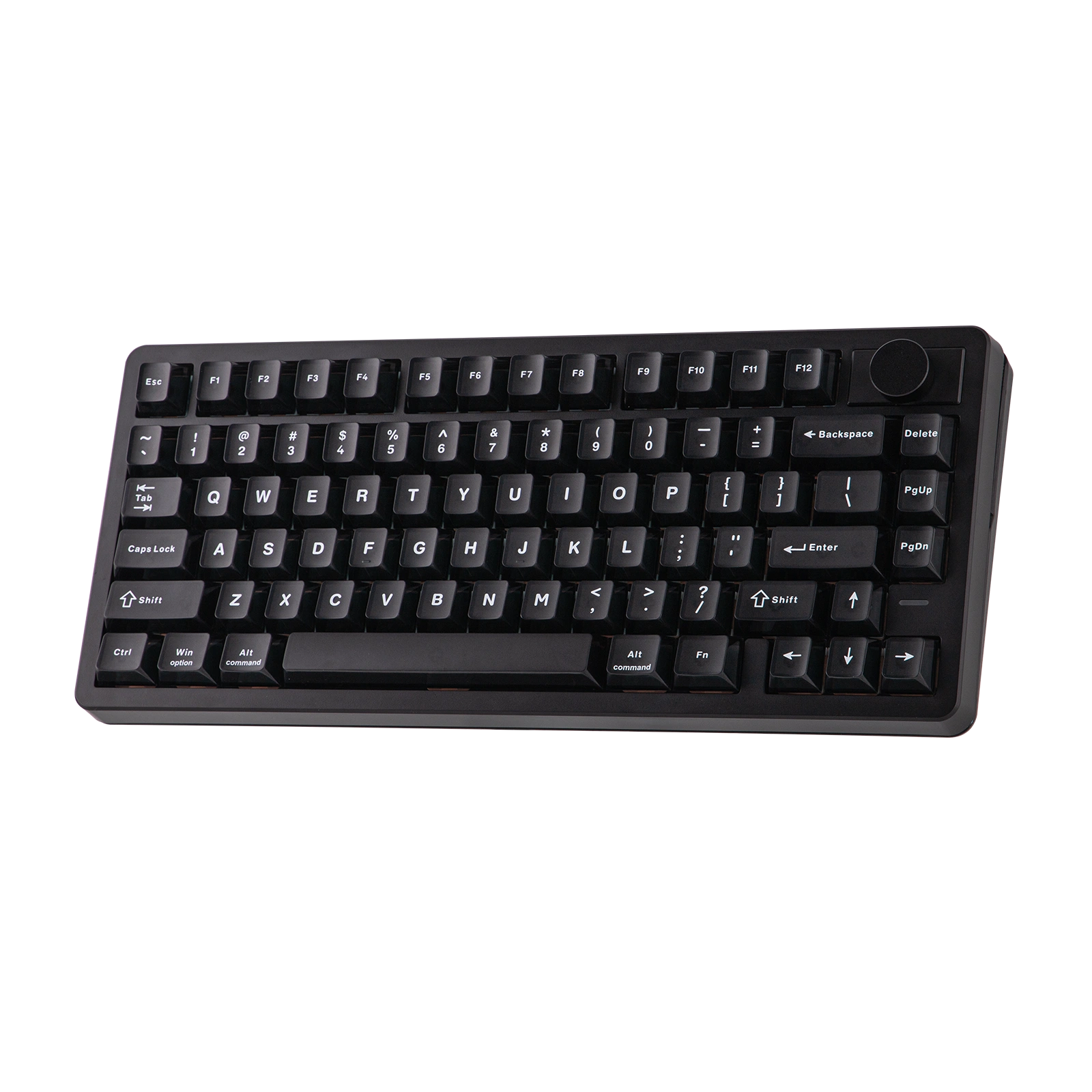

HE75 V2 TMR
75% TMR Magnetic Keyboard with 8000Hz polling, 0.01mm Rapid Trigger precision, hot-swappable magnetic/mechanical switch support, gasket sound tuning, and 8000mAh wireless performance.
$129
Recommended Products
TMR Magnetic Sensing
0.01mm precision adjustment for accurate control.
8000Hz Polling Rate
Ultra-low latency input for competitive gaming.
Hybrid Hot-Swap PCB
Supports magnetic and mechanical switches.
Gasket Sound System
Five-layer structure for softer keystrokes and tuned acoustics.
Typing Feel - Sound Design
Magnetic speed with a refined acoustic feel.
HE75 V2 TMR combines TMR magnetic precision with gasket mounting and multi-layer dampening materials to deliver fast response, softer keystrokes, and a cleaner typing sound.
Multi-Layer DampeningTuned Acoustics
Gasket MountSmooth Typing
Built with Purpose
Designed for EveryKeystroke.
Comfortable TypingLayered dampening
TMR MAGNETIC SYSTEM
Built for Ultra Precision
TMR Sensor Technology, Adjustable Actuation, Rapid Trigger, 0.01mm Precision Control
Rapid ResponsePrecise input
HYBRID HOT-SWAP PCB
Supports Flexible Switching
Magnetic Switch Compatible PCB with 3/5-pin Mechanical Switch Support
Switch CompatibilityMagnetic & Mechanical
PERFORMANCE CONNECTIVITY
Connect Any Way
Wired, 2.4GHz Wireless, Bluetooth 5.0 with Up to 8000Hz Polling Rate
Tri-ModeBT · 2.4G · Wired
About this Product
Well Thought.Design Features.
BATTERY8000mAh
8000mAh Battery
POLLING RATE8000Hz
8000Hz Polling Rate
0.01mm Precision Adjustment
Wired / 2.4GHz / Bluetooth
Hybrid Hot-Swap PCB
Magnetic + Mechanical Switch Support
Gaming Features
DKS / SOCD / Rapid Trigger Support
Precision TMR Performance
TMR magnetic switches provide 0.01mm precision adjustment, Rapid Trigger, and ultra-responsive input for competitive gameplay.

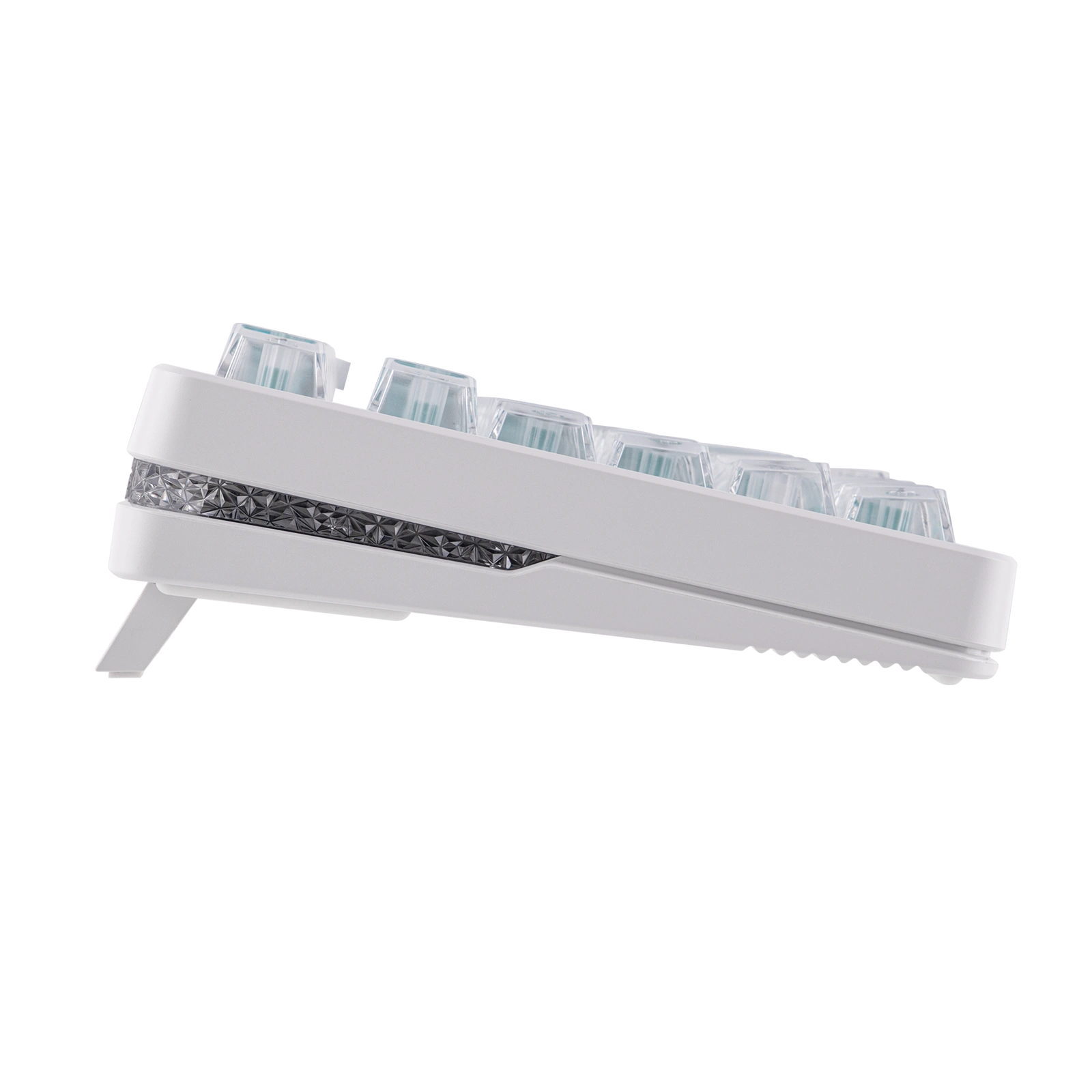

Ergonomic 5.8° Typing Angle
Dual-stage adjustable feet offer a comfortable typing angle, improving wrist support during long gaming or working sessions.
Tuned Acoustic Structure
The gasket-mounted design and five-layer sound optimization system deliver a balanced, creamy typing sound with reduced unwanted noise.
Sound & Typing Experience
The keyboard that makes your whole desk look intentional.
5 Layer Design
Plate foam, case foam, switch pads. Each tuned for a specific frequency range — measured, not random.
PBT Over ABS
PBT keycaps are denser and produce a deeper tone on bottom-out. The 'thock' you hear is partly the keycap.
Recorded in EPOMAKER Sound Lab with calibrated microphones. The same method we use to tune every product.
Why theHE75 V2 TMRSounds this good.
Designed for both competitive gaming and everyday typing, the HE75 V2 TMR combines a gasket-mounted design with five layers of acoustic tuning to deliver a clean, deep, and satisfying sound straight out of the box.
- Gasket-mounted structure reduces vibration
- Five-layer sound optimization controls cavity echo
- Factory-lubed TMR switches ensure consistent sound
- FR4 plate enhances typing feedback
- South-facing RGB with transparent PC keycaps
New Generation Switches
Compare Versions.Switch Differences.
Switch
Type
Feel
Sound
Best For
Sound Profile
EPOMAKER Creamy Jade Hall Effect Switch
Magnetic Linear
Smooth & Light
Creamy · Deep · Balanced
Gaming / Fast Typing
LOW
Mid
High
V-High
About This Product
Technical Specifications.Quality Delivered.
Brand
EPOMAKER
Model
HE75 V2 TMR Version

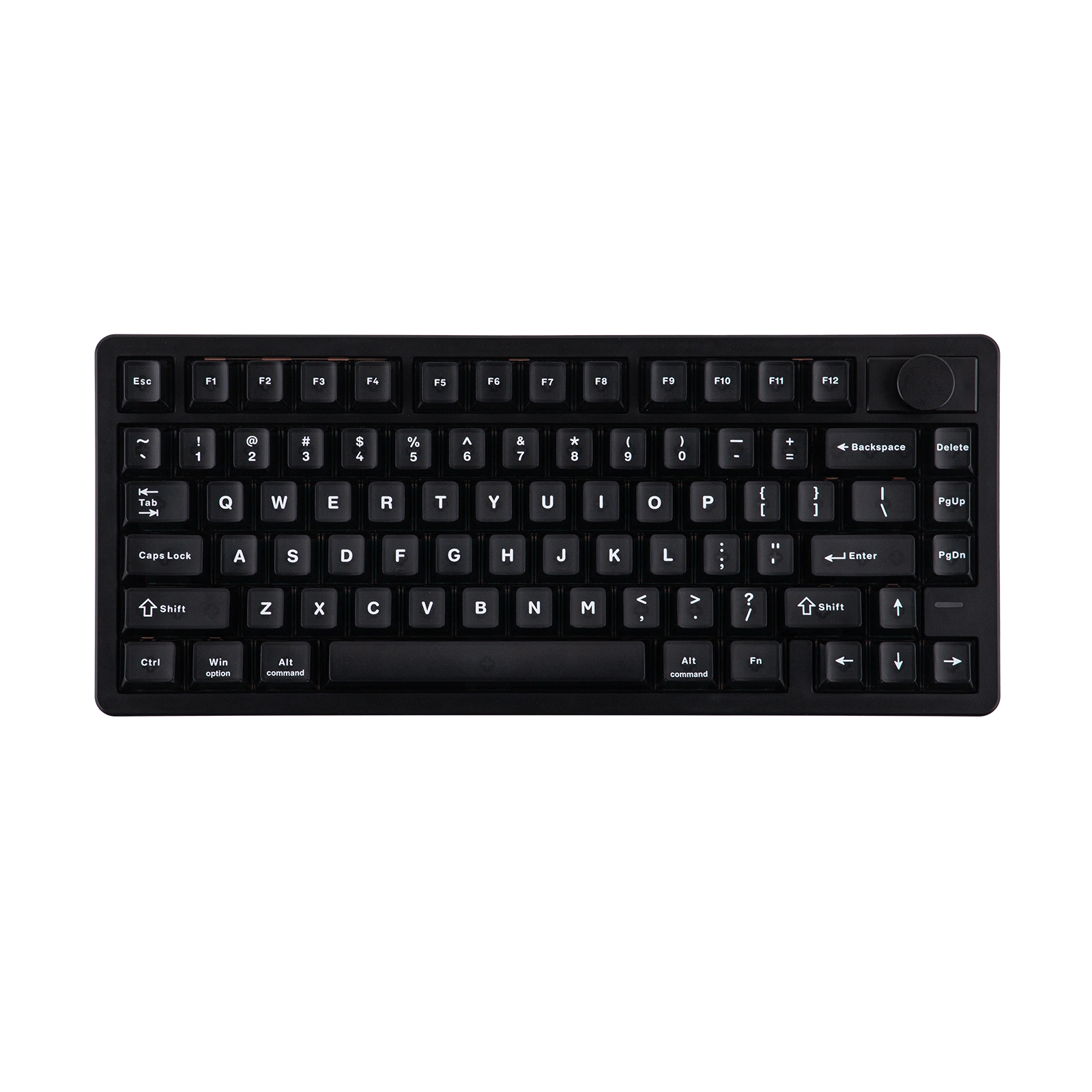

Layout
75% Layout, ANSI US Layout, QWERTY Layout
Number of Keys
80 Keys + 1 Knob (Knob is swappable as 2 Keys)
Battery
8000mAh Battery (4000mAh*2)
Connectivity
2.4Ghz/BT/Wired
Compatibility
Mac/WIN/Android
Front Height
1.9cm
Back Height
3.29cm

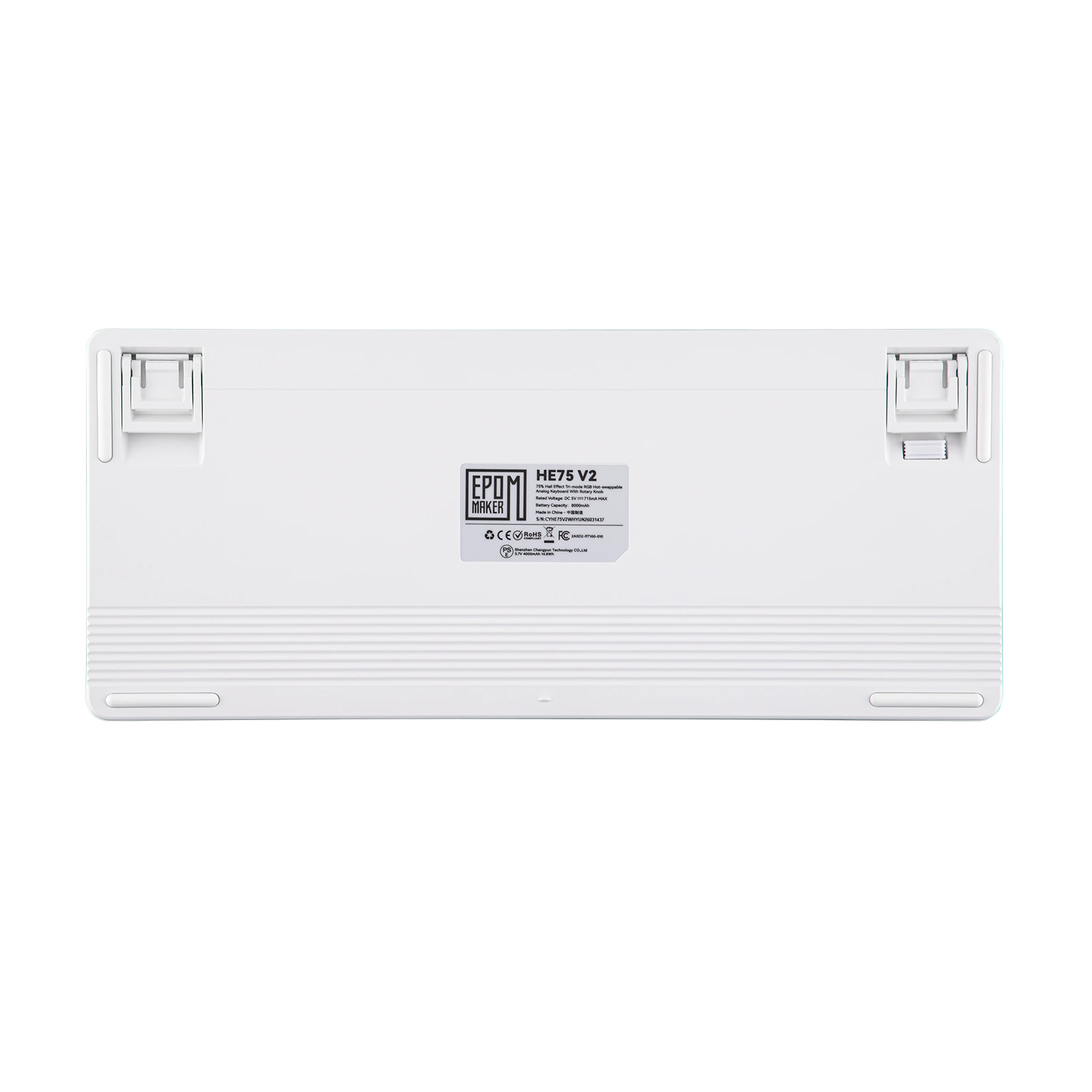

Typing Angle

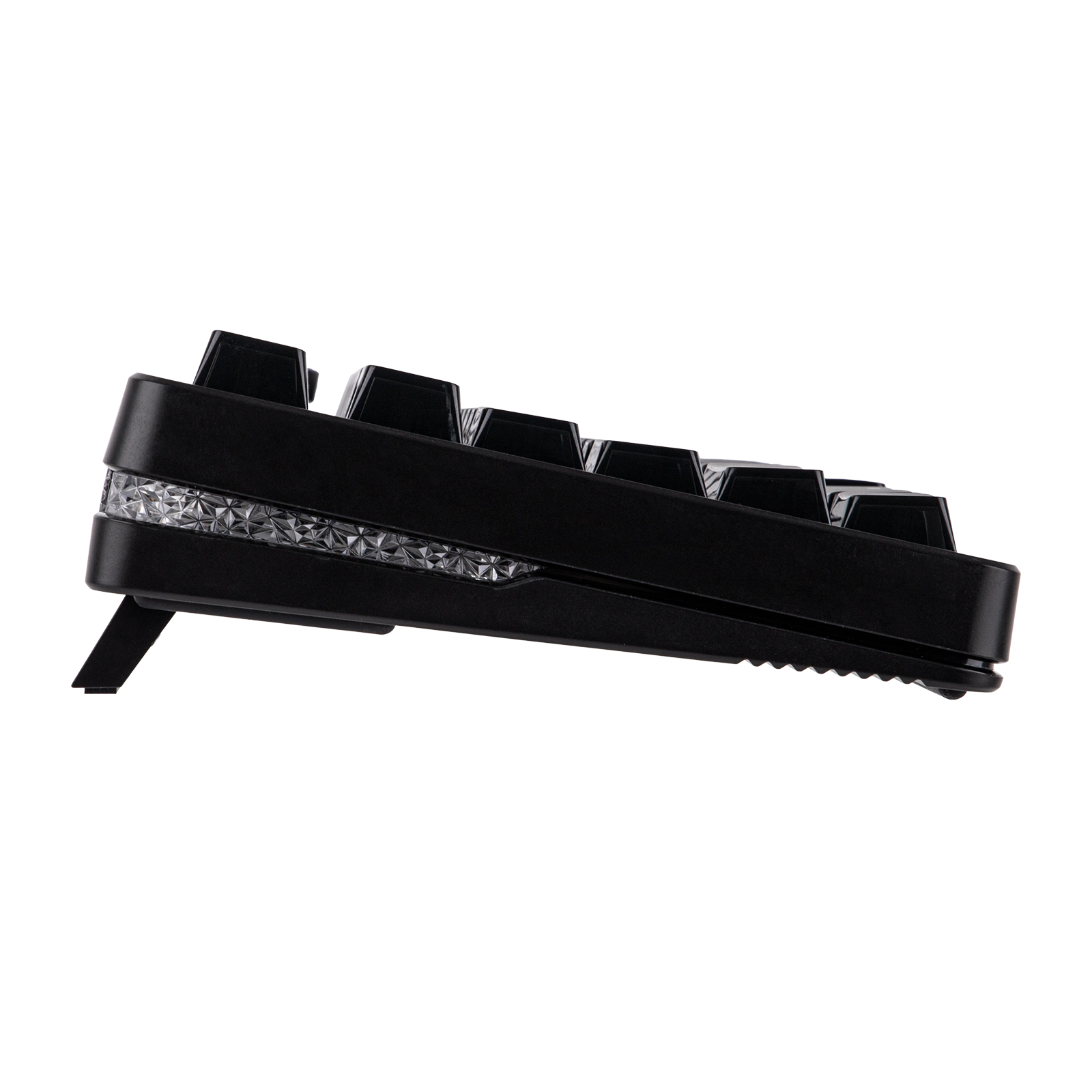

Three Angles at 5.8, 9 and 12 degrees with the 2-stage Adjustable Kickstand
Case Material
ABS Plastic
Plate Material
FR4 Plate
Flex-Cut
No, the HE75 V2 HE keyboard does not have flex-cut plate or PCB.
Stabilizers
Plate-Mounted Stabilizer
Mounting Structure
Gasket-Mount
Sound Optimizing
5-layer sound-optimizing system including Sandwich Latex Foam, Switch Pad, PET sound enhancement pad, Noise Absorbing Foam and bottom silicone.

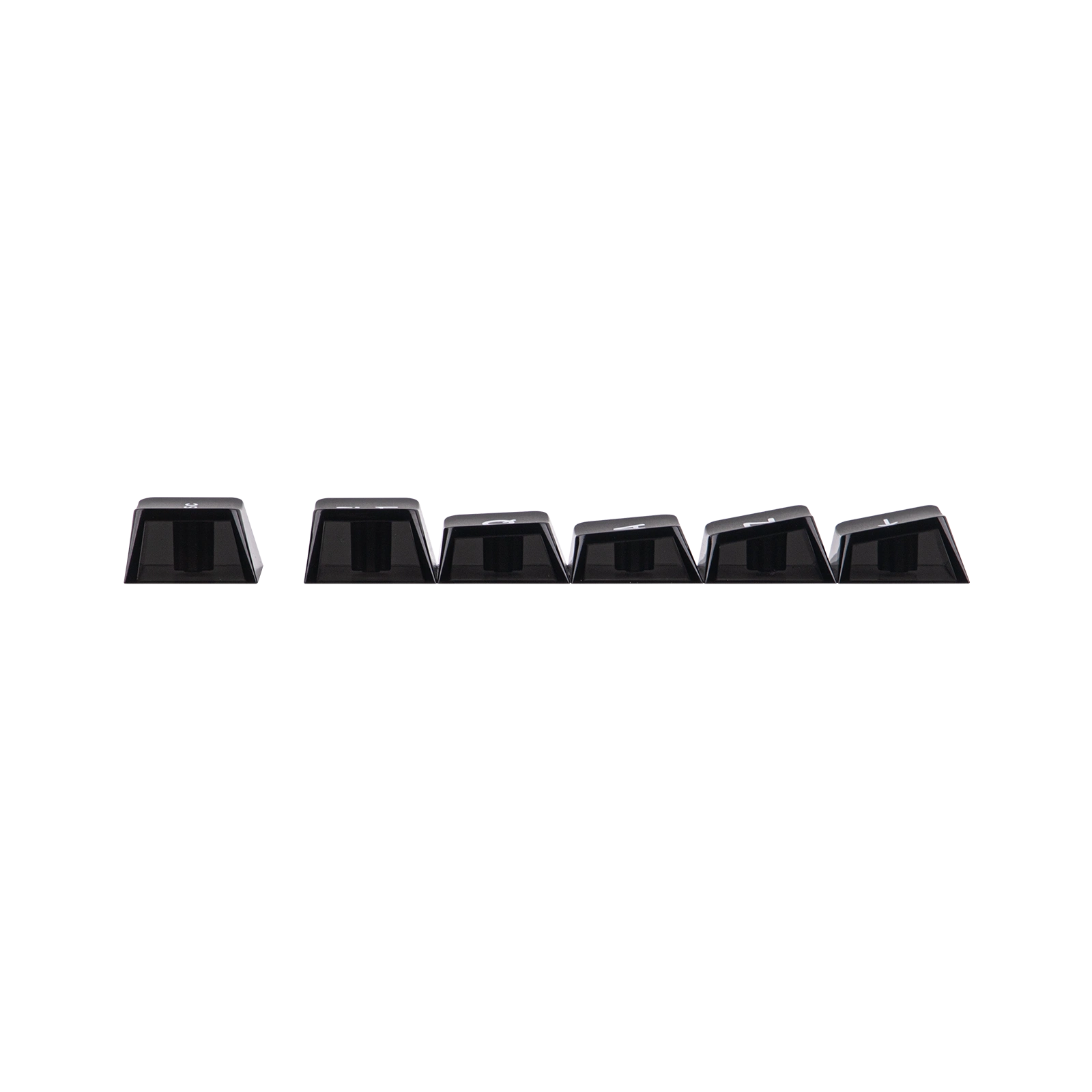

Keycaps Profile
Cherry Profile

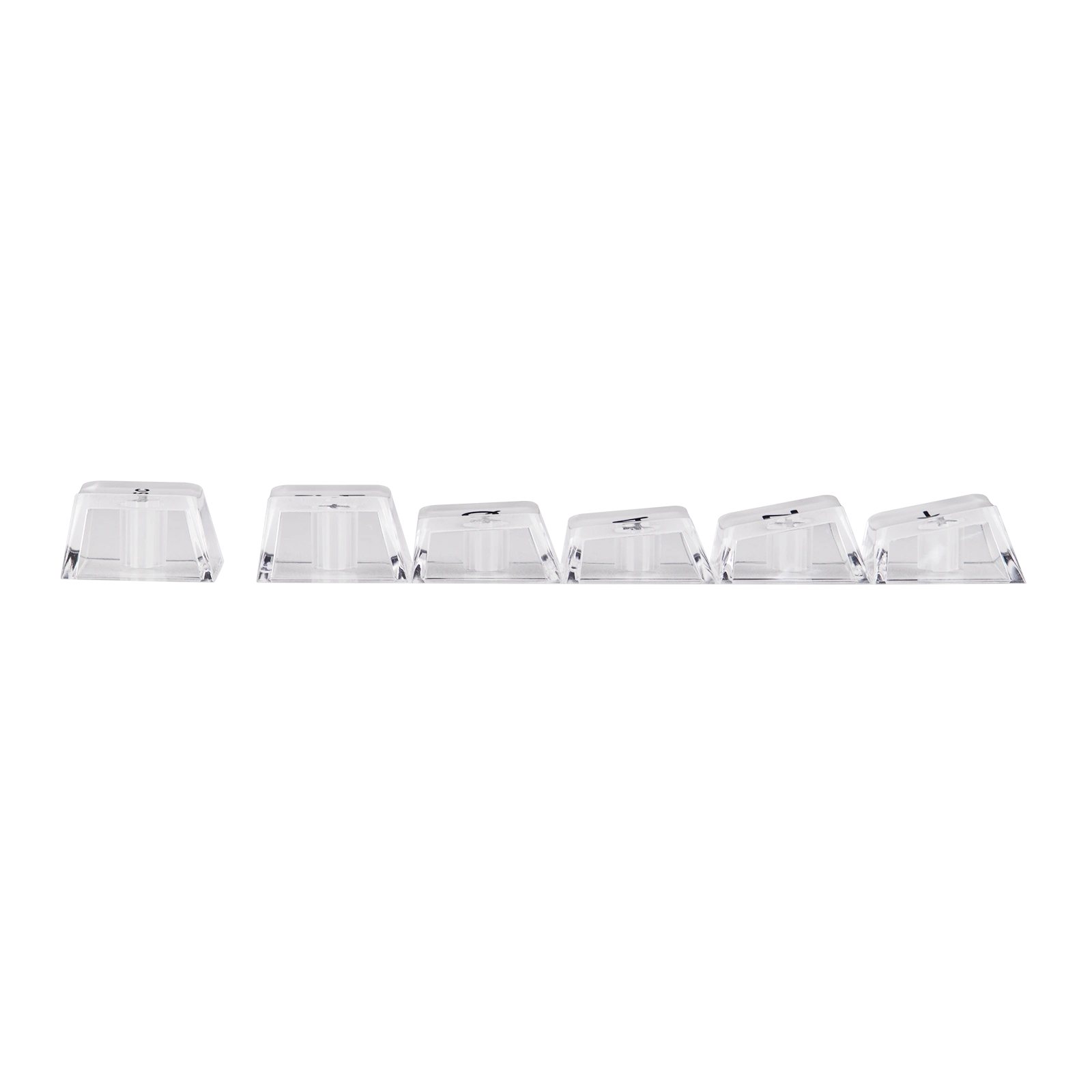

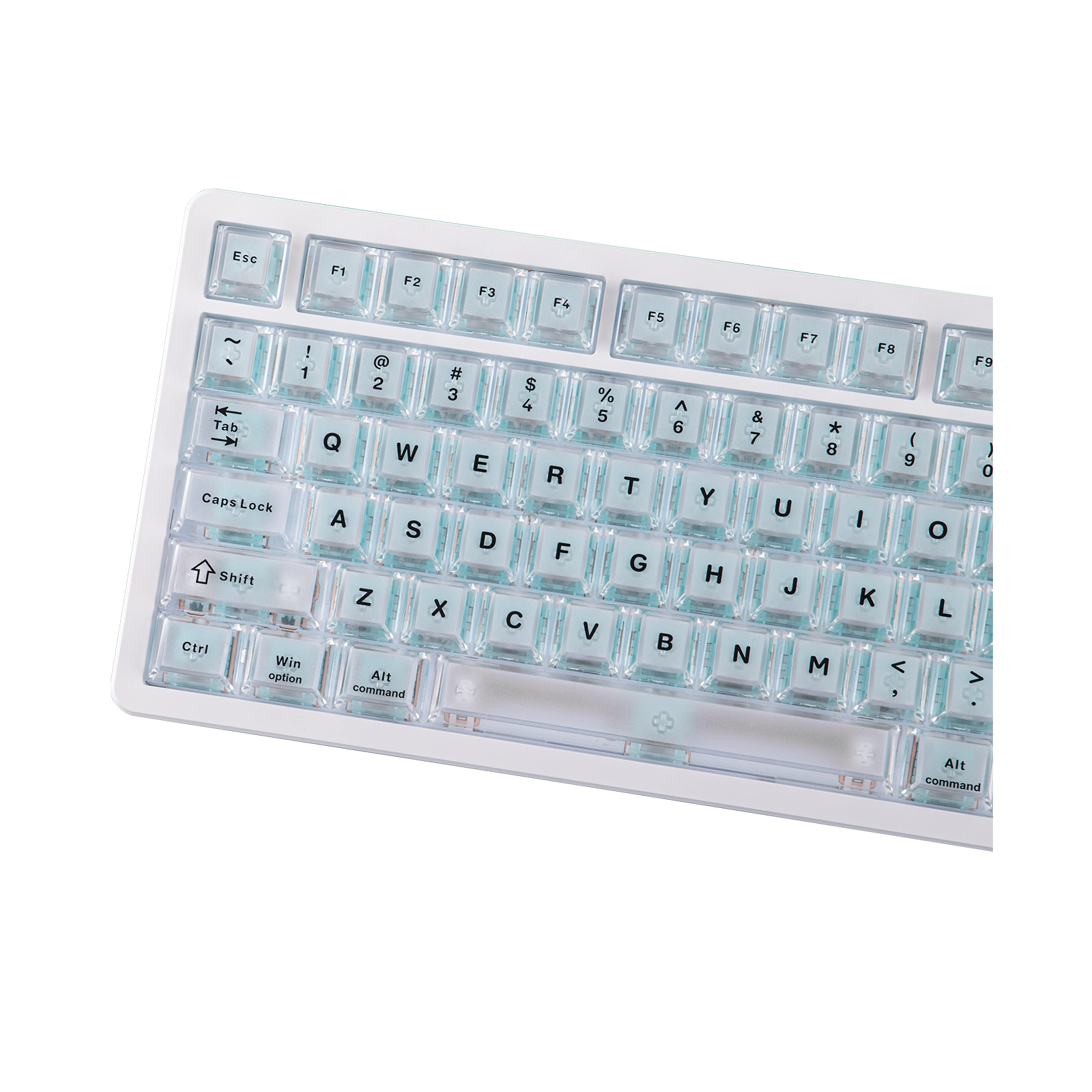

Keycaps Material

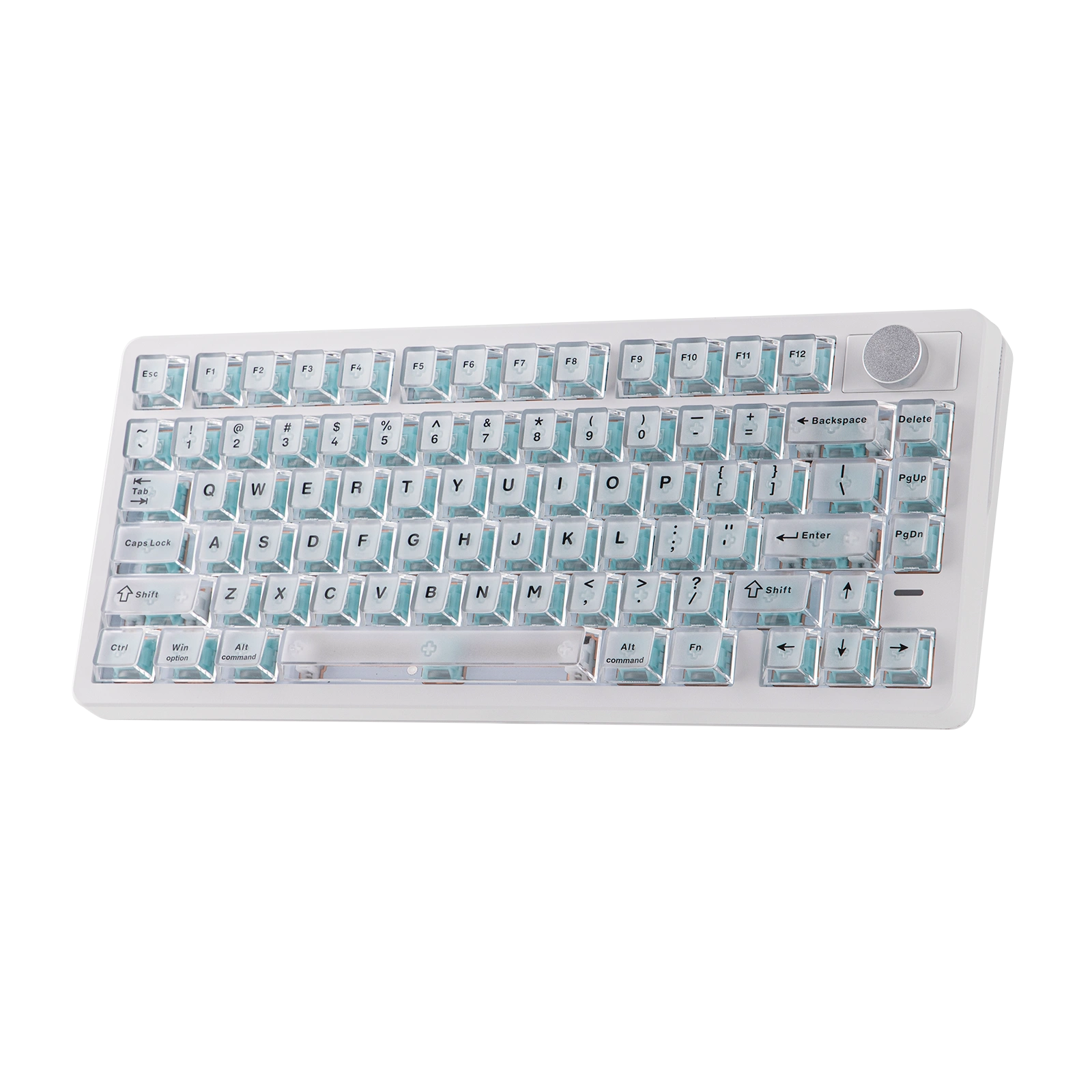

PC Keycap, Matte Transparent
Keycaps Manufacturing Technique
Silk Print
Switch
Factory Lubed Magnetic Switch
Hot Swappable
Yes, the HE75 V2 TMR keyboard is hot-swappable with magnetic and 3/5-pin mechanical switches. (Note HE75 V2 and HE75 V2 TMR are different keyboards and the former only support the usage of magnetic switch.)
RGB

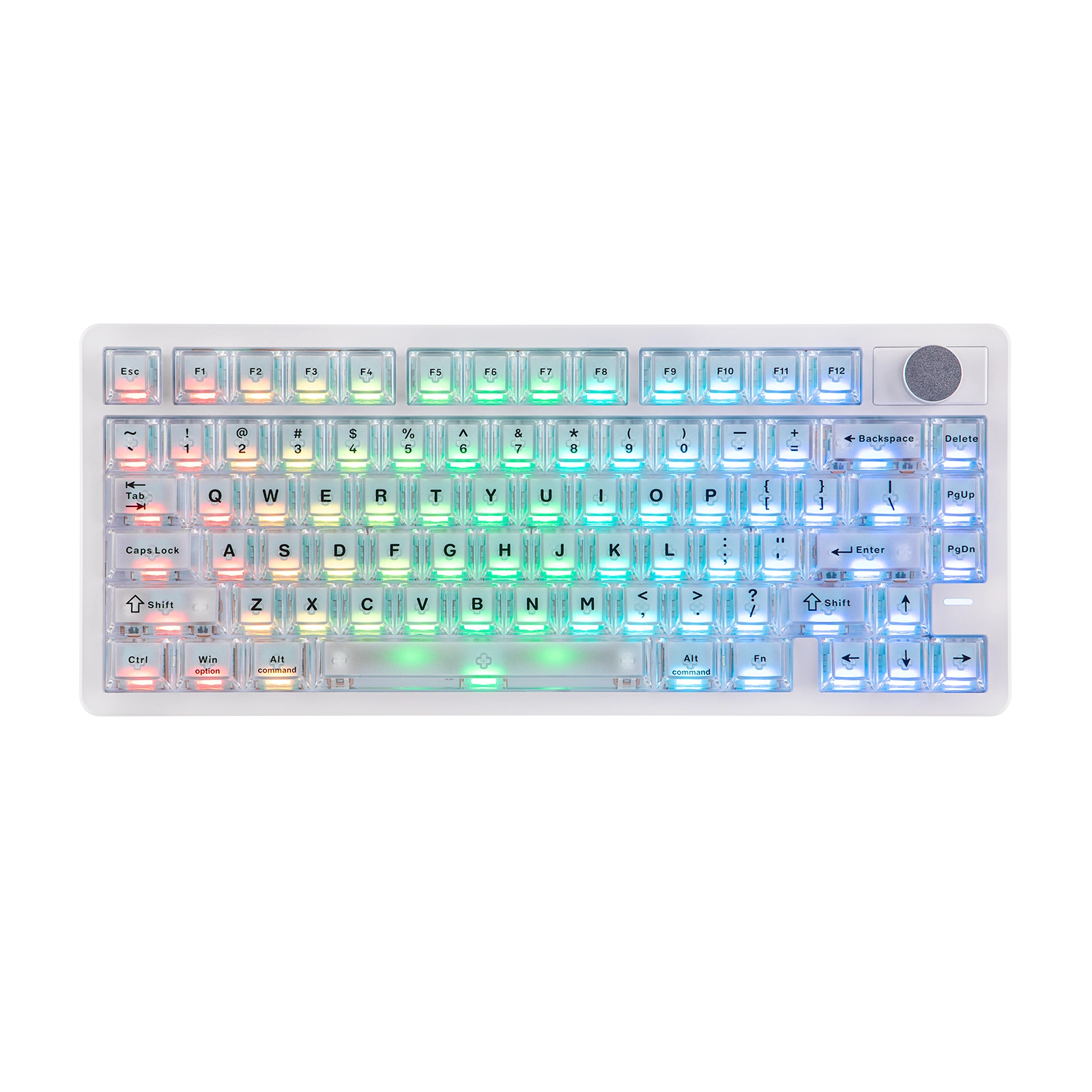

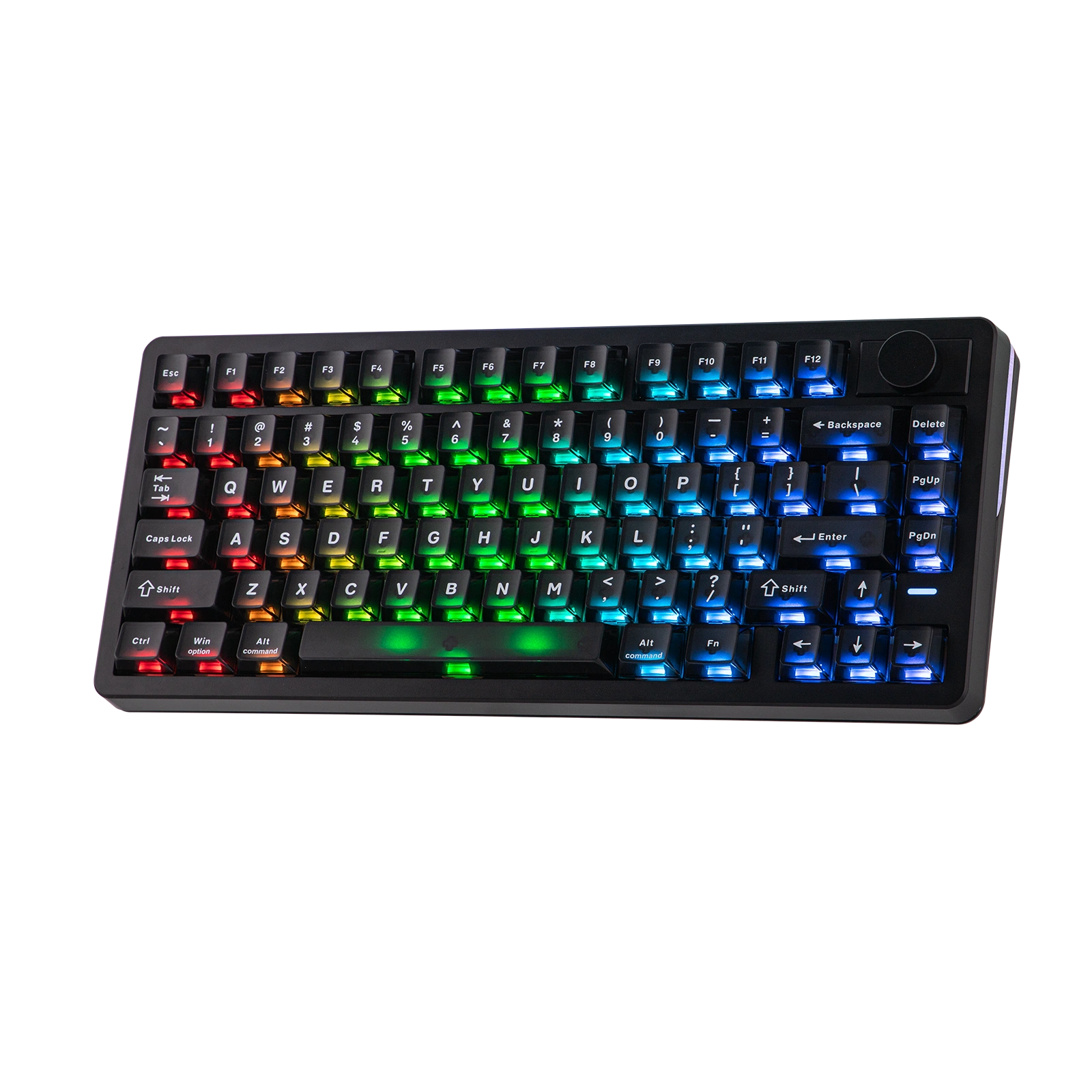

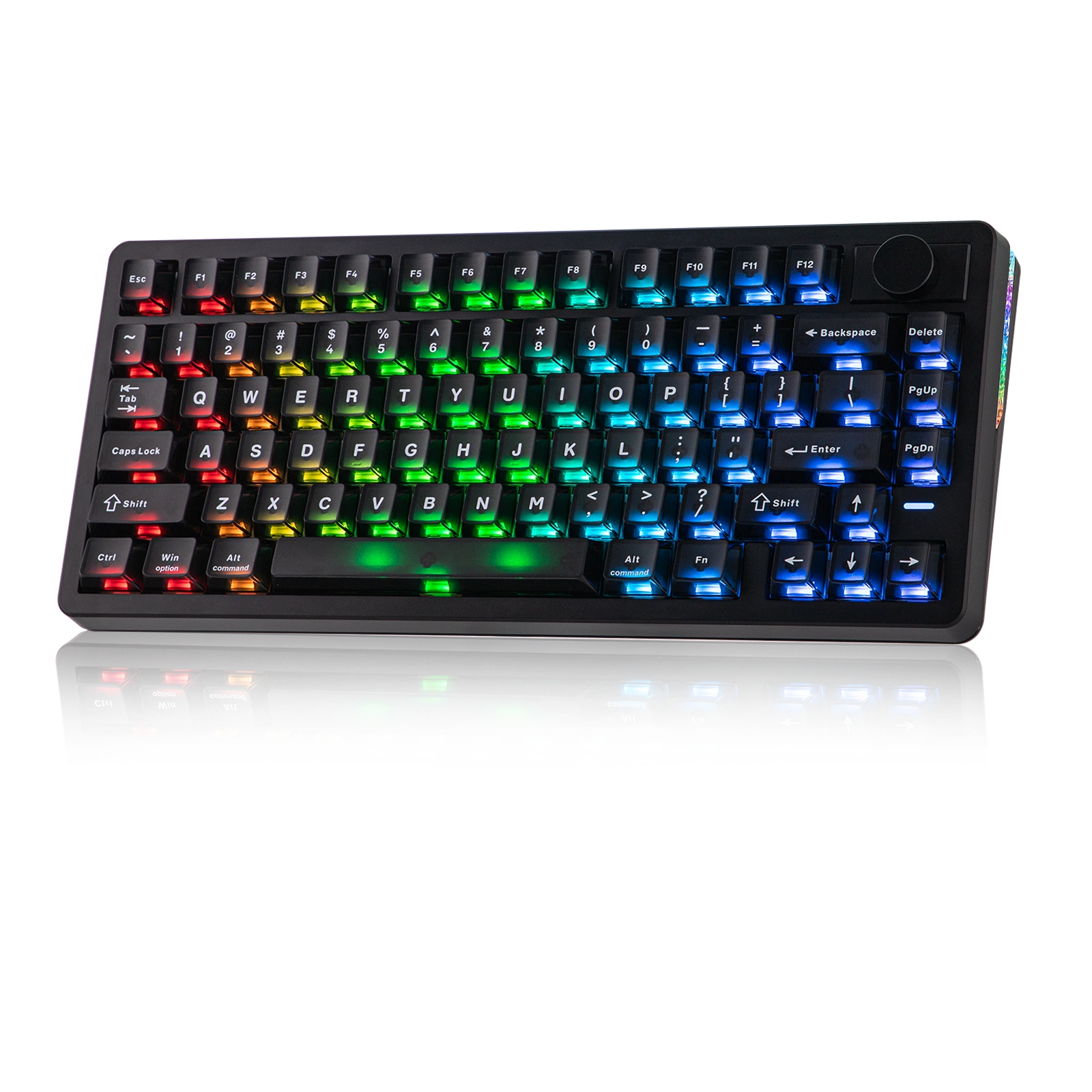

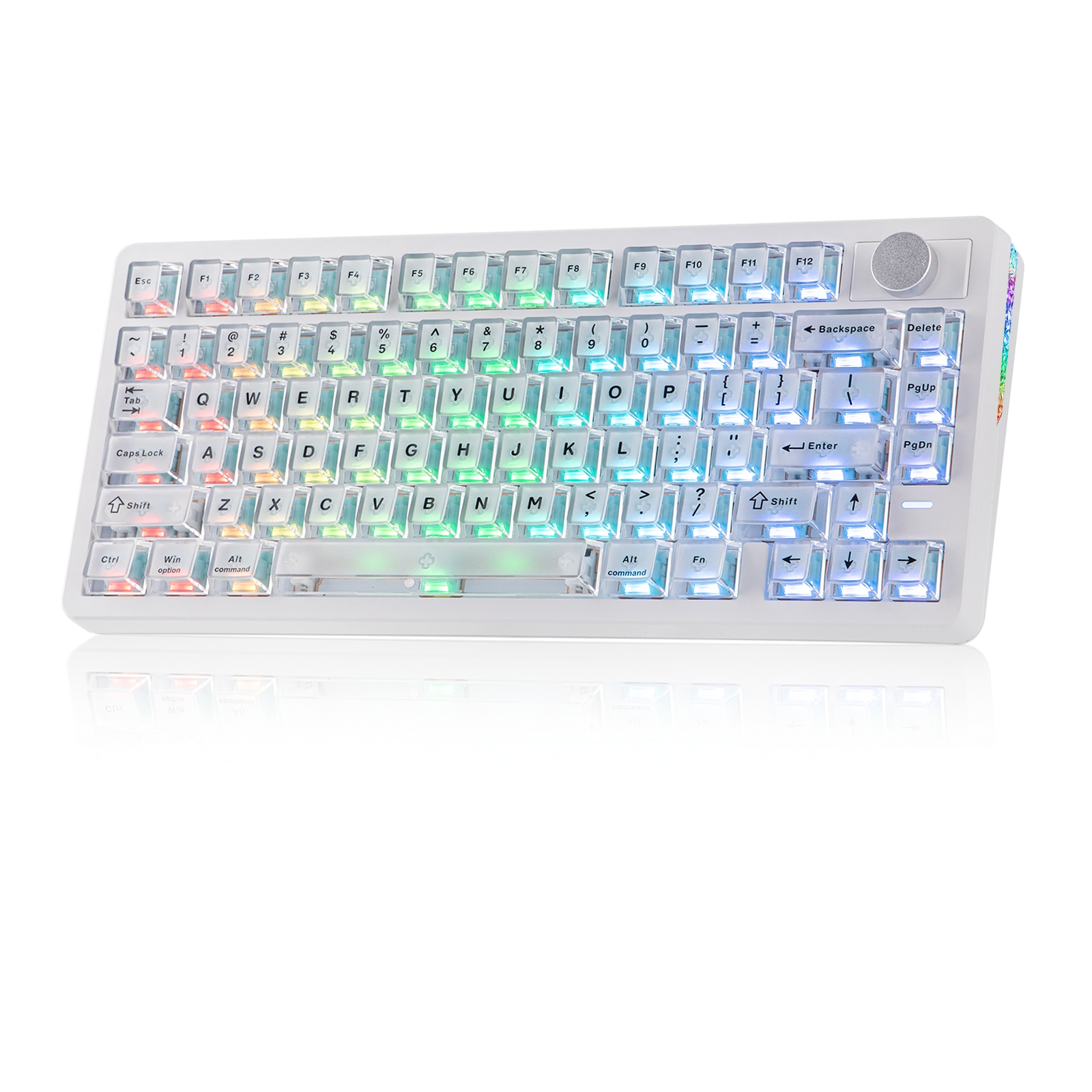

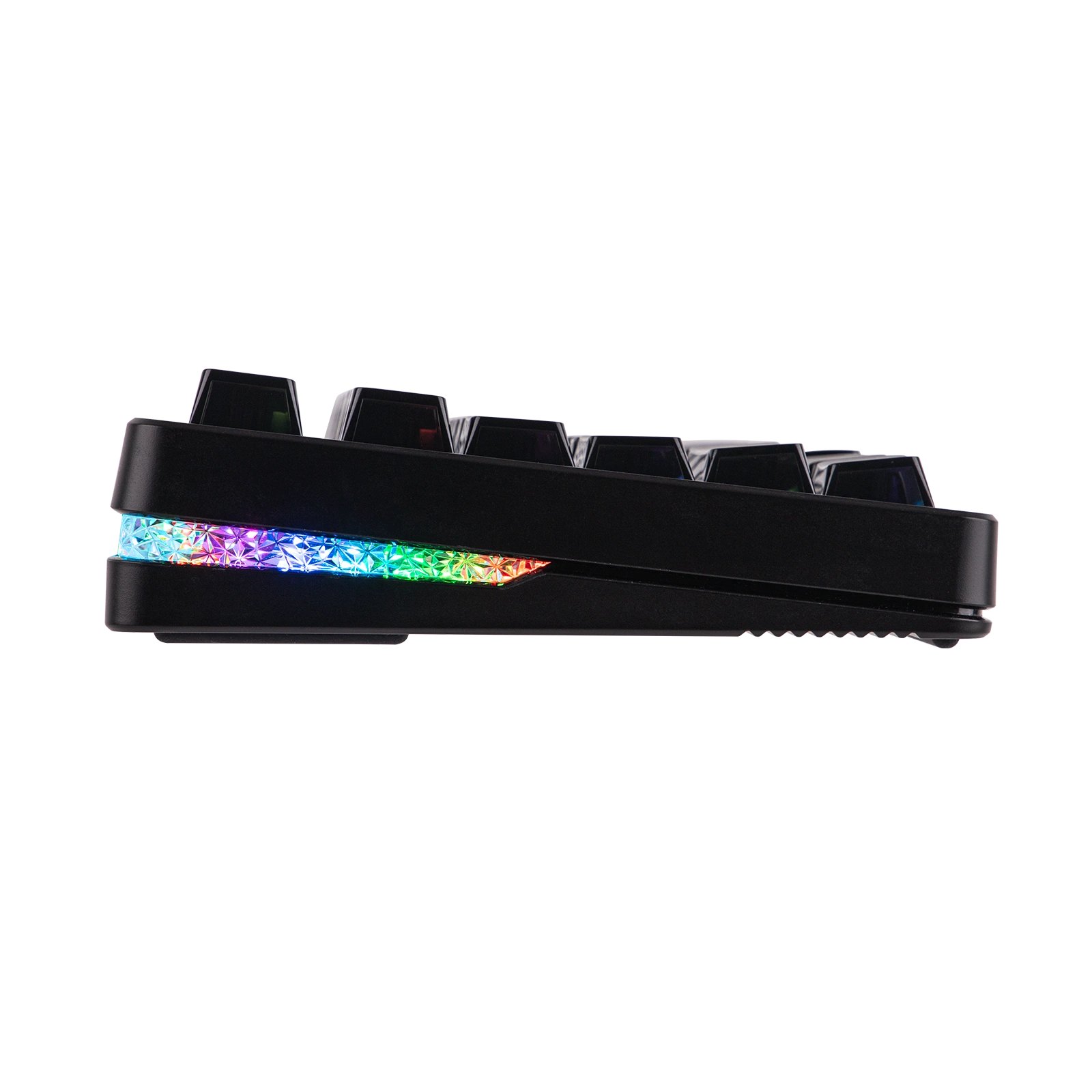

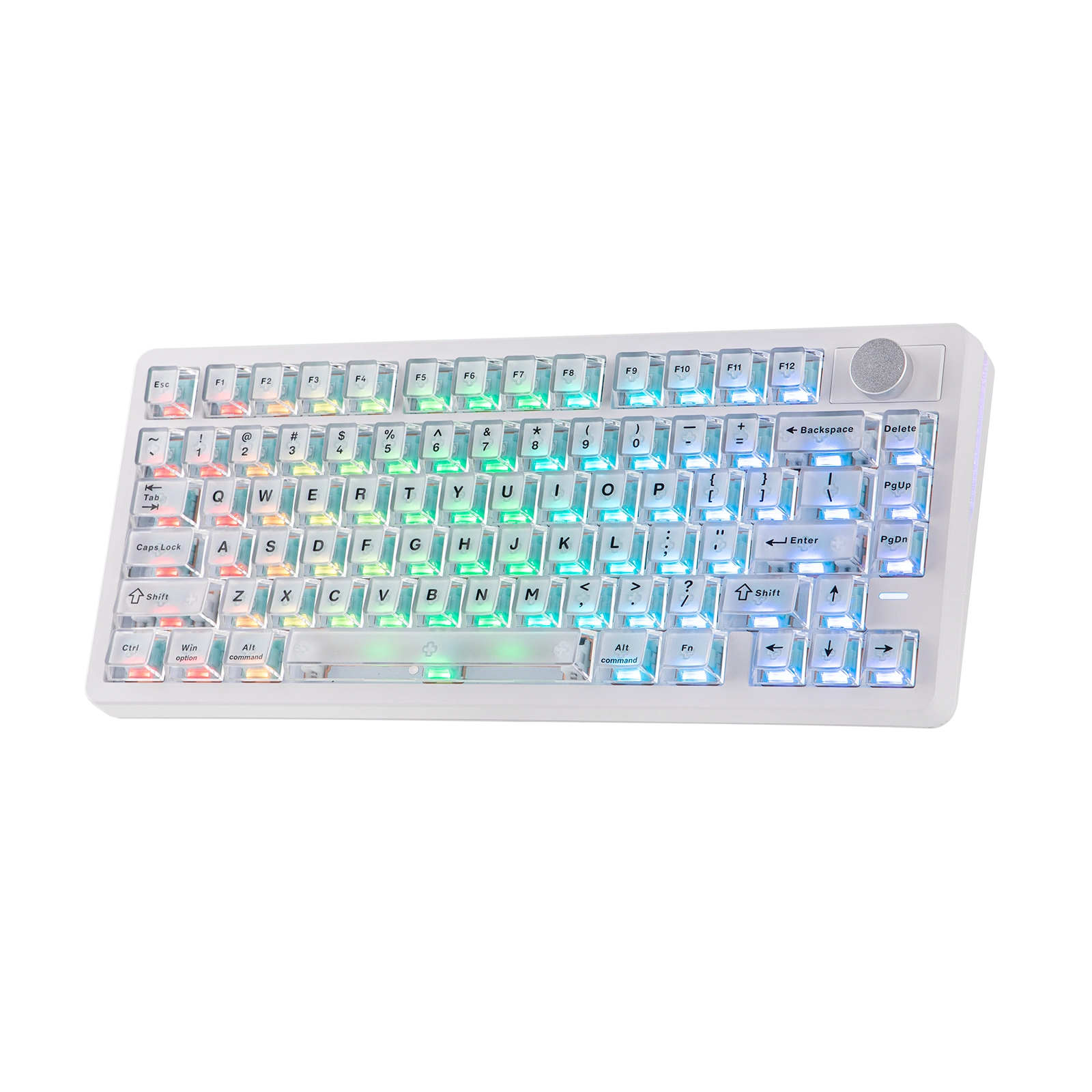

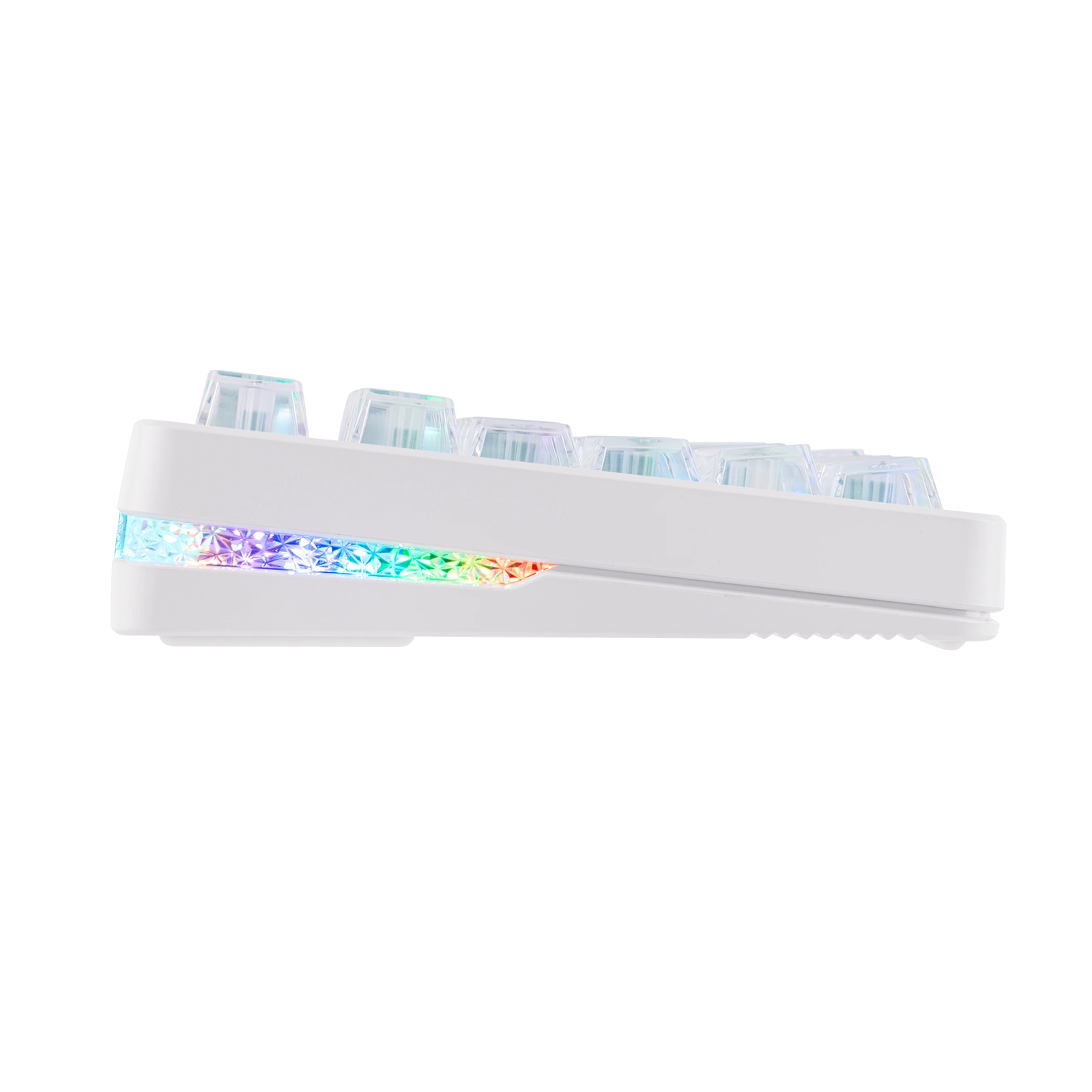

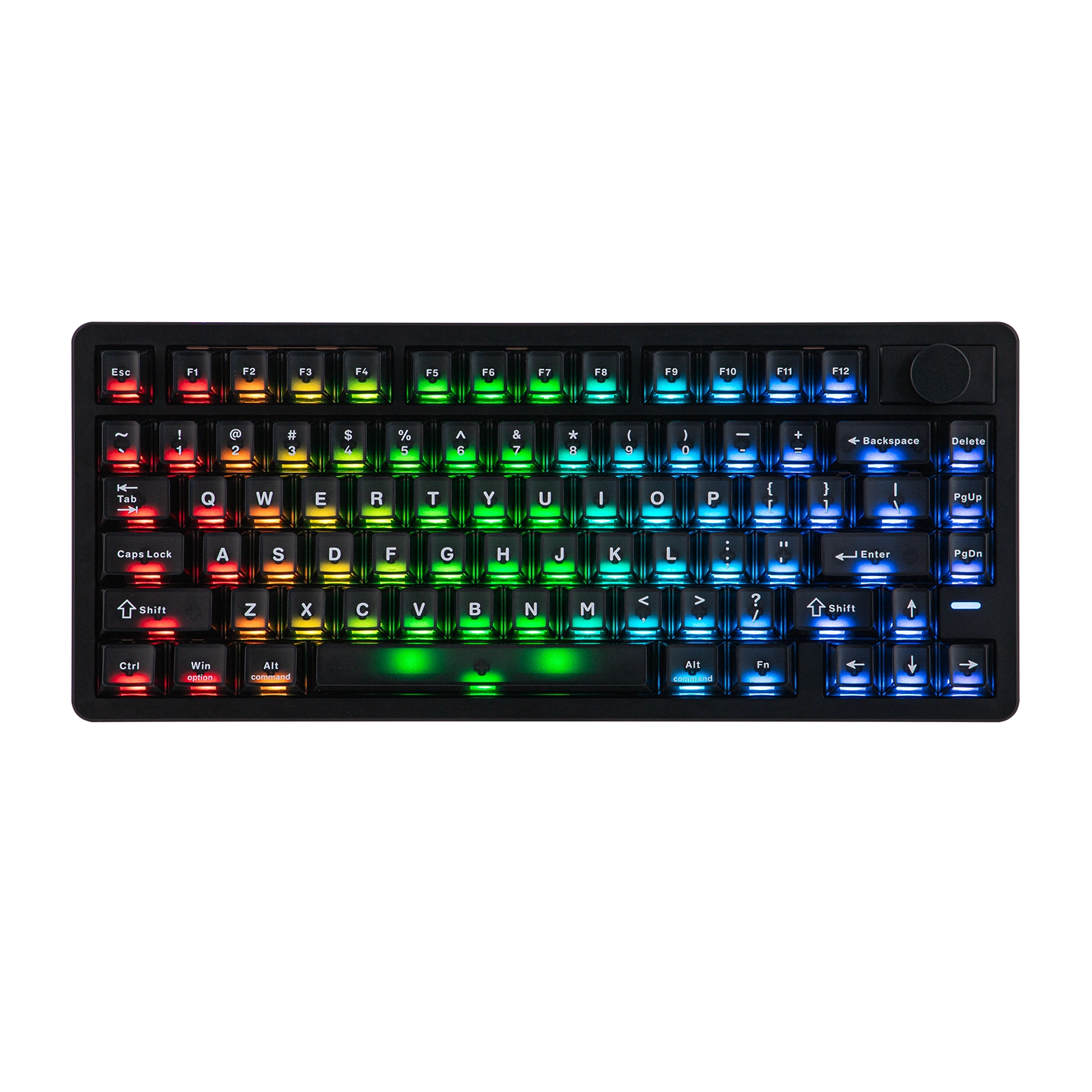

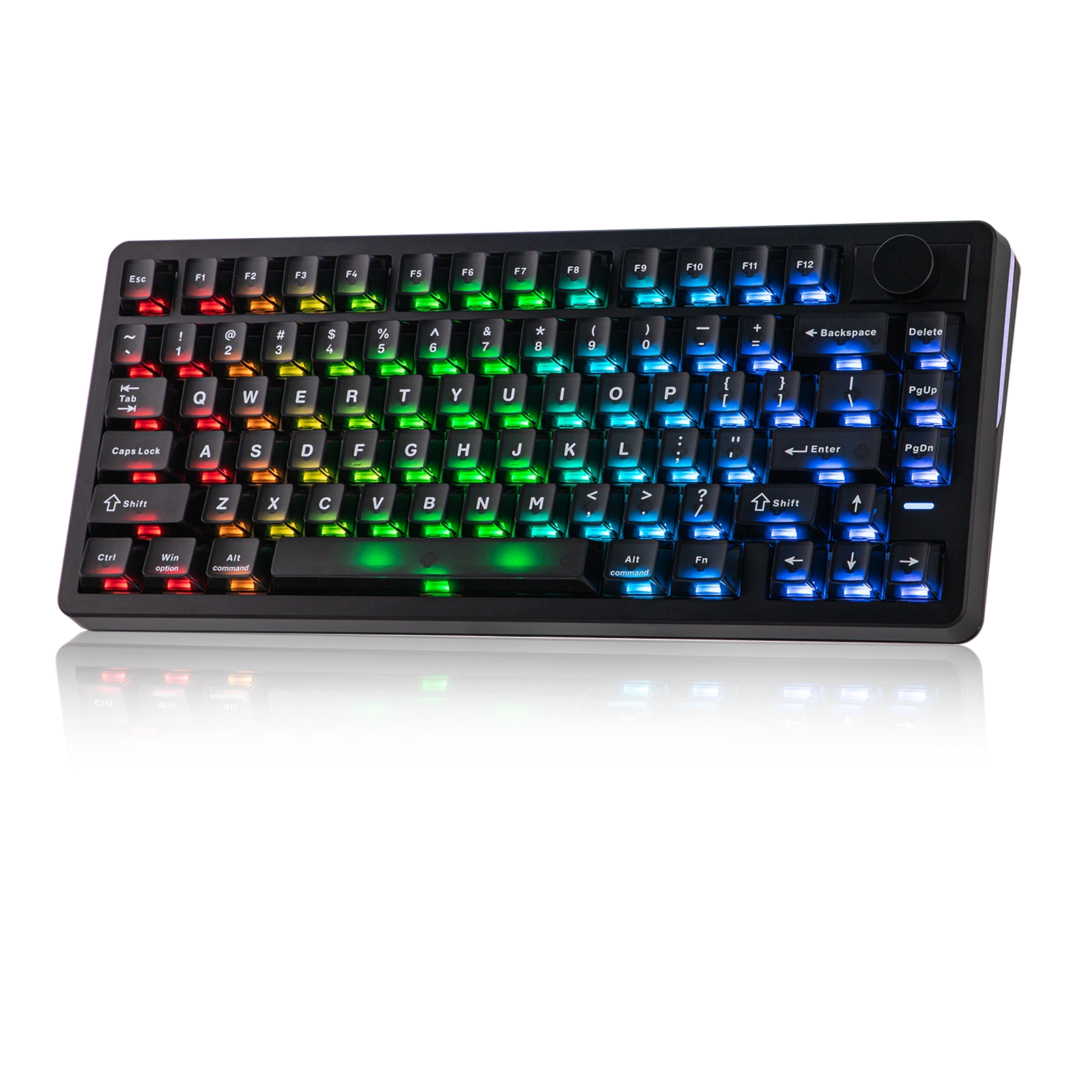

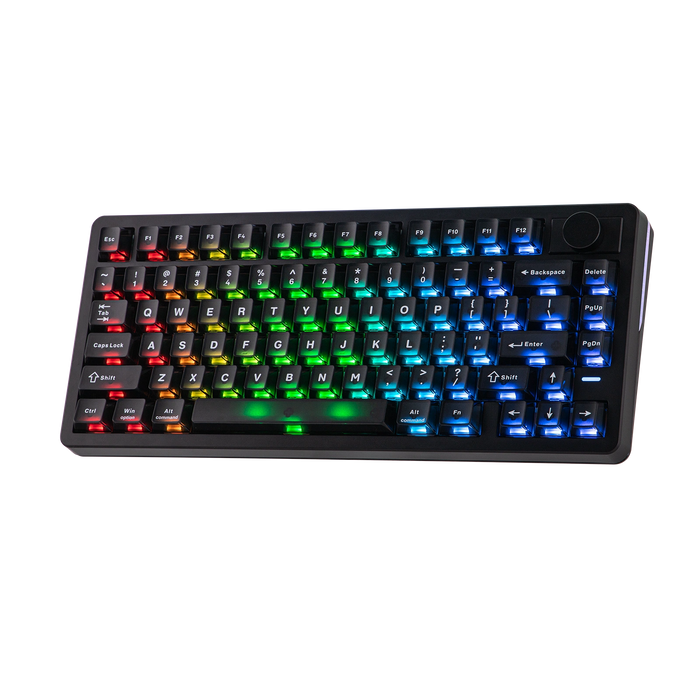

Yes, the HE75 V2 TMR Gaming keyboard has dynamic RGB backlight with per-key adjustable south-facing LEDs, and the adjustable RGB front light.
Polling Rate
8000hz (USB/2.4Ghz) or 125hz (BT)
Scan Rate
128KHZ
Latency
0.1ms (Wired), 0.58ms (2.4Ghz) and 15ms (BT)
Software
Yes, the EPOMAKER HE75 V2 TMR Keyboard can be programmed using the EPOMAKER 3.0 Software (EPOMAKER V4).
Keyboard Dimensions
32.4*13.8*4.3cm
Keyboard Weight
0.98kg
EPOMAKER Creamy Jade Magnetic Switch
A smooth magnetic linear switch with adjustable actuation, precise Hall Effect sensing, and a creamy typing experience optimized for gaming and customization.
Switch TypeMagnetic Linear
Trigger Force30gf
Bottom-out Force55gf
Pre-Travel0.1-3.5mm Adjustable
Total Travel3.5±0.1mm
Light DiffuserYes
Product Downloads
Keep your Keyboard.Up to Date.
Ready to Use
Everything you Need.Inside the Box.
HE75 V2 TMR 75% Gaming Keyboard
USB-C Cable
2.4GHz Wireless Receiver
2-in-1 Switch & Keycap Puller
Pictures for reference only. Packaging and included accessories may differ slightly from what you get delivered.
Content List
- 1xEPOMAKER HE75 V2 TMR
- 4xExtra Switches
- 2xKeycaps for the Swappable Knob
- 1xDetachable USB-C Cable

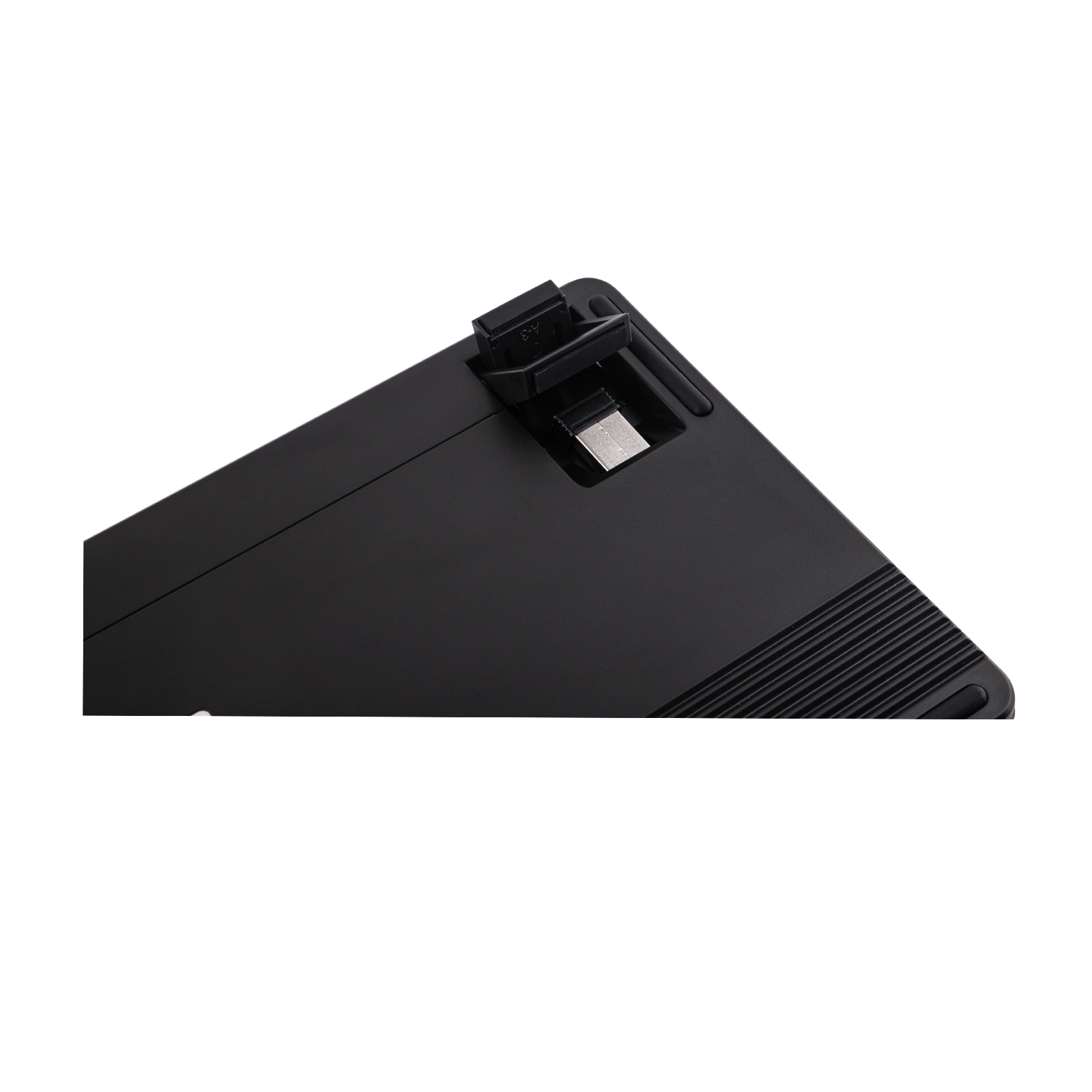

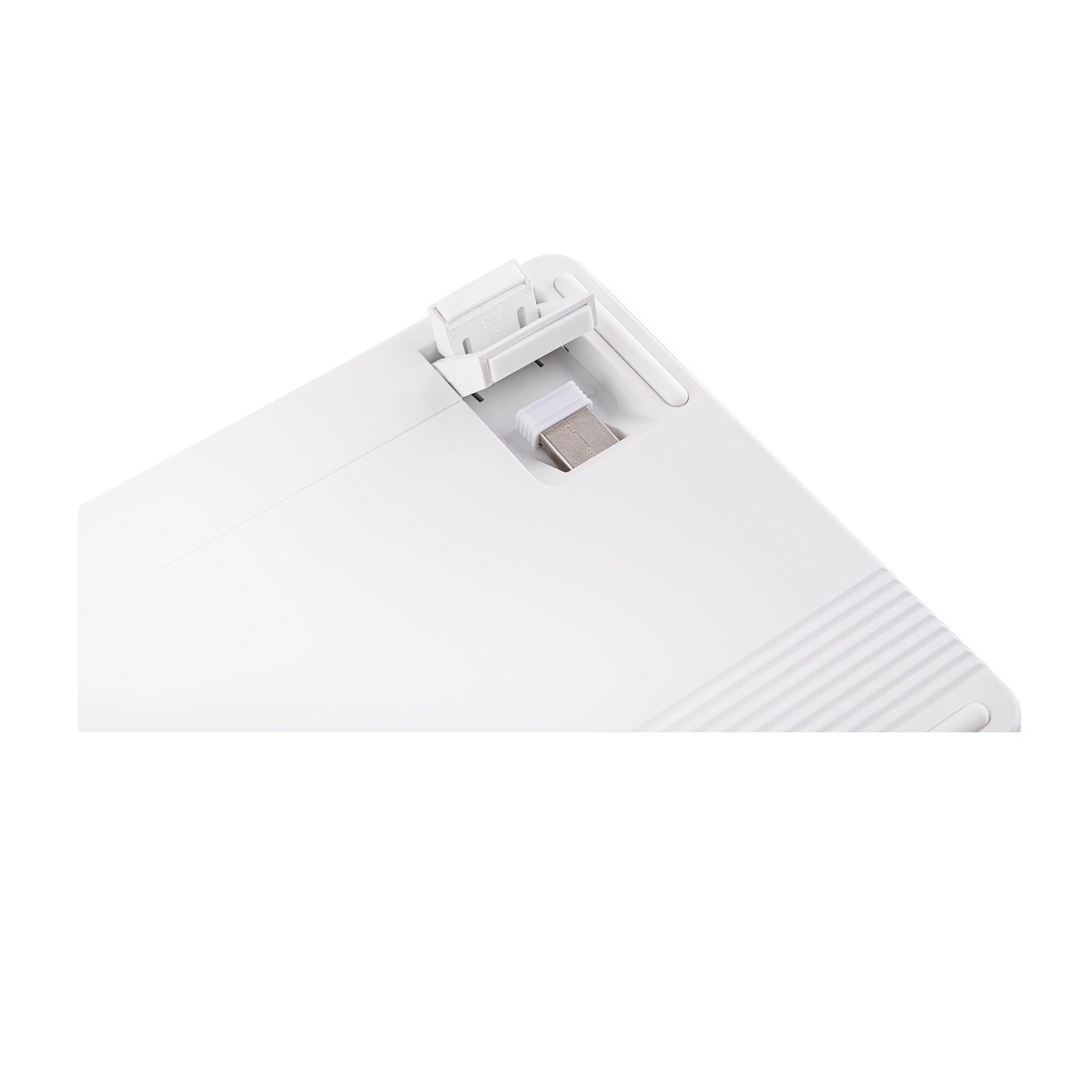

- 1x2.4GHz Wireless Receiver2.4Ghz Receiver (Stored under the Left Kick-Stand)
- 1x2-in-1 Switch & Keycap Puller
- 1xMultilingual User Manual
- 1xThank-You Card
Your Desk Setup
Perfect Pairings.Complete your Setup.
Around the World
Media Reviews.Product Unboxing.

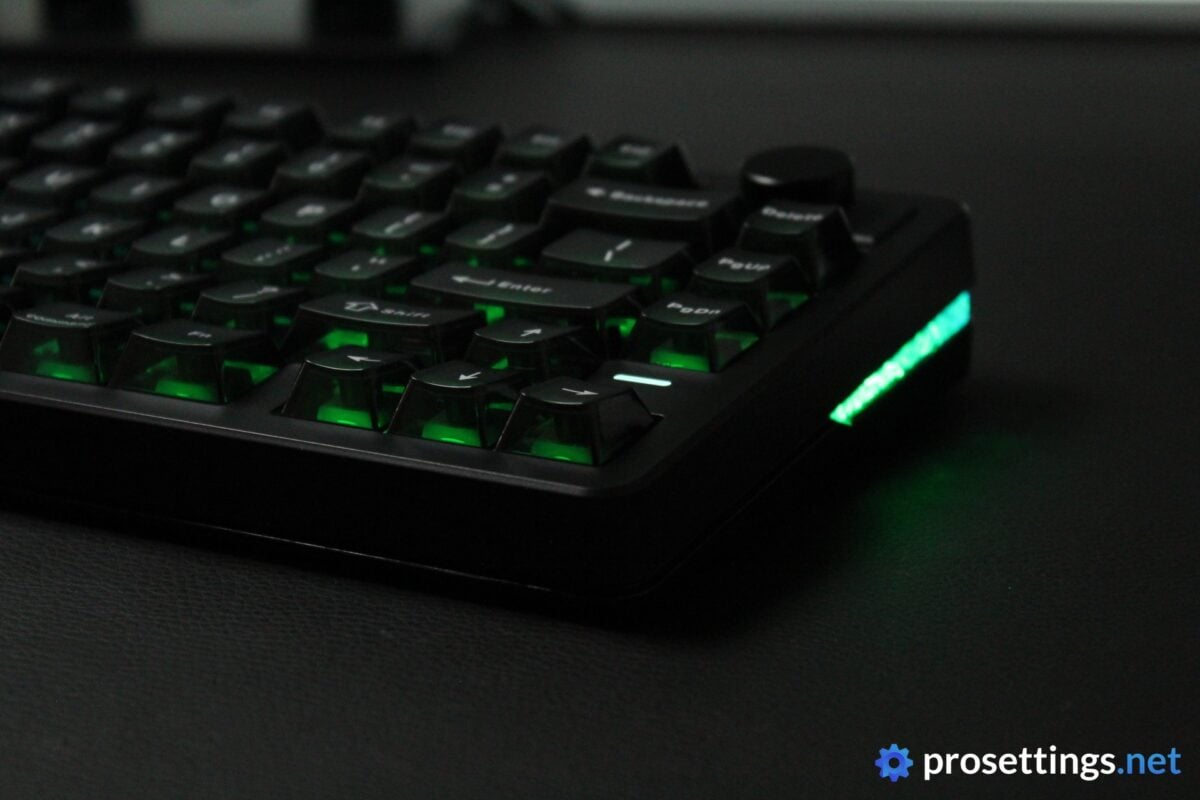

EPOMAKER HE75 V2 TMR Review: Promising tech for an affordable price, but not without its flaws.
