Switch Library

Every switchwe ship.

Sound clips, force numbers, compatibility and what each one actually feels like under your fingers. The whole catalogue, filterable.

Browse the library
  • 0Switches
  • 0Switch types
  • 0kHzSound clips
  • 0%Hot-swap

All Switches

The whole catalogue,hand-tuned.

Filter by type, sound, weight or what you do all day. Every card carries the force numbers and our note on how it actually sounds.

Linear

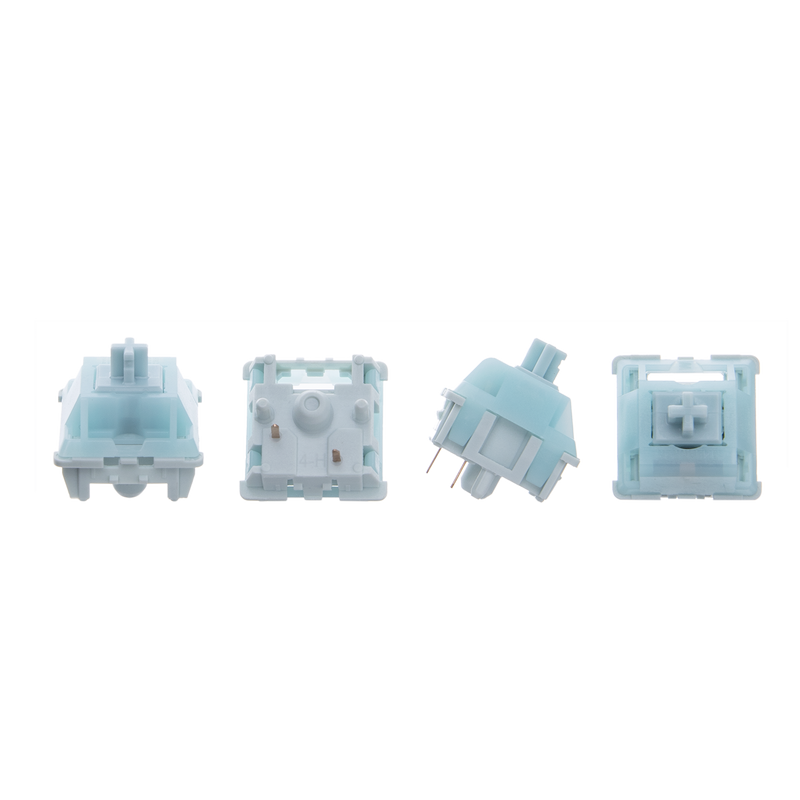

Creamy Jade

EPOMAKERCreamy Jade

A silky-smooth linear with a heavier bottom-out that adds body and depth. Pre-lubed from the factory.

Operating 45g
Bottom-out 51g
Pre-travel 1.8mm
Total travel 3.5mm
Sounds like Deep and full, with a clean bottom-out. The house sound.
$16.99 4.55
View
Tactile

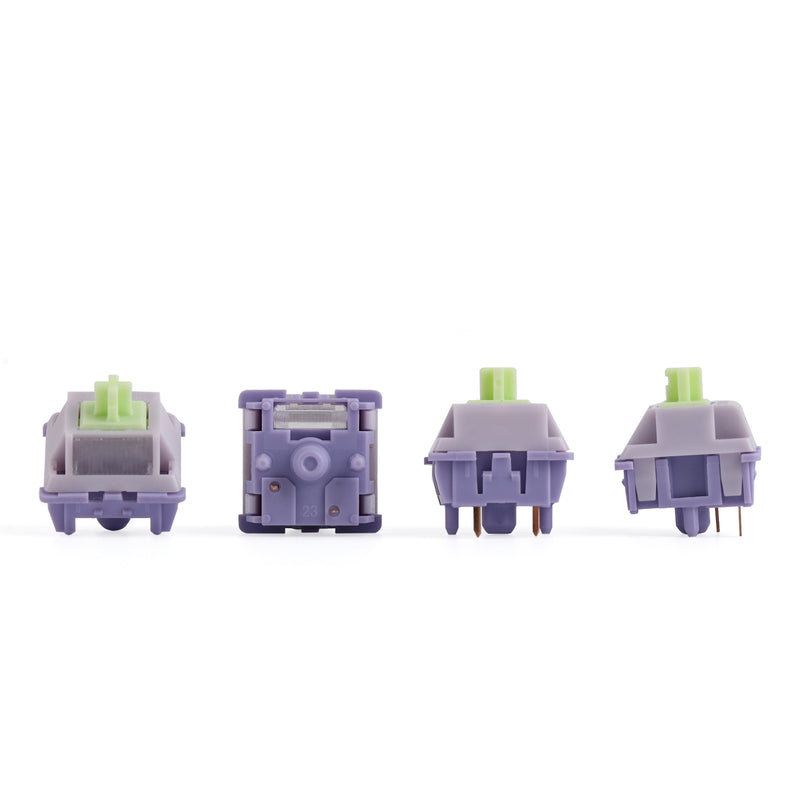

Wisteria Tactile

EPOMAKERWisteria Tactile

A snappy medium-tactile bump with a sharp top-out. Two distinct events per keystroke.

Operating 55g
Bottom-out 62g
Bump position 1.0mm
Total travel 3.6mm
Sounds like Two-beat: bump up top, thock at the bottom.
From $8.49 4.52
View
Silent

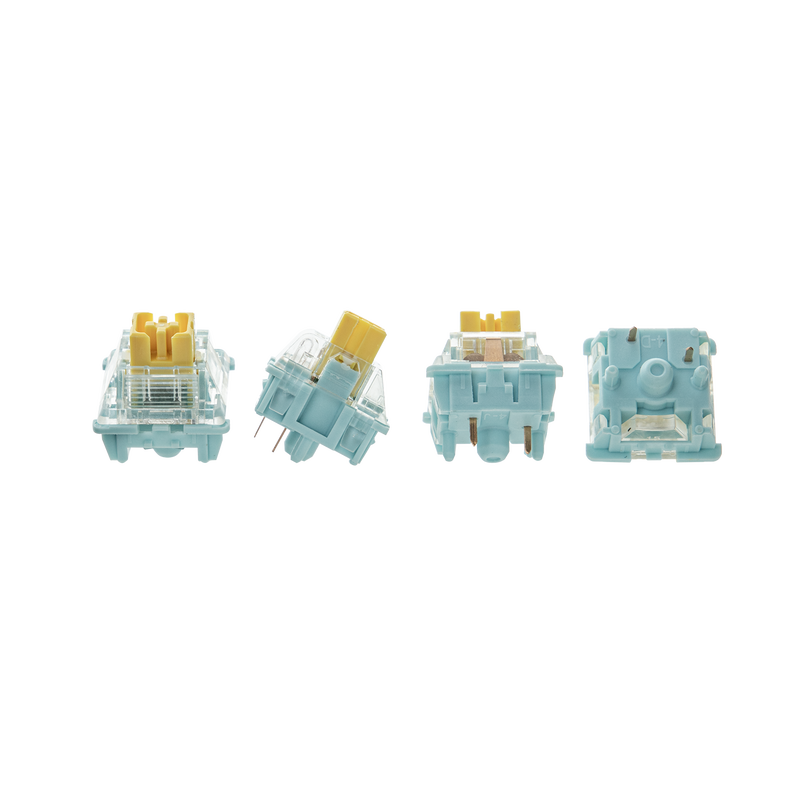

Sea Salt Silent V3

EPOMAKERSea Salt Silent V3

A feather-light keystroke with dampened stems at both ends of travel. Near-silent.

Operating 45g
Bottom-out 51g
Pre-travel 1.8mm
Total travel 3.5mm
Sounds like Muted and soft. Safe in a shared room.
$15.29 4.43
View
Linear

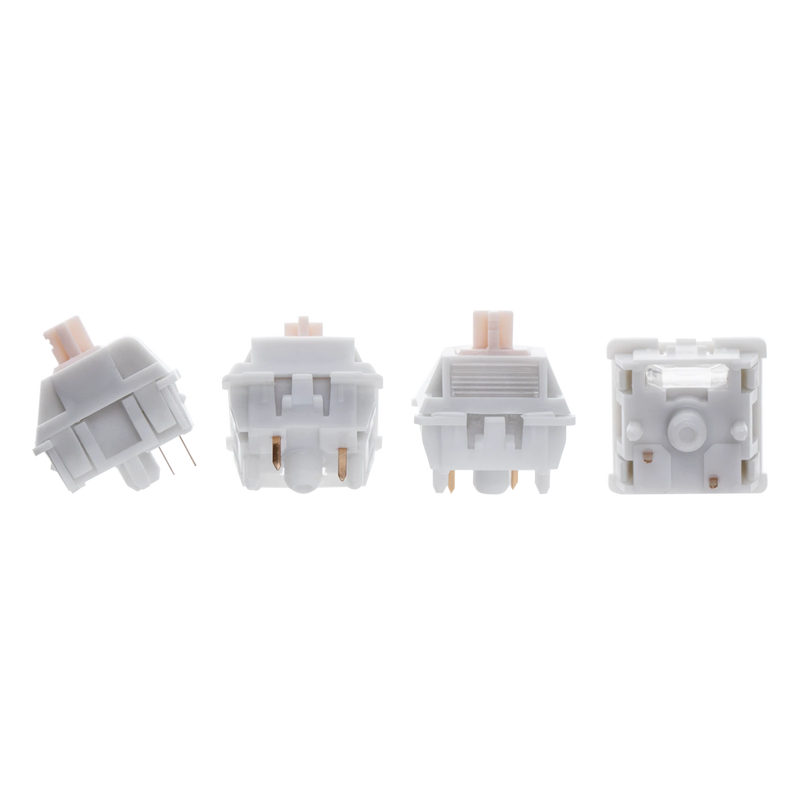

Cream Marble

EPOMAKERCream Marble

POM housing over a long-pole stem. Each keystroke ends in a round, bouncy pop.

Operating 50g
Bottom-out 58g
Pre-travel 1.7mm
Total travel 3.4mm
Sounds like Bouncy and round, like marbles into a wooden bowl.
$12.74
View
Linear

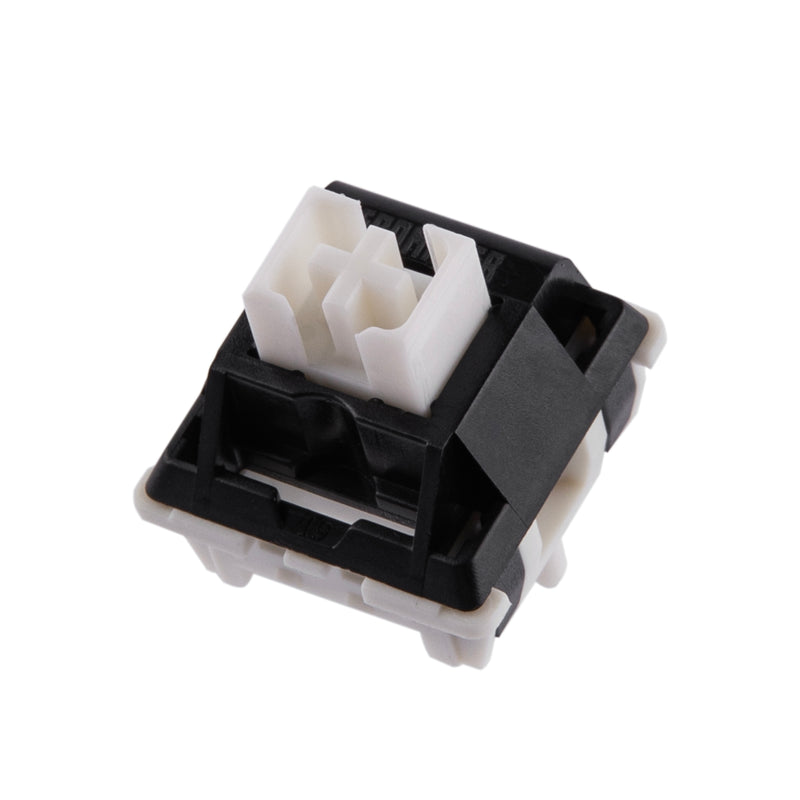

Zebra

EPOMAKERZebra

An extended 21mm spring gives a linear yet creamy keystroke with unusual consistency.

Operating 45g
Bottom-out 55g
Pre-travel 2.0mm
Total travel 3.8mm
Sounds like Smooth and even, no scratch on the way down.
$16.99 4.33
View
Silent

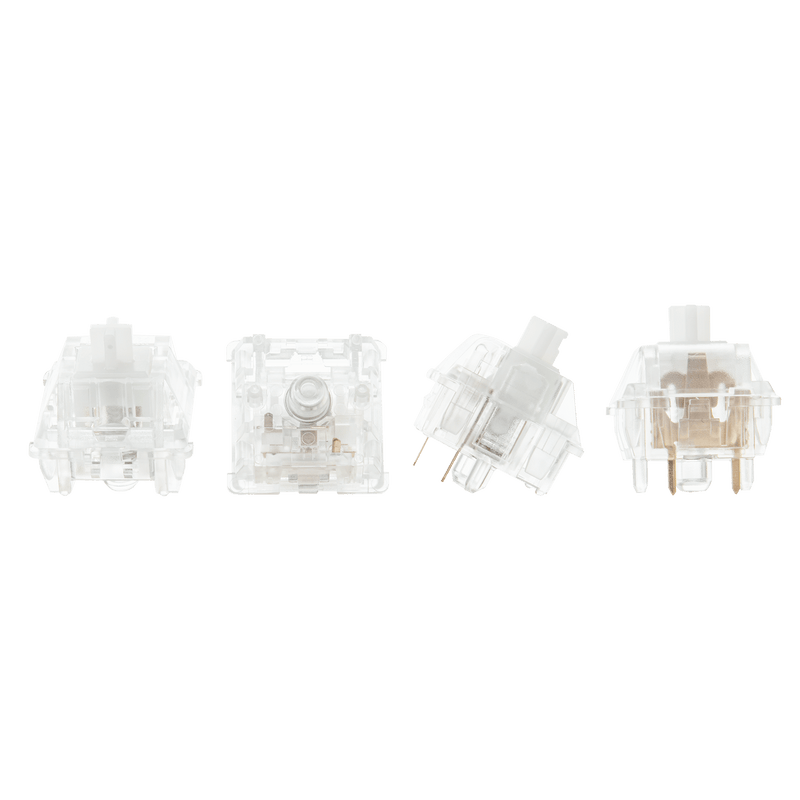

Crystal Tactile Silent

EPOMAKERCrystal Tactile Silent

Ultra-light 35g actuation with a light tactile bump. Noise-dampened and pre-lubed.

Operating 35g
Bottom-out 45g
Bump position 1.2mm
Total travel 3.5mm
Sounds like A soft tap where the bump lands, then almost nothing.
$14.44 5.0
View
Anatomy

The five parts that shape sound.

A switch is five parts. Each one changes how it sounds, feels and ages — knowing which does what turns "I like this switch" into "I know why".

Stem

Material and shape decide the bump and the pitch. POM reads smooth, nylon reads warm, UHMWPE reads slick.

MaterialsPOM · Nylon-PA · UHMWPE
Key variablePole length

Spring

Sets the force curve. Single-stage feels even top to bottom; two-stage ramps up. Length changes the return.

Range35–67g
Key variableStage count

Contact leaves

Where the signal happens. Tactile leaves create the bump; clicky adds a separate jacket that snaps.

TypeLeaf · Click jacket
Key variableBump position

Housing

Box housings hold the stem tighter, so less wobble and a brighter top-out. Traditional runs warmer.

TypeBox · Traditional
Key variableWall thickness

Lube

Fills tolerances and removes scratch, which deepens the sound. Everything we ship is factory-lubed.

GradeKrytox 205g0
Key variableCoverage

Compatibility

What fitswhere.

Which switches work on which EPOMAKER boards. Worth a look before you order.

Switch typeTH / Galaxy / RTHE SeriesLab MagcoreLuma (low-profile)Maker Series
Standard MX 3-pin and 5-pin
Hall Effect (HE)
Magnetic / inductive Magcore
Low-profile Choc / Kailh-LP
Optical Razer / Wooting
Cherry MX original
Kailh Box Box only

Every MX-compatible EPOMAKER board is hot-swap by default, so no soldering is needed. Pull the old switch with a puller and press the new one in.

The smart way to decide

Feel them before you commit.

Force numbers and sound clips get you close, but your fingers decide. A sampler puts the four families in your hand for the price of a coffee.

Shop switch samplers Browse keyboards
