USER EXPERIENCE
Master every frame with 8000Hz magnetic precision, 0.2ms ultra-low latency, and professional-grade Rapid Triggering—powered by a massive 10,000mAh battery and premium Gasket structure for gamers who demand elite speed, full-sized control, and unrivaled wireless endurance.
Magnetic Switch with 0.005mm Adjustable Accuracy

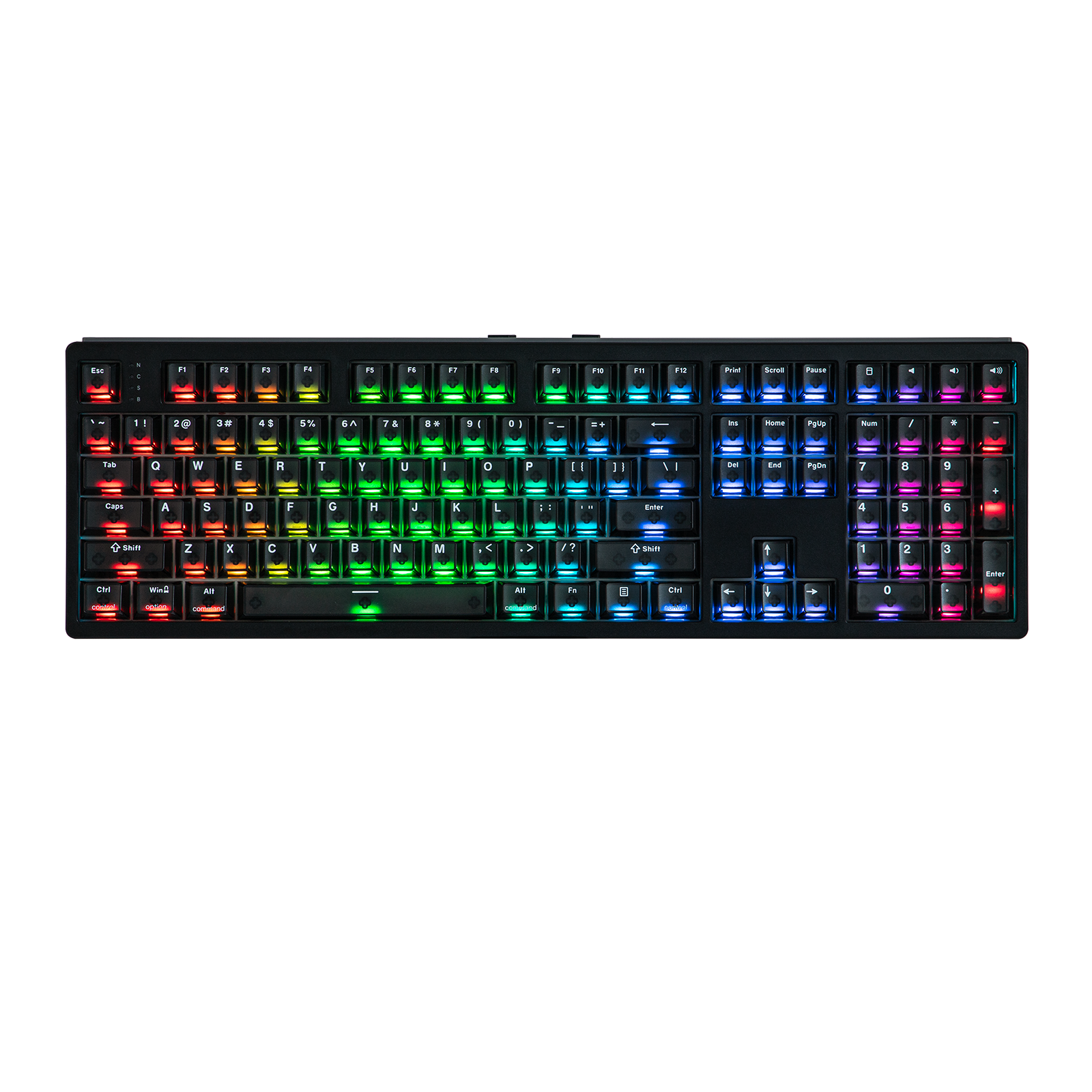

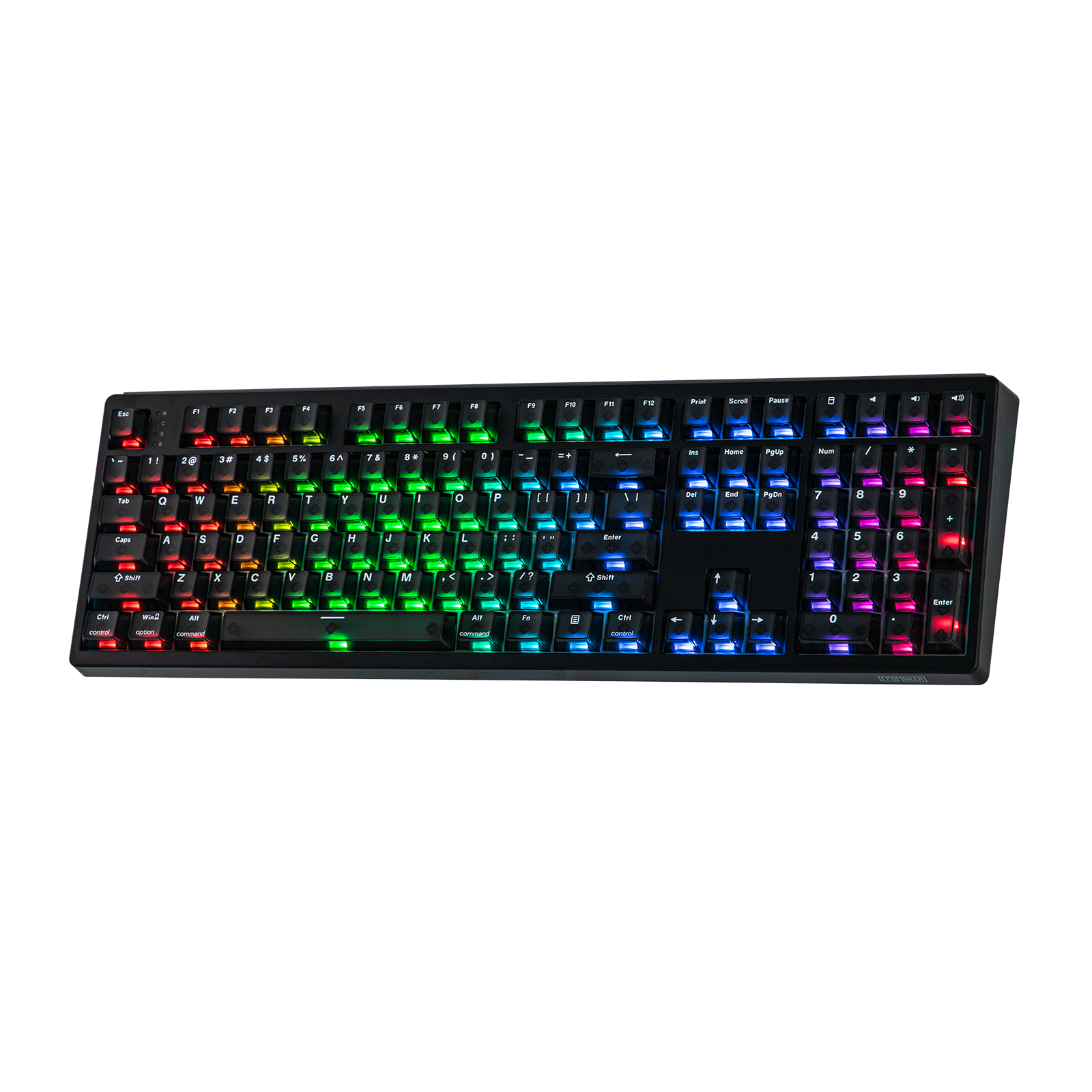

Per-Key South-Facing RGB Backlights
5-Layer Sound Optimized & Gasket-Mount Structure
8K Polling Rate & 128K Scan Rate
Full Sized Gaming Keyboard for Mac/WIN
Long-Lasting 10000mAh Battery
Technical Specifications
Brand
EPOMAKER
Model
HE108
Layout
100% Full Sized Gaming Keyboard
Number of Keys
108 Keys
Battery
10000mAh Rechargeable Battery
Battery Life
32 hours (RGB On), 500 hours (RGB Off), 1000 hours (stand by)

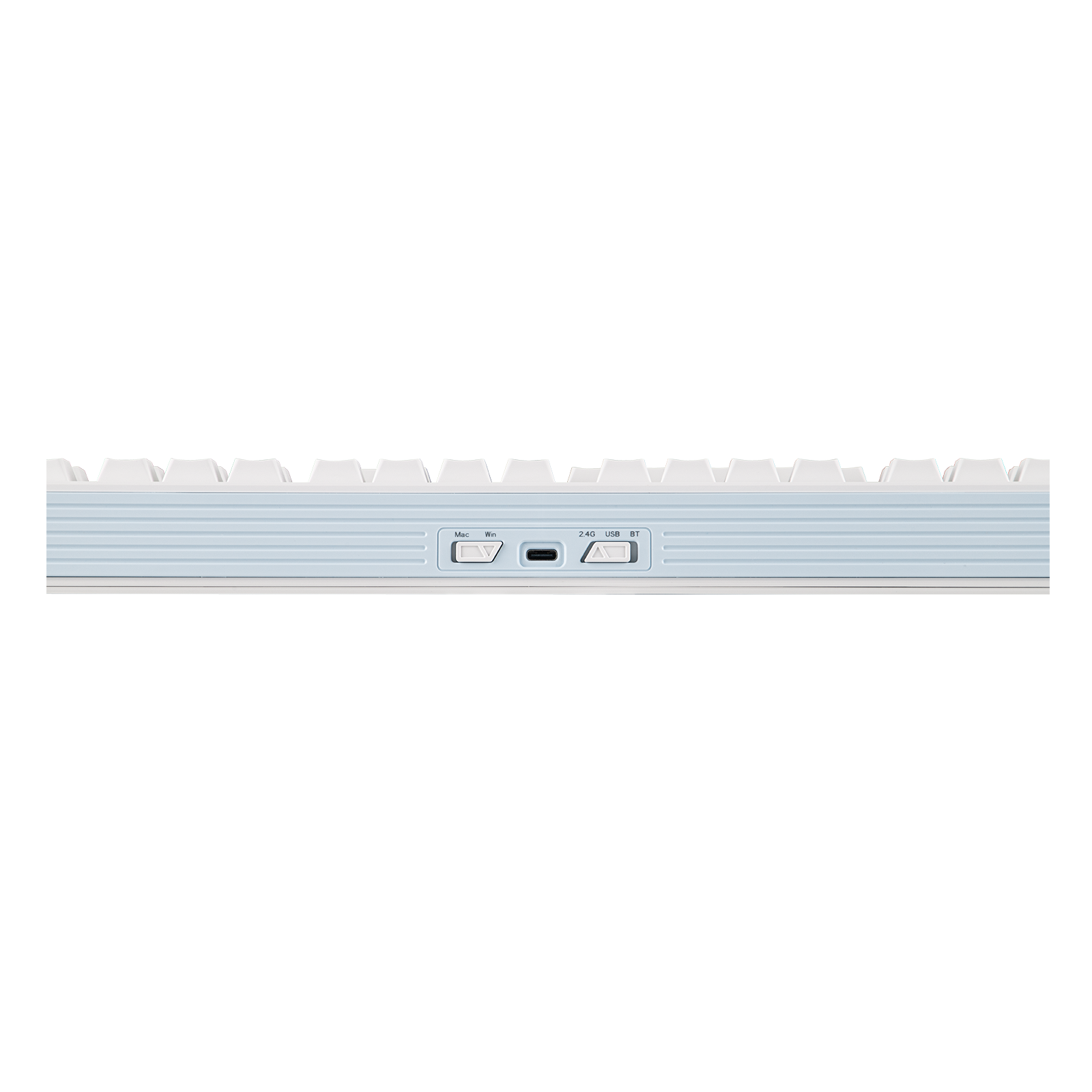

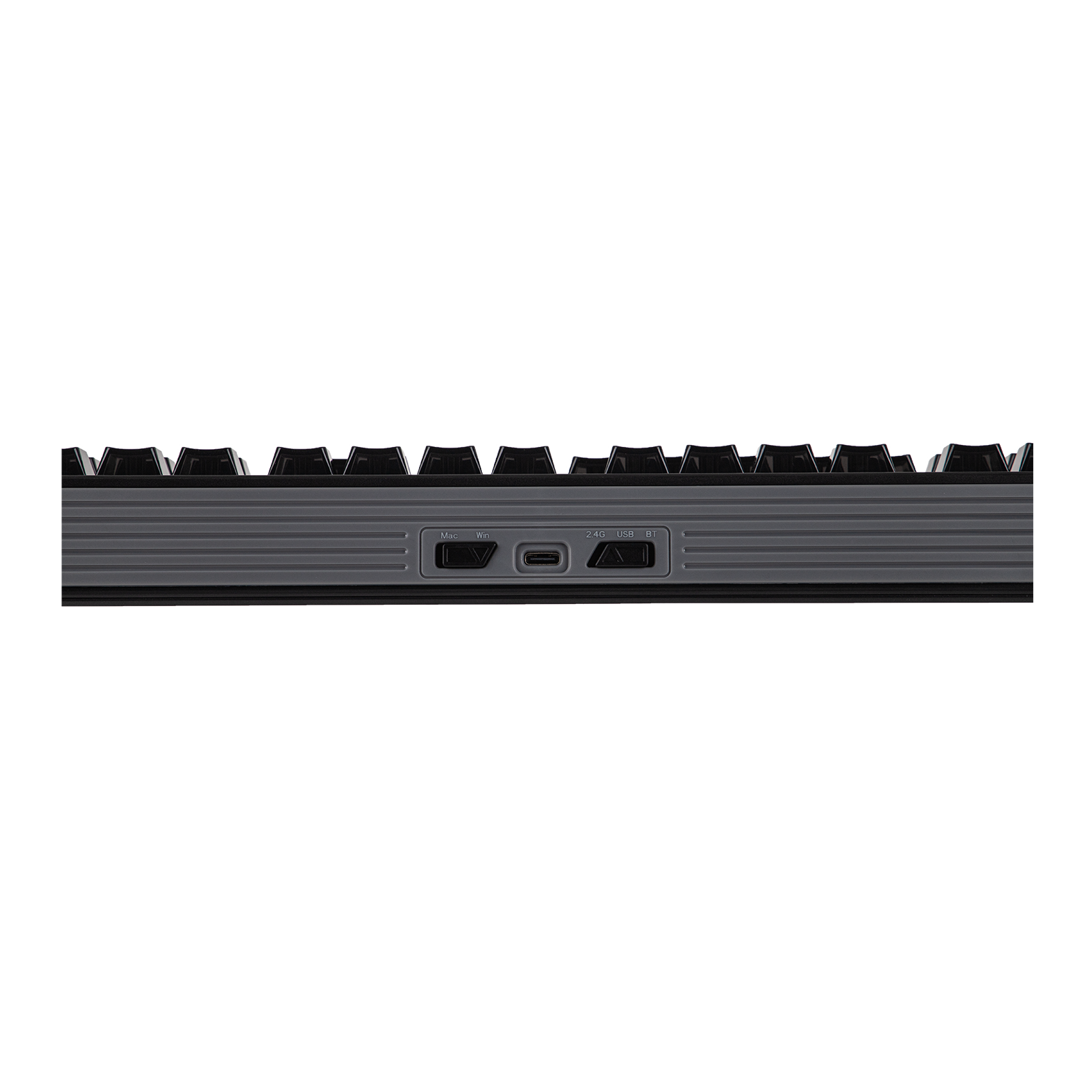

Connectivity
Tri-Mode 2.4Ghz/BT/Wired
Compatibility
Mac/WIN/Android
Mac Modifier Print
Yes
Front Height
1.8cm
Back Height
3.2cm

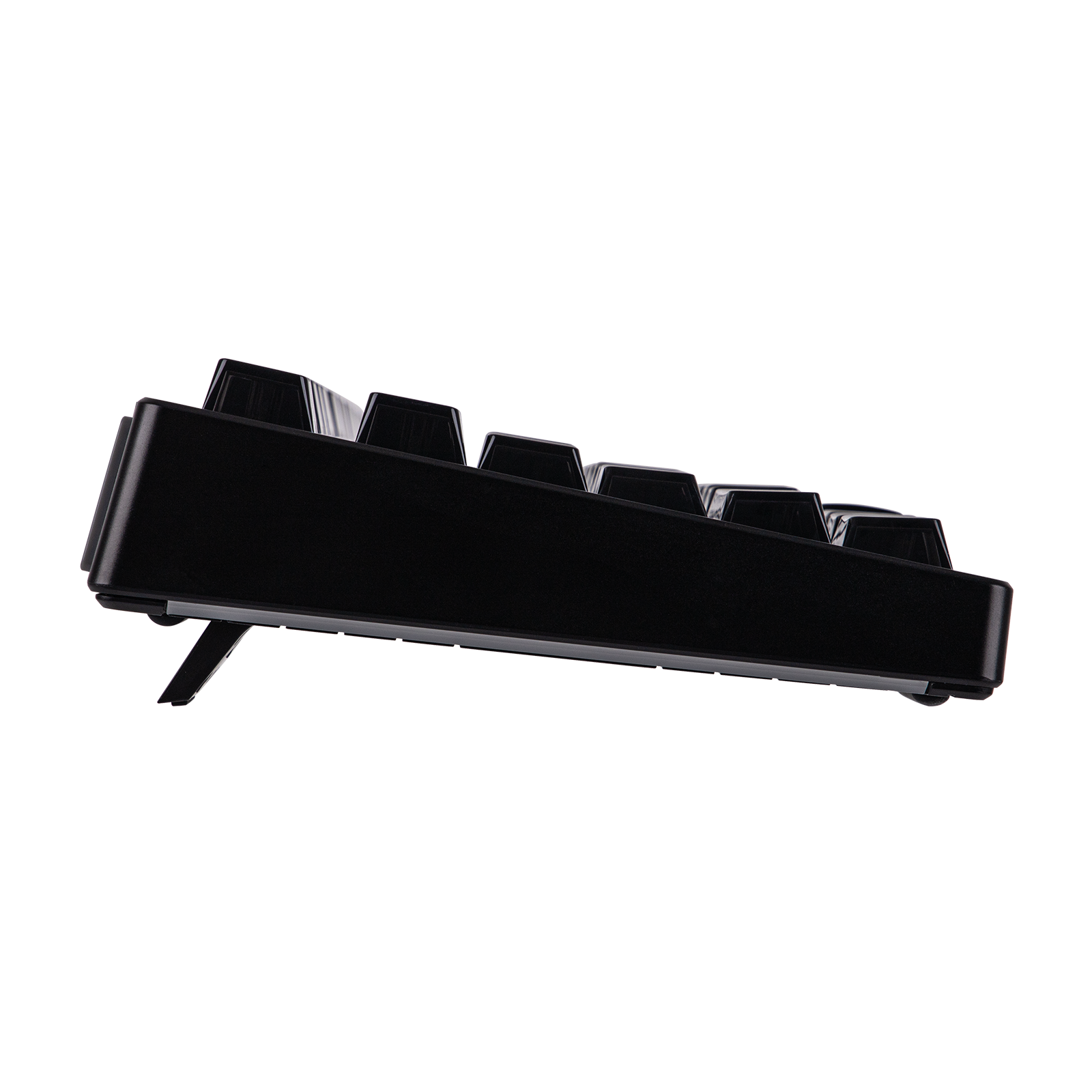

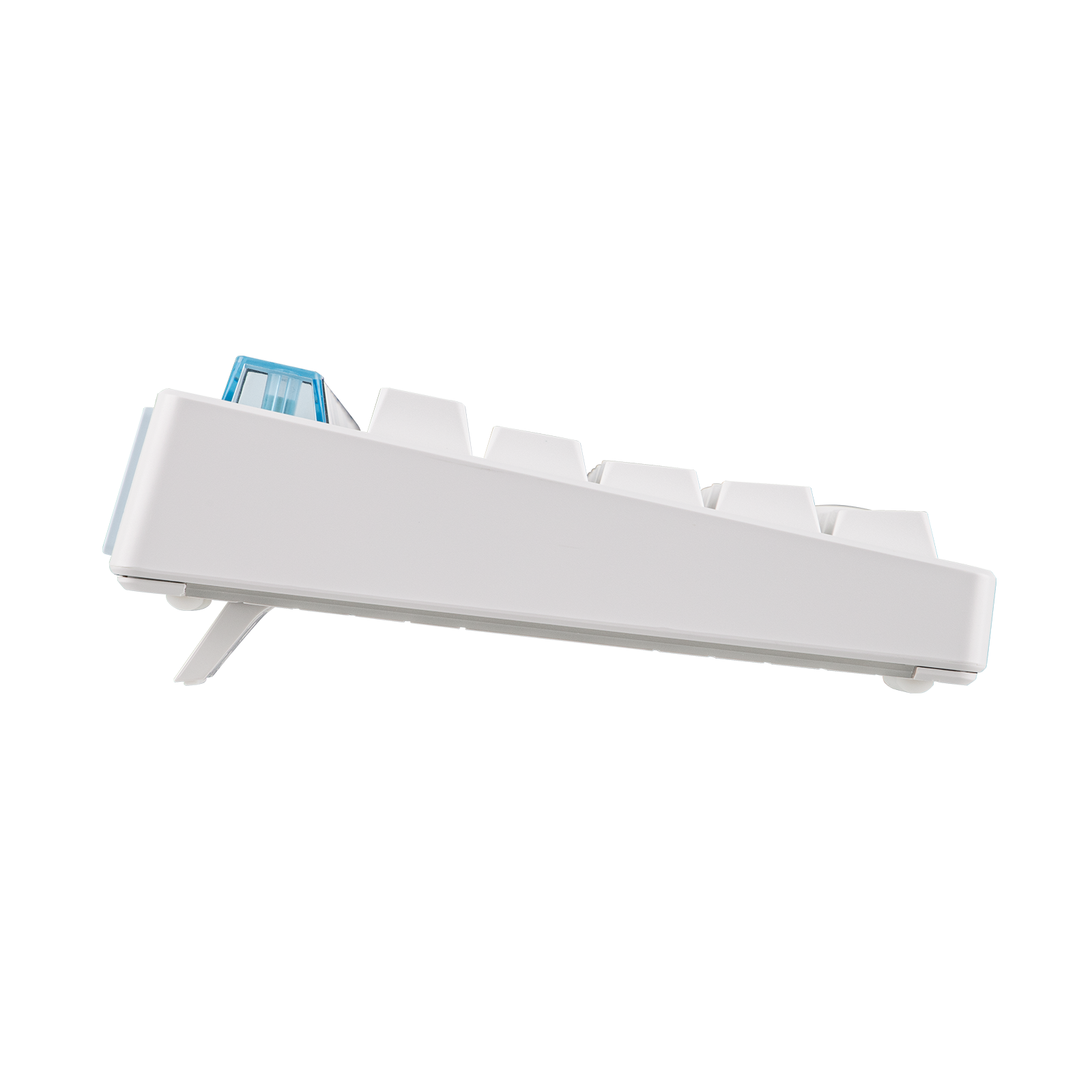

Typing Angle
6 degrees, 8 degrees, and 10.5 degrees.
Case Material
Thick ABS Plastic
Plate Material
PC Plastic
Flex-Cut
Yes, the HE108 has a flex-cut plate in PC and a flex-cut PCB board in FR4.
Stabilizers: The EPOMAKER HE108 has finely tuned plate-mounted stabilizers and is not compatible with PCB or screw-in stabilizers.
Mounting Structure
Gasket-Mounted
Sound Dampening
5 Layers of sound dampening, including PORON sandwich foam, IXPE switch pad, Sound-Enhancement PET, PORON and latex switch socket foam, and bottom silicone.

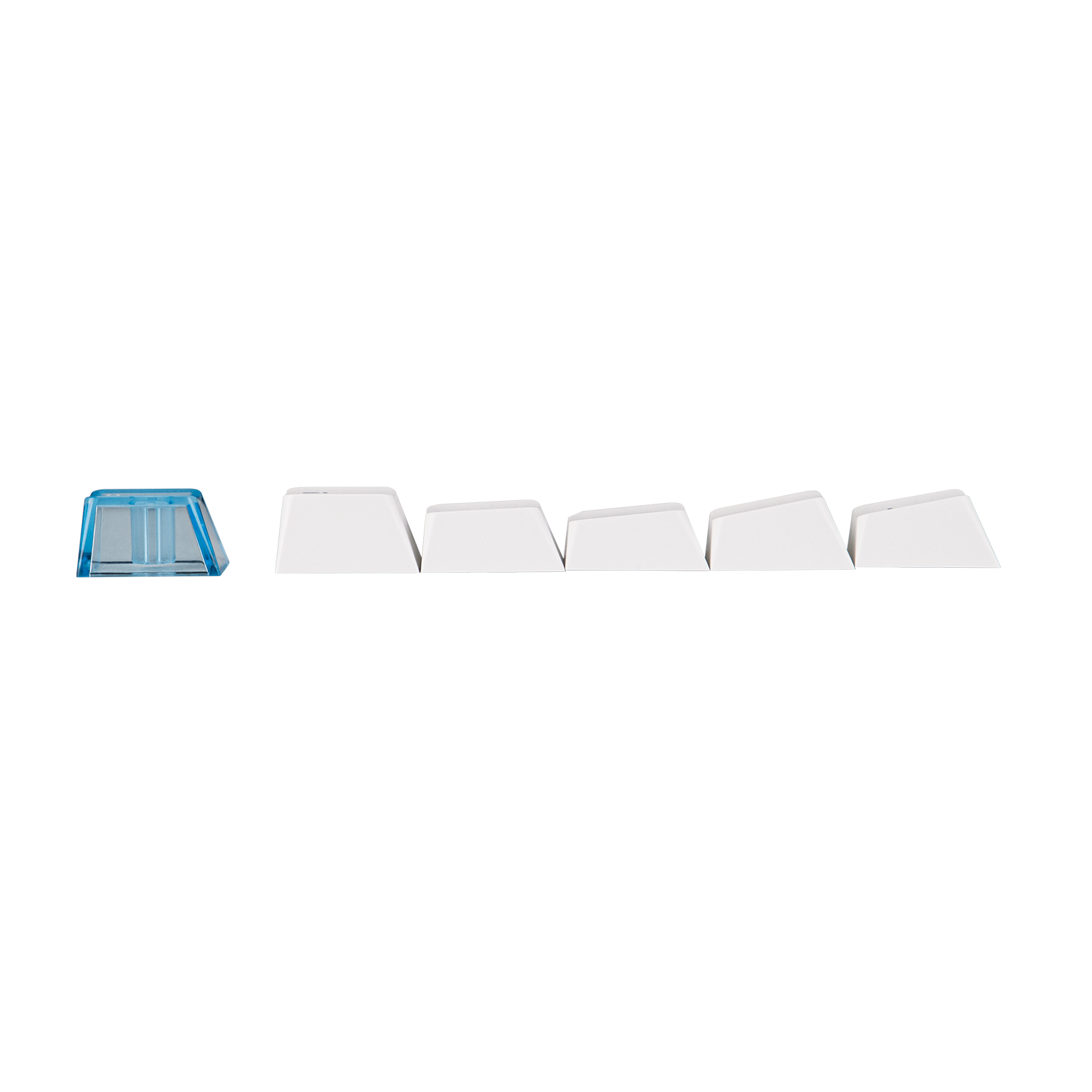

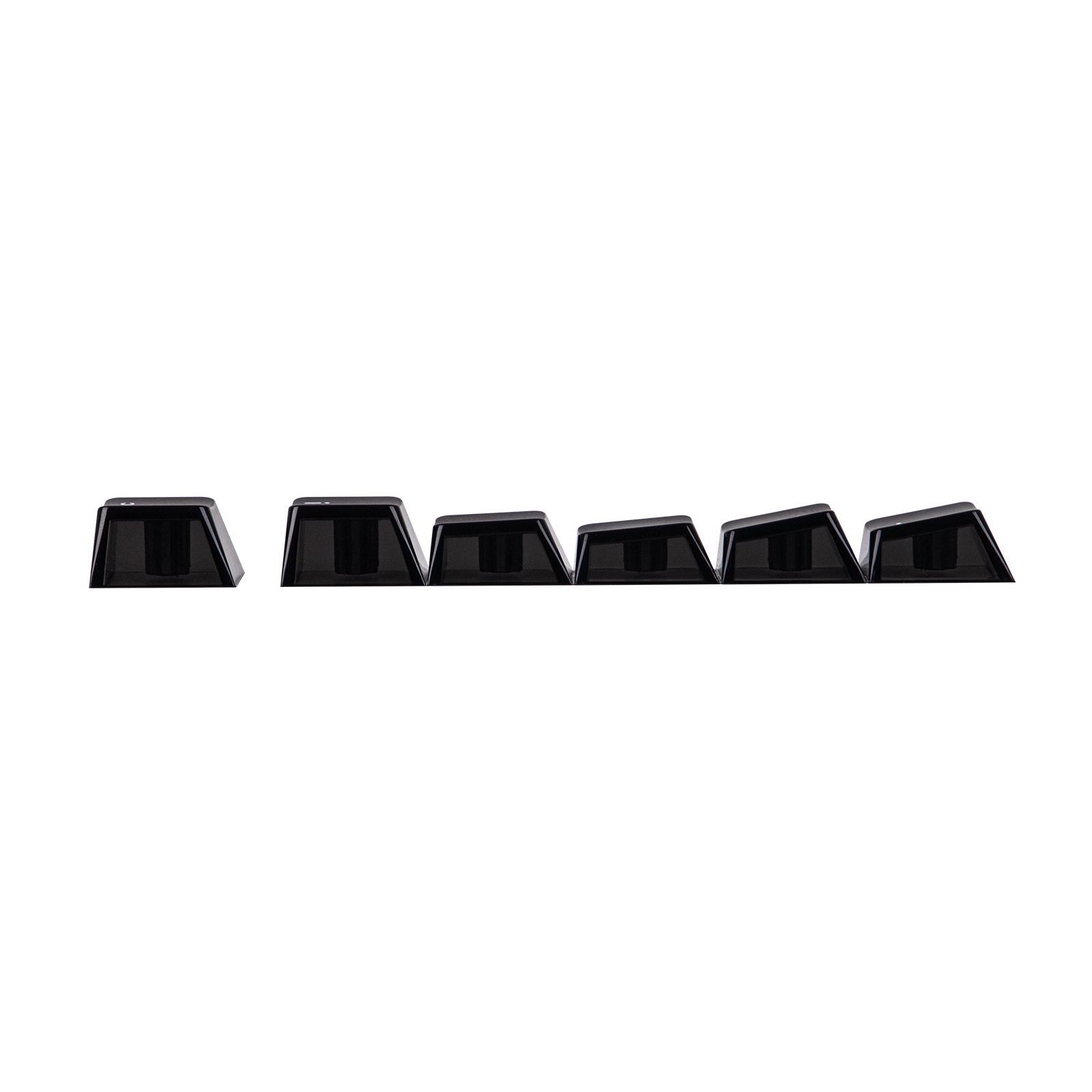

Keycaps Profile
Cherry Profile Keycap
Keycaps Material
PBT Plastic
Keycaps Manufacturing Technique
Double-Shot
Switch
Factory Lubed Magnetic Linear Switch
Hall Effect Accuracy
0.005mm
Rapid Triggering
Yes
Snap Key (SOCD)
Yes
DKS
Yes
Hall Effect Switch Deadzone
0-0.3mm
Hot-Swappable
Yes, the HE108 magnetic keyboard has a hot-swappable PCB and is compatible with same mainstream hall effect switches.
RGB
South-Facing, Per-Key LEDs
Polling Rate
8000hz in USB and 2.4Ghz mode, and 125hz in BT mode.
Scan Rate
16,000hz (full board), 128,000 (per key)
Latency
0.2ms (USB), 0.4ms (2.4Ghz Wireless), 8ms (BT)
Anti-Ghosting
Yes, the HE108 hall effect keyboard supports N-key rollover and is anti-ghosting.
Custom Software
Yes, the HE108 is compatible with EPOMAKER Driver 3.0 (Epomaker driver v4) for key map, macro recording, rgb settings and special settings of hall effect switch such as DKS, SOCD, MT, rapid trigging and deadzone.
Keyboard Package Dimensions
44.5*14.1*4.8cm
Keyboard Package Weight
1.67kg
Keyboard Weight
about 1.2kg
