Maker Series

EPOMAKER

Split70

70% · 5-Layer Sound Optimizing · Tri-Mode Wireless · 3000mAh Battery. Crafted for clean typing feel, desk control, and everyday use.

$115.99

Color: Black Grey
Switch: Wisteria Linear Switch V2
70% Layout with 1 Knob 5-Layer Sound Optimizing Tri-Mode Wireless 3000mAh Battery Hot-Swappable PCB Per-Key RGB Backlights
1 Year Warranty 30 Day Returns Worldwide Shipping

70% layout

71 keys in an optimized footprint

5-Layer Sound

Layered dampening for cleaner typing sound

Tri-Mode

Bluetooth · 2.4G · USB-C wired

3000mAh

Up to 11 hours with backlight off

Typing Feel - Sound Design

Built for clean thock.

Split70 uses its sound-focused structure to absorb impact, reduce hollow noise, and keep each keystroke cleaner.

70% Layout71 keys
5-Layer Sound OptimizingLayered dampening for cleaner typing sound

Built with Purpose

Designed for EveryKeystroke.

ACOUSTIC ARCHITECTURE

Engineered for Creamy Thock

Sound-dampening layers absorb hollow rattle into clean keystrokes. Engineered for resonance-free typing.

Comfortable TypingDesigned with purpose

LAYOUT

Built around Daily Control

70% layout.

71 Keys70% layout

CONNECTIVITY

Connect Any Way

Bluetooth · 2.4G · USB-C wired.

Tri-Mode WirelessBluetooth · 2.4G · USB-C wired

CUSTOMIZATION

Tune Your Workflow

Change switches without soldering.

Hot-Swappable PCBChange switches without soldering

Fast Wireless

Every input lands with low latency.

Quiet Focus

Type through long work sessions.

Layout Efficiency

Essential keys, more desk room.

Clean Style

Built for modern setups.

About this Product

Well Thought.Design Features.

BATTERY3000mAh

3000mAh Rechargeable Battery

UP TO260Hours

11 hours of continued use with the backlight on, and 260 hours of use with the backlight off

1000Hz Polling

3ms Low Latency

Hot-Swappable PCB

Compatible with most 3-pin and 5-pin mechanical switches, allowing effortless switch replacement without soldering so you can customize both feel and sound.

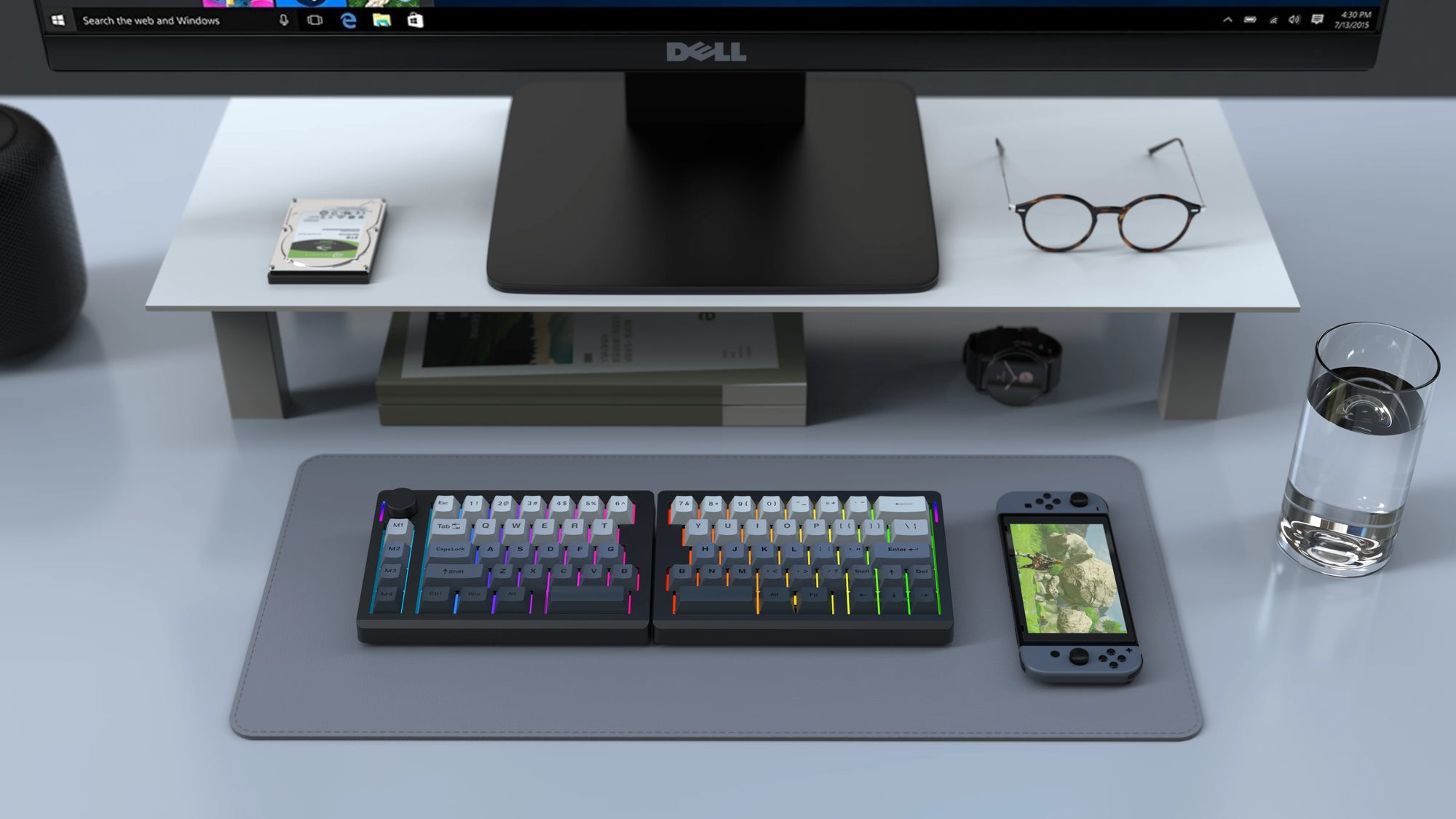

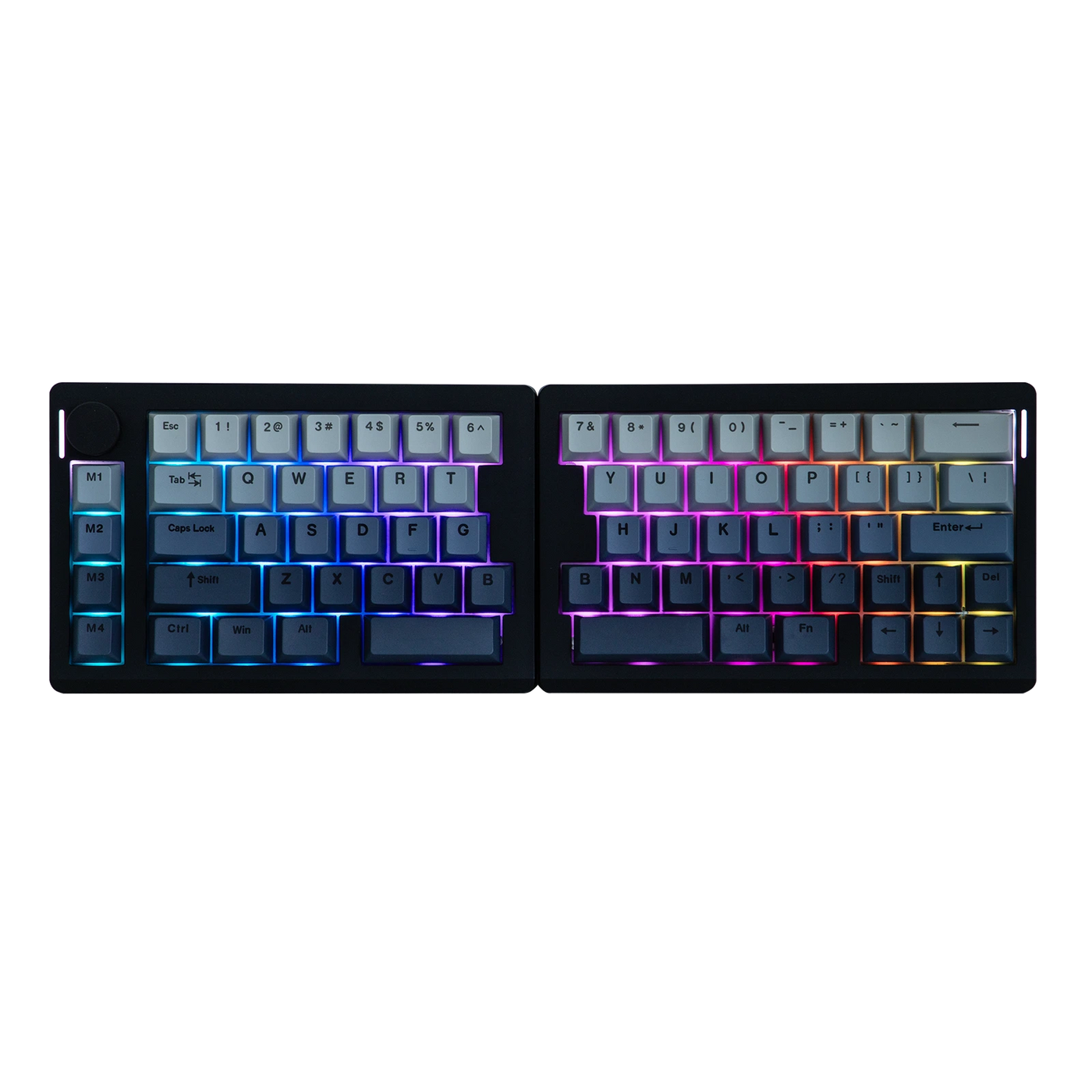

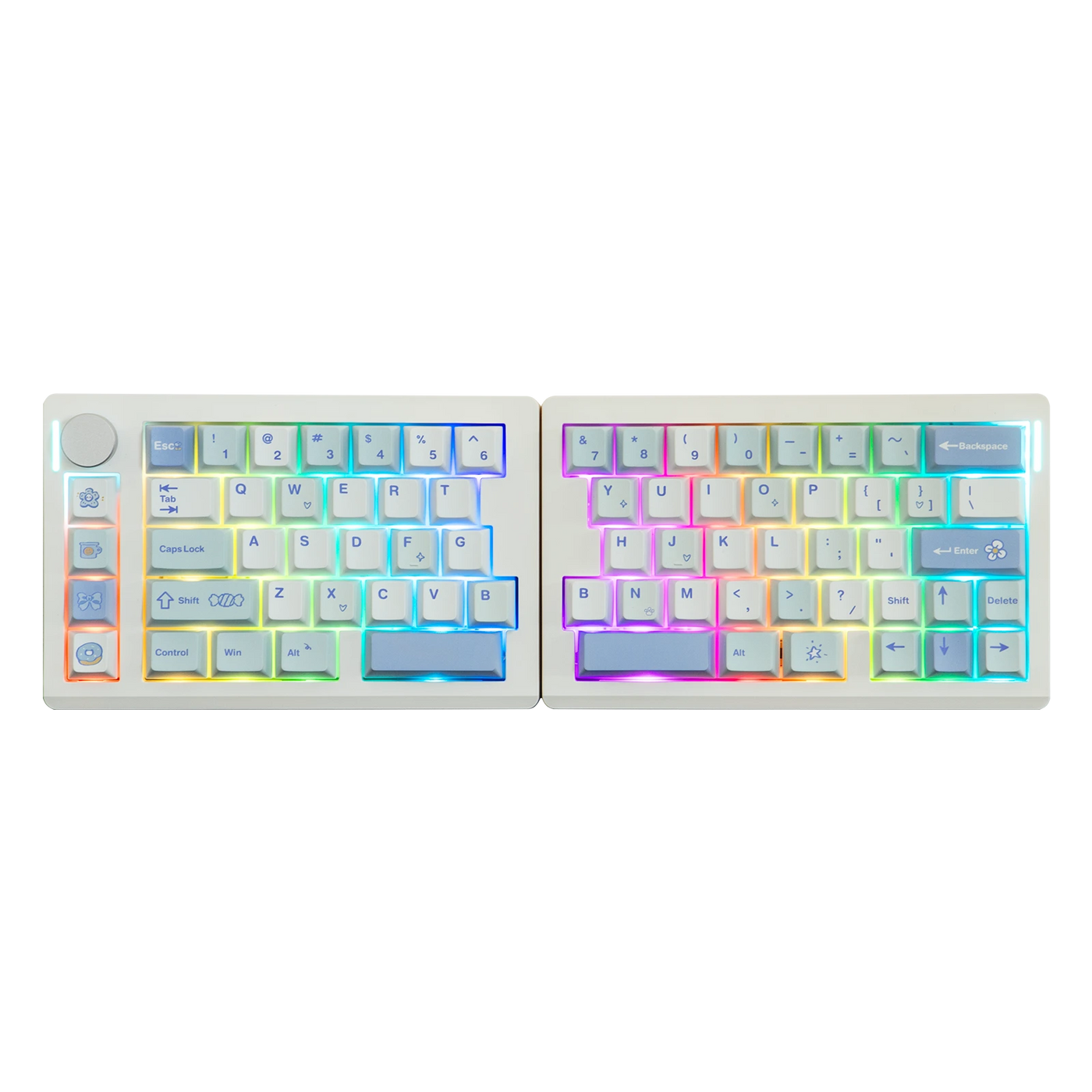

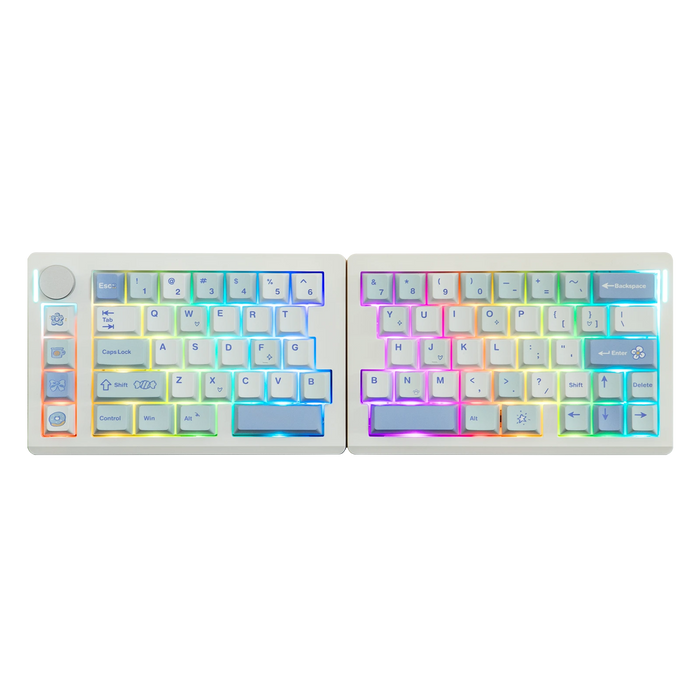

South-Facing RGB Lighting

Per-key south-facing RGB illumination offers vibrant lighting effects while improving compatibility with a wide variety of Cherry-profile keycaps.

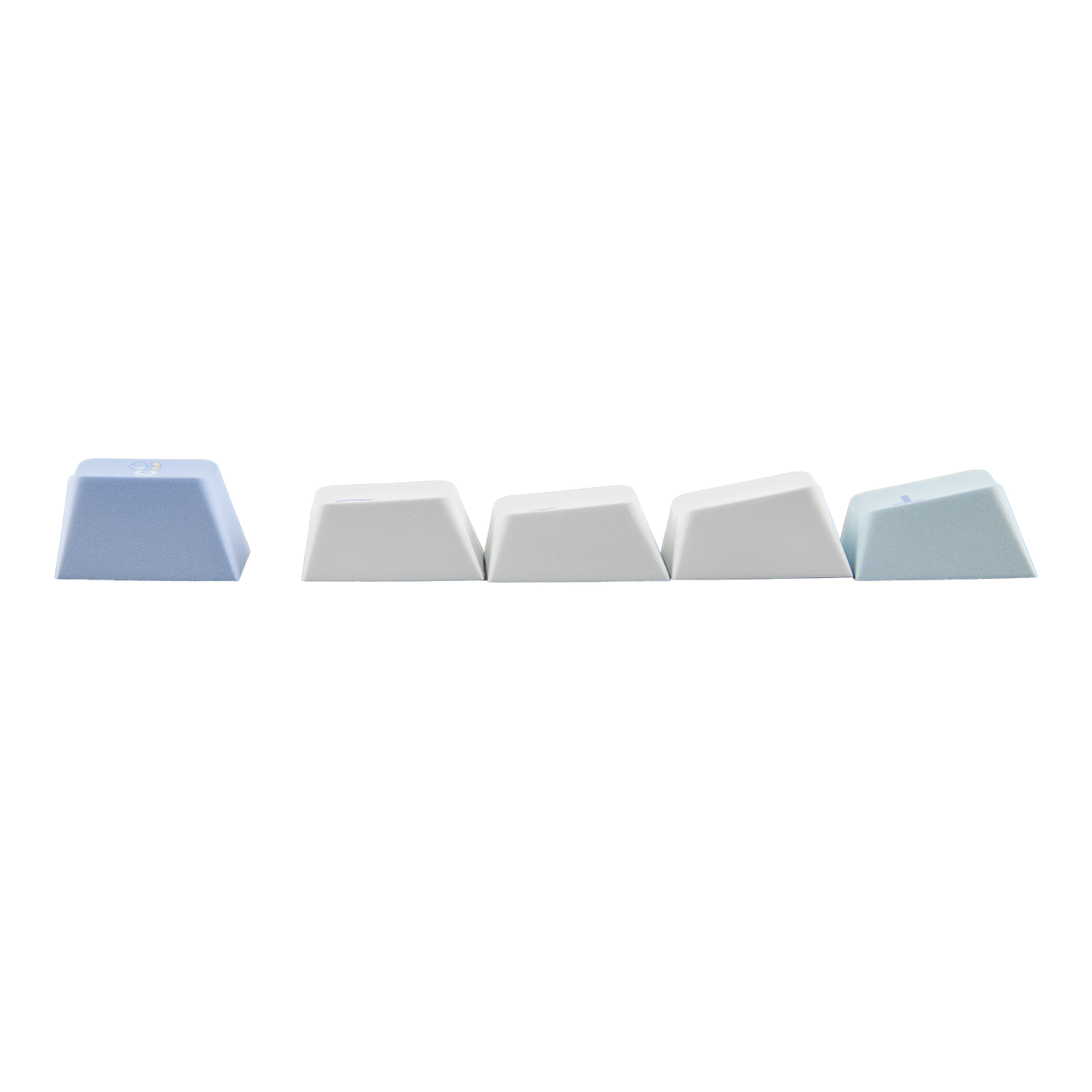

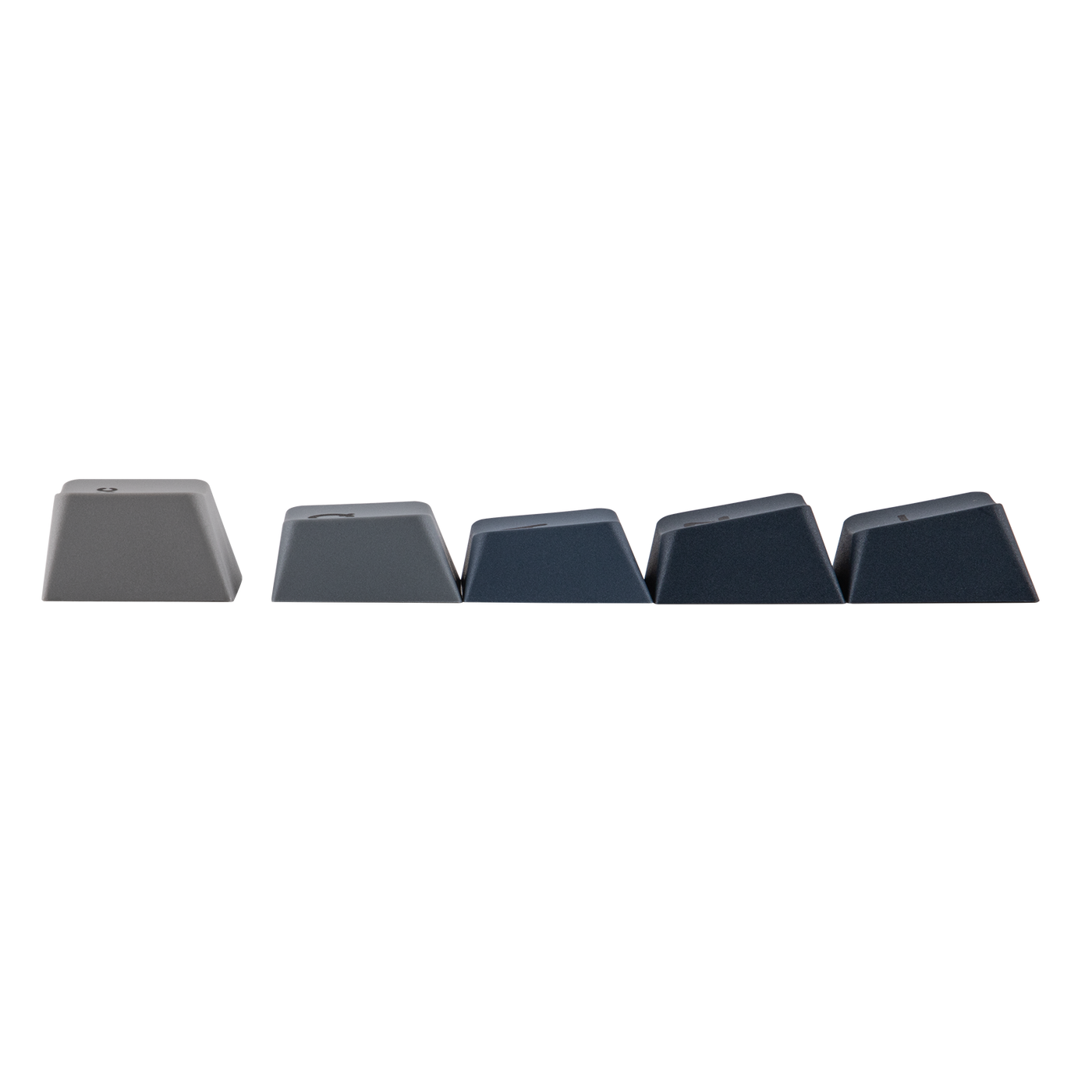

Keycap and Build Details

Keycap and Build Details

Built with durable PBT Cherry-profile keycaps featuring dye-sublimated legends for long-lasting clarity. The ABS plastic case paired with a PC plate, gasket-mounted structure, and 5-layer sound-dampening system delivers a softer typing feel with a refined acoustic experience.

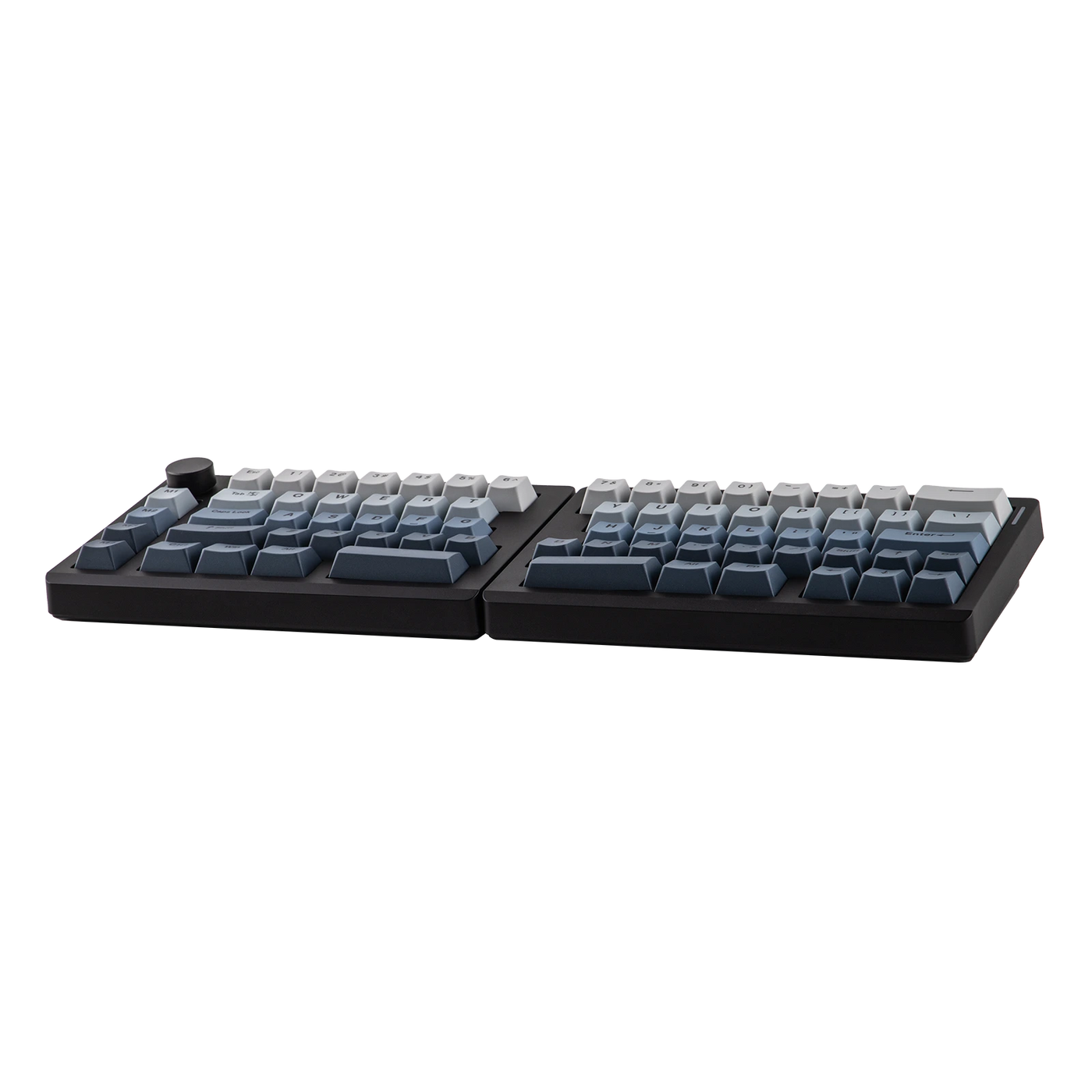

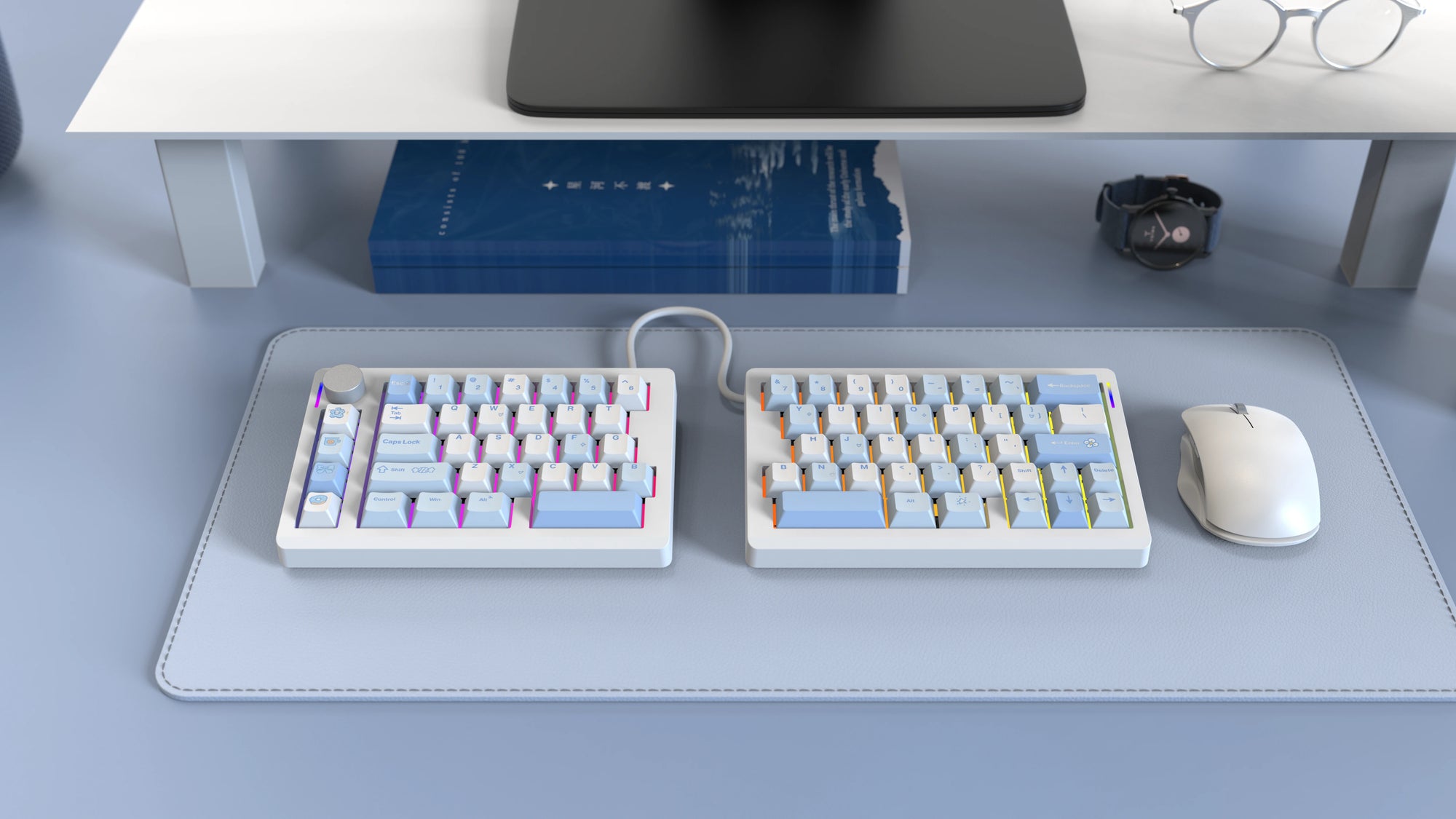

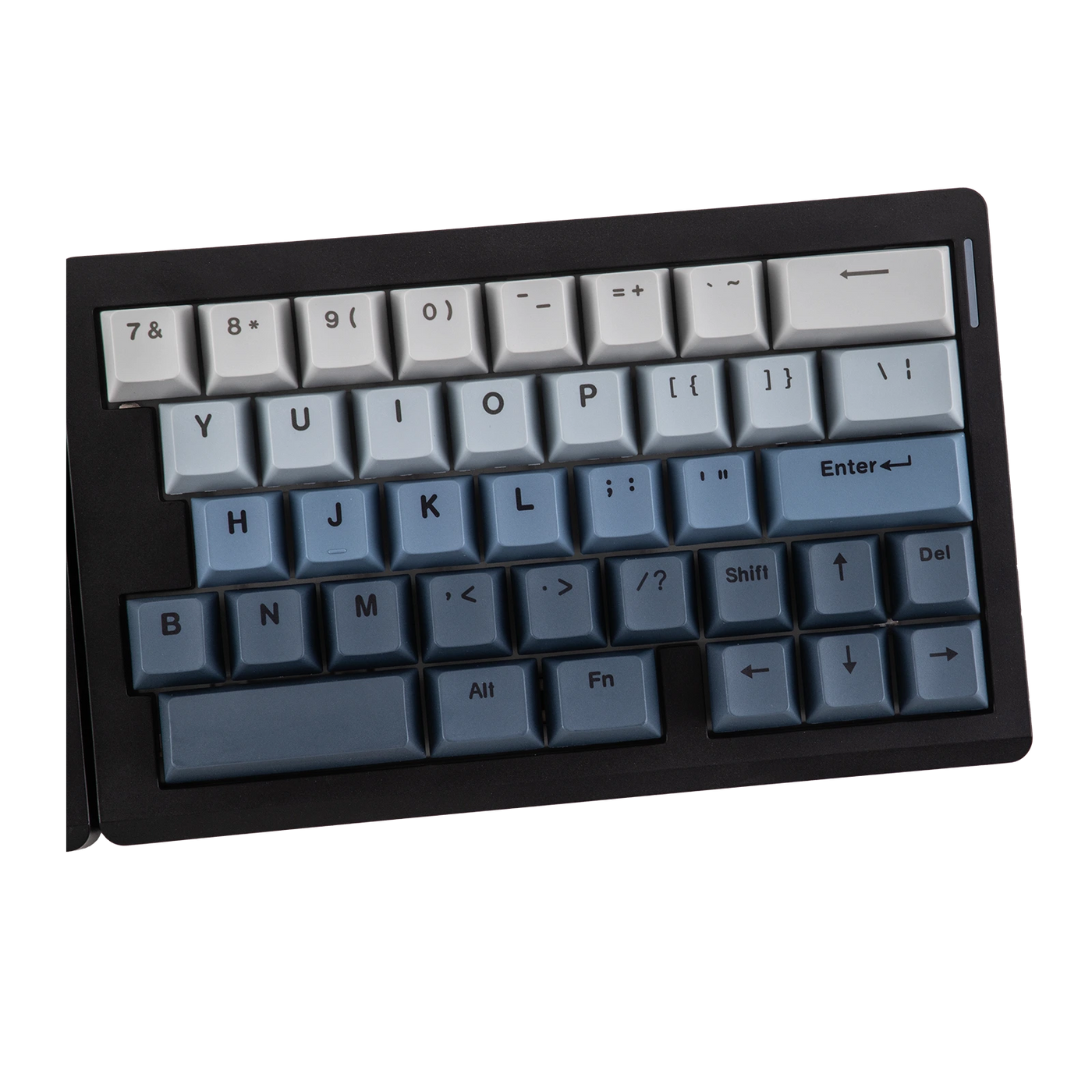

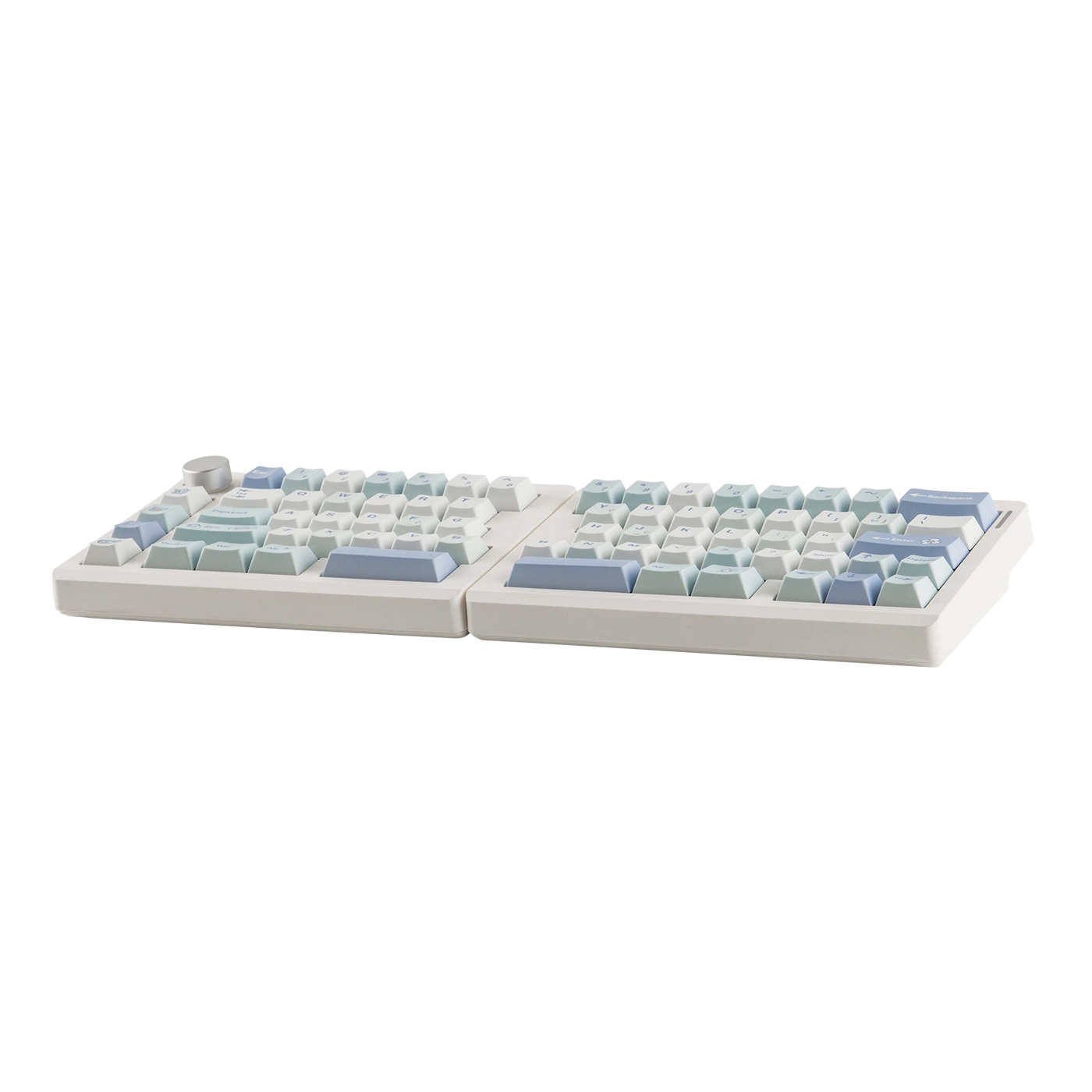

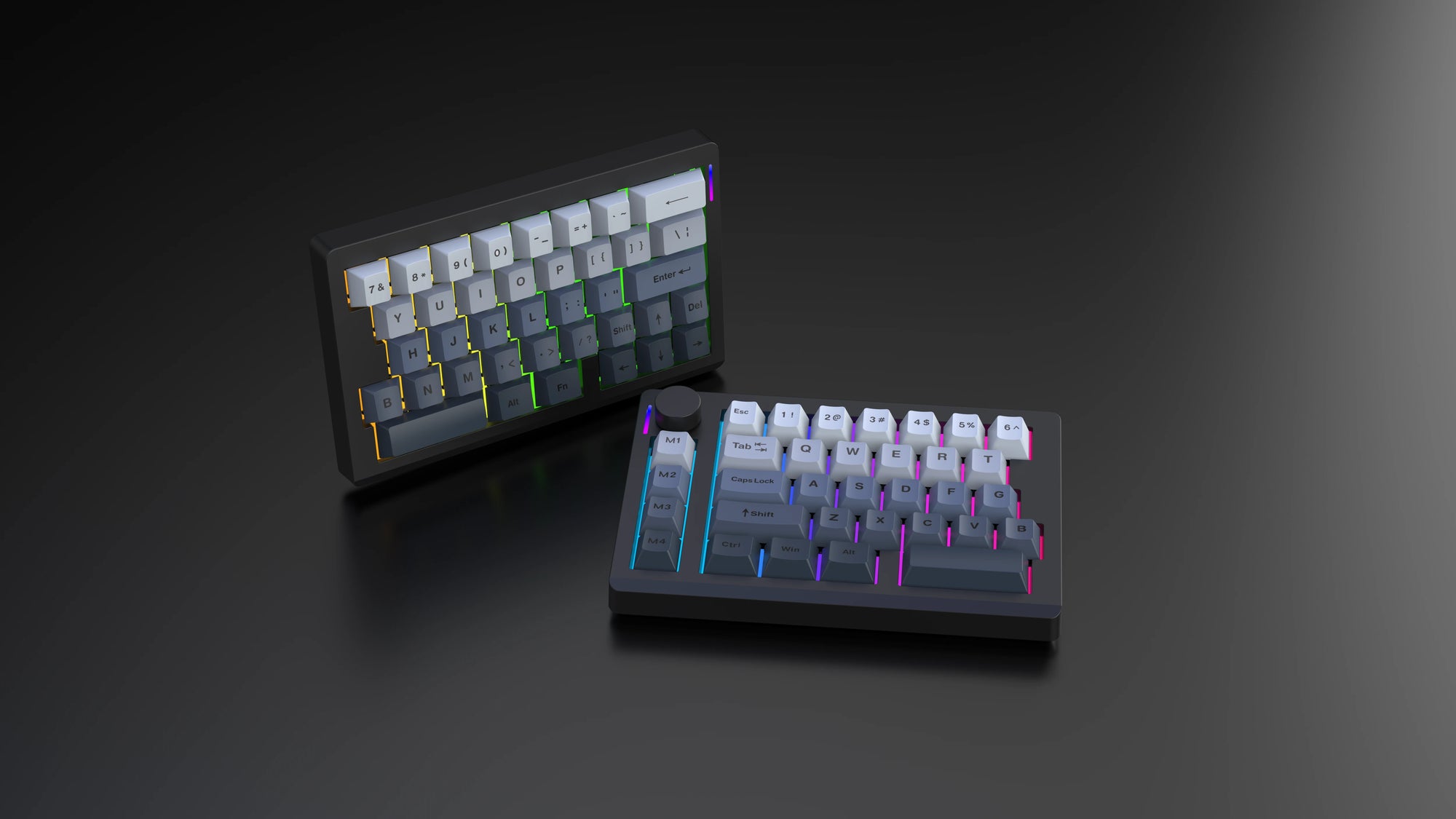

Split Ergonomic Design

Split Ergonomic Design

Two independent keyboard halves allow natural shoulder-width positioning, reducing wrist strain while creating a more comfortable typing posture for long work or gaming sessions.

Engineered structure isolates vibration into dampening layers, turning every keystroke into a clean creamy thock.

Sound-Dampening Layers

PORON, IXPE switch pad, silicone base and PET sound-enhancer kill different frequencies of hollow rattle.

Lubed Stabilizers

Plate-mount stabilizers come pre-lubed and tuned, so spacebars and shifts hit clean and balanced.

Exploded view of the keyboard layers

Why theSplit70Sounds this good.

The Split70 combines gasket mounting with five tuned acoustic layers to minimize vibration, control resonance, and create a clean, creamy typing sound with a softer keystroke feel.

  • Gasket-mounted structure
  • Sandwiched Latex
  • IXPE switch pad
  • PET sound film
  • Bottom sponge
  • Bottom silicone

New Generation Switches

Compare Versions.Switch Differences.

Switch
Type
Feel
Sound
Best For
Sound Profile
Wisteria V2
Wisteria V2
Linear
Smooth & Creamy
Moderate
Everyday / Gaming
LOW Mid High V-High

3D Model View

Smart Design.Made in House.

Drag to Rotate / Scroll to Zoom

About This Product

Technical Specifications.Quality Delivered.

Brand
EPOMAKER
Model
Split70
Layout
Ergonomic Split Keyboard, 70% Layout
Number of Keys
71 Keys + 1 Knob
Connectivity
2.4GHz Wireless, Bluetooth, and Wired Connection
Battery
3000mAh Rechargeable Battery
Battery Life
Up to 11 hours with RGB Backlight On, and 260 hours with Backlight Off
Compatibility
Mac / Windows / Android
Keyboard Dimensions
18.4 + 18.8cm in Length (Left + Right), 11.8cm in Width, and 4cm in Height
Case Material
ABS Plastic
Plate Material
PC Plate
Flex-Cut
No Flex-Cut
Stabilizers
Plate-Mounted Stabilizers
Mounting Structure
Gasket Mount
Sound Dampening
5-Layer Sound-Optimizing System: Sandwiched Latex, IXPE Switch Pad, PET Sound Enhancement Pad, Bottom Sponge, and Bottom Silicone
Keycap Profile
Cherry Profile
Keycap Material
PBT Keycaps
Keycap Manufacturing Technique
Dye Sublimation
Spacebar Sizes
Dual 2.75U Spacebars
Hot-Swappable
Yes, Compatible with Mechanical Switches
RGB Backlight
Dynamic RGB Backlight with South-Facing Per-Key LEDs
Polling Rate
1000Hz in Wired and 2.4GHz Wireless Mode; 125Hz in Bluetooth Mode
Latency
3ms Wired Mode, 5ms 2.4GHz Wireless Mode, and 15ms Bluetooth Mode
Anti-Ghosting
N-Key Rollover Supported
Keyboard Weight
890g

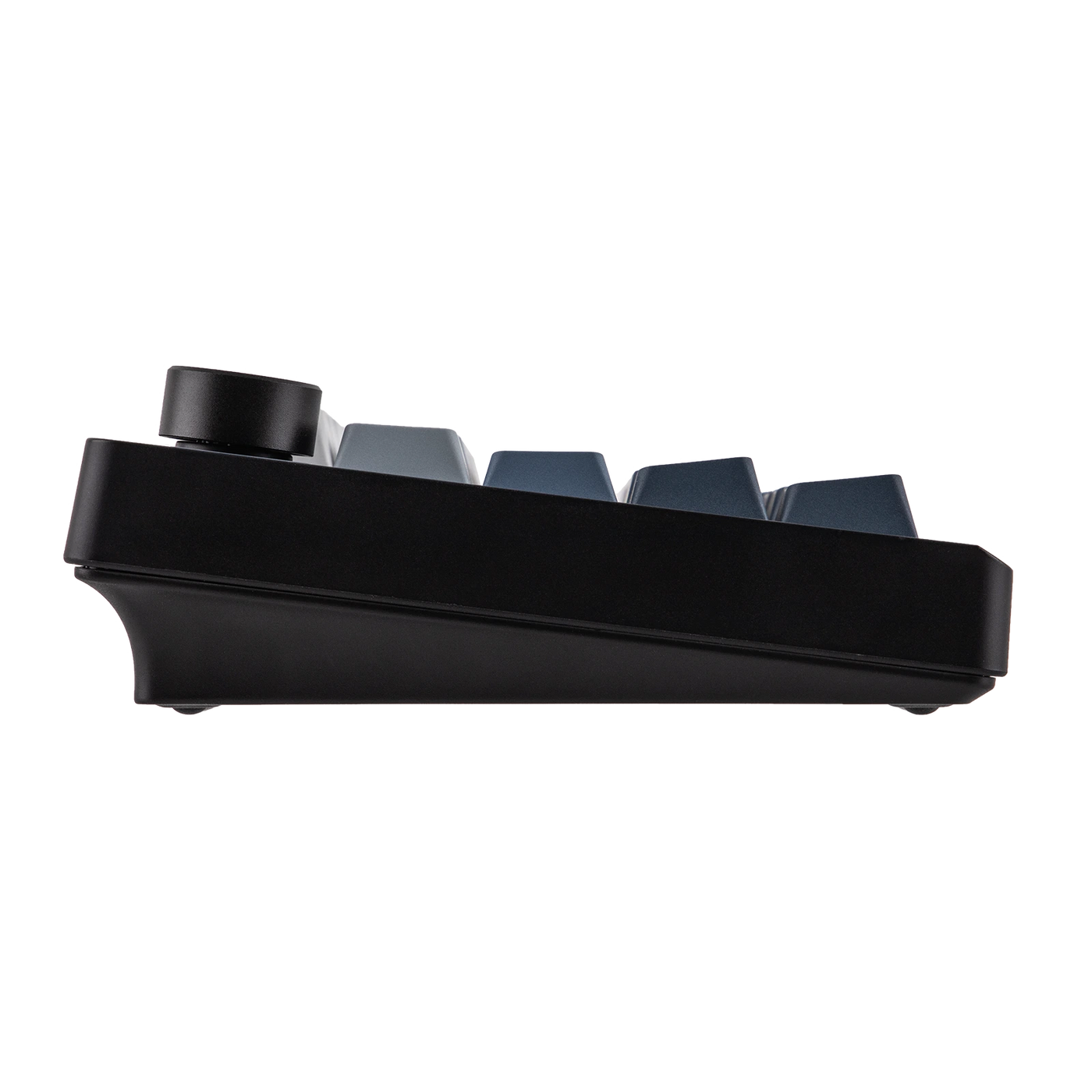

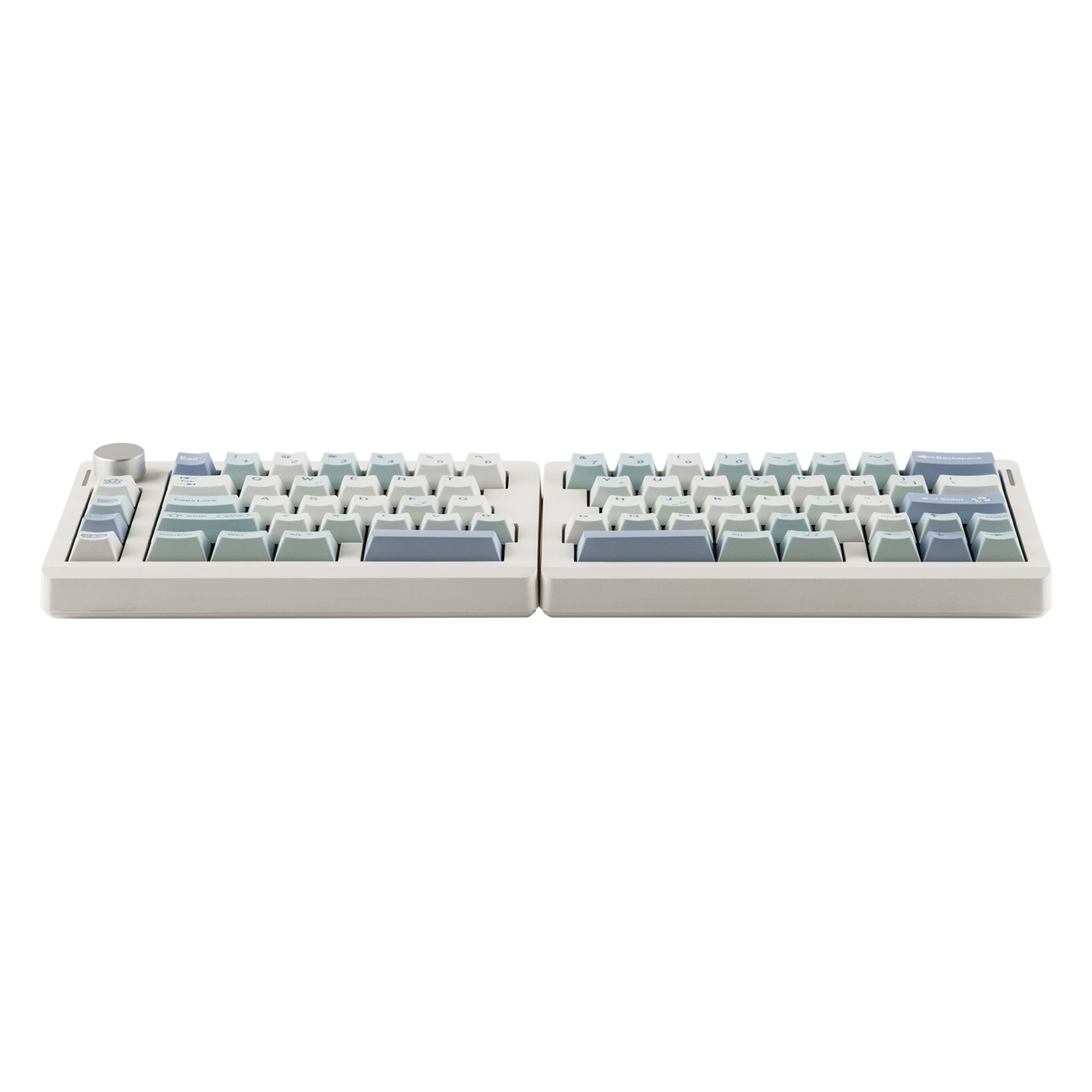

Front Height
2.1cm

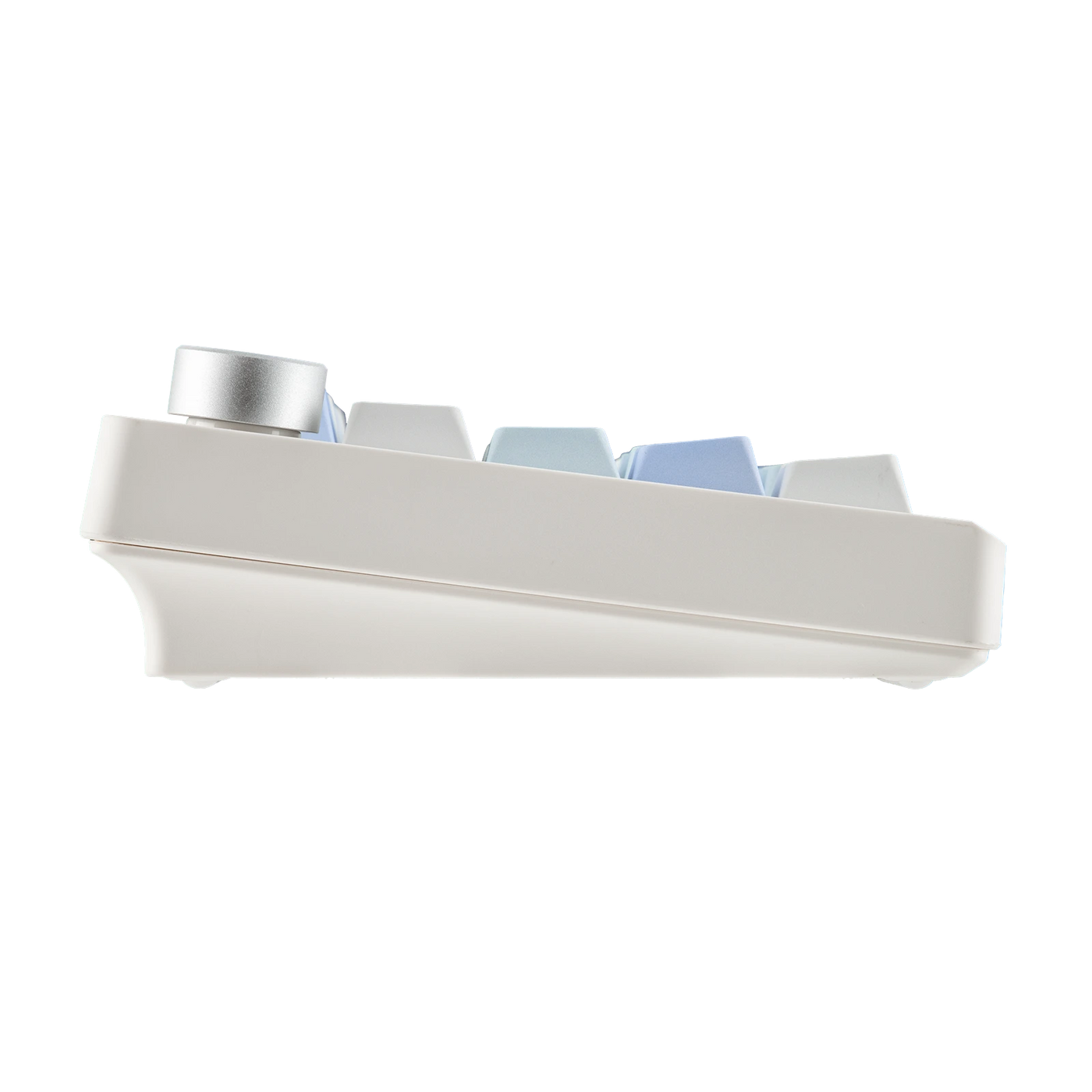

Typing Angle
Approximately 7 Degrees
Kickstand
No Kickstand

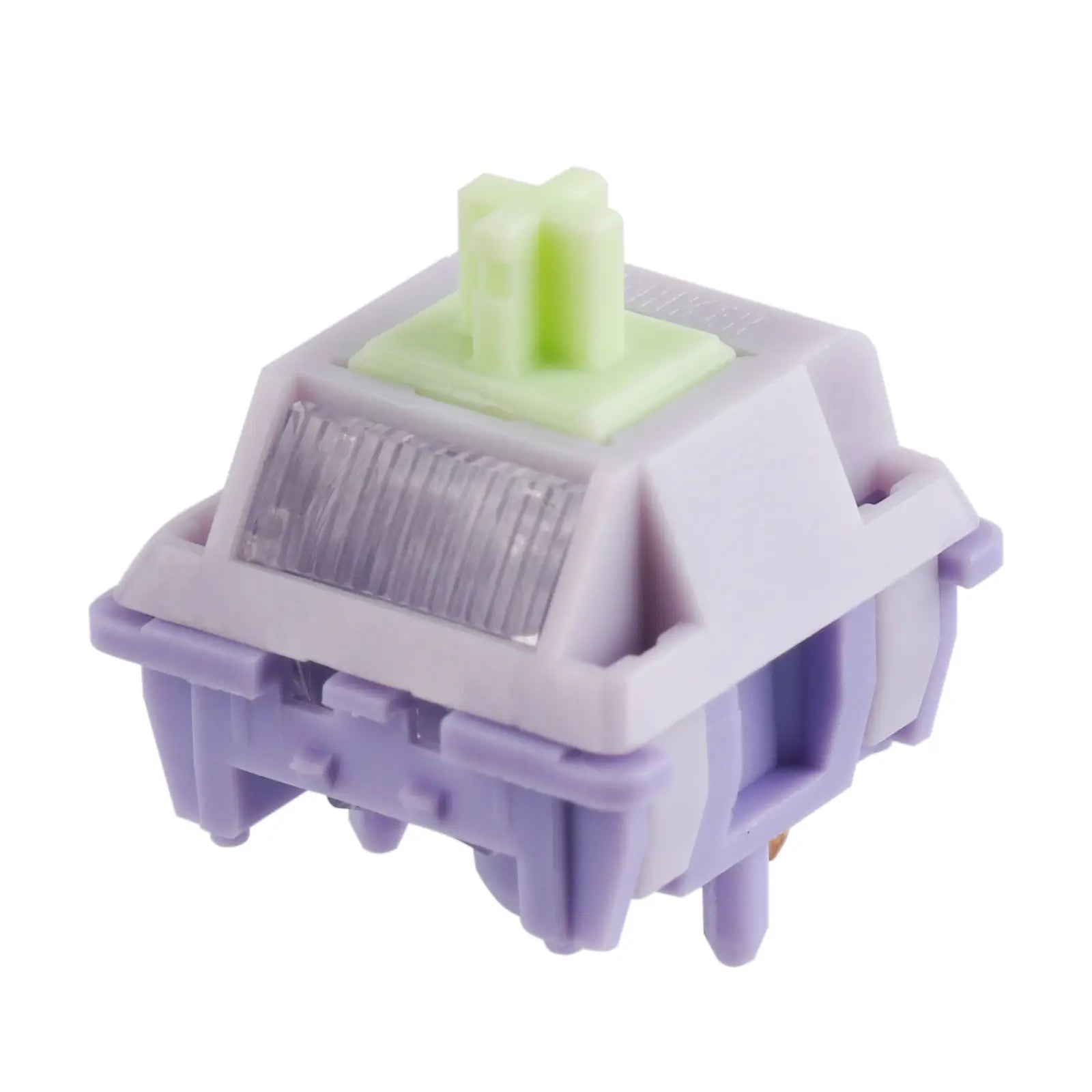

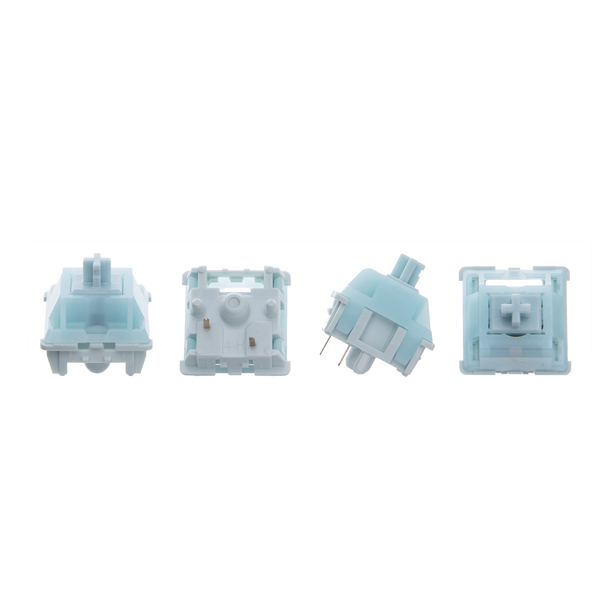

Epomaker Wisteria V2 Switch

Experience a smooth, creamy linear typing feel with factory lubrication and consistent keystrokes. Designed for comfortable everyday use, it delivers balanced acoustics and effortless key travel for both work and gaming.

Switch Type5-pin Linear Switch, Factory Lubed
Trigger Force32.8±5 gf
Bottom-out Force45±5 gf
Pre-Travel2.0±0.4 mm
Total Travel3.6±0.4 mm
Light DiffuserYes

Product Downloads

Keep your Keyboard.Up to Date.

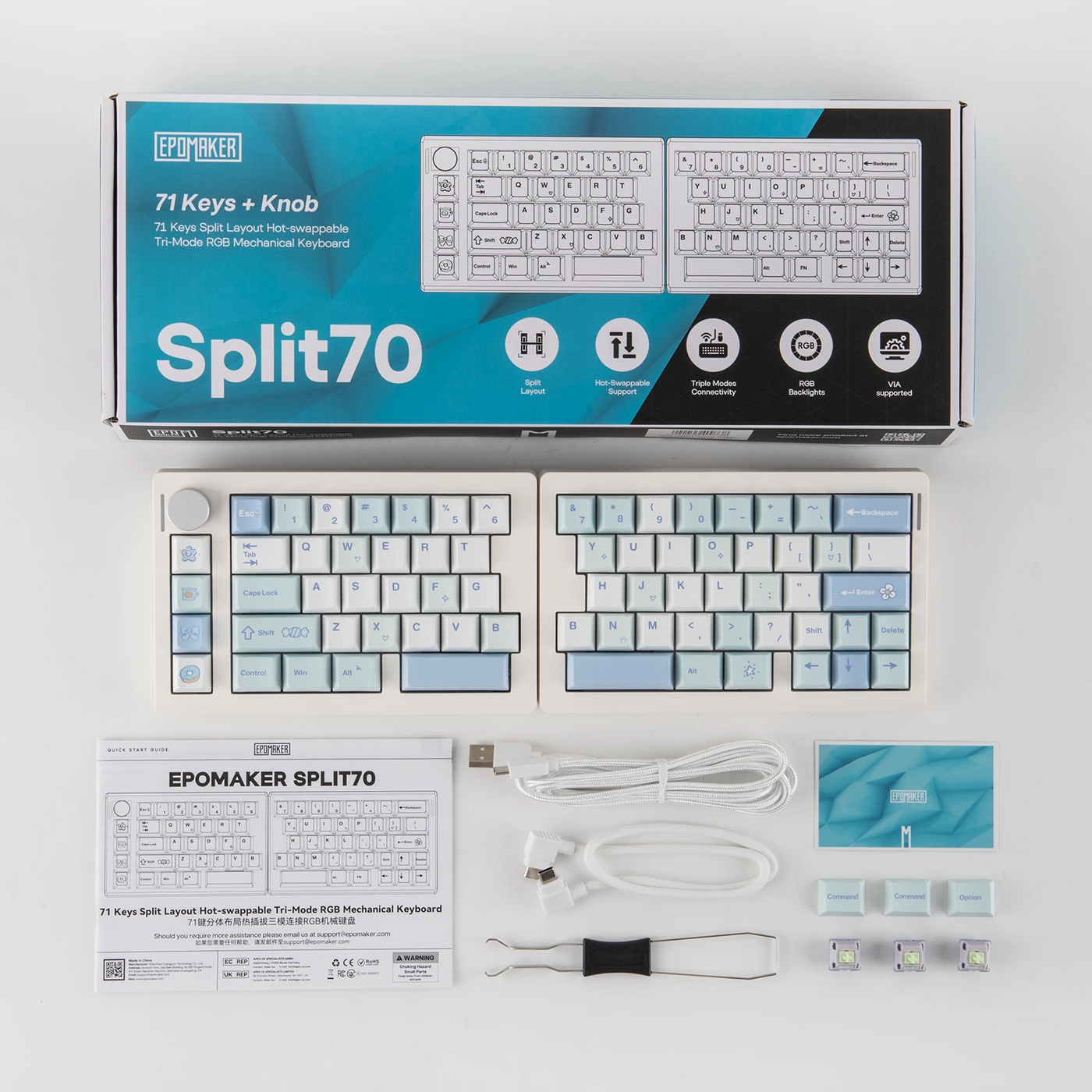

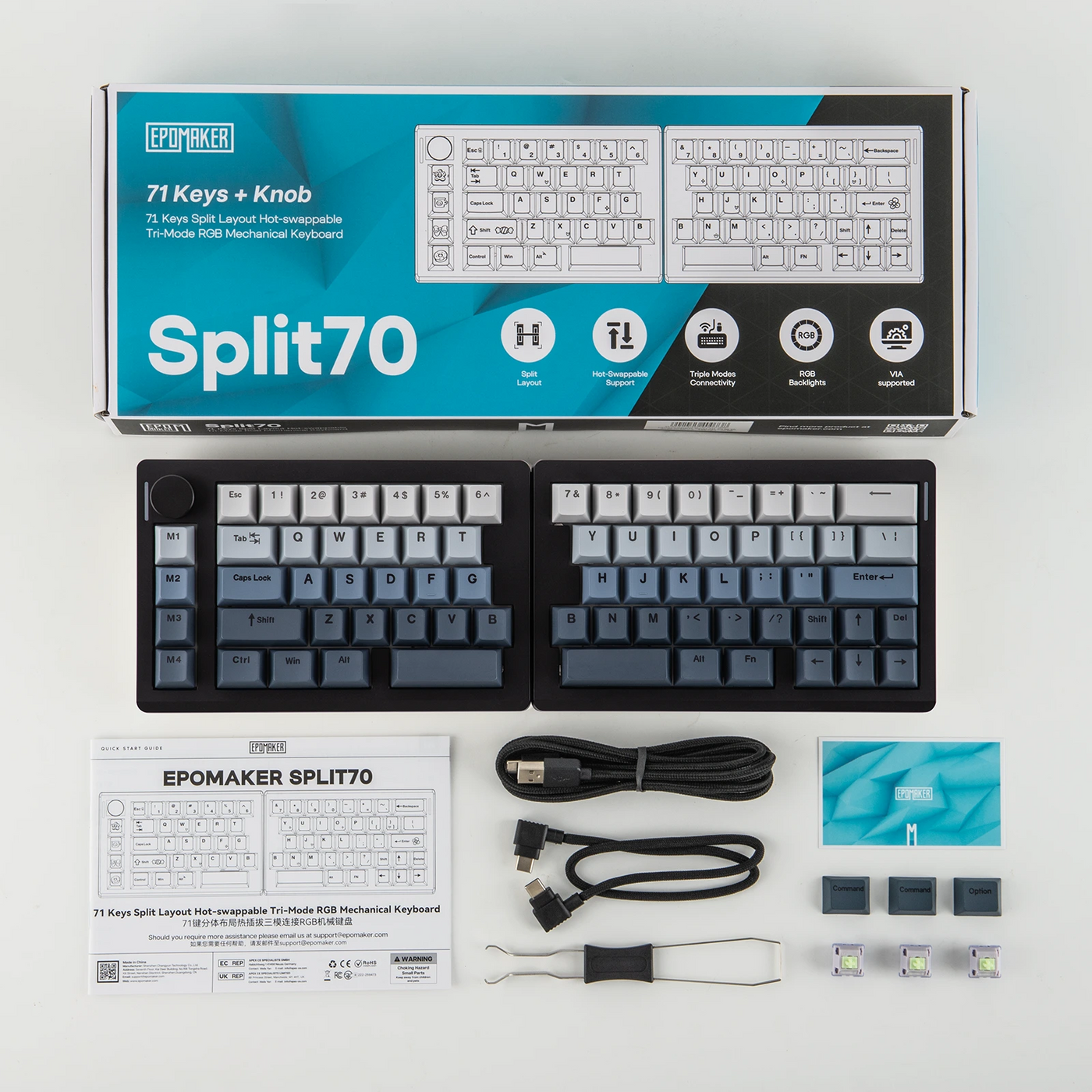

Ready to Use

Everything you Need.Inside the Box.

Spilt70 Keyboard

Spilt70 Keyboard

USB-C Cable

USB-C Cable

Extra Switch *3

Extra Switch *3

2-in-1 Switch & Keycap Puller

2-in-1 Switch & Keycap Puller

Pictures for reference only. Packaging and included accessories may differ slightly from what you get delivered.

Content List

Content List

  • 1xSplit70 Mechanical Gaming Keyboard
  • 1xUSB A-to-C Cable (Device to Keyboard)
  • 1xUSB C-to-C Cable (Left Half to Right Half)
  • 1x2-in-1 Switch-and-Keycap Puller
  • 3xKeycaps for Mac
  • 3xExtra Switches
  • 1xMultilingual User Manual
