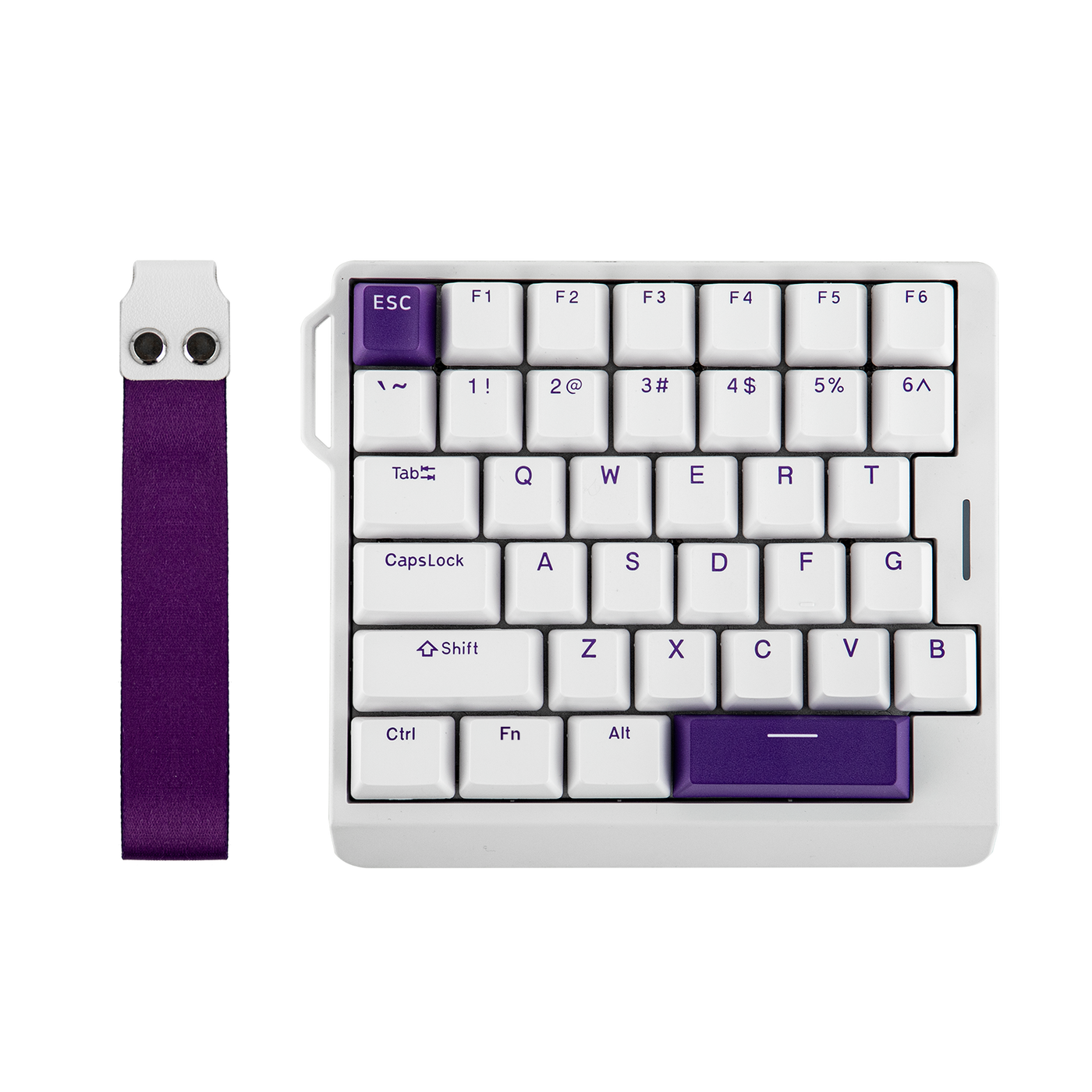

HE Series

EPOMAKER

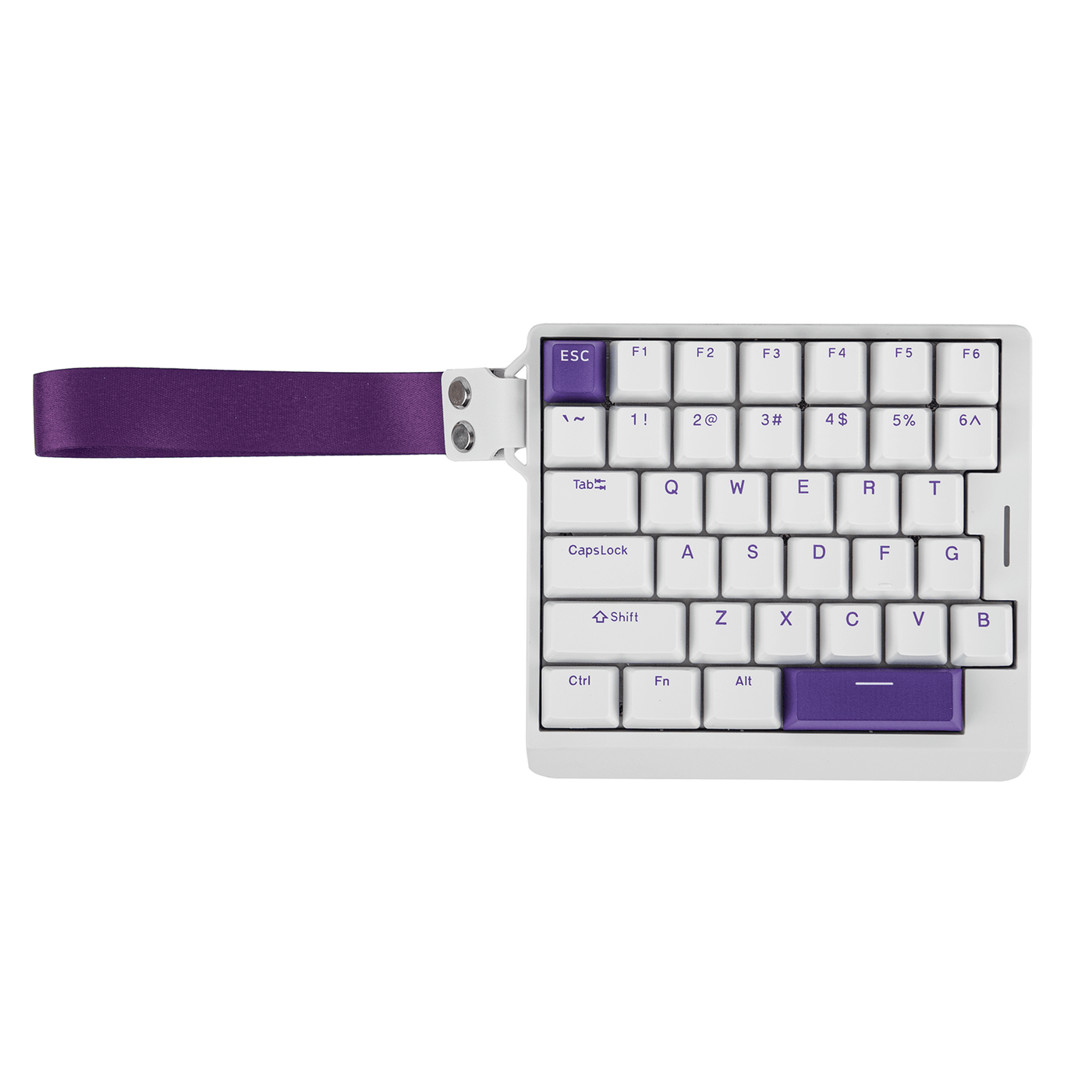

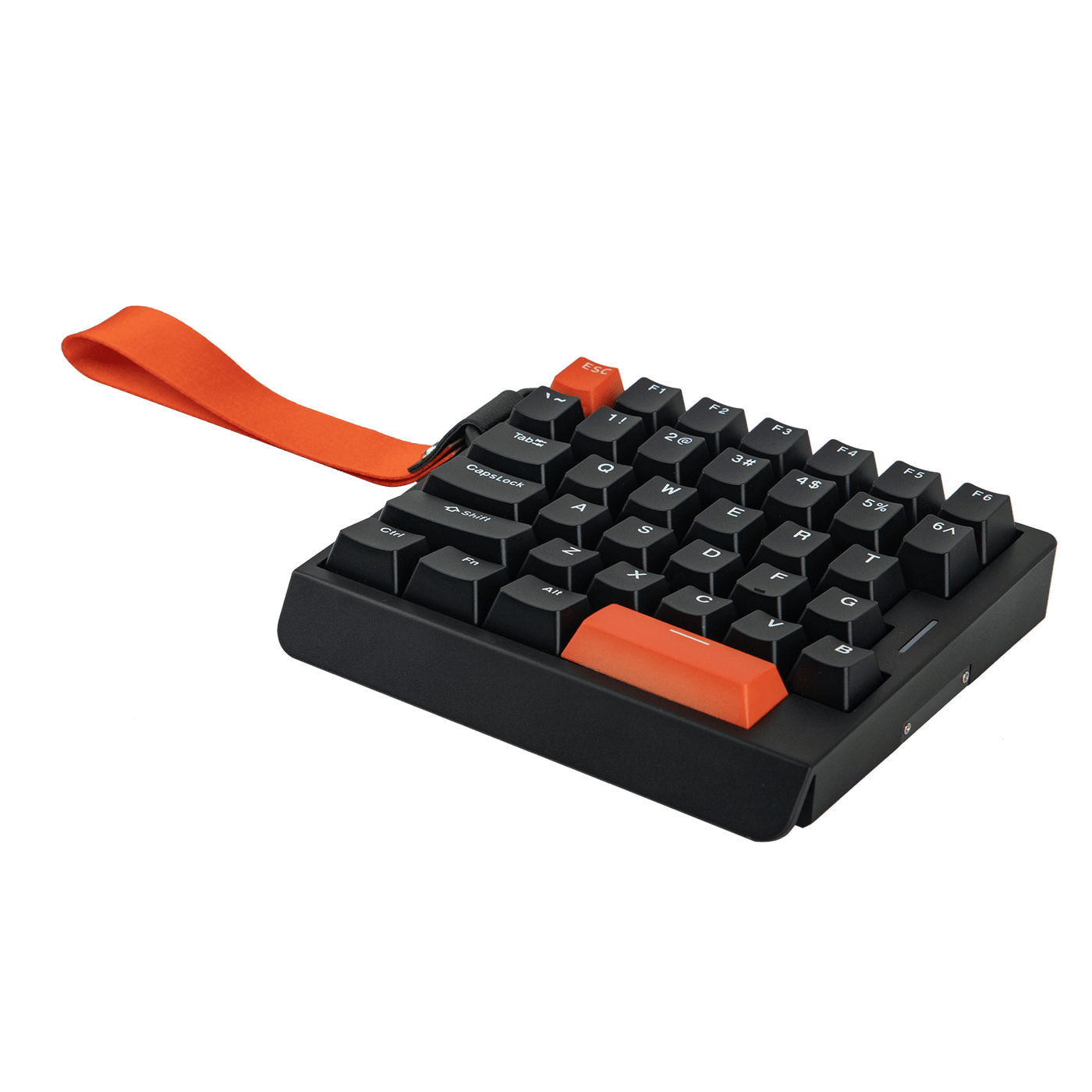

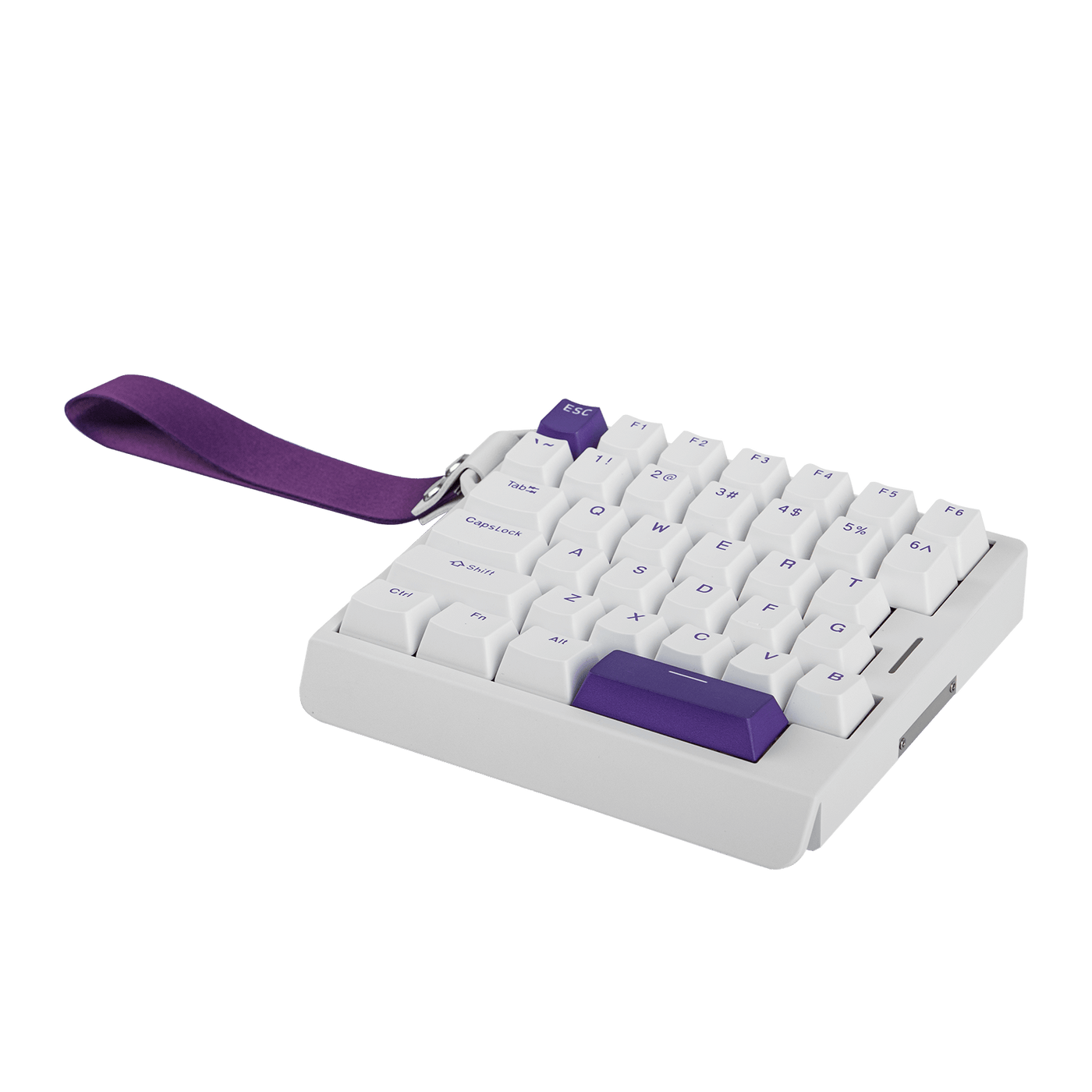

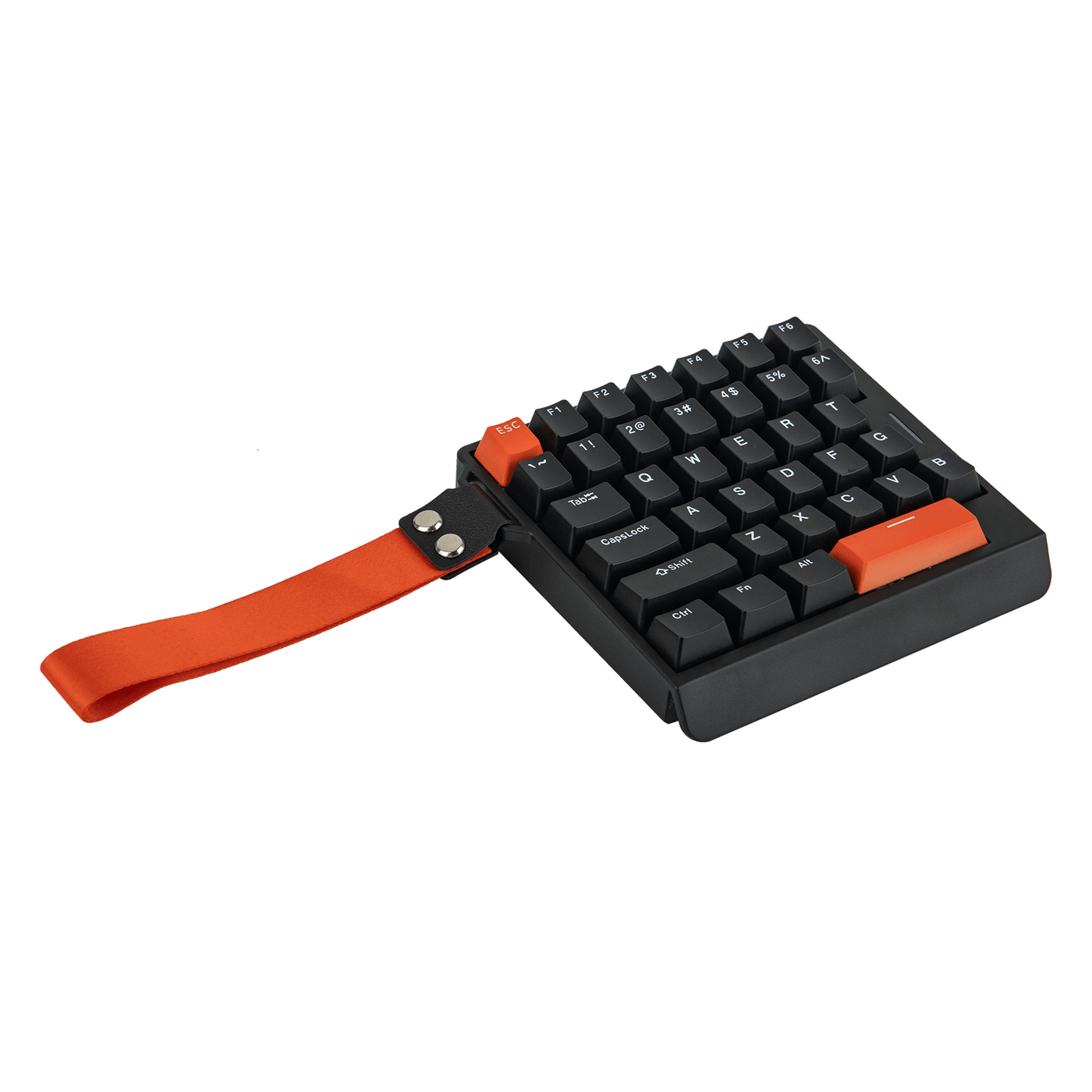

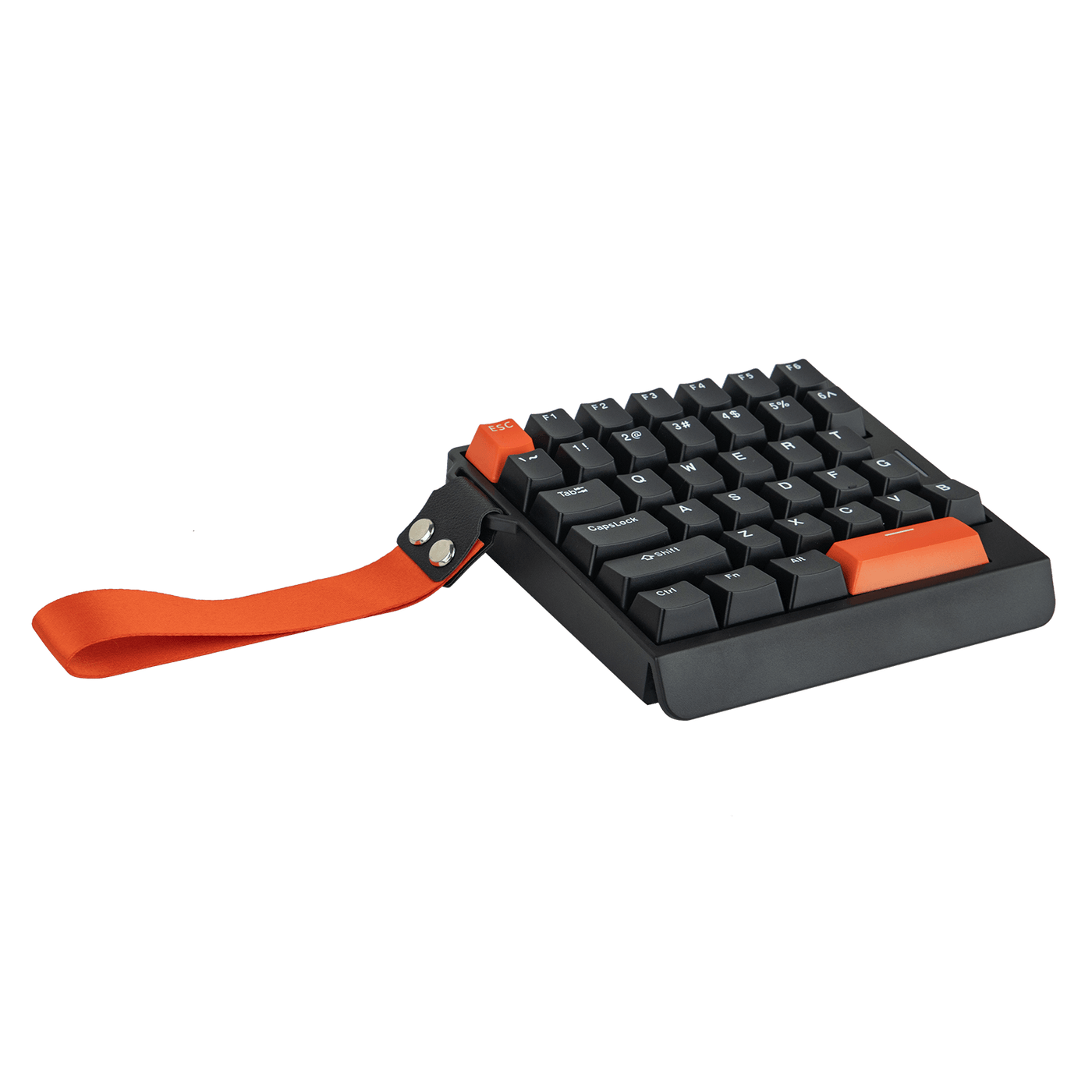

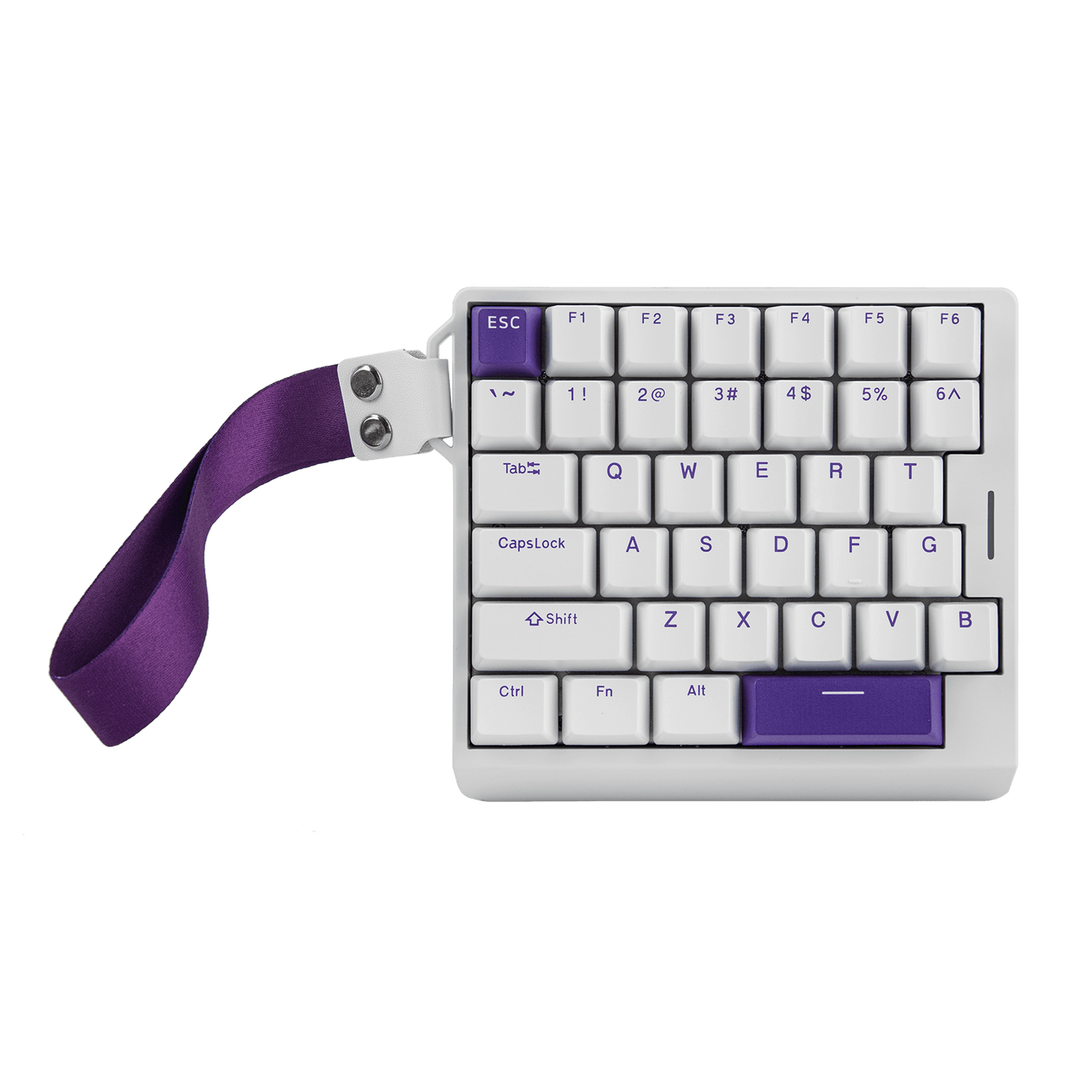

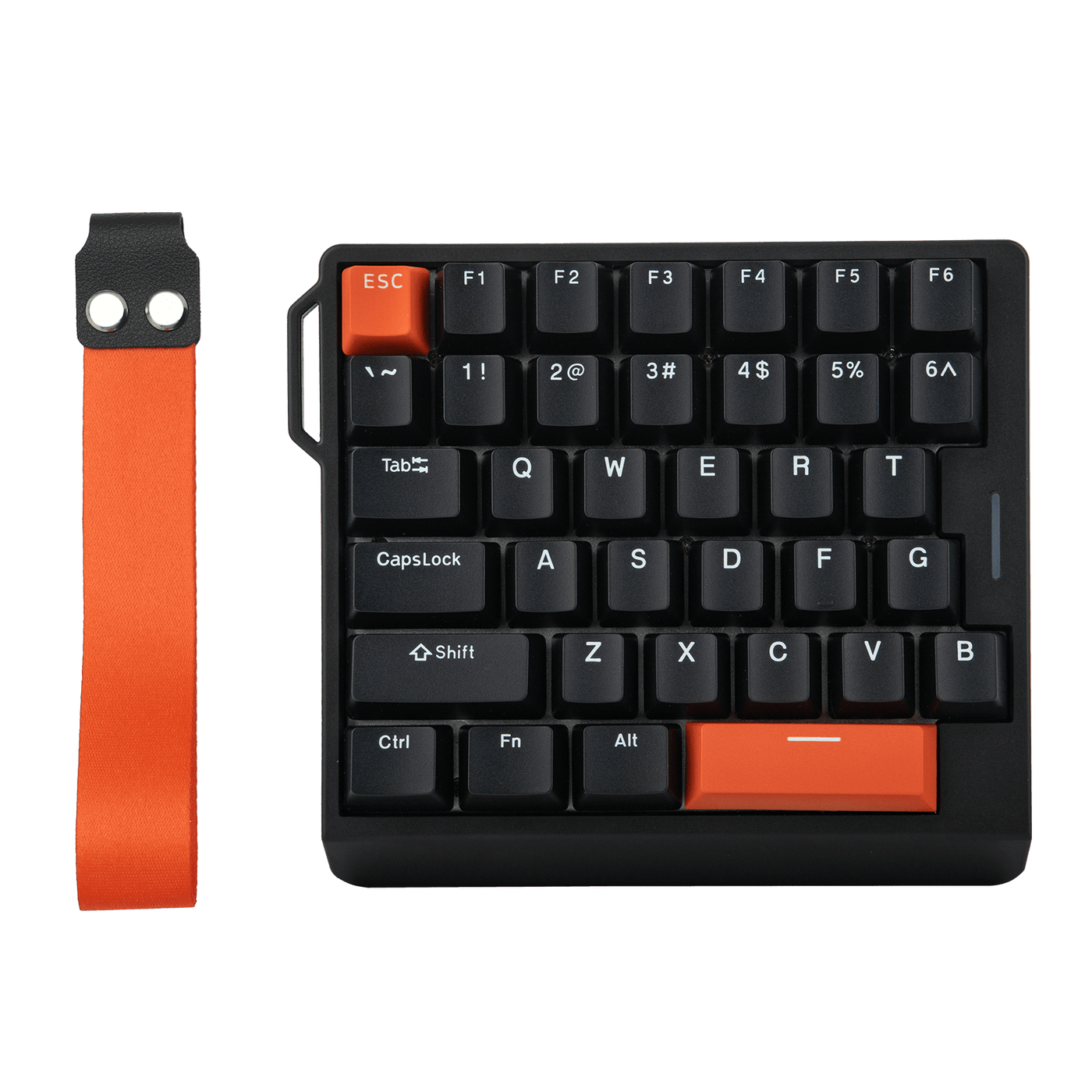

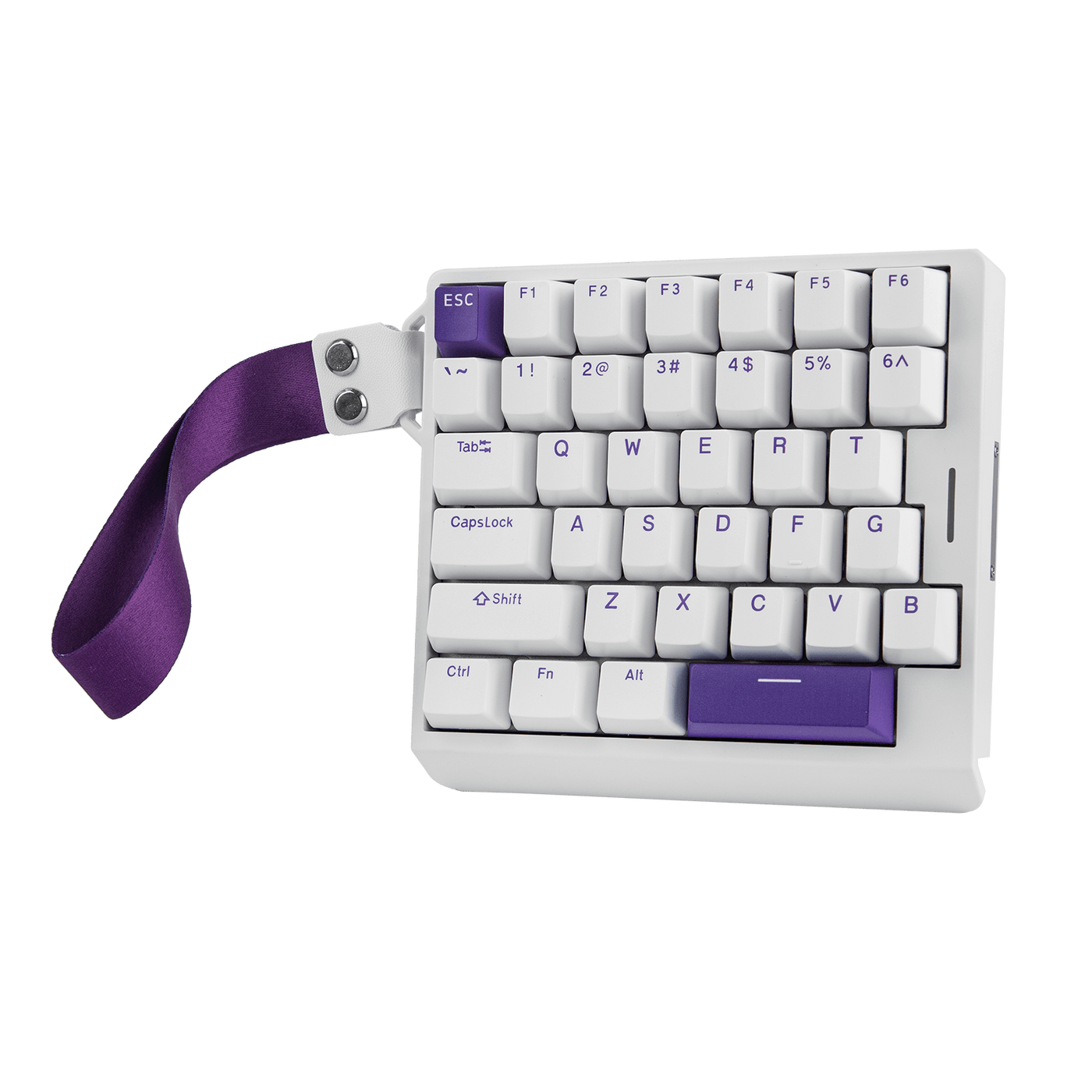

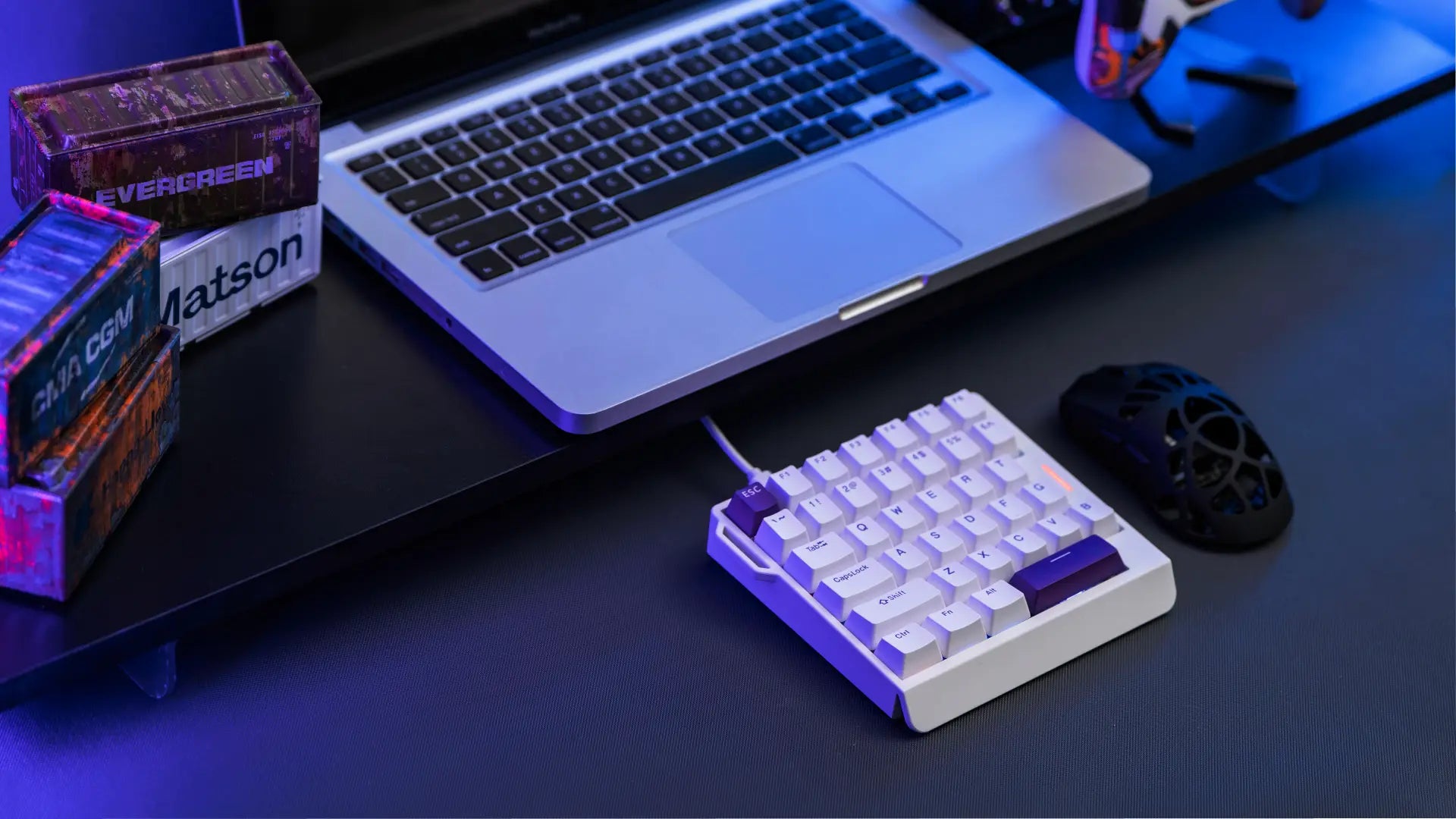

HE30

Compact 30% 36-key one-handed layout · Hall-effect Purple magnetic switches · adjustable 0.1mm trigger · 8000Hz / 0.125ms wired. A portable left-hand gaming pad built for the clutch.

$49.99

Color: White Purple
Switch: Purple Magnetic Switch
Adjustable 0.1mm Trigger Rapid Trigger & SOCD 8000Hz · 0.125ms Latency Space-Saving 30% Layout Premium PBT Keycaps South-Facing Per-Key RGB
1 Year Warranty 30 Day Returns Worldwide Shipping

Adjustable Trigger

0.1mm instant to 3.4mm · per-key actuation, no debounce

8000Hz Polling

0.125ms latency · full-board scan captures every input

DKS · Mod-Tap

true analog input · one stroke fires up to 4 actions

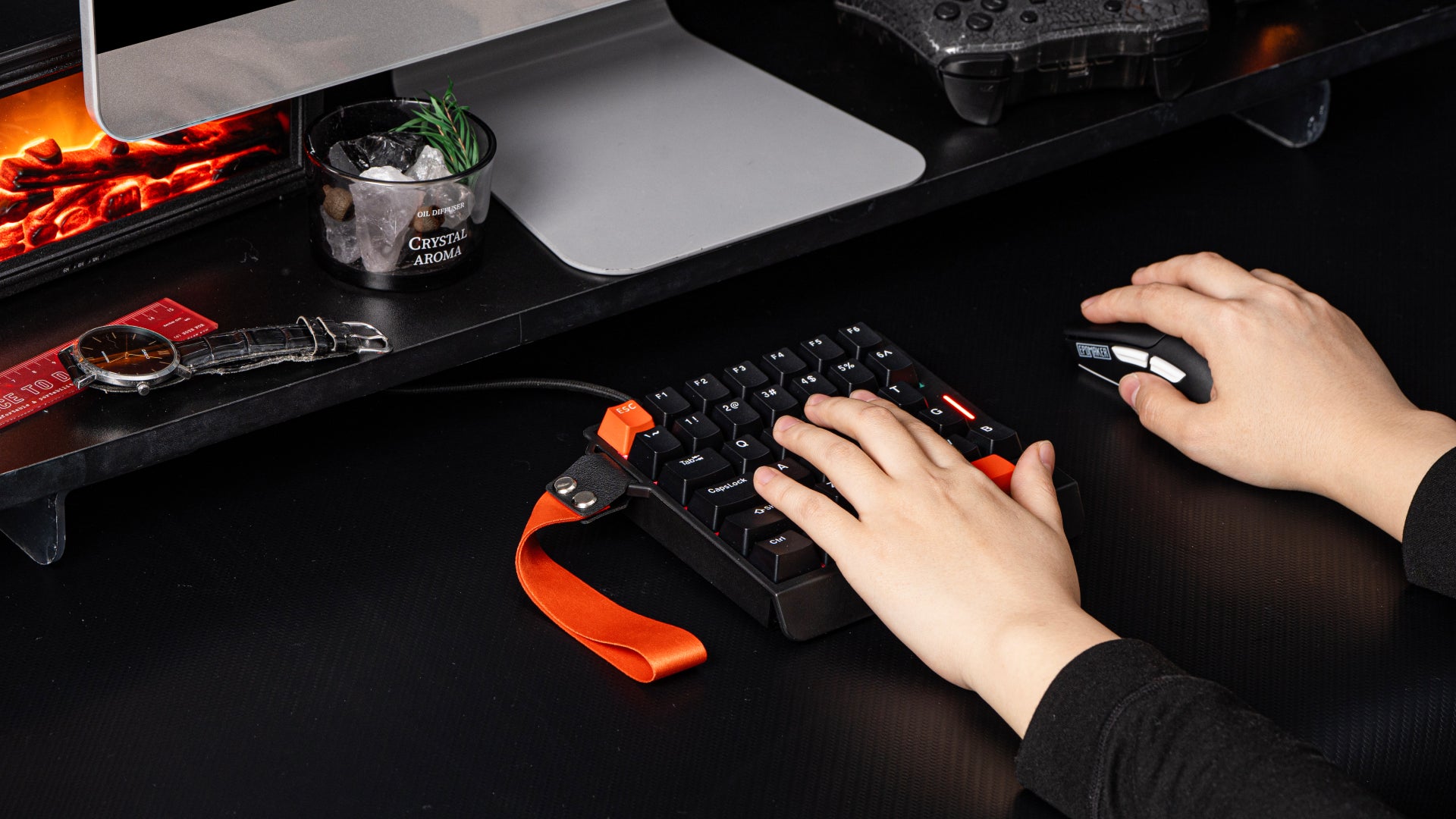

Portable 30% Pad

left-hand layout · removable wrist strap for LAN travel

Response & Feel — Built for Speed

The one-handed pad that reacts before you think.

Hall-effect Purple magnetic switches read exact key depth, so actuation is yours to tune from 0.1mm to 3.4mm. Pre-lubed switches and sound-dampening layers add a creamy, quiet feel for late-night raids.

Adjustable ActuationInstant Response
Rapid TriggerBuilt for Speed

Built with Purpose

Designed for EveryKeystroke.

MAGNETIC PRECISION

Engineered for Instant Response

Hall-effect Purple switches sense exact key depth instead of a fixed contact — set actuation anywhere from 0.1mm to 3.4mm, per key, with zero mechanical debounce.

Adjustable TriggerTune every key

RAPID TRIGGER

Reset and fire without lifting.

Rapid Trigger registers a key the instant it moves and resets the moment you ease off — counter-strafe and re-fire faster than any mechanical board.

Rapid TriggerFaster resets

8000HZ POLLING

Zero-delay input.

An 8000Hz full-board scan delivers 0.125ms latency — every flick and rapid-fire sequence is captured the instant you press, with full anti-ghosting.

0.125ms Latency8K full-board scan

SNAP KEY (SOCD)

Move without freezing.

Snap Key (SOCD) prioritizes your latest opposite-direction input so your character never stalls; DKS and Mod-Tap turn one key into up to 4 analog actions.

SOCD · DKS · MTAnalog input

Exceed your potential

Rapid Trigger input for every clutch flick.

About this Product

Well Thought.Design Features.

UP TO8000HZ

8000Hz full-board polling with 0.125ms latency for near-instant input

DOWN TO0.1MM

Adjustable trigger from a 0.1mm instant tap to 3.4mm, per key

Windows & Linux ready

Free web-based software

Premium PBT Keycaps

Grease- and shine-resistant, keeping a clean look and consistent feel over years of intense play.

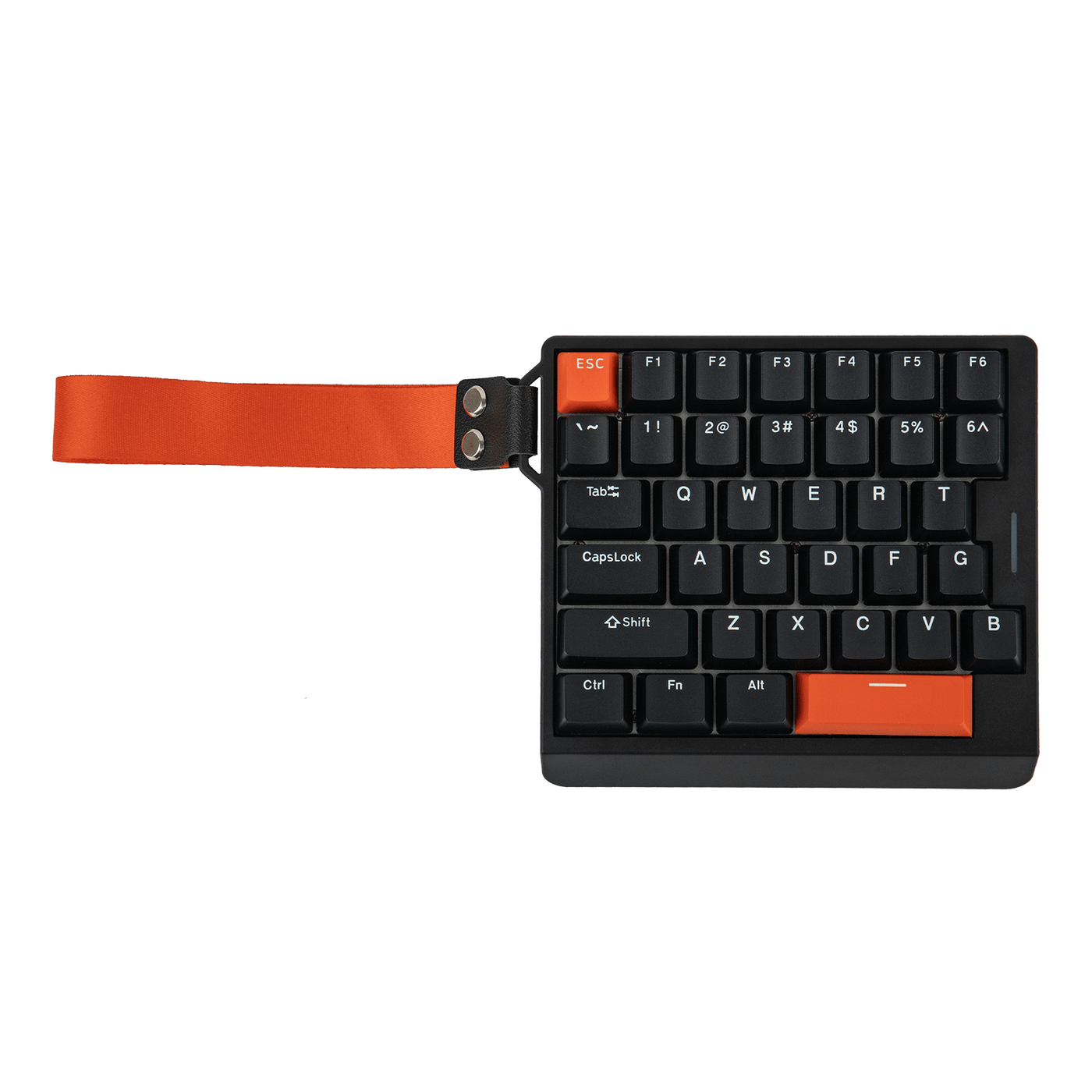

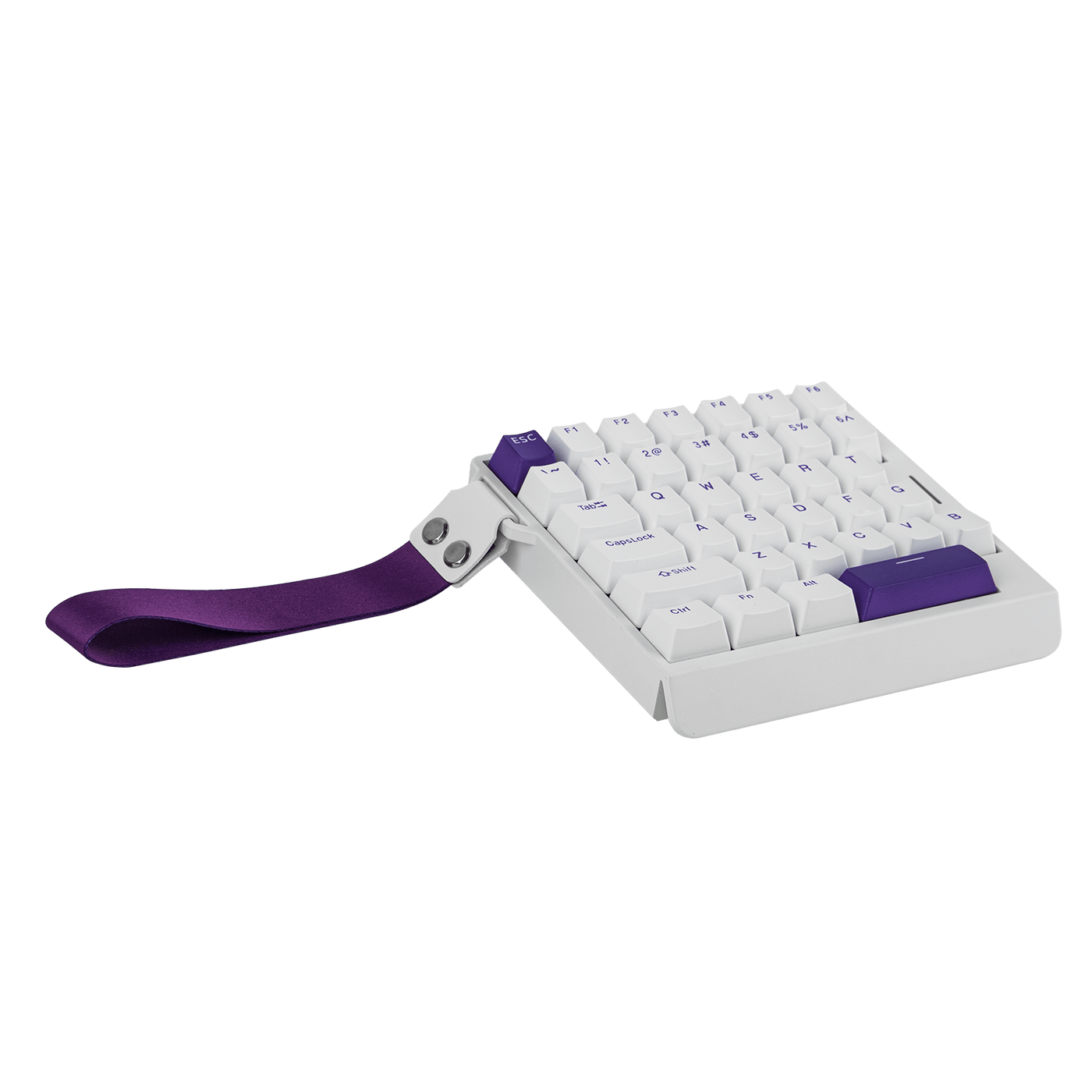

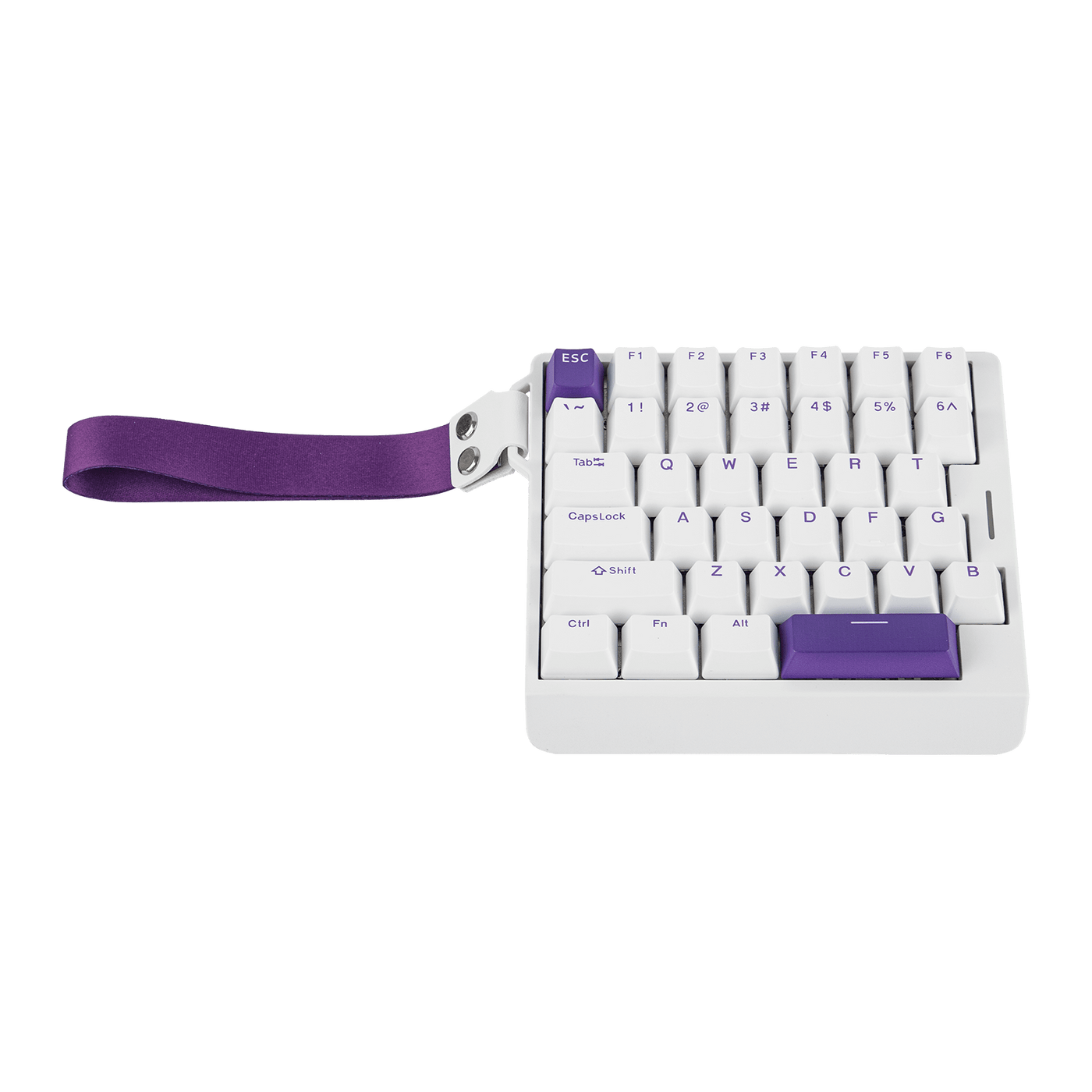

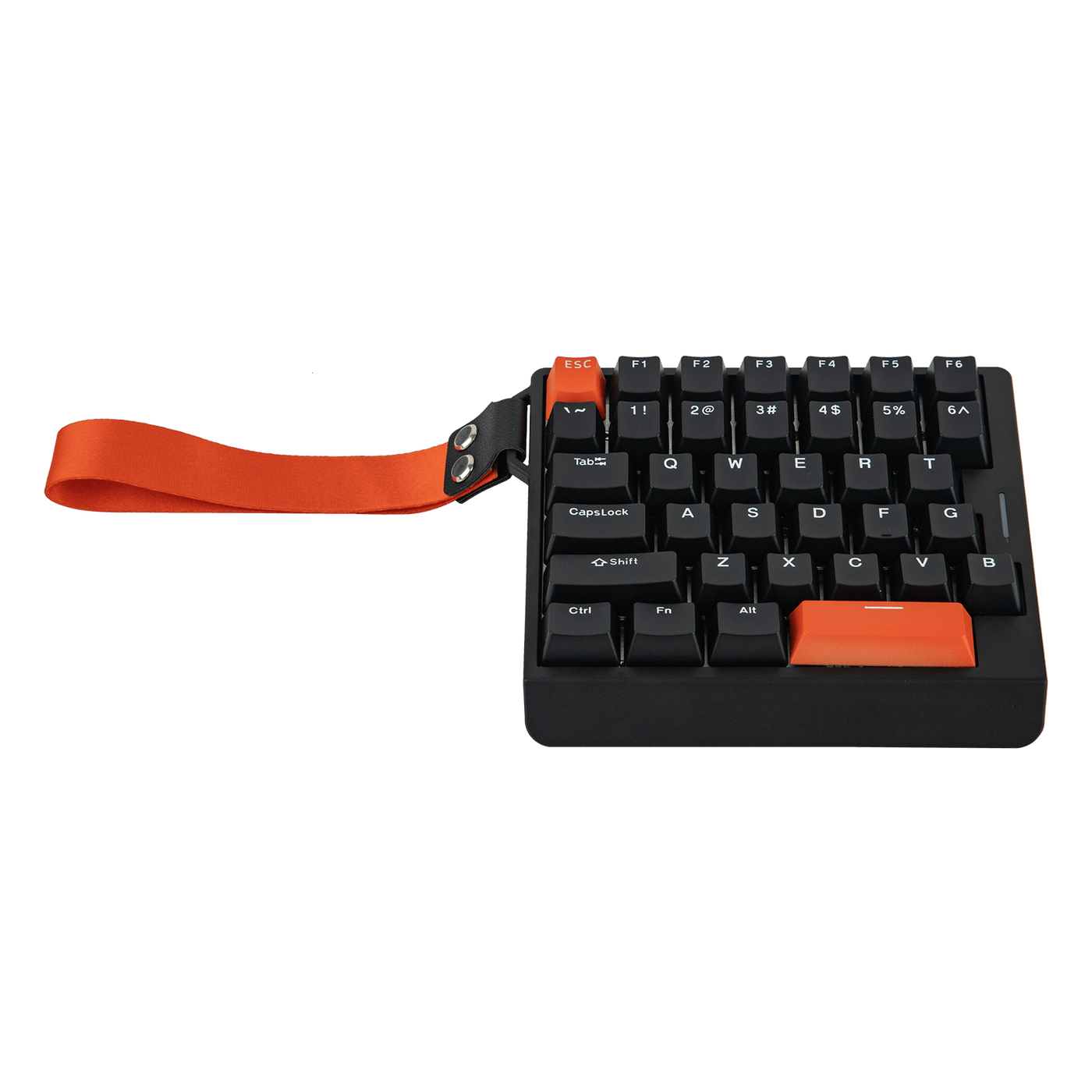

Removable Wrist Strap

Clips the 30% pad to your gear bag so it's the easiest board to bring to any LAN or tournament.

Rapid Trigger & SOCD

Rapid Trigger & SOCD

Instant reset re-fires without lifting, while Snap Key prioritizes your latest input for stall-free strafes.

8000Hz · 0.125ms Wired

8000Hz · 0.125ms Wired

Full-board scan and anti-ghosting land every flick and rapid-fire sequence the instant you press.

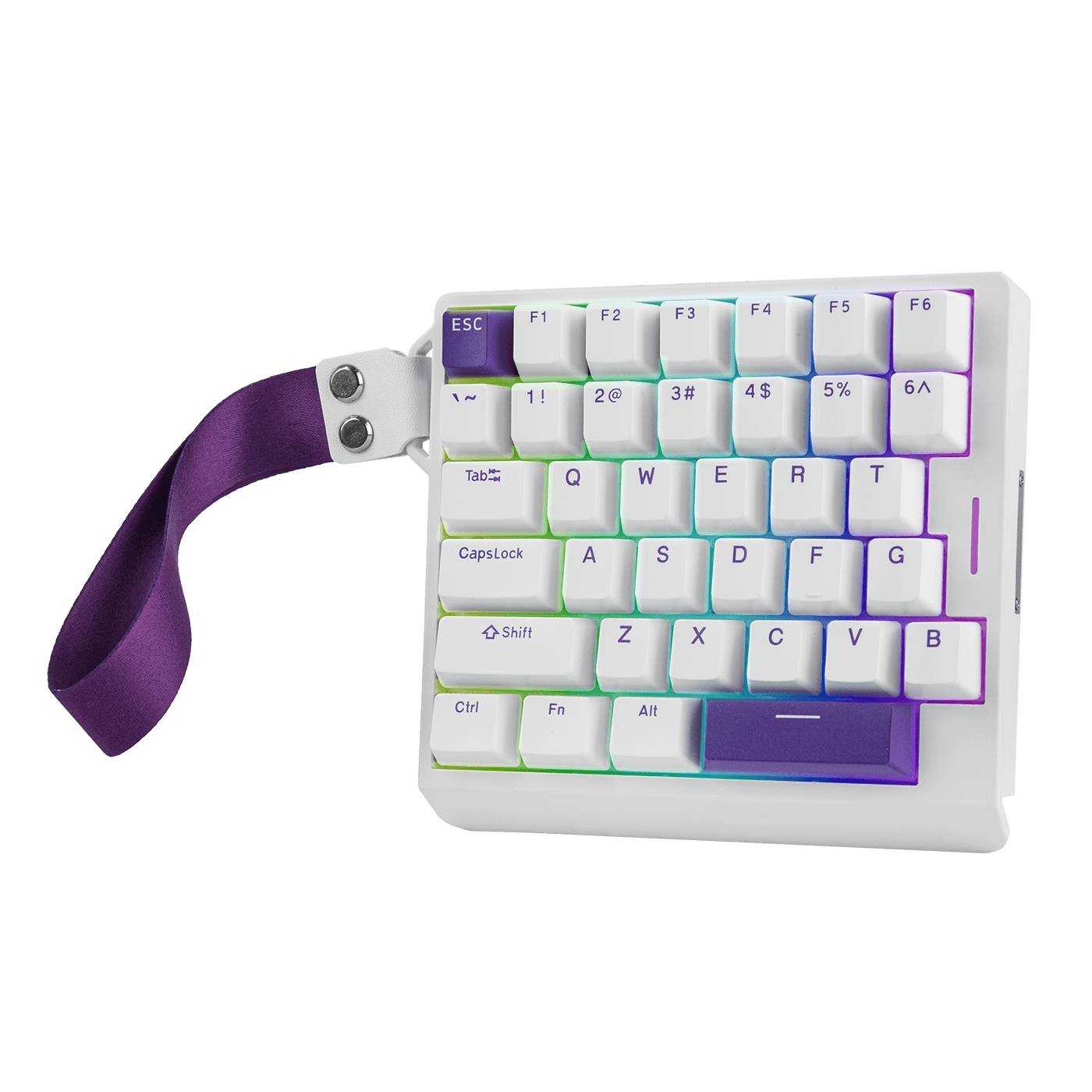

South-Facing Per-Key RGB

South-Facing Per-Key RGB

Per-key adjustable lighting plus a dynamic side light strip for max visibility and a futuristic rig.

Engineered structure isolates vibration into dampening layers, turning every keystroke into a clean creamy thock.

Sound-Dampening Layers

PORON, IXPE switch pad, silicone base and PET sound-enhancer kill different frequencies of hollow rattle.

Lubed Stabilizers

Plate-mount stabilizers come pre-lubed and tuned, so spacebars and shifts hit clean and balanced.

Exploded view of the keyboard layers

Why theHE30Sounds this good.

The HE30 pairs Hall-effect precision with a tray-mount build and dampening layers to deliver a creamy, quiet feel with zero modifications — while keeping input near-instant.

  • Hall-effect magnetic switches with adjustable actuation
  • Tray-mount design for a stable base
  • Multiple sound-dampening layers
  • Factory-lubed switches out of the box
  • Premium PBT keycaps for a lower, cleaner tone

3D Model View

Smart Design.Made in House.

Drag to Rotate / Scroll to Zoom

About This Product

Technical Specifications.Quality Delivered.

Brand
EPOMAKER
Model
HE30
Layout
One-Handed Keyboard, Single-Handed Keyboard, Half Keyboard.
Number of Keys
36 Keys
Battery
No Battery. Wired Keyboard.

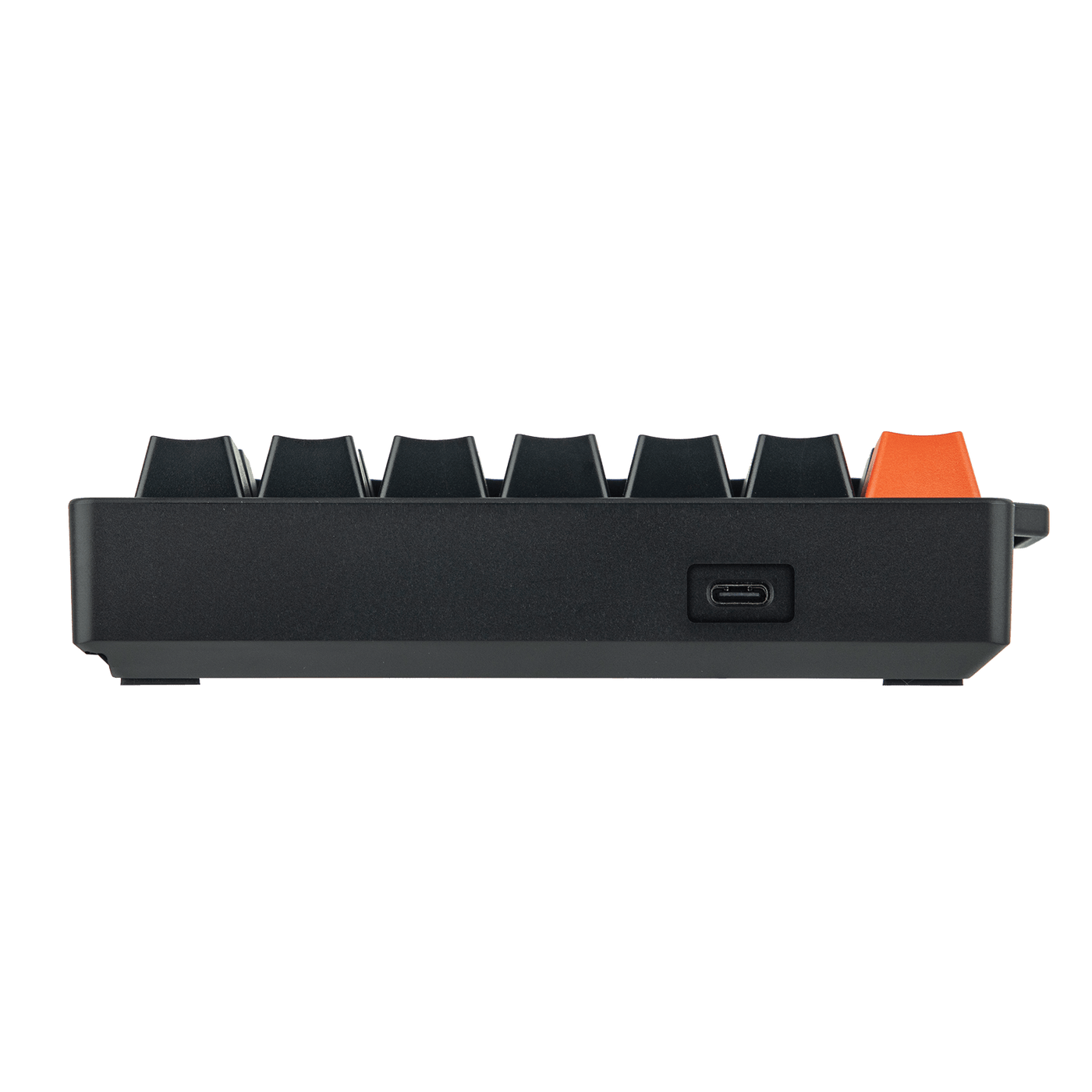

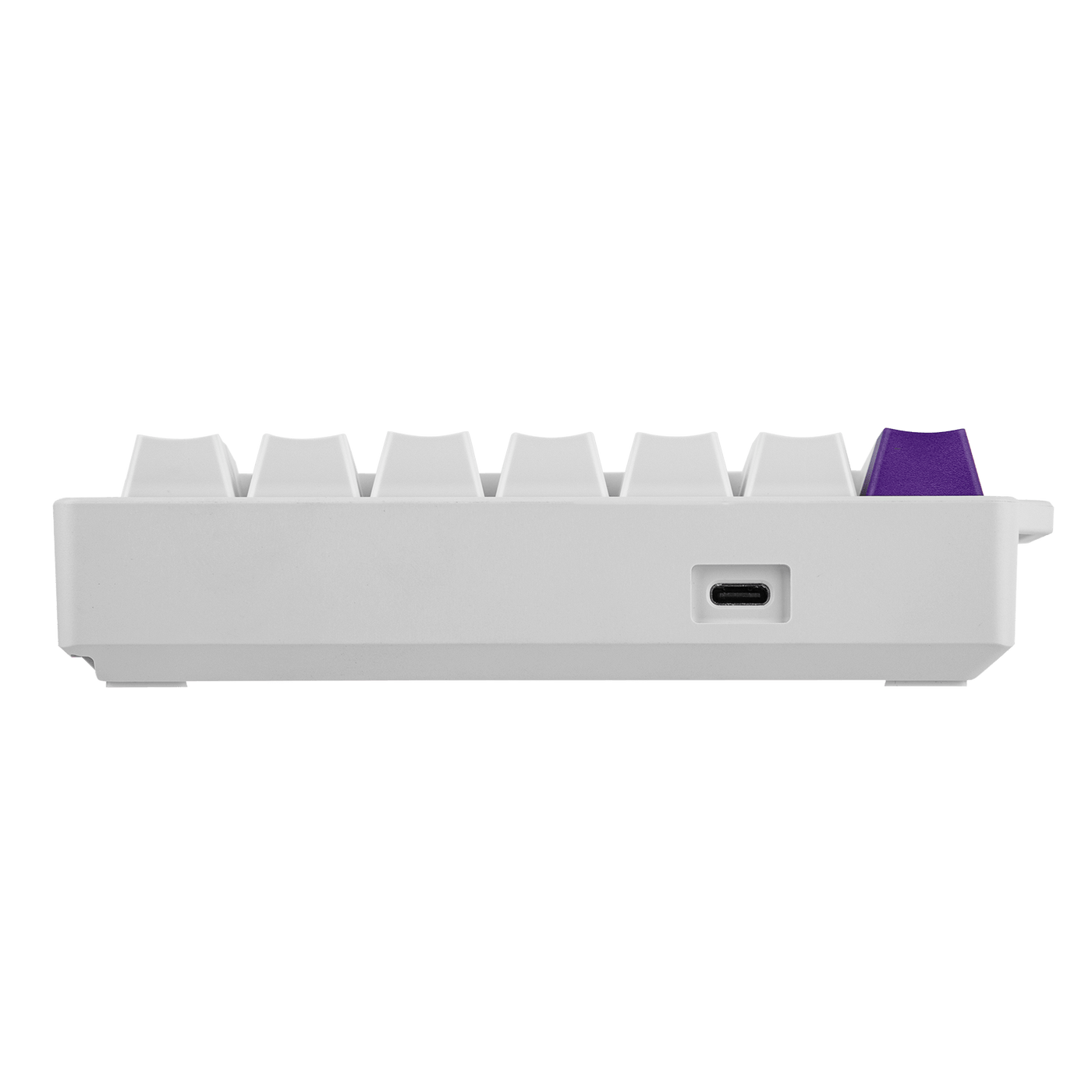

Connectivity
USB A to C Wired Only.
Compatibility
Windows and Linux

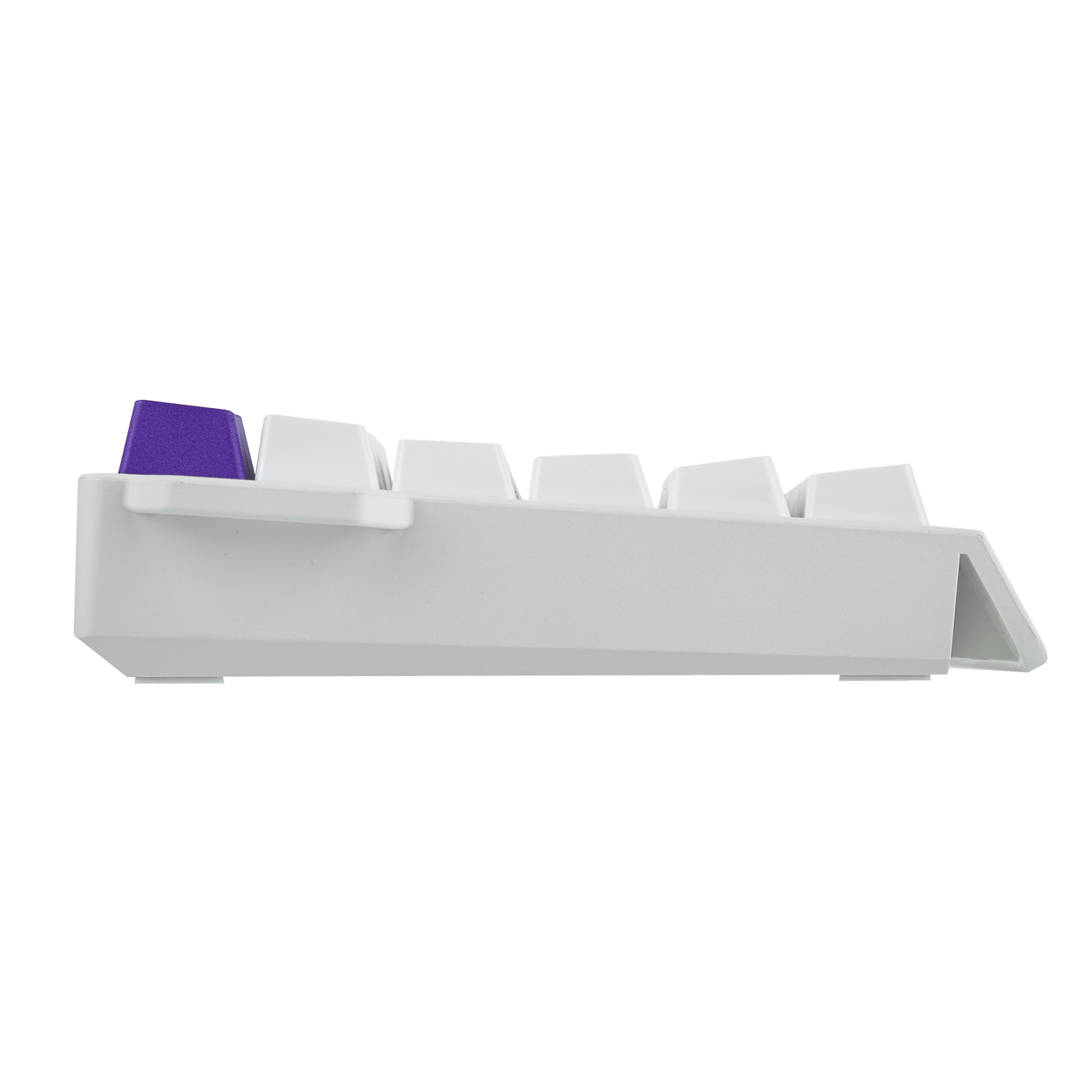

Front Height
2cm
Back Height
2.8cm

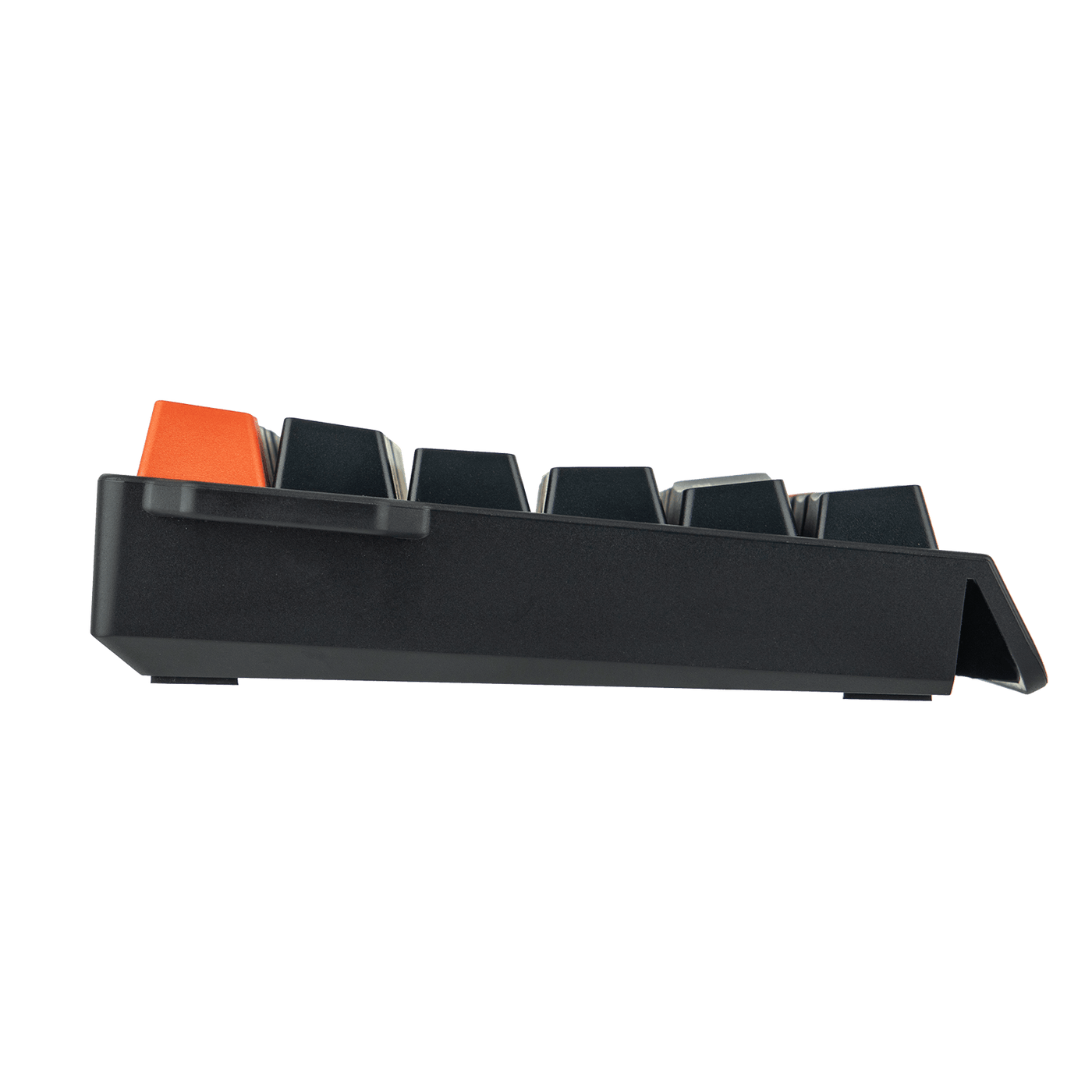

Typing Angle
6 degrees
Case Material
Plastic
Plate Material
Aluminum Alloy Plate
Flex-Cut
No Flex-cut
Stabilizers
Plate-Mounted Stabilizer
Mounting Structure
Tray-Mounted
Sound Dampening
Sandwich Foam, IXPE Switch Pad, PET Sound-Optimizing Pad, and EPDM Bottom Foam

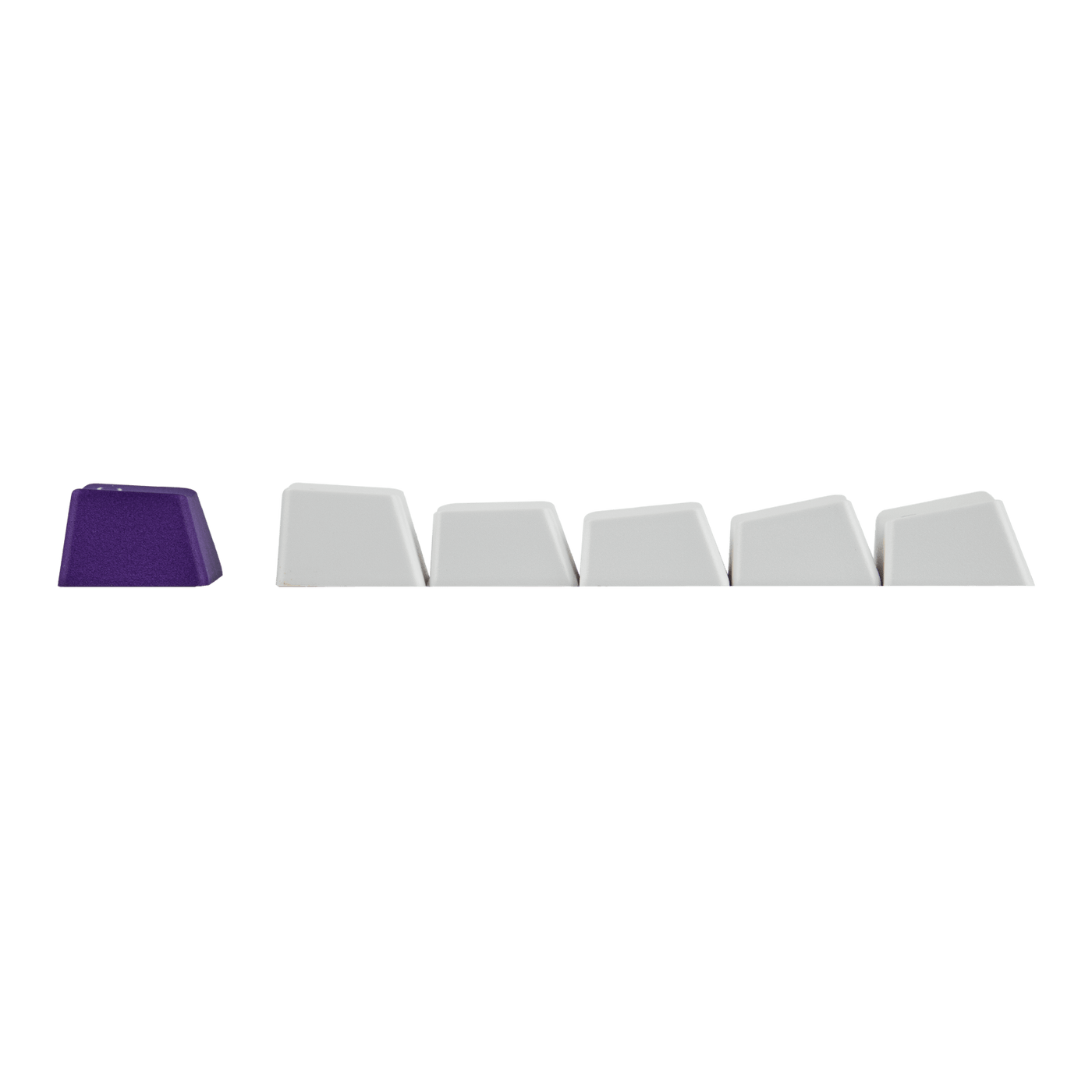

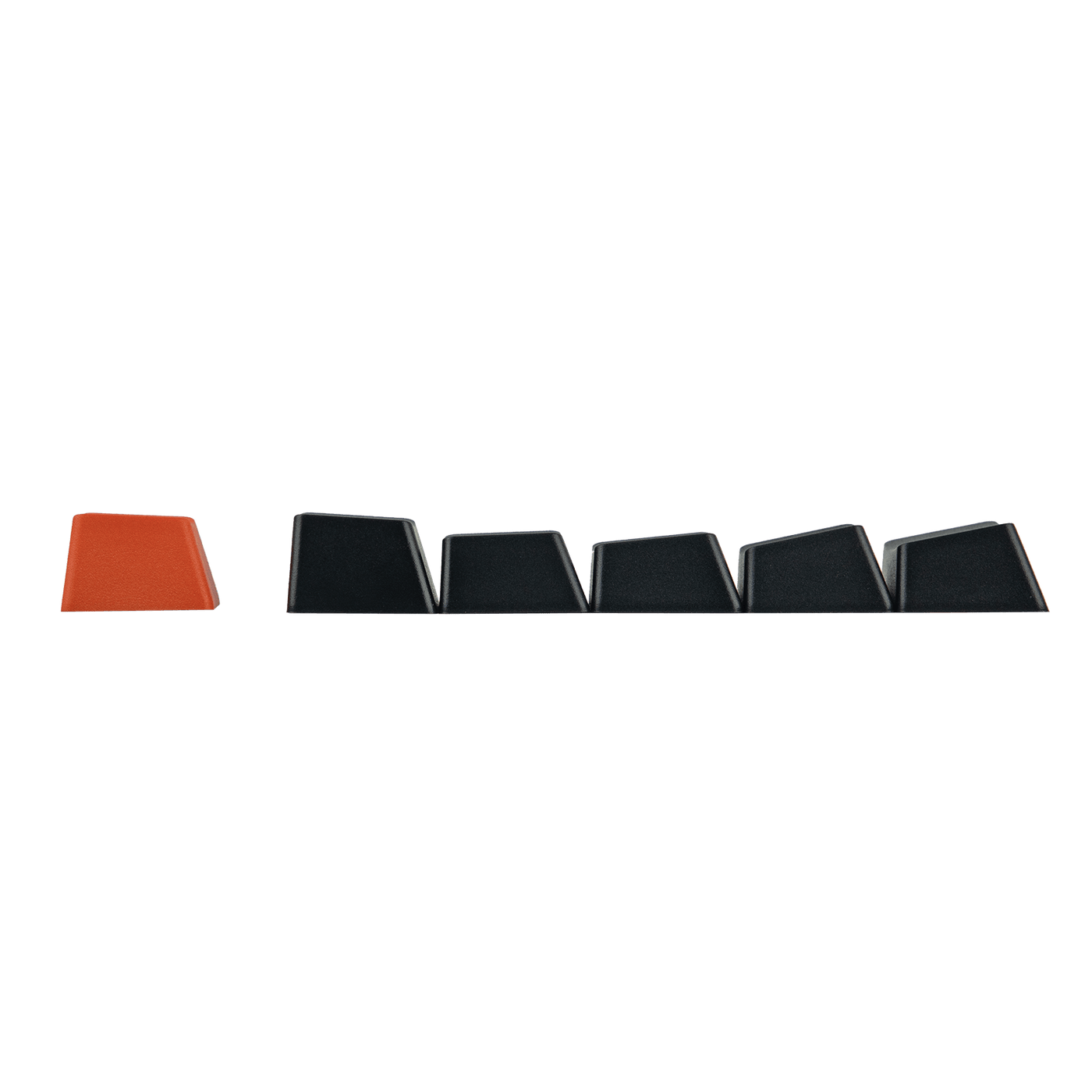

Keycaps Profile
OEM Profile
Keycaps Material
PBT Keycap
Keycaps Manufacturing Technique
Double-Shot Keycap
Switch
Hall Effect Magnetic Switch
RGB
The HE30 gaming keyboard has Per-Key adjustable RGB backlight with South-facing LEDs.
Polling Rate
8K polling with original cable.
Latency
0.125ms with original cable.
Adjustable Trigger
0.1mm to 3.4mm per 0.01mm
Custom Software
Web-Based software for Windows and Linux (online and offline). Press FN+Space to access the software when keyboard is wired and connected.
Anti-Ghosting
Yes, the HE30 gaming keyboard supports N-Key Rollover.
Keyboard Dimensions
15.3*13.3*2.9cm
Keyboard Weight
0.35kg

Purple Magnetic Switch

Hall-effect magnetic switch with per-key adjustable actuation (0.1–3.4mm, in 0.1mm steps) — factory-lubed for a creamy, consistent stroke; 90–550Gs magnetic range and a 100M+ keystroke lifespan. Built for FPS, MOBA, rhythm and everyday play.

Switch TypeMagnetic Hall-effect (Linear)
Trigger Force37±5 gf
Bottom-out Force45 gf
Pre-Travel0.1–3.4 mm adjustable (per 0.1mm)
Total Travel3.4±0.1 mm
Light Diffuser

Product Downloads

Keep your Keyboard.Up to Date.

Ready to Use

Everything you Need.Inside the Box.

EPOMAKER HE30 One-Handed Hall-Effect Keyboard

EPOMAKER HE30 One-Handed Hall-Effect Keyboard

Keycap & Switch Removal Tool

Keycap & Switch Removal Tool

Detachable USB A to C Cable

Detachable USB A to C Cable

Pictures for reference only. Packaging and included accessories may differ slightly from what you get delivered.

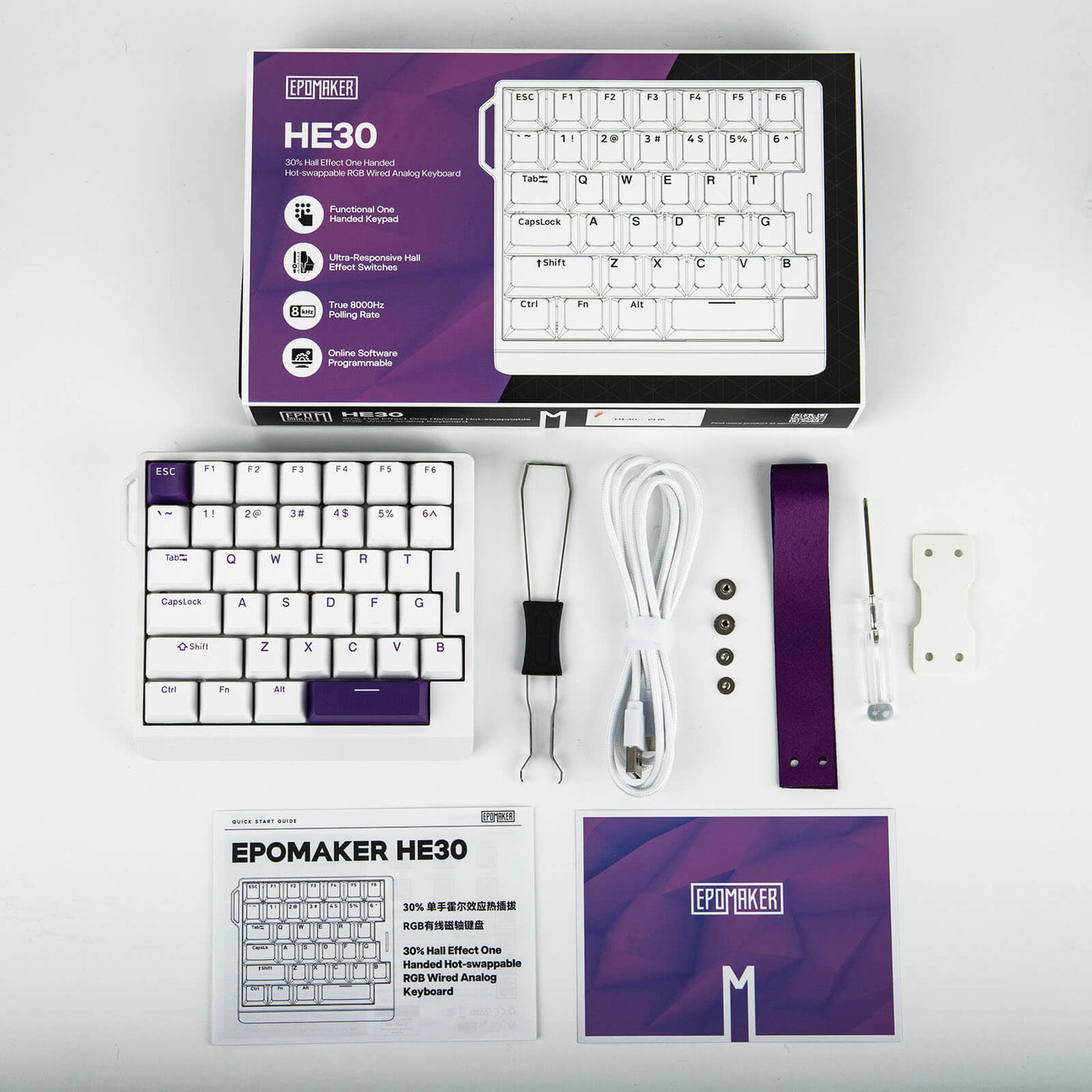

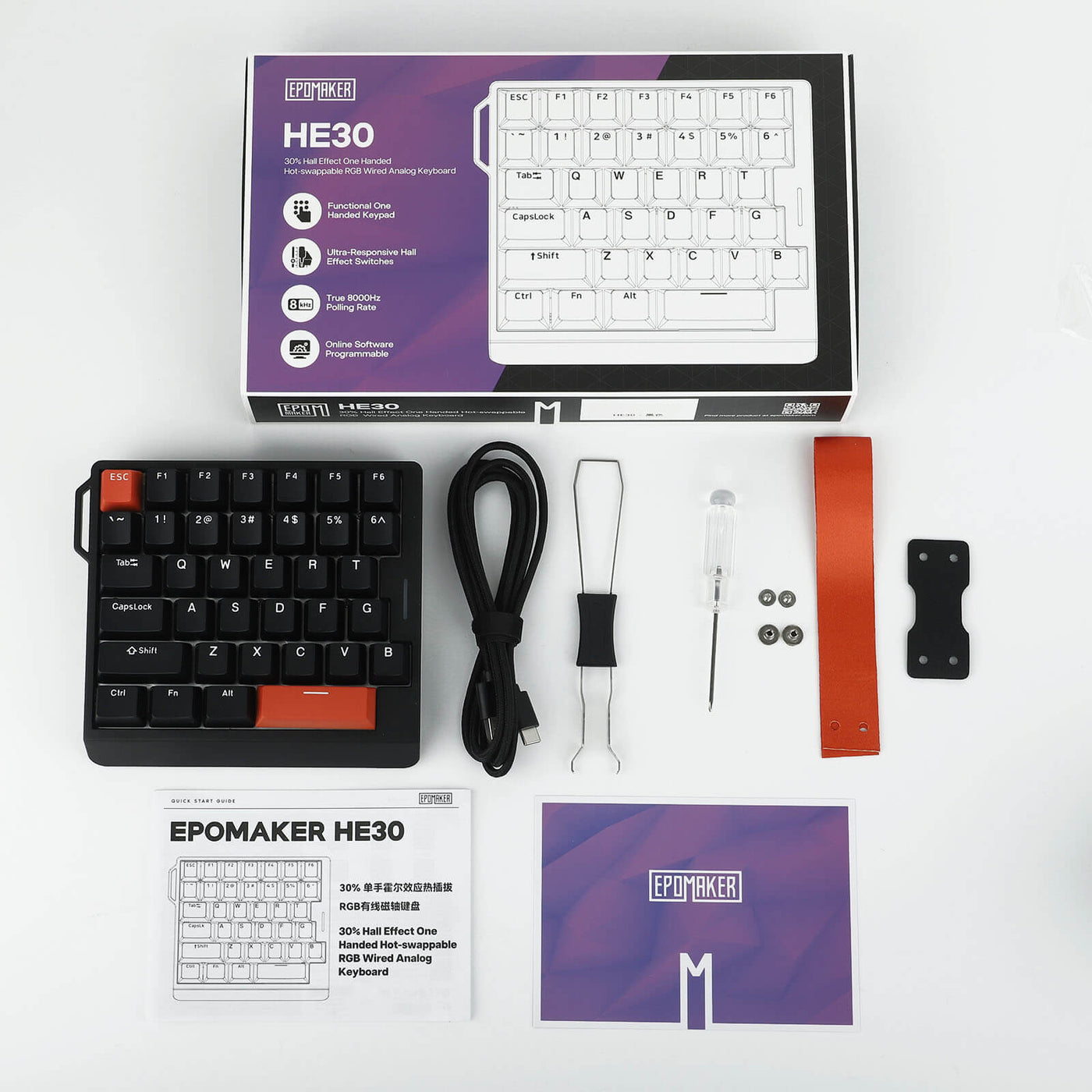

Content List

Content List

  • 1xAn HE30 Hall Effect Gaming Keyboard
  • 1xDetachable USB A to C Cable
  • 1x2-in-1 Switch & Keycap Puller
  • 1xMultilingual User Manual
  • 2xExtra Switches
