ACOUSTIC ARCHITECTURE
Sound-dampening architecture.
Engineered structure absorbs hollow rattle into clean creamy thock.
Gasket-Mounted5-layer dampening
HE Series
EPOMAKER

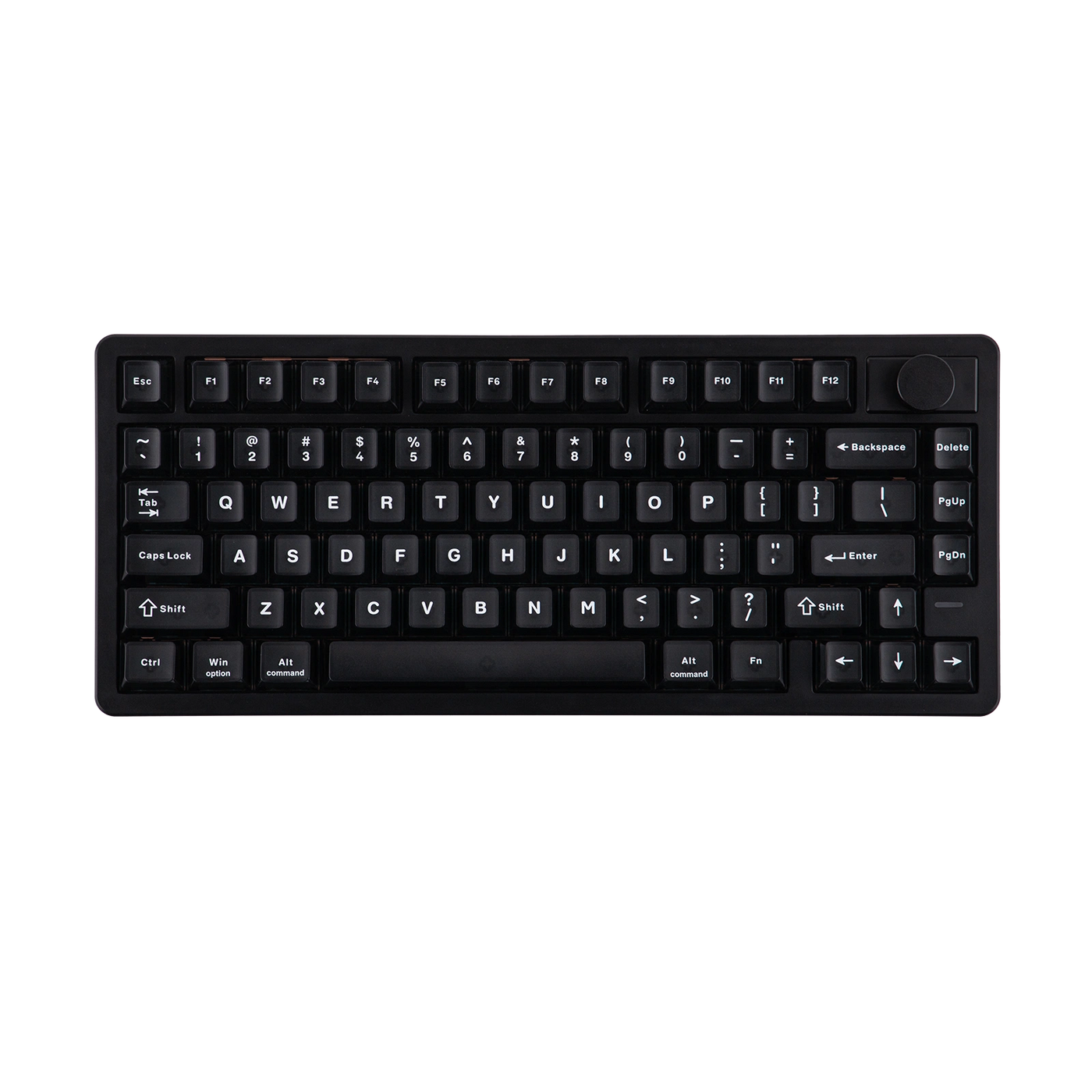

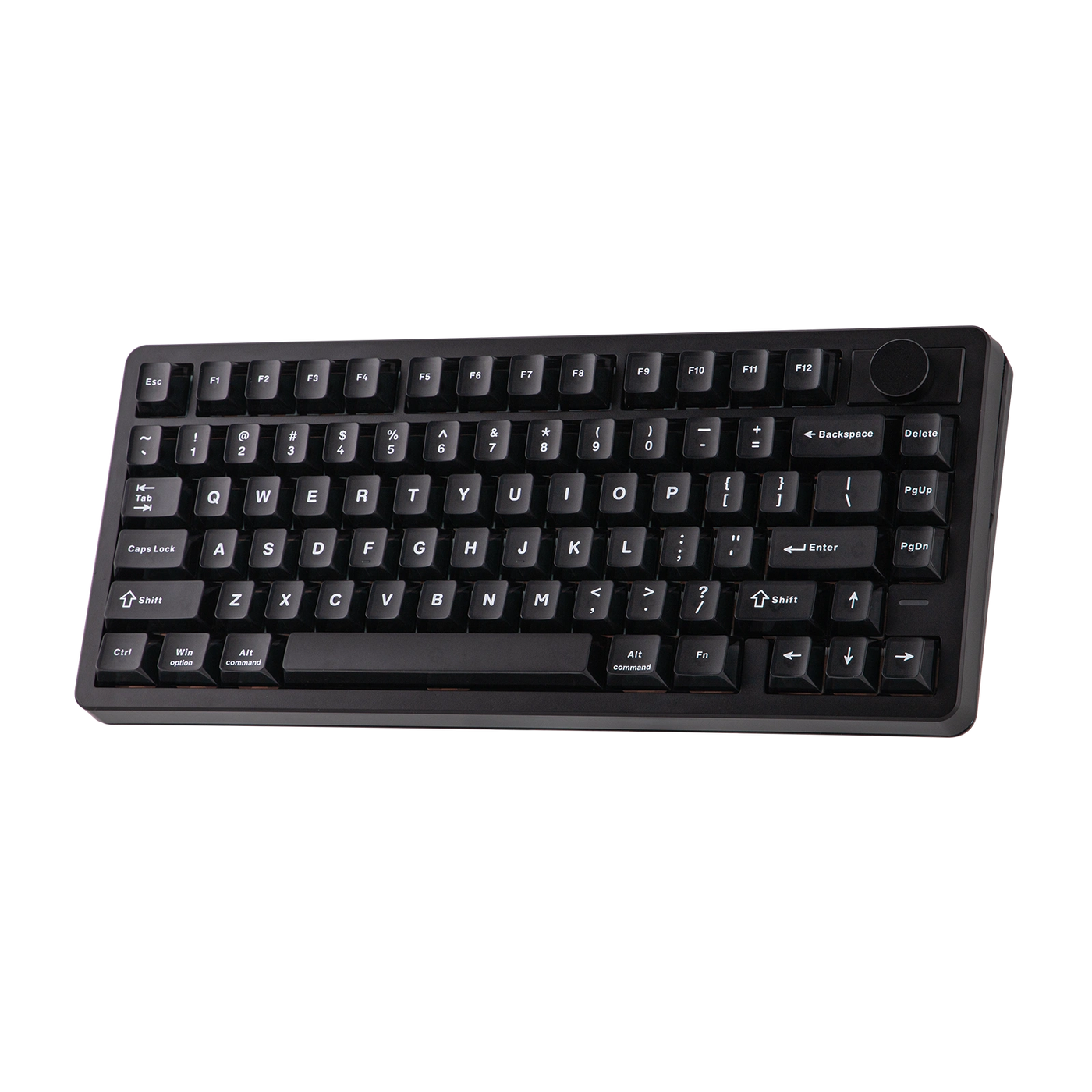

HE75 V2
80-key 75% layout · 0.005mm adjustable Hall Effect · gasket-mounted · tri-mode wireless. The rapid-trigger benchmark of the HE lineup.
$89.99
Recommended Products
75% Layout
80 keys in an optimized footprint
Tri-Mode Wireless
BT 5.0 · 2.4GHz · USB-C cross-platform
Premium Acoustics
Gasket-mount with sound-dampening layers
Hot-Swap PCB
3/5-pin pre-lubed factory switches
Sound Design
Creamy and thocky with 5-layer gasket & POM switch.
Unlike the clicky, clacky noise of regular Hall Effect keyboards, the HE75 V2 delivers a marble-like creamy sound right out of the box, thanks to its signature 5-layer dampening gasket-mount architecture.
5-Layer Gasket MountDampening Architecture
Factory-Lubed POM SwitchesFrictionless, Rattle-Free
Built with Purpose
Designed for EveryKeystroke.
Gasket-Mounted5-layer dampening
TRI-MODE
Connect any way you like.
BT 5.0, 2.4GHz and USB-C — switch on the fly, with on-board memory across devices.
Tri-Mode WirelessBT5.0 · 2.4GHz · USB-C

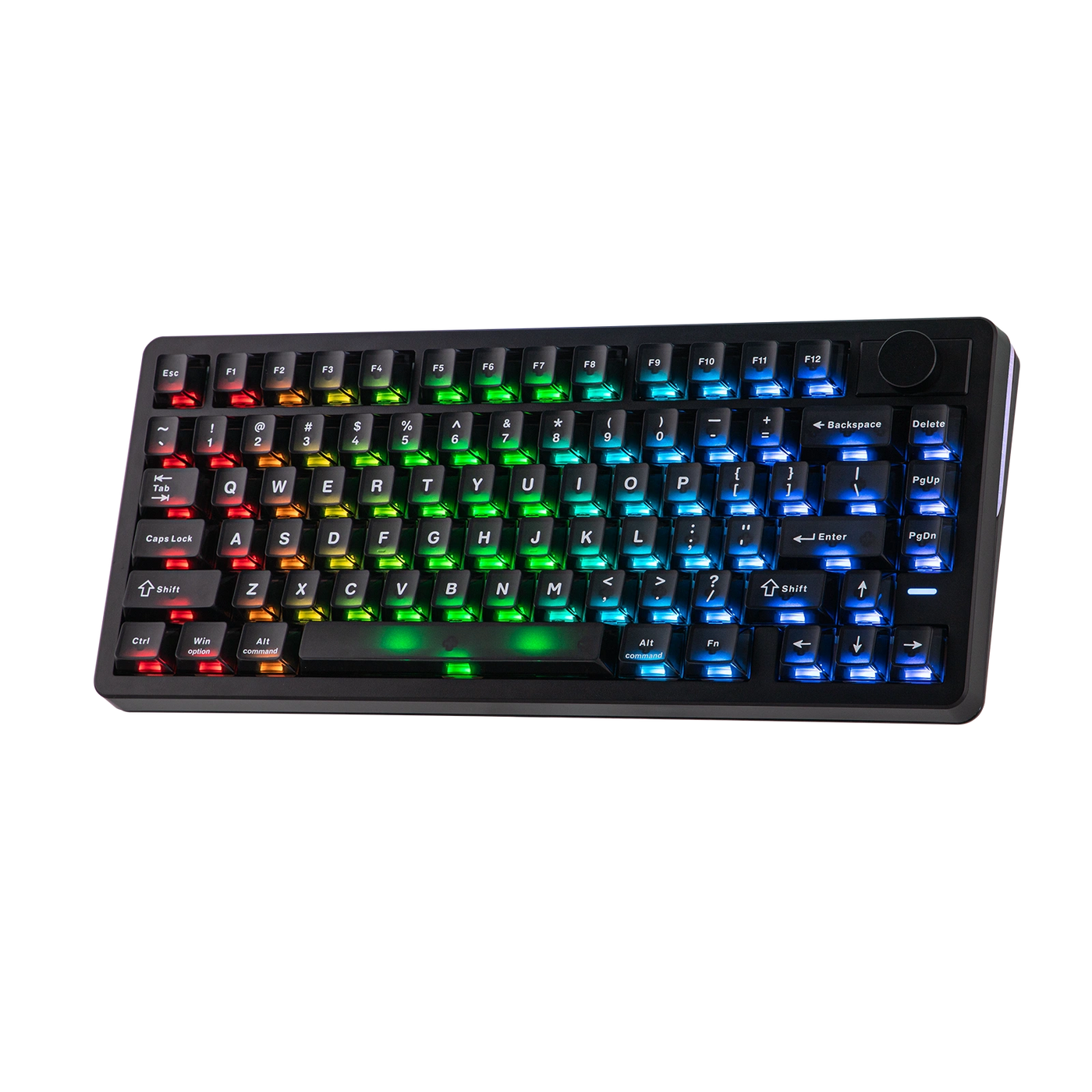

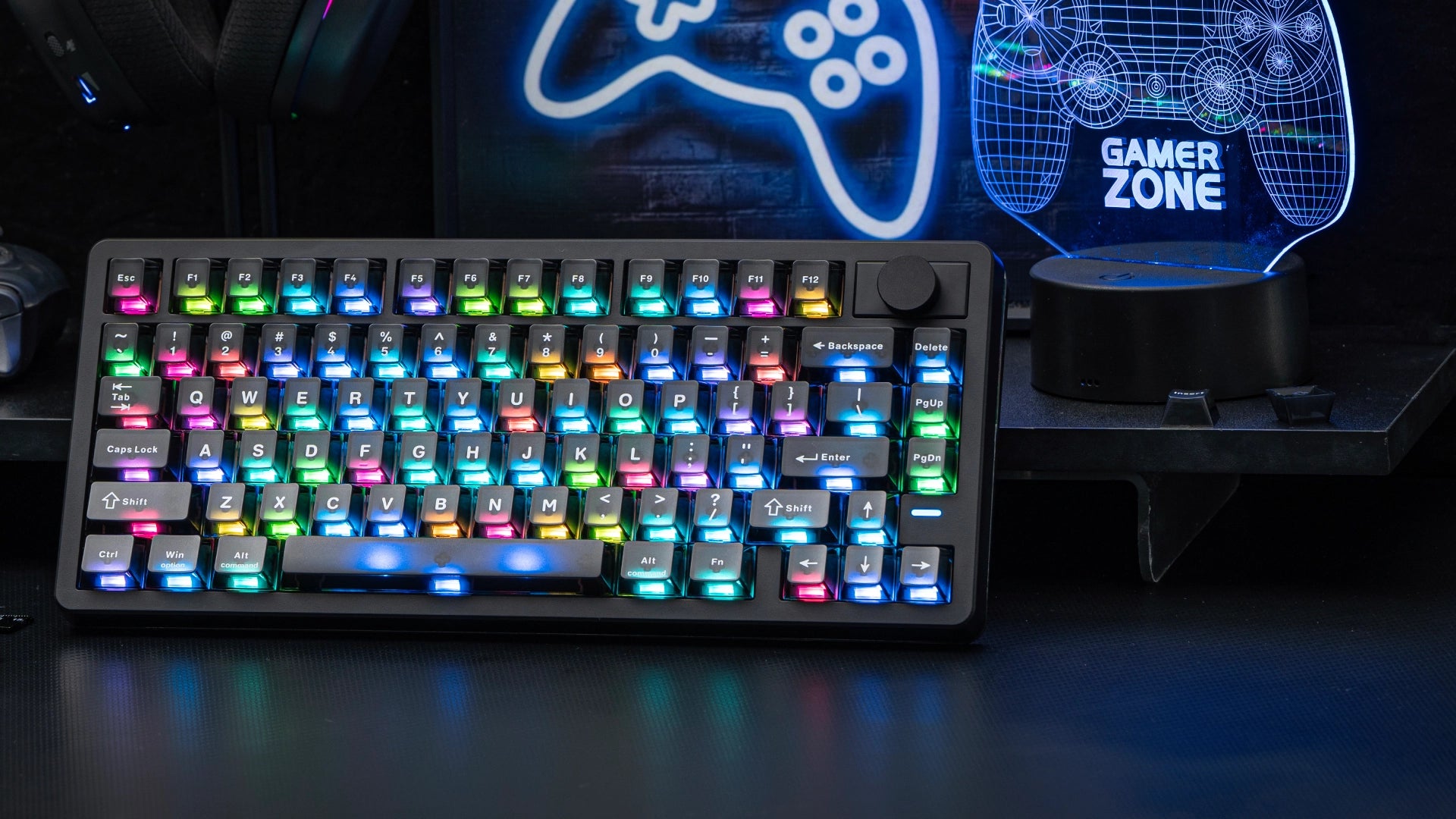

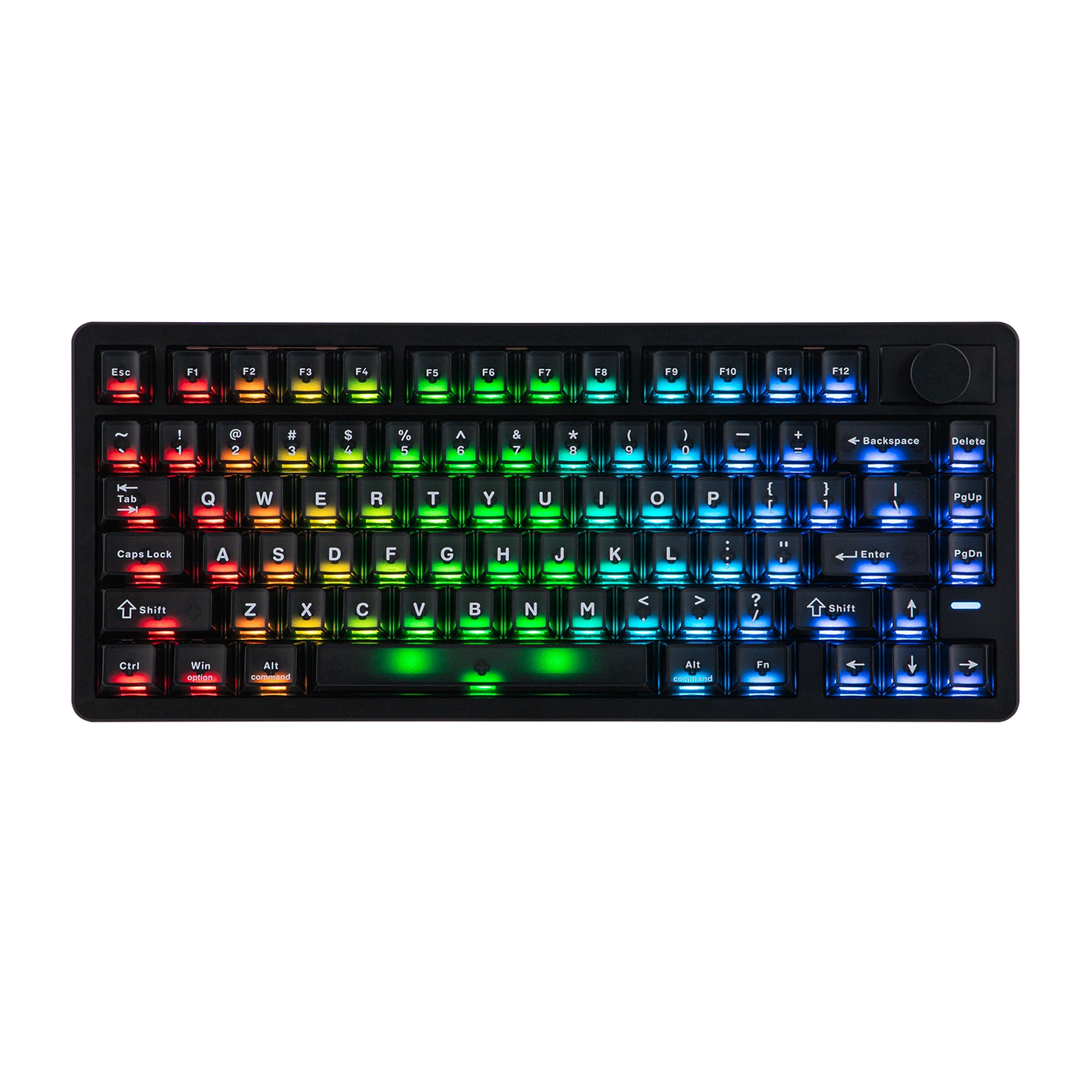

RGB LIGHTING
South-facing per-key LEDs.
South-facing layout avoids LED interference with the Cherry-profile keycaps.
Per-Key RGBProgrammable via Upgear
HOT-SWAP
No soldering, no compromise.
3/5-pin hot-swap PCB takes most aftermarket MX-style switches, pre-lubed from the factory.
Hot-Swappable3/5-pin compatible
About this Product
Well Thought.Design Features.
UP TO8000Hz
Polling rate over USB or 2.4GHz for near-instant response
UP TO20Hours
Continuous use with RGB lighting on a single charge
128KHz full-board scan rate
0.005mm adjustable actuation, 0.1–3.5mm range

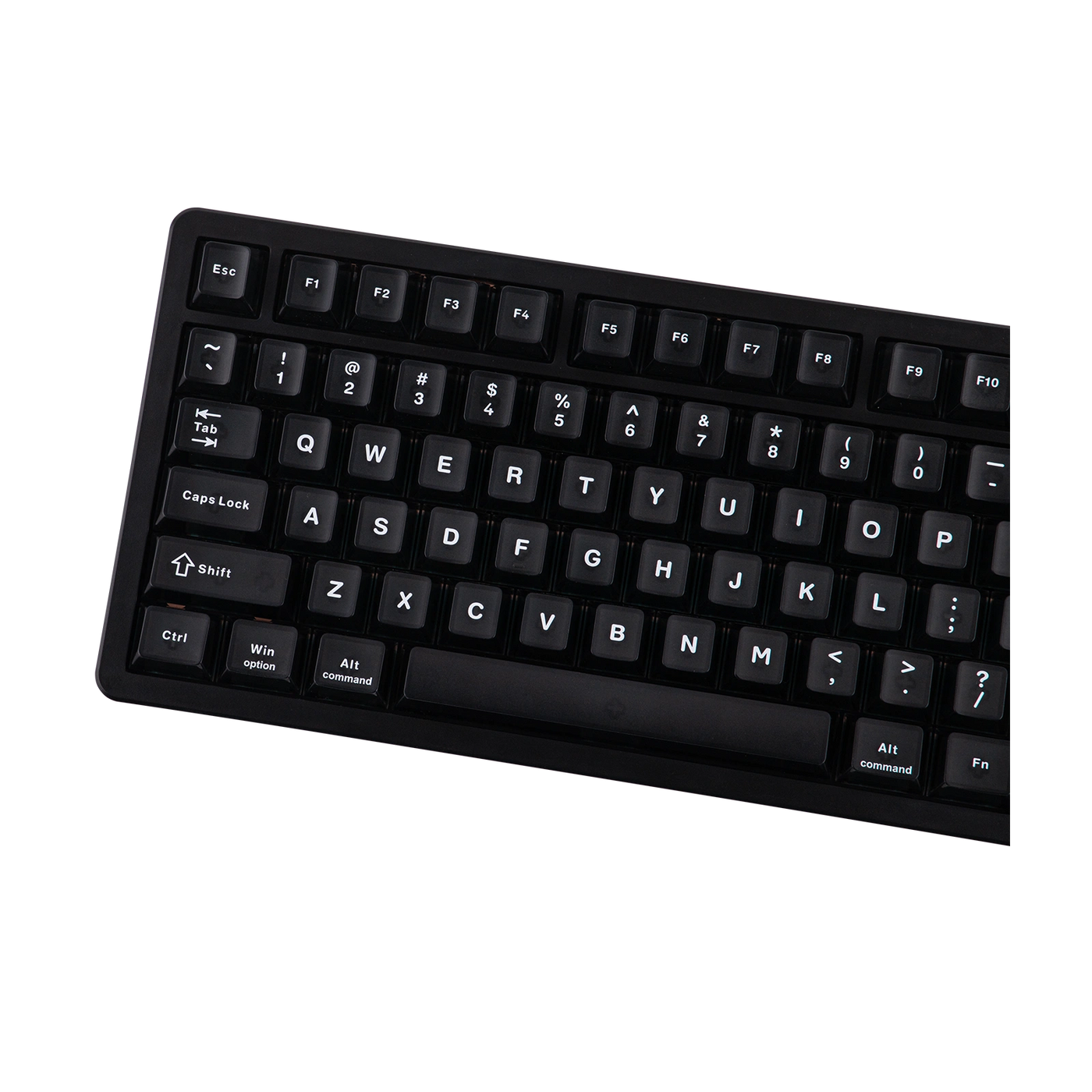

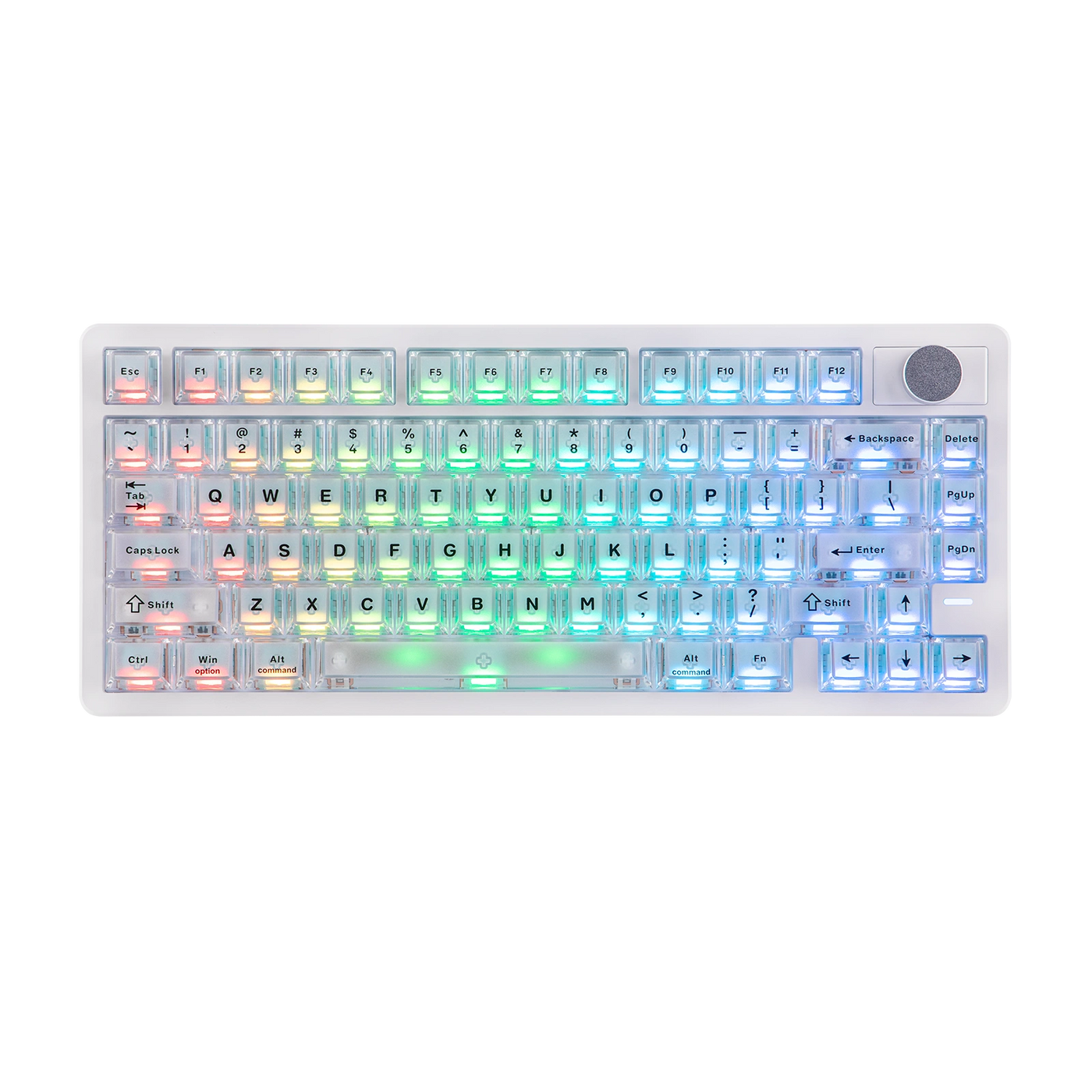

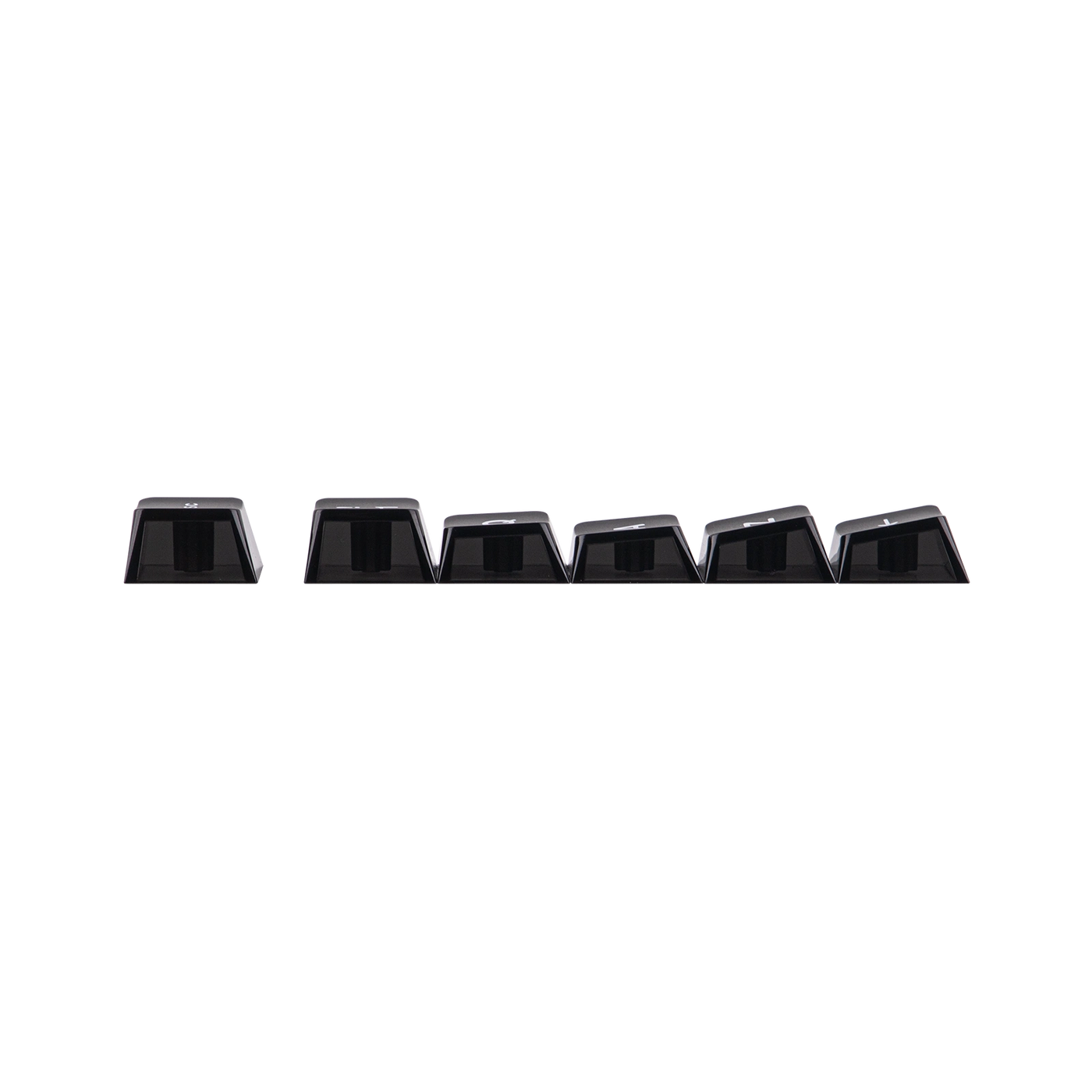

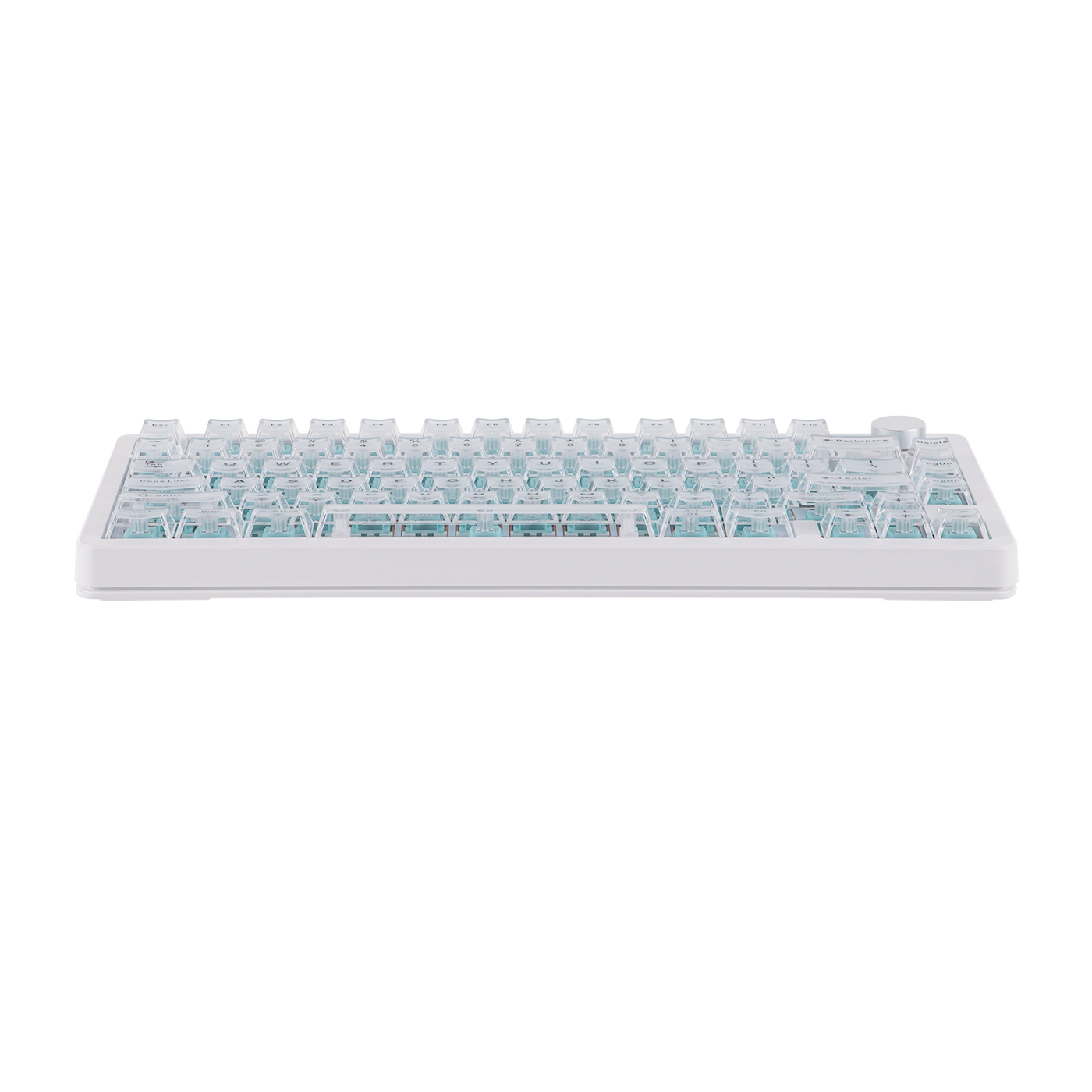

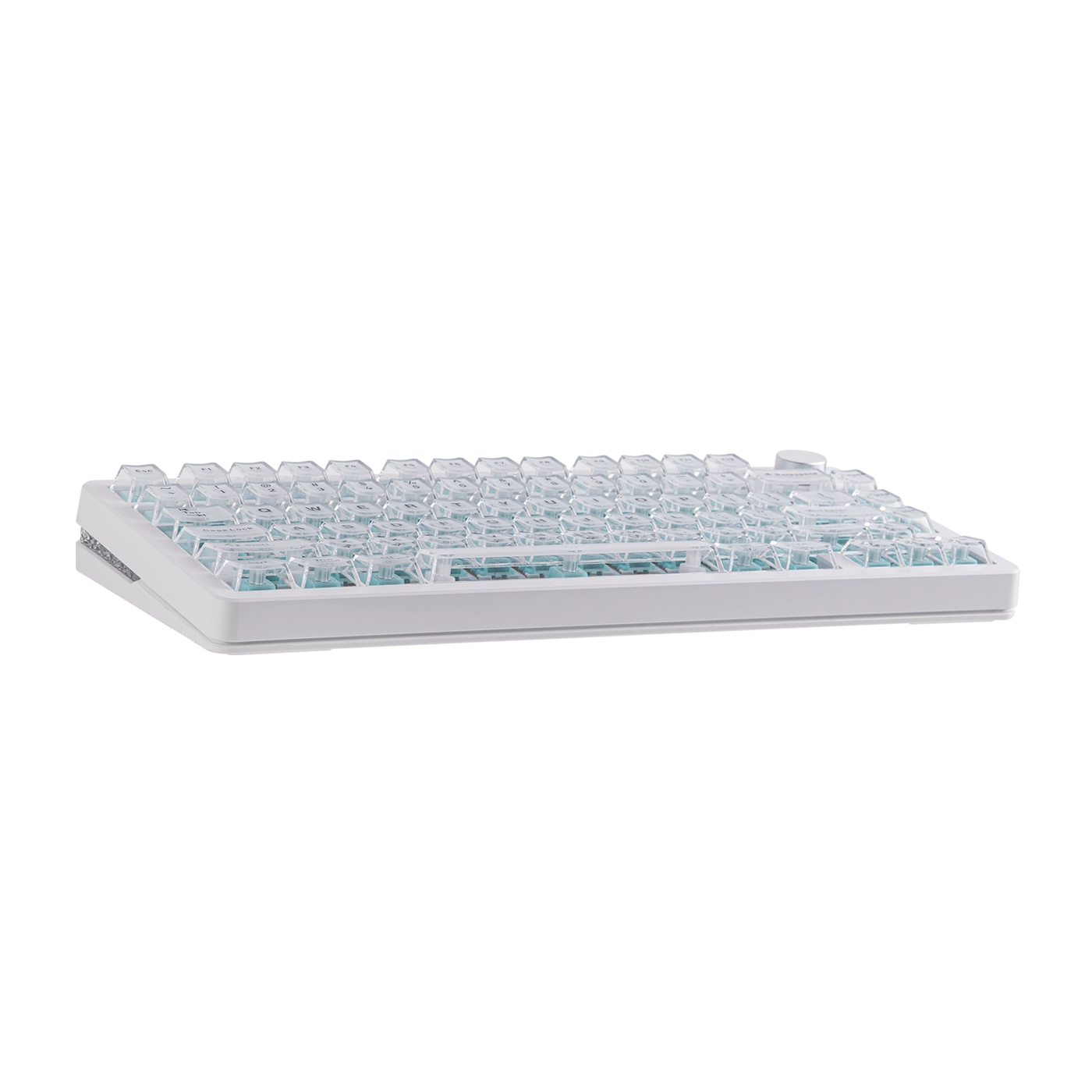

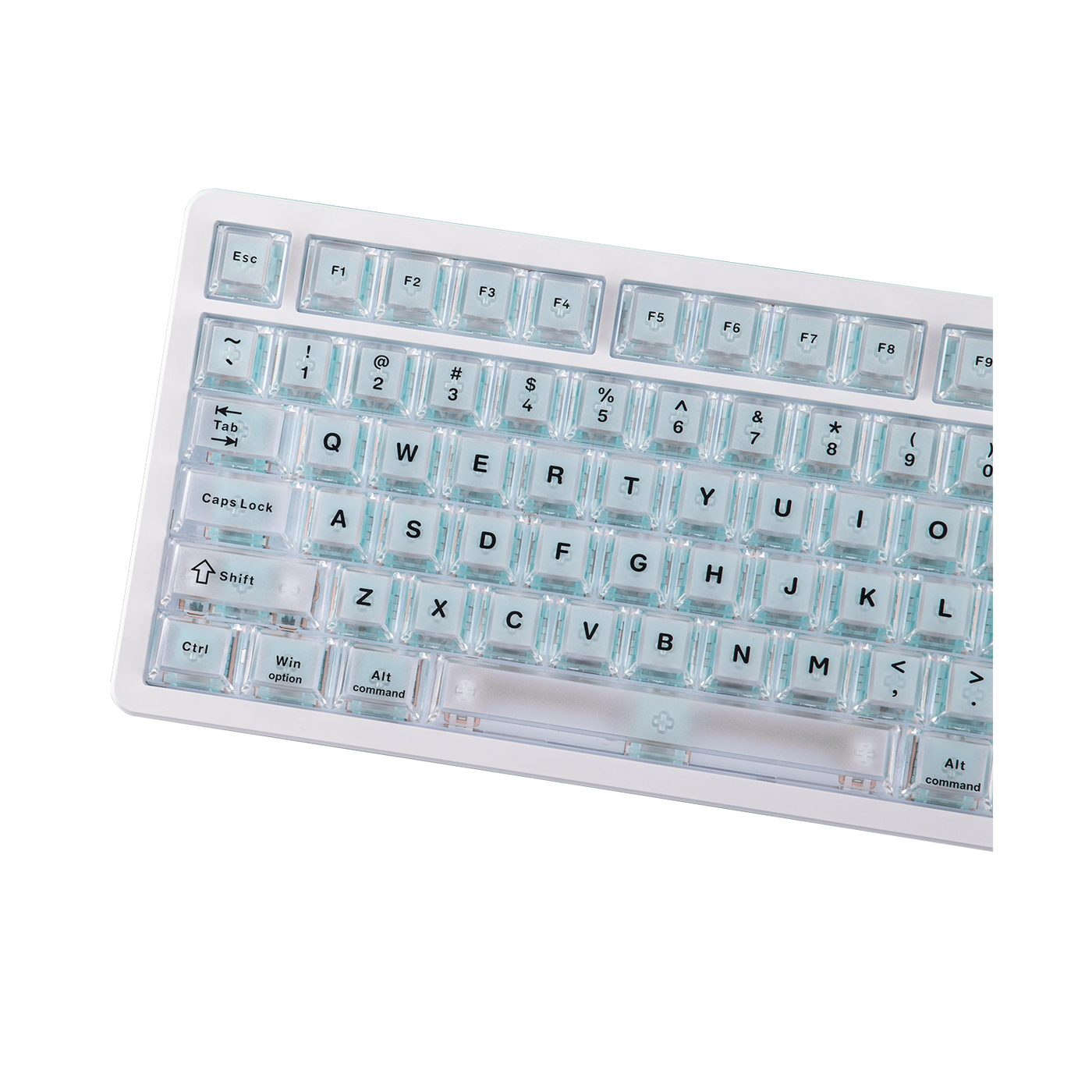

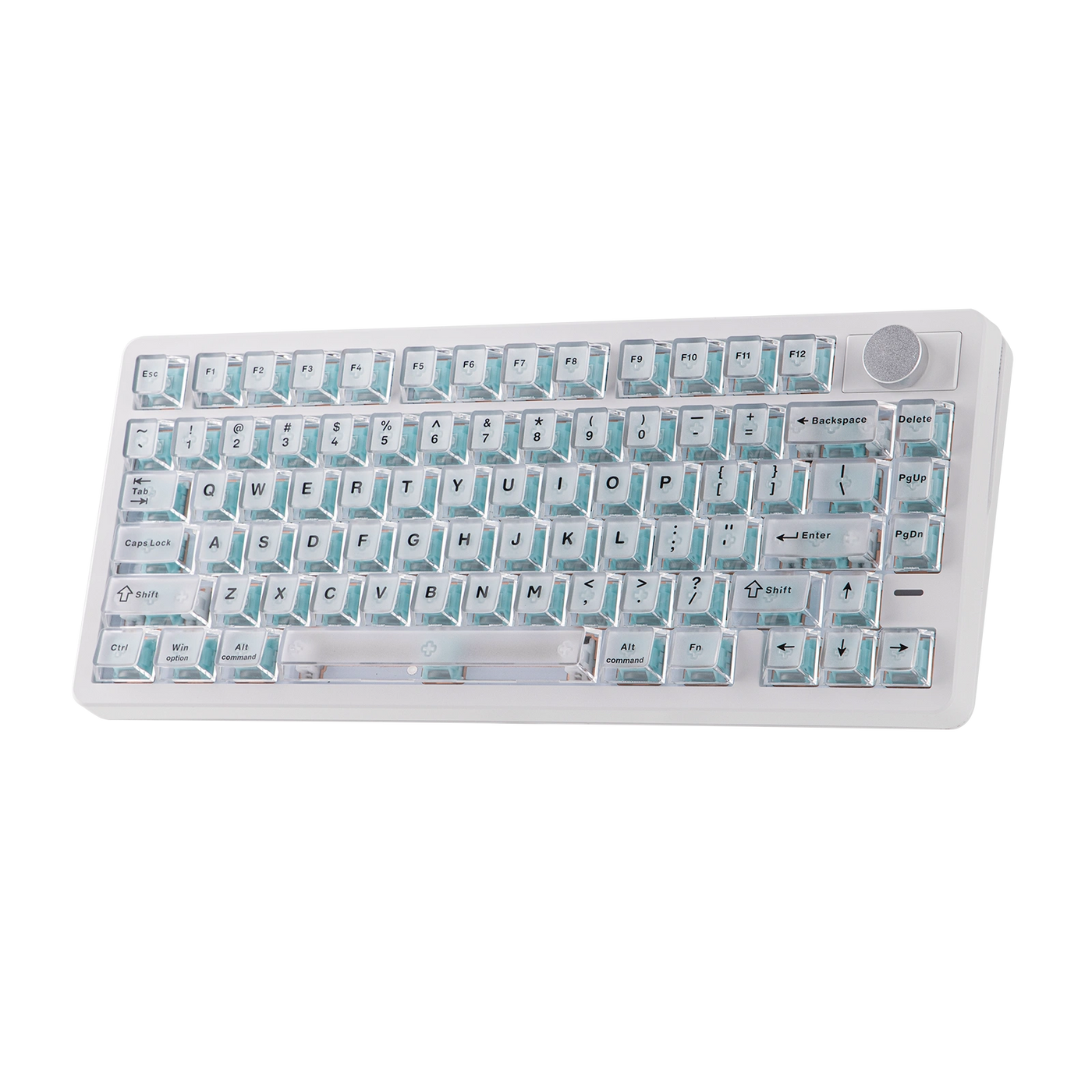

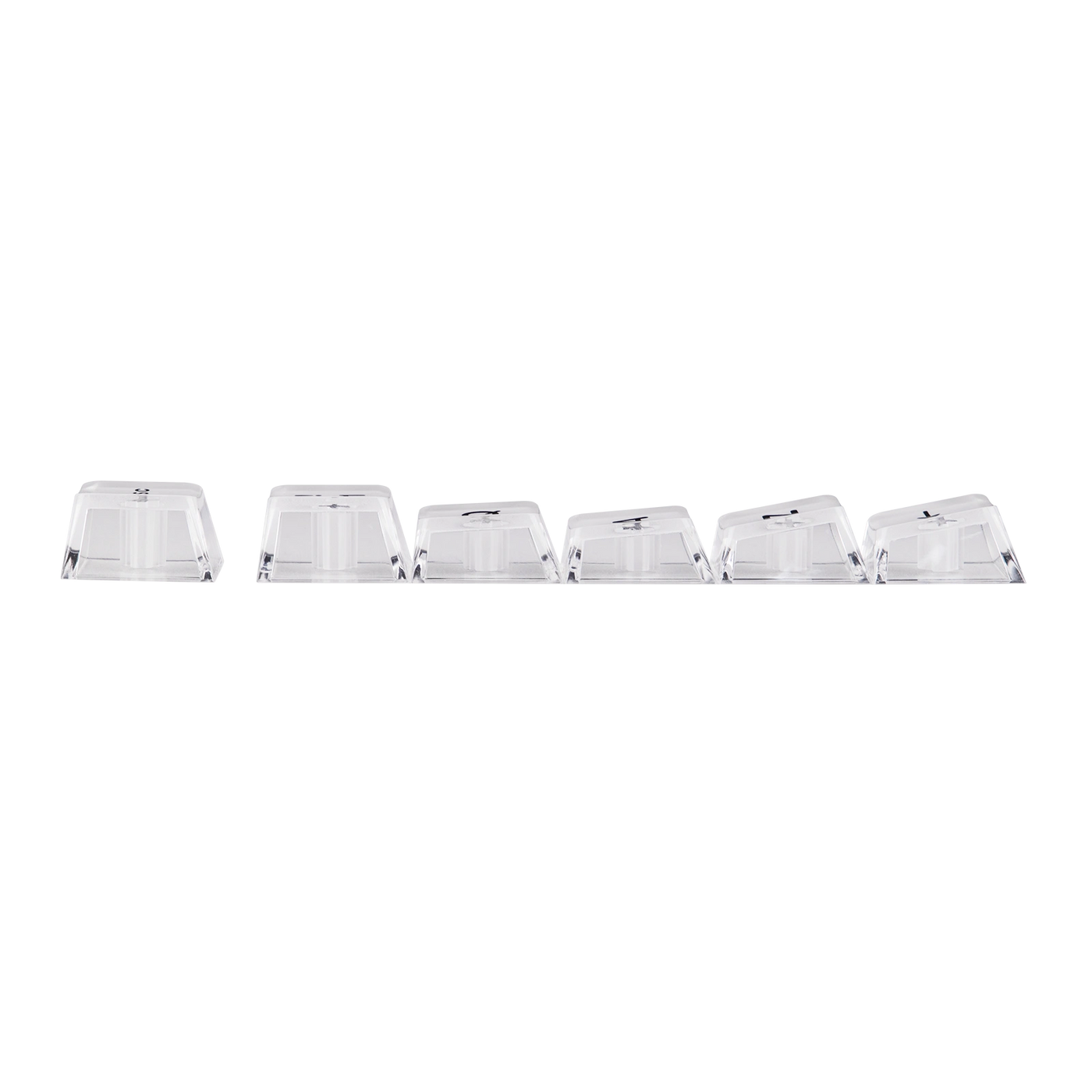

Matte Transparent PC Keycaps
See-through PC keycaps in a Cherry profile, with bold printed legends that stay sharp over time.

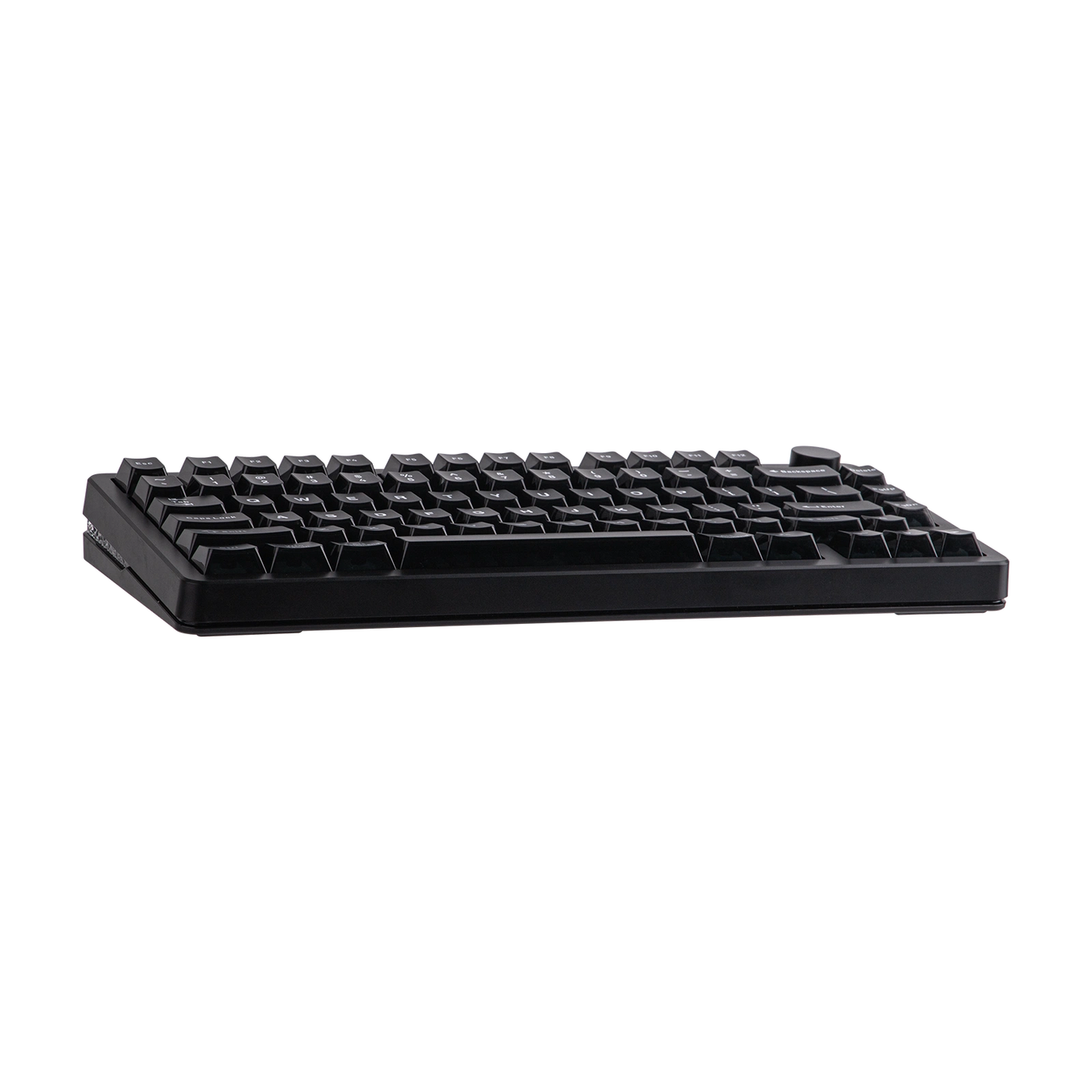

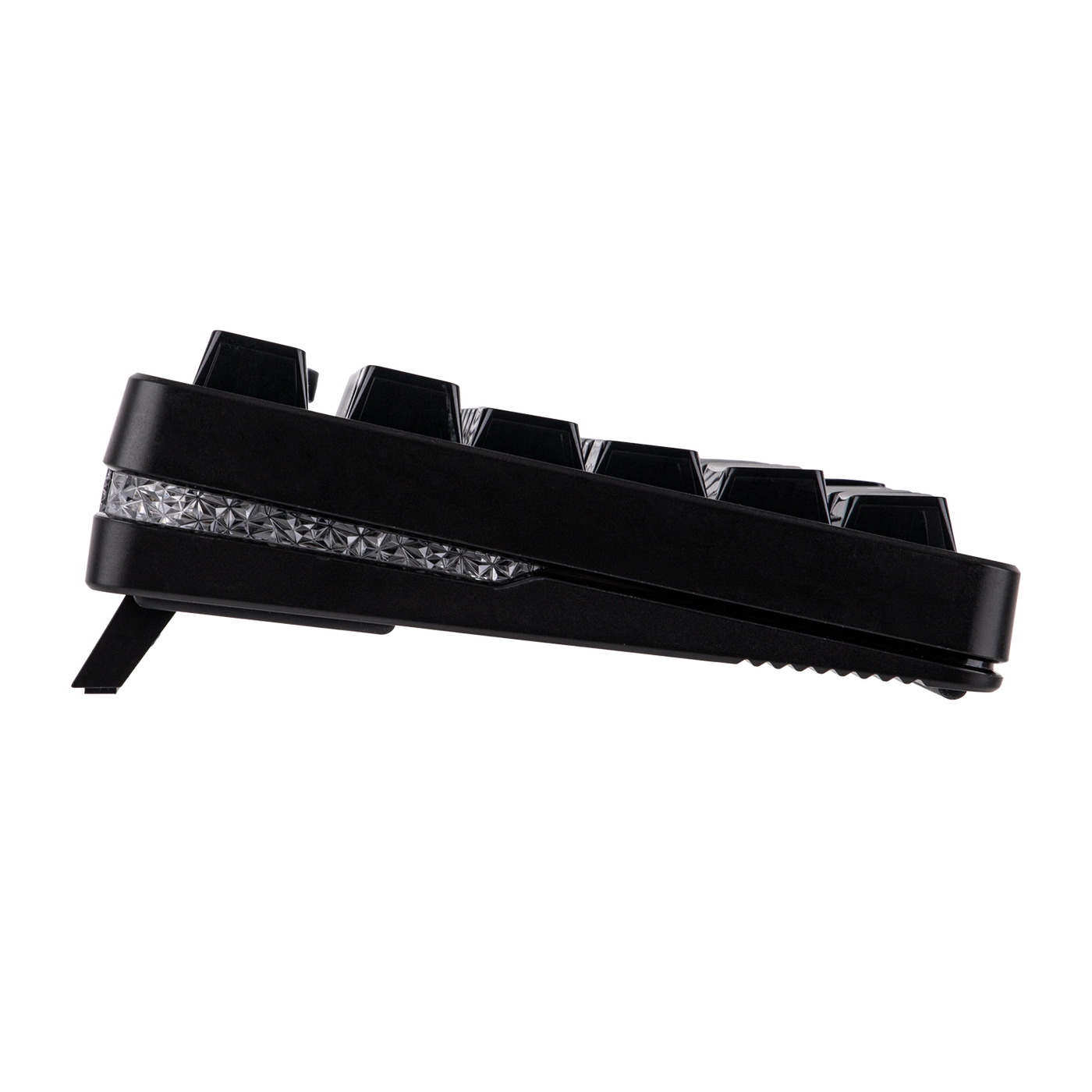

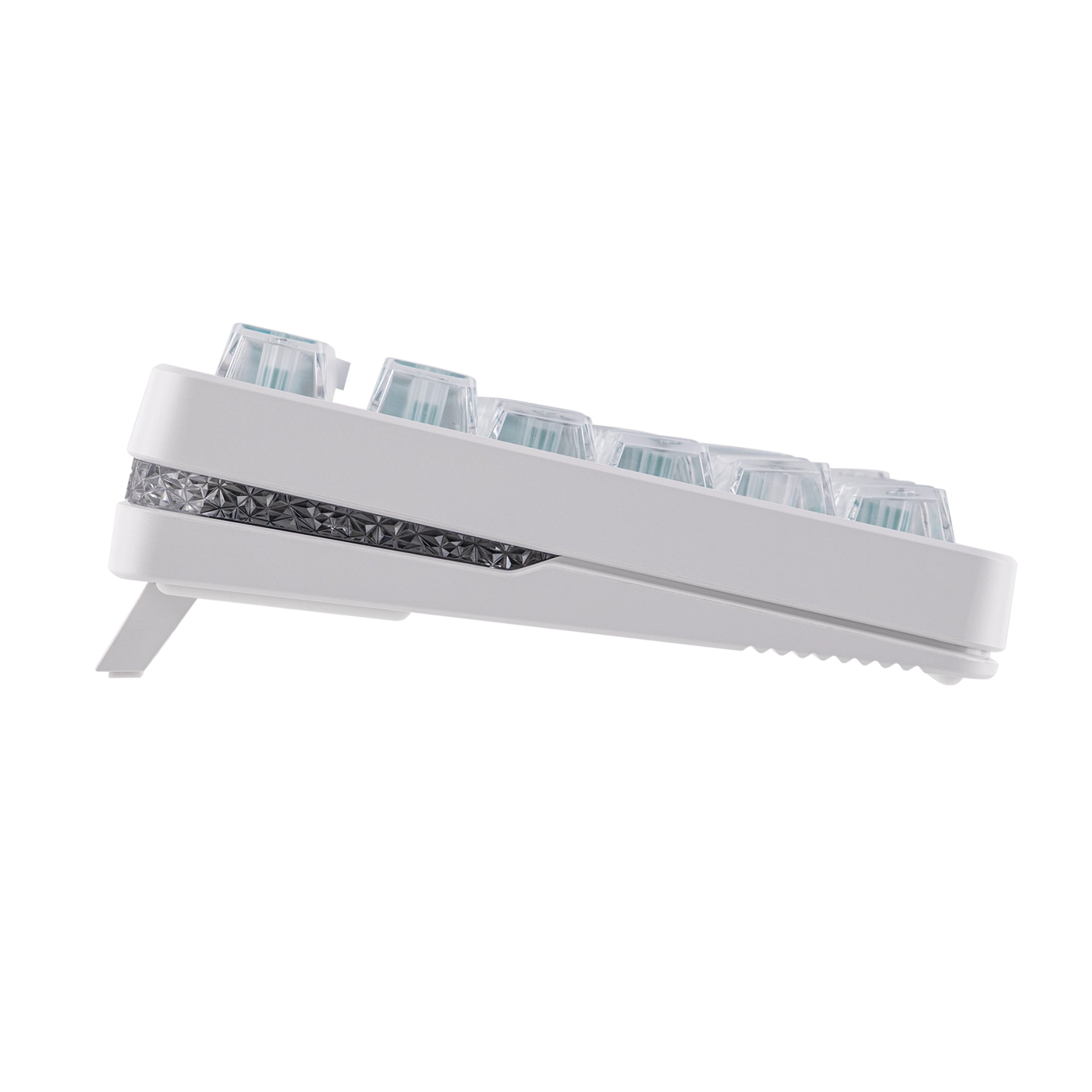

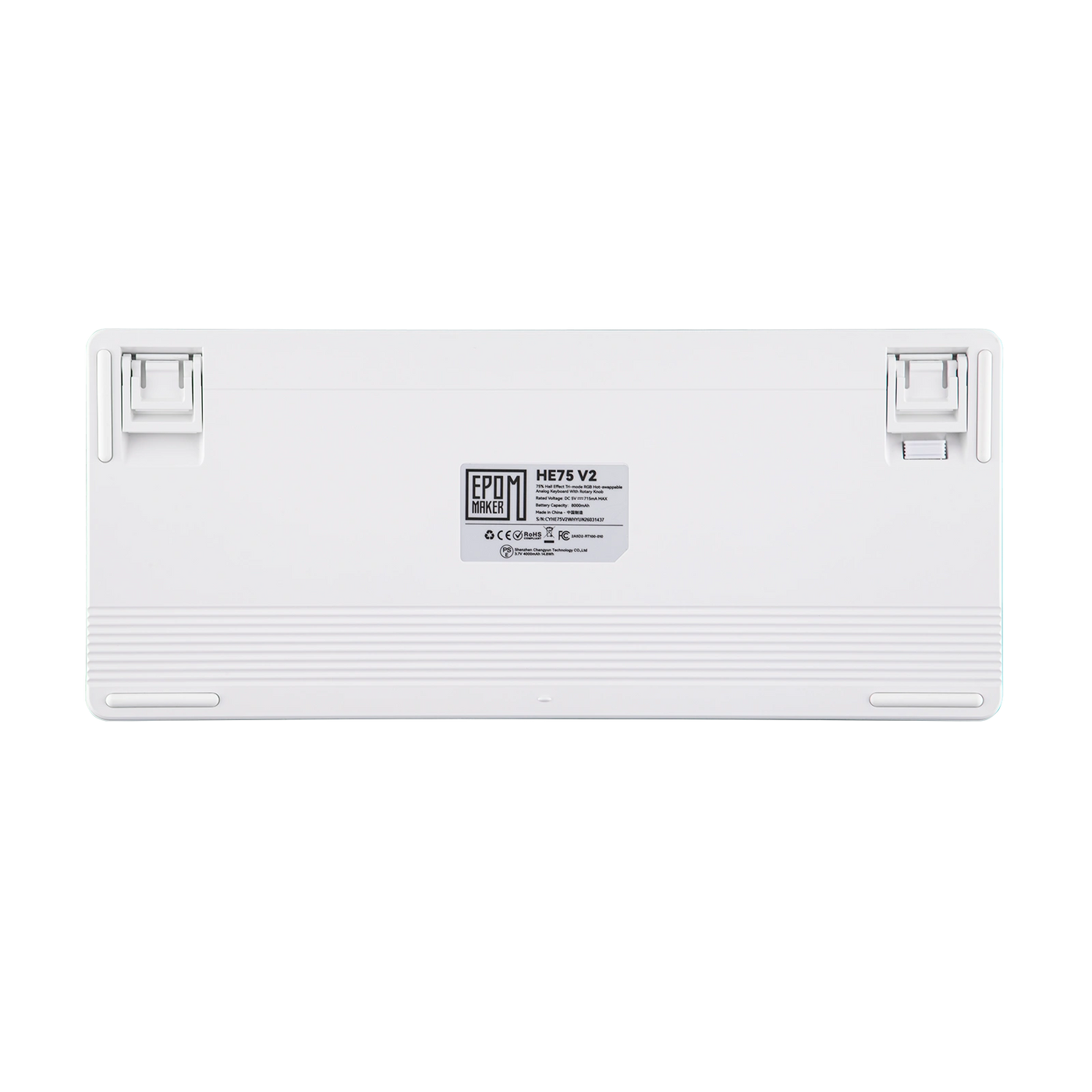

Adjustable Typing Angle
Three typing angles (5.8°/9°/12°) via a 2-stage kickstand, so you can dial in the ergonomics that fit you.
Factory-Lubed Hall Effect Switches
Creamy Jade switches come pre-lubed at the factory for smooth, consistent keystrokes.

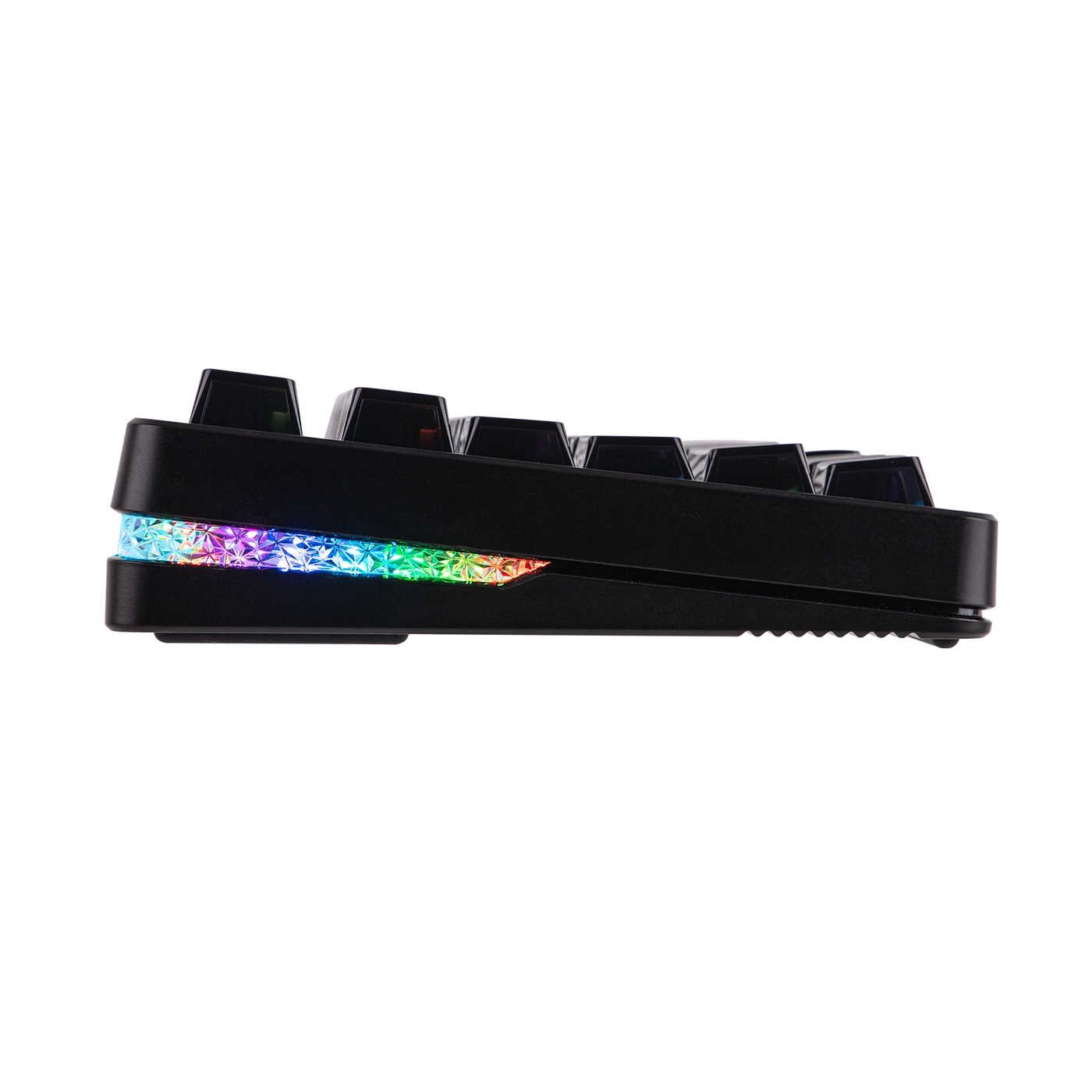

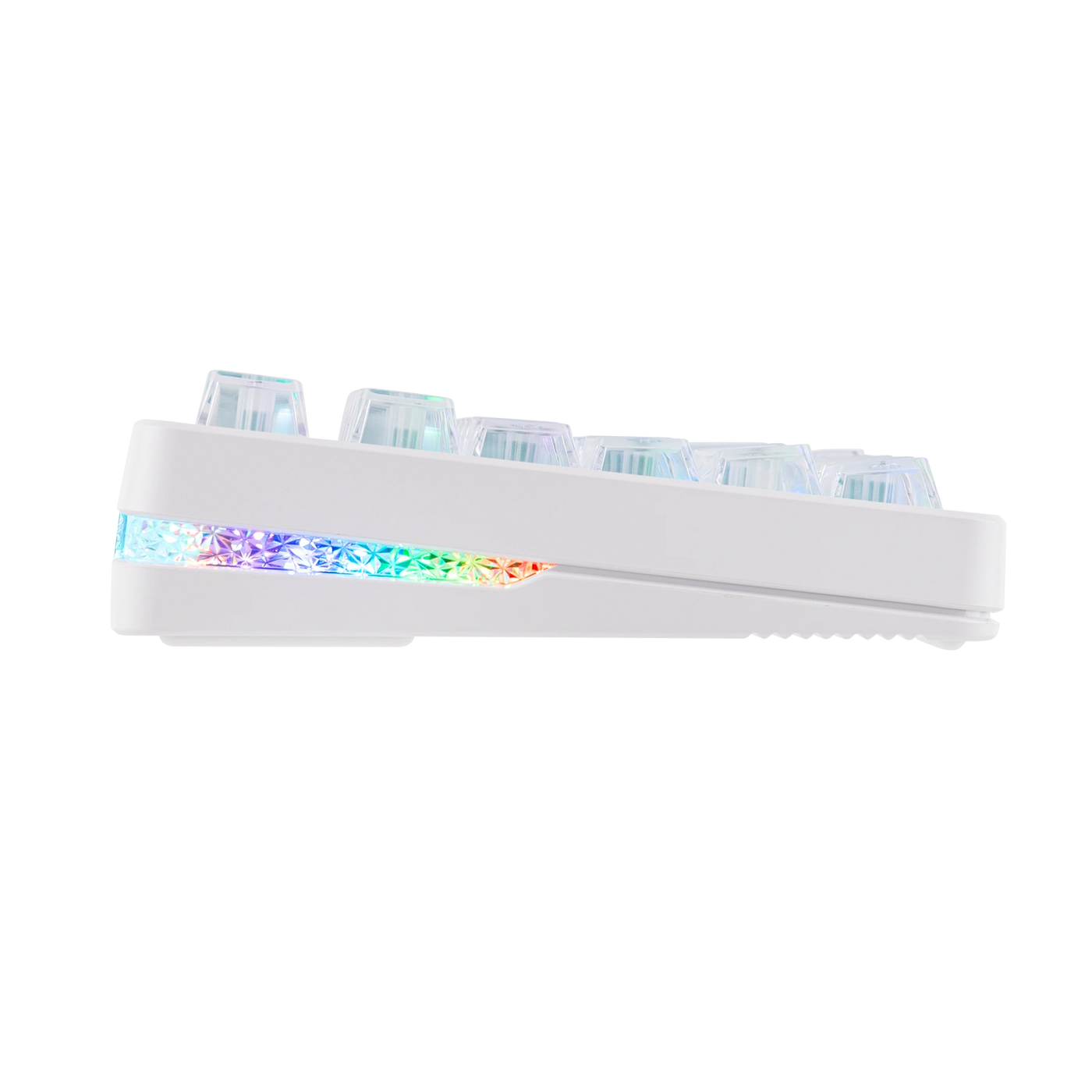

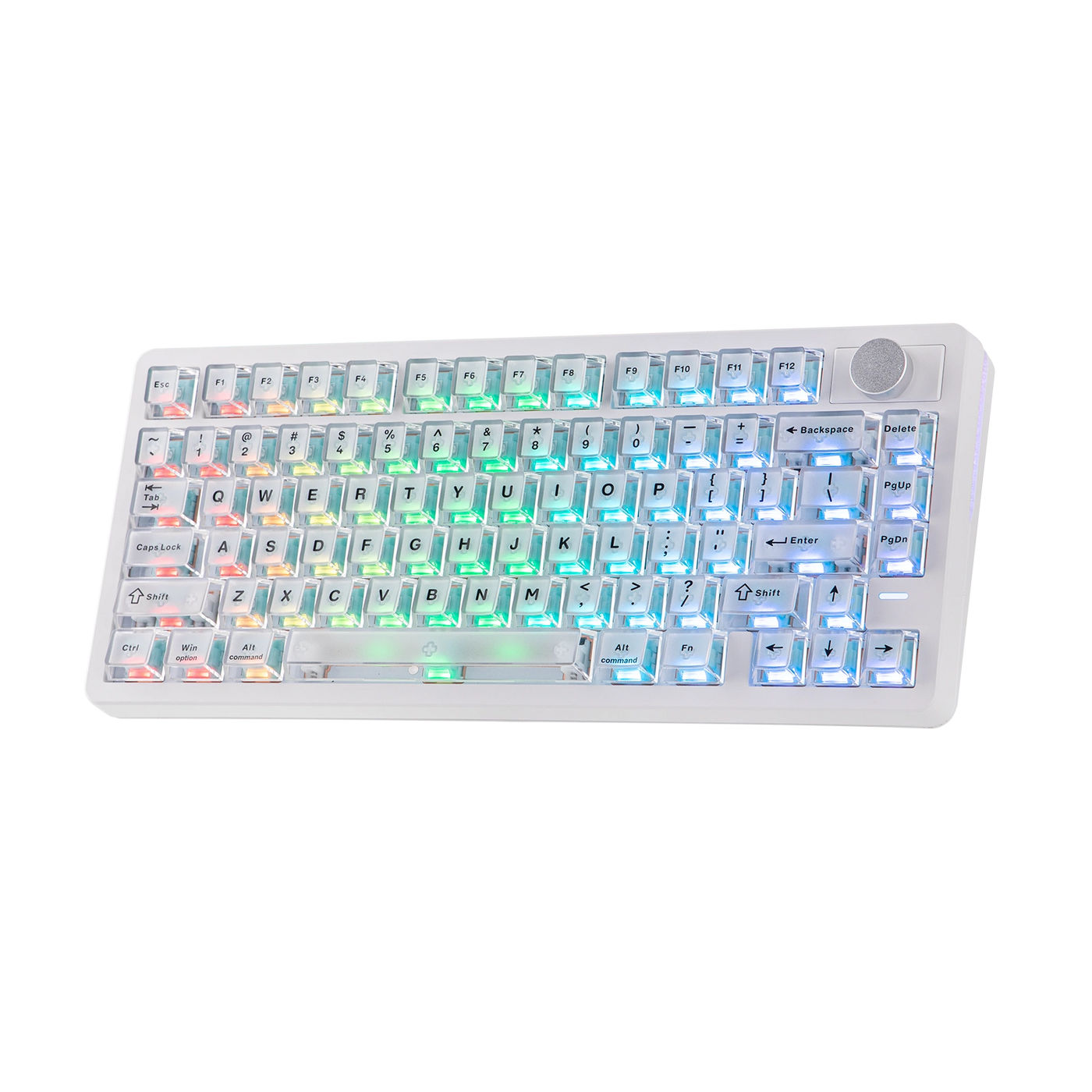

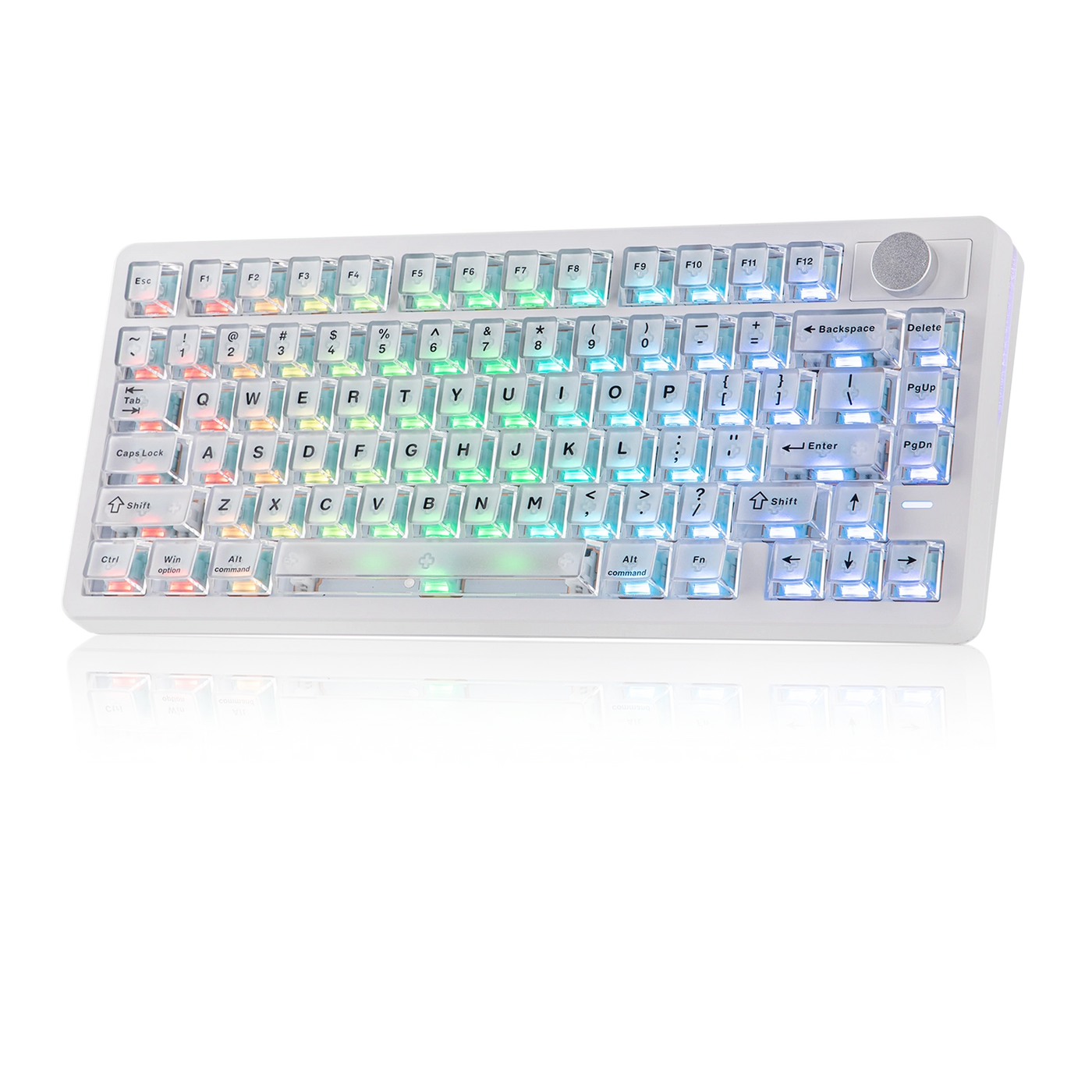

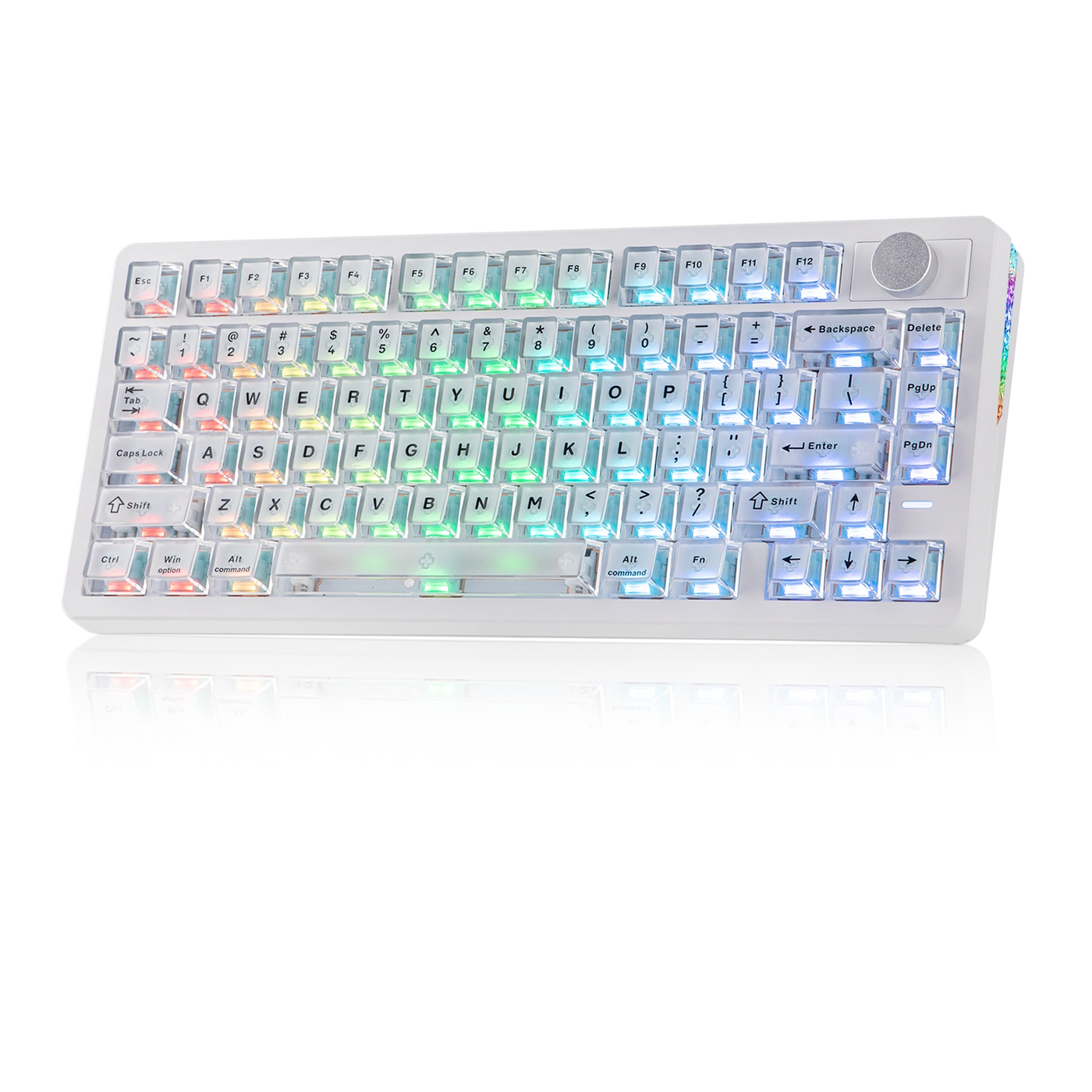

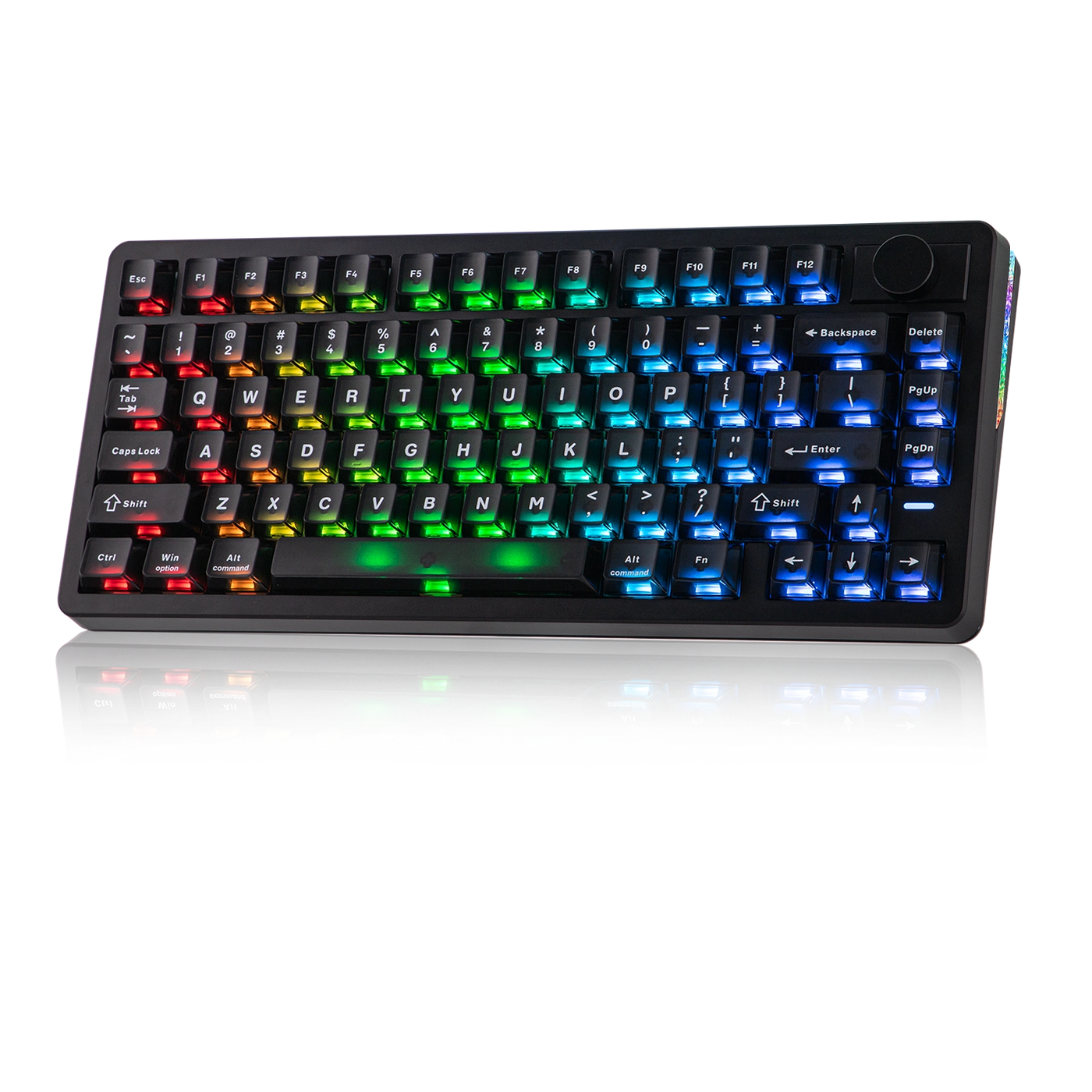

Per-Key RGB Light Rail
A bright light rail combines with per-key RGB for a distinctive, high-visibility glow.
Hot-Swappable PCB
Compatible with select Hall Effect switches, no soldering required.
Sound & Typing Experience
Creamy and thocky right out of the box.
5-Layer Gasket-Mount Architecture
Dampens vibration into the structure instead of the case, killing hollow rattle at the source.
Factory-Lubed POM Switches
Each POM-stem Hall Effect switch is lubed at the factory for frictionless, consistent travel.
Well-Tuned Stabilizers
Spacebar and modifiers stay rattle-free through nights of gaming or days of office work.
Delivers a marble-like creamy sound, backed by the signature 5-layer dampening gasket-mount architecture.
Why theHE75 V2Sounds this good.
A 5-layer sound-optimizing system sits under a gasket-mounted plate, turning every keystroke into a clean, controlled thock.
- Sandwich foam absorbs plate vibration
- PET sound-enhancement pad tunes resonance
- Sponge layer kills hollow cavity echo
- Bottom silicone dampens desk-transmitted noise
- Gasket-mounted plate isolates the whole assembly from the case
3D Model View
Smart Design.Made in House.
Drag to Rotate / Scroll to Zoom
About This Product
Technical Specifications.Quality Delivered.
Brand
EPOMAKER
Model
HE75 V2
Layout
75% Layout, ANSI US Layout, QWERTY Layout
Number of Keys
80 Keys + 1 Knob (Knob is swappable as 2 Keys)
Battery
8000mAh Battery
Connectivity
2.4Ghz/BT/Wired
Compatibility
Mac/WIN/Android
Front Height
1.9cm
Back Height
3.29cm
Typing Angle
Three Angles at 5.8, 9 and 12 degrees with the 2-stage Adjustable Kickstand
Case Material
ABS Plastic
Plate Material
FR4 Plate
Flex-Cut
No, the HE75 V2 HE keyboard does not have flex-cut plate or PCB.
Stabilizers
Plate-Mounted Stabilizer
Mounting Structure
Gasket-Mount
Sound Optimizing
5-layer sound-optimizing system including Sandwich Foam, PET sound enhancement pad, sponge and bottom silicone.
Keycaps Profile
Cherry Profile
Keycaps Material
PC Keycap, Matte Transparent
Keycaps Manufacturing Technique
Print
Switch
Factory Lubed Hall Effect Switch
Hot Swappable
Yes, the HE75 V2 Custom keyboard is hot-swappable with some hall effect Switches
RGB
Yes, the HE75 V2 Gaming keyboard has dynamic RGB backlight with per-key adjustable south-facing LEDs, and the adjustable RGB front light.
Polling Rate
8000hz (USB/2.4Ghz) or 125hz (BT)
Scan Rate
128KHZ Full Board, 16KHZ per Key
Latency
0.1ms (Wired), 0.58ms (2.4Ghz) and 15ms (BT)
Software
Yes, the EPOMAKER HE75 V2 Hall Effect Keyboard can be programmed using the EPOMAKER 3.0 Software (EPOMAKER V4).
Keyboard Dimensions
32.4*13.2*4.3cm
Keyboard Weight
about 1kg
EPOMAKER Creamy Jade Hall Effect Switch
Magnetic Hall Effect switch with 0.005mm adjustable actuation from 0.1mm to 3.5mm, for both rapid-trigger gaming and precision typing.
Switch TypeHall Effect
Trigger Force30gf Min
Bottom-out Force55gf Max
Pre-TravelAdjustable
Total Travel3.5±0.1mm
Light DiffuserAdjustable 0.1–3.5mm
Product Downloads
Keep your Keyboard.Up to Date.

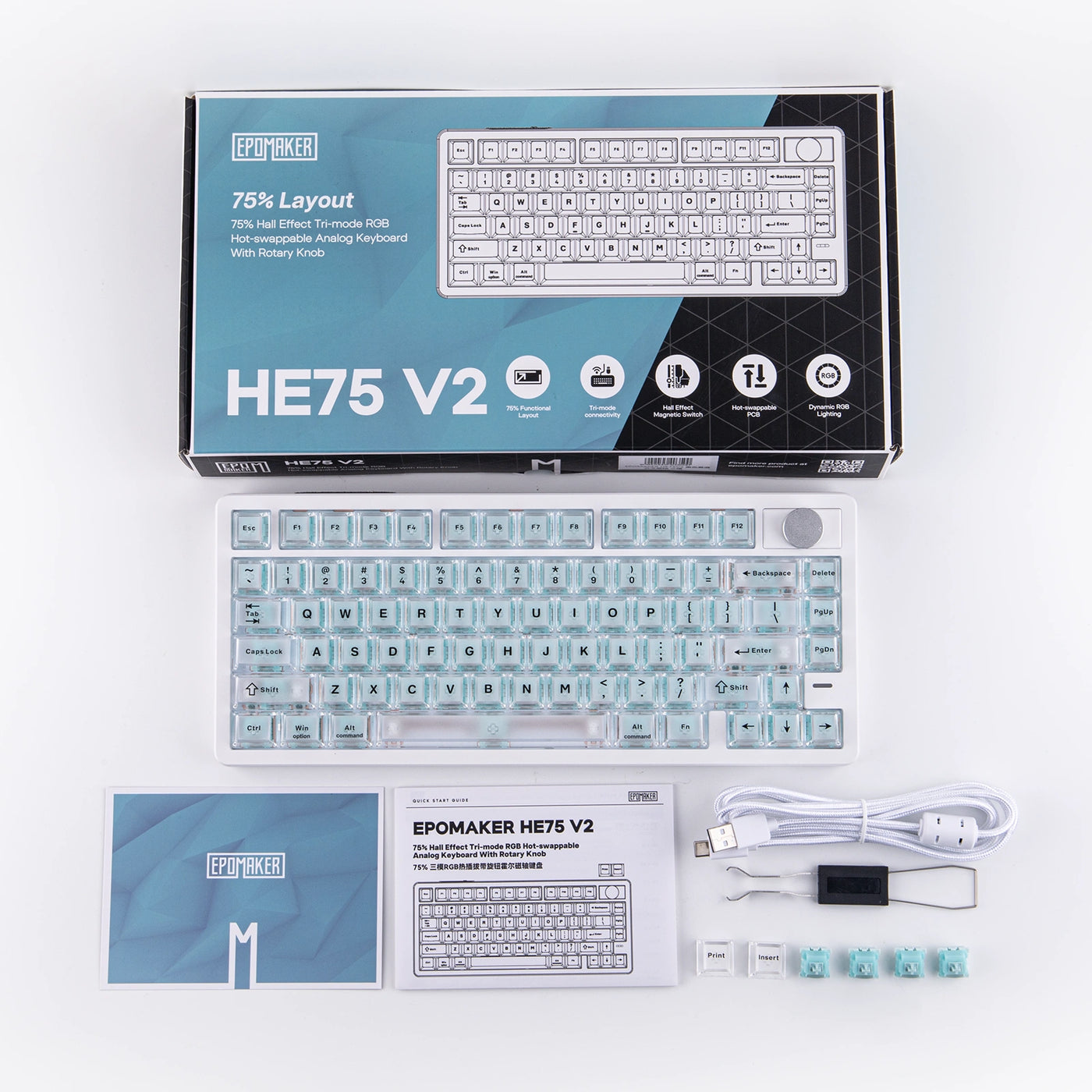

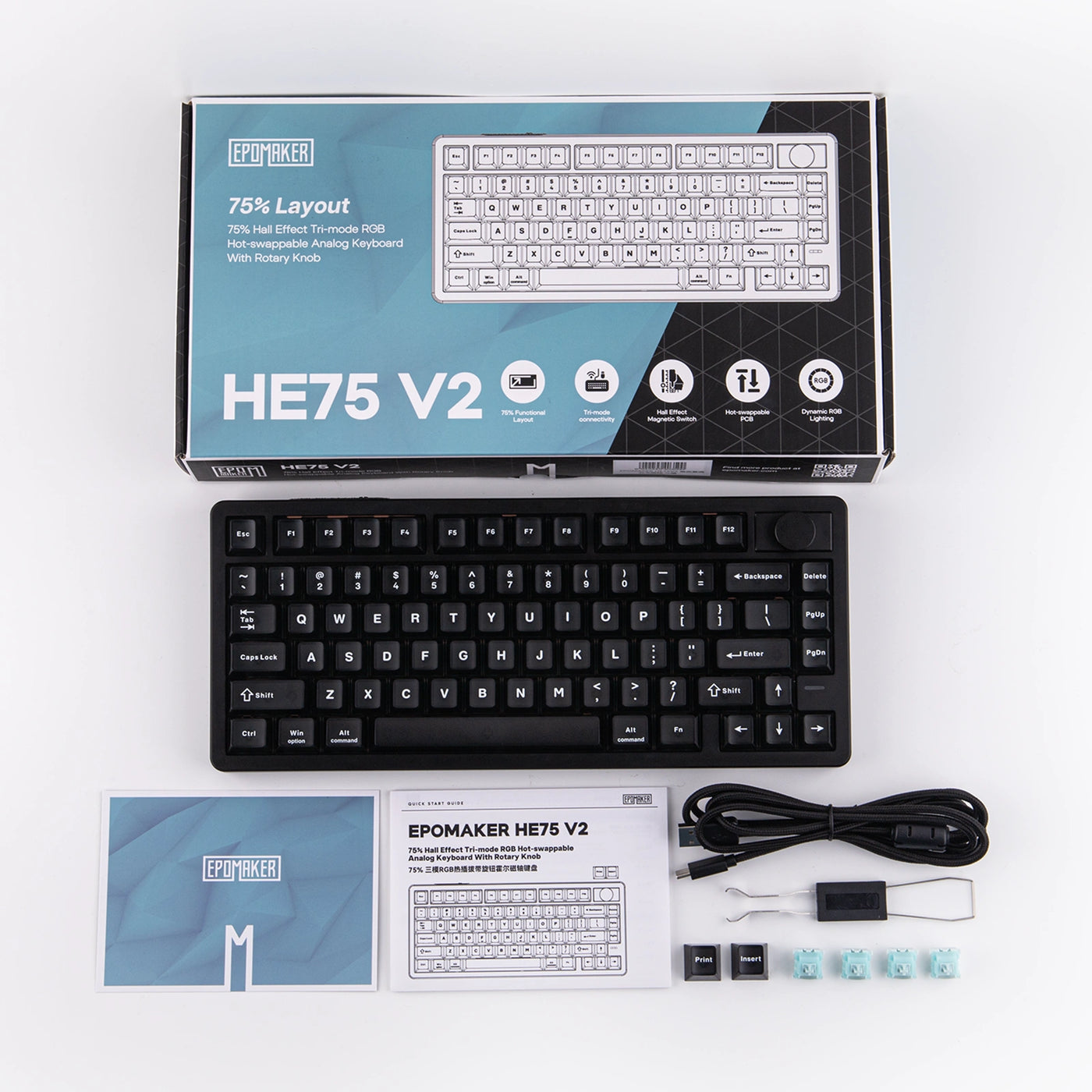

Ready to Use
Everything you Need.Inside the Box.
EPOMAKER HE75 V2 75% Gaming Keyboard
2-in-1 Switch & Keycap Puller
Detachable USB-A-to-C Cable
Extra Switches
Pictures for reference only. Packaging and included accessories may differ slightly from what you get delivered.
Content List
- 1xEPOMAKER HE75 V2
- 1xDetachable USB-C Cable

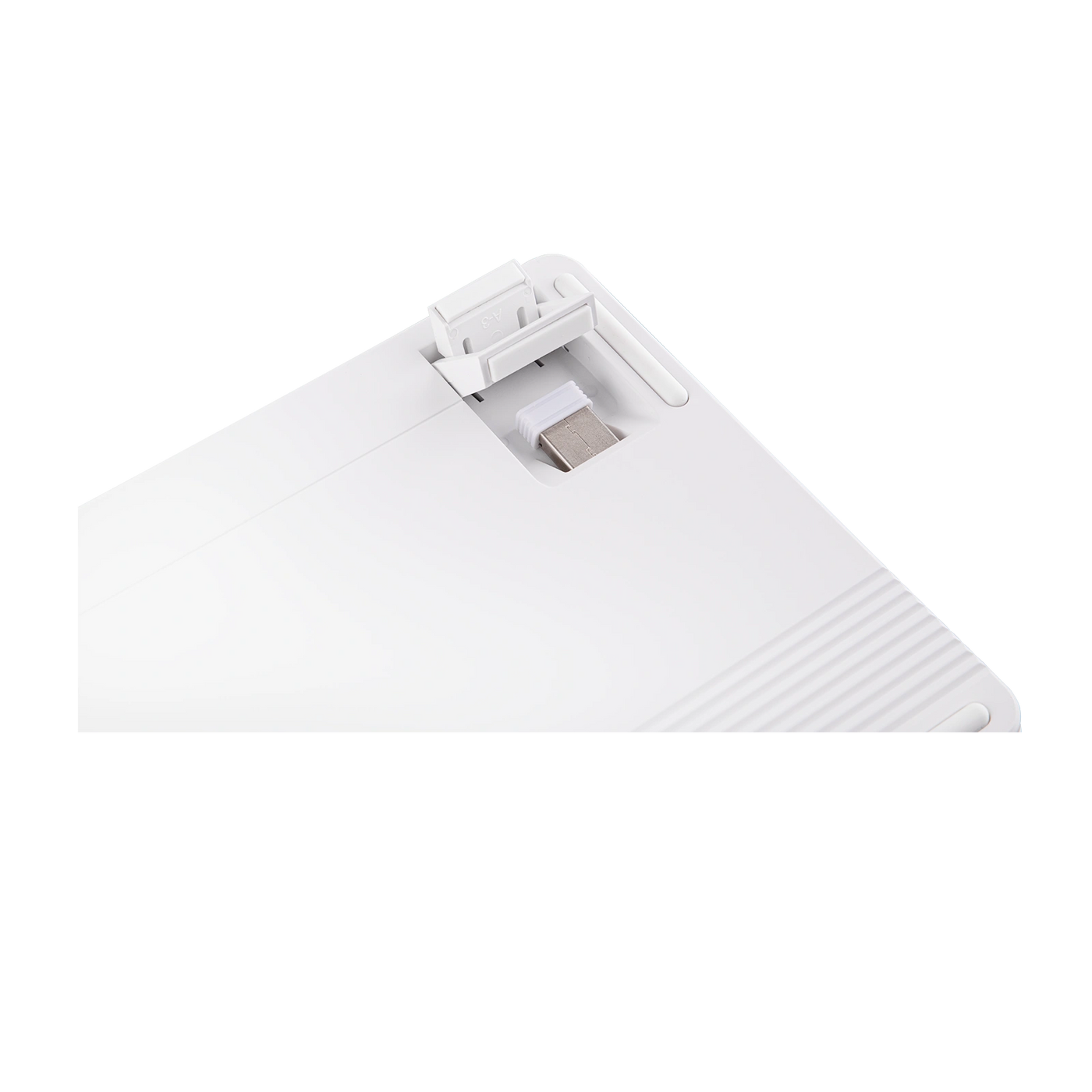

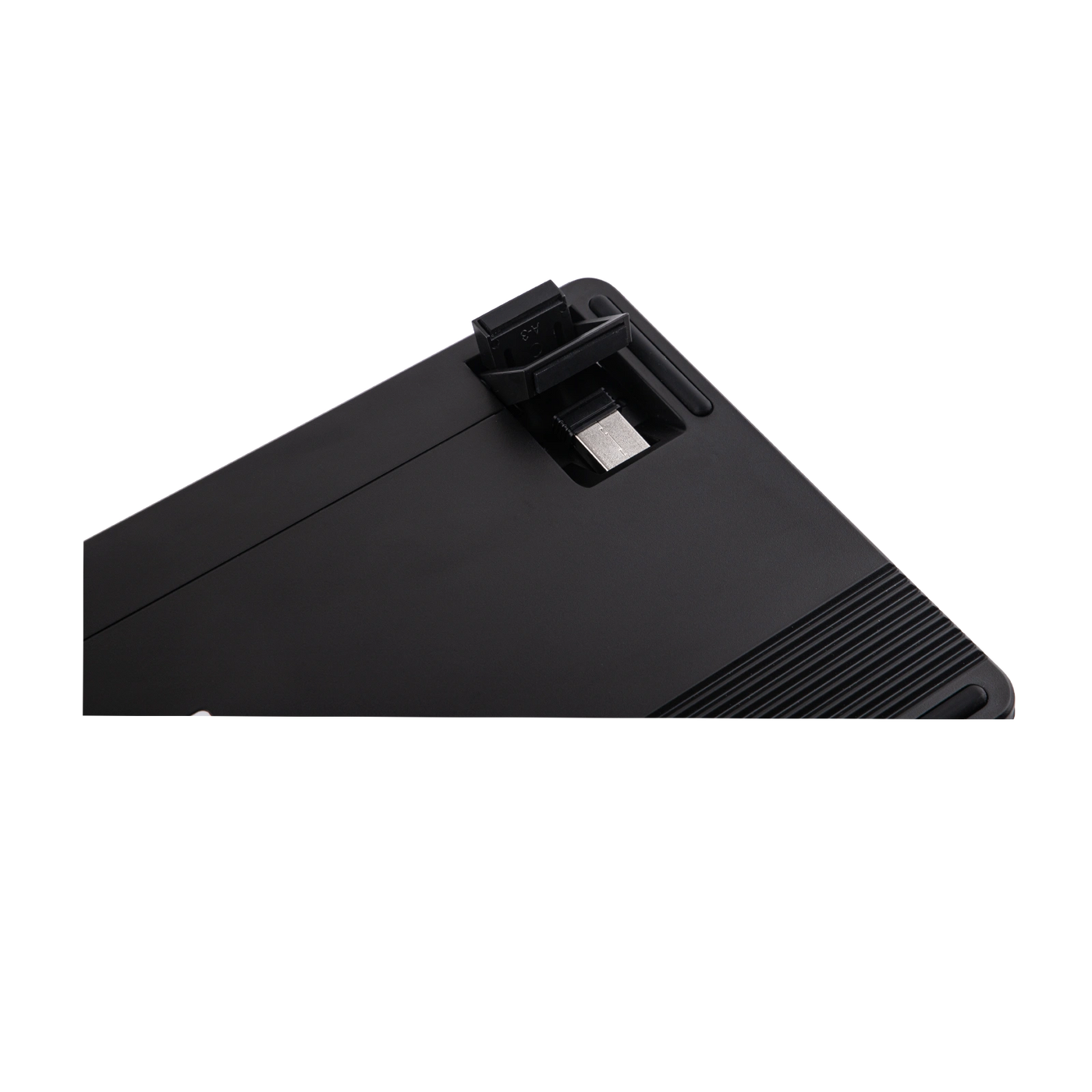

- 1x2.4GHz Wireless Receiver
- 1x2-in-1 Switch & Keycap Puller
- 1xMultilingual User Manual
- 1xThank-You Card
- 2xKeycaps for the Swappable Knob
- 4xExtra Switches
