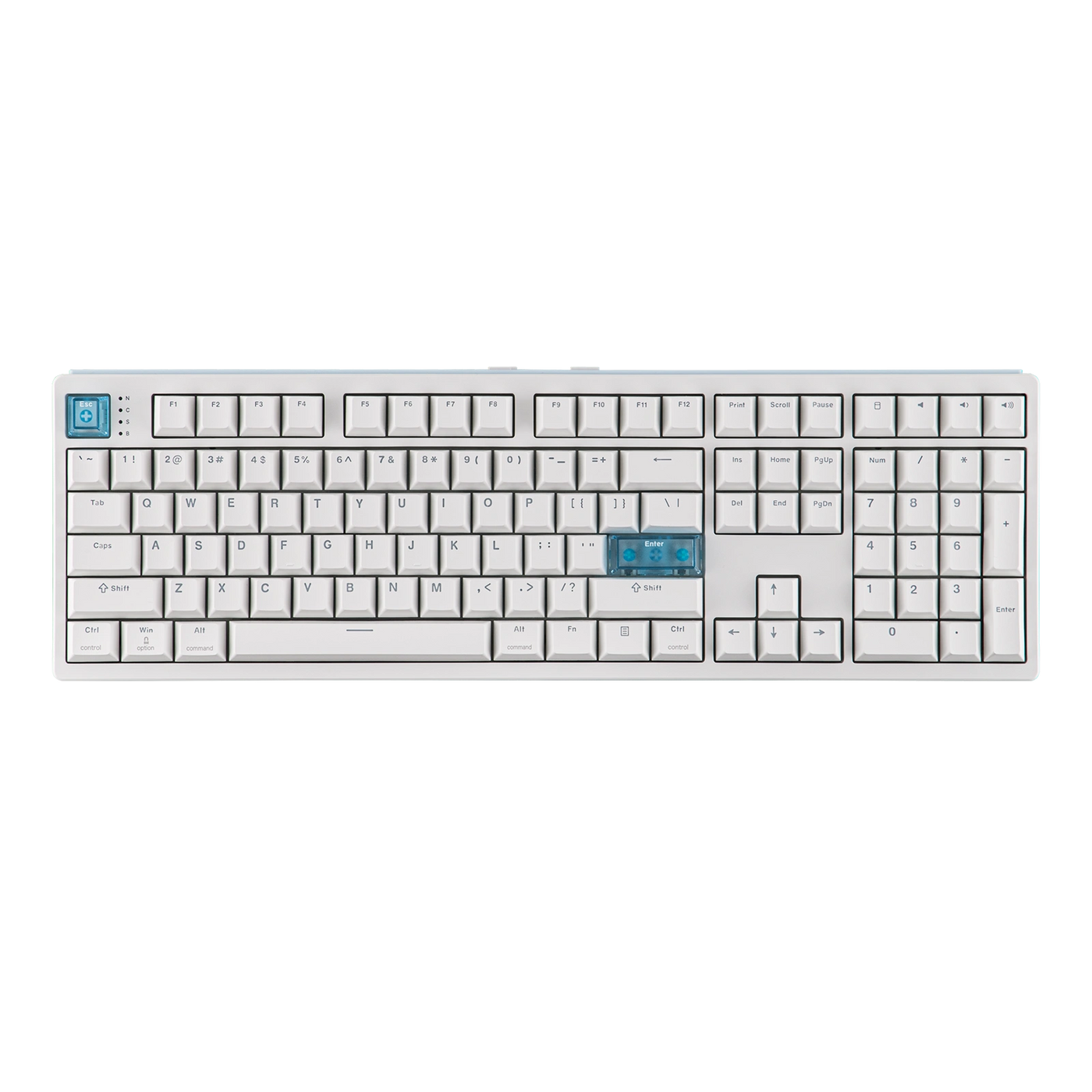

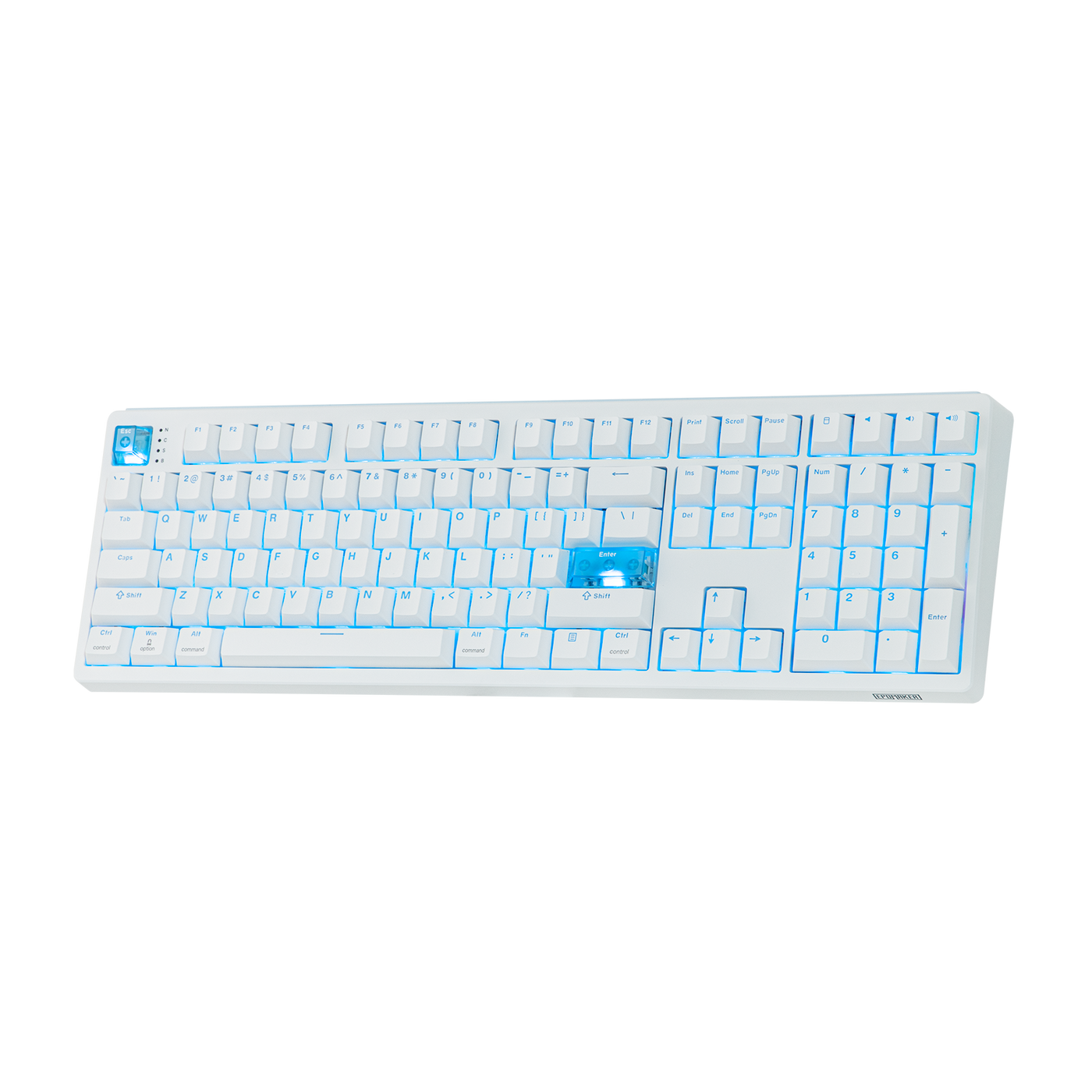

HE108

Full-size 108-key · Hall-effect magnetic · Rapid Trigger + 0.005mm adjustable actuation · SOCD / DKS / MT · 8K polling · tri-mode wireless. A competition-grade analog board that reacts before you think.

$99.99

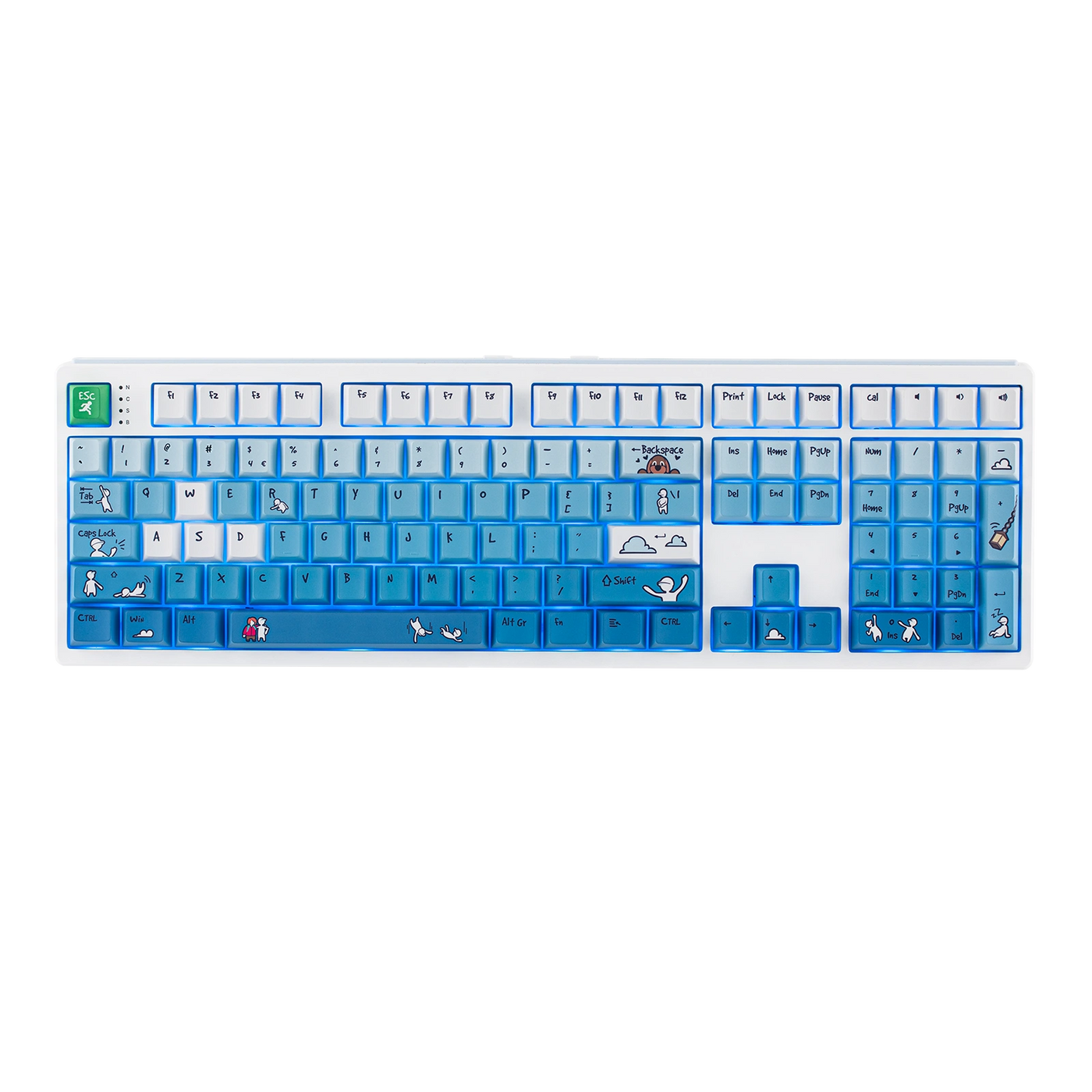

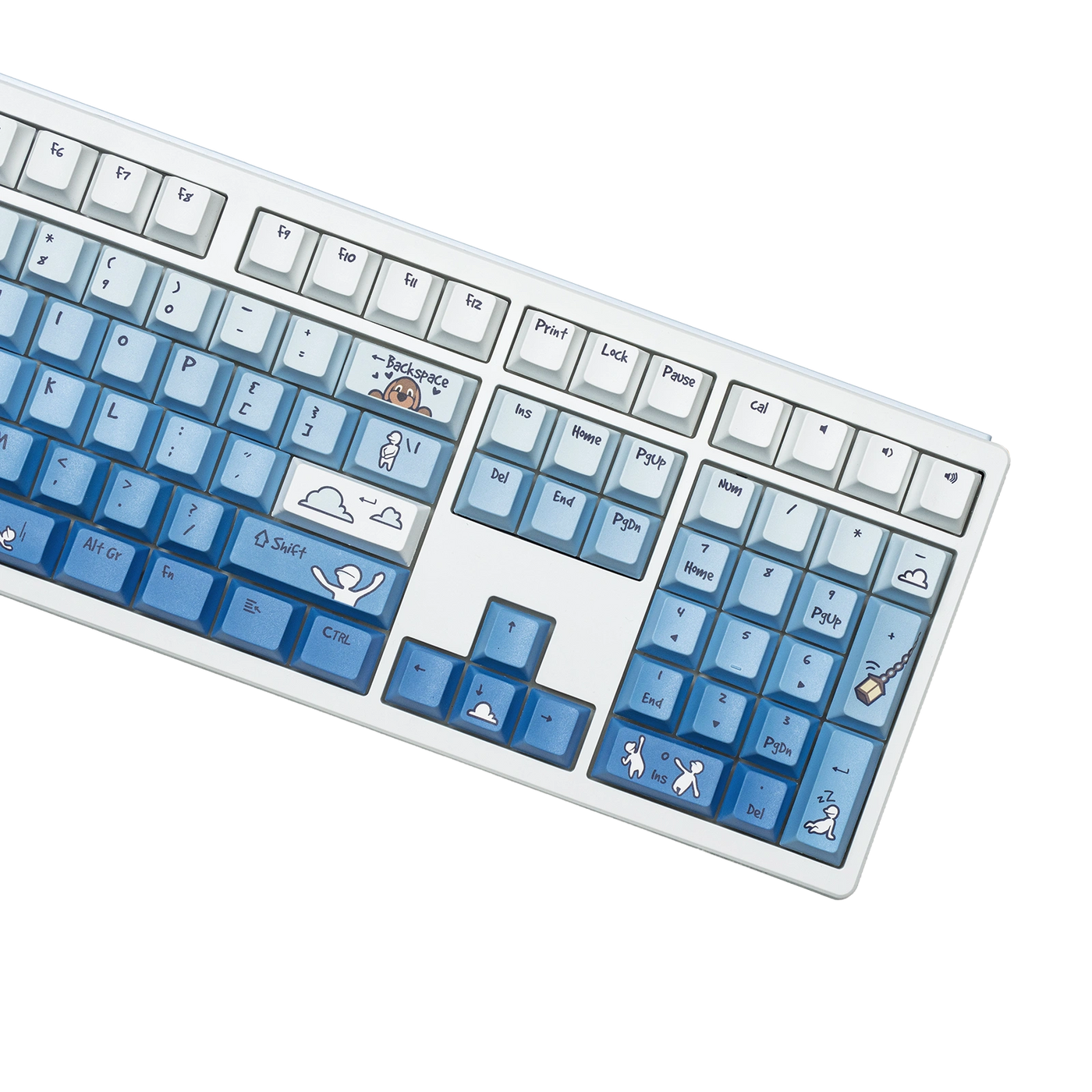

Color: Epomaker × Human Fall Flat HE108 White
Switch: EPOMAKER Creamy Jade HE Switch
Rapid Trigger Magnetic Input 0.005mm Adjustable Actuation SOCD · DKS · MT Analog Control 8K Polling · 0.2ms Response Full-Size 108-Key Layout Tri-Mode · 10,000mAh Battery
1 Year Warranty 30 Day Returns Worldwide Shipping

Rapid Trigger

Reset & re-fire continuously · adjust actuation 0.1–3.3mm per key

SOCD · DKS · MT

Snap Key resolves opposite inputs · 4 actions in one keystroke

8K Polling · 128K Scan

0.2ms response · complex sequences captured flawlessly

Tri-Mode · 10,000mAh

2.4GHz / BT 5.0 / USB-C · up to 500h wireless (RGB off)

Magnetic, but Tuned — Sound Design

A hall-effect board that still sounds like a gasket build.

The gasket structure separates a flex-cut FR4 PCB from the ABS shell to kill clatter, while PORON, IXPE and latex layers fill the hollow space — so every magnetic keystroke lands soft and clean, no ping, no rattle.

5 Sound LayersOptimized Acoustics
Gasket StructureSoft Cushioned Feel

Built with Purpose

Designed for EveryKeystroke.

ACOUSTIC ARCHITECTURE

Engineered for a quiet, clean strike

A gasket structure and multi-layer damping (PORON / IXPE / latex) isolate the flex-cut FR4 PCB from the shell — magnetic speed with none of the hollow clatter.

Comfortable TypingDesigned with purpose

RAPID TRIGGER

React the instant you move.

Hall-effect sensing resets and re-fires on the way up. Tune actuation from a typo-free 3.3mm down to a near-instant 0.1mm, in 0.005mm steps, per key.

Adjustable Actuation0.005mm Precision

ANALOG CONTROL

One key, four actions.

Snap Key (SOCD) prioritizes your latest input so your character never freezes; DKS and MT bind shallow/deep press and release into true analog, multi-action keystrokes.

SOCD · DKS · MTBuilt for FPS / MOBA / Rhythm

TRI-MODE

Cut the cable, keep the speed.

2.4GHz, Bluetooth 5.0 and USB-C across up to 5 devices, powered by a 10,000mAh battery for up to 500 hours wireless — on-board memory keeps every magnetic key's setting.

Triple-Mode2.4G · BT · Wired

Elite precision

8K polling and 0.005mm adjustable actuation.

Professional tasks

Gasket-mounted feel for 500-hour endurance.

Full-size, full statement

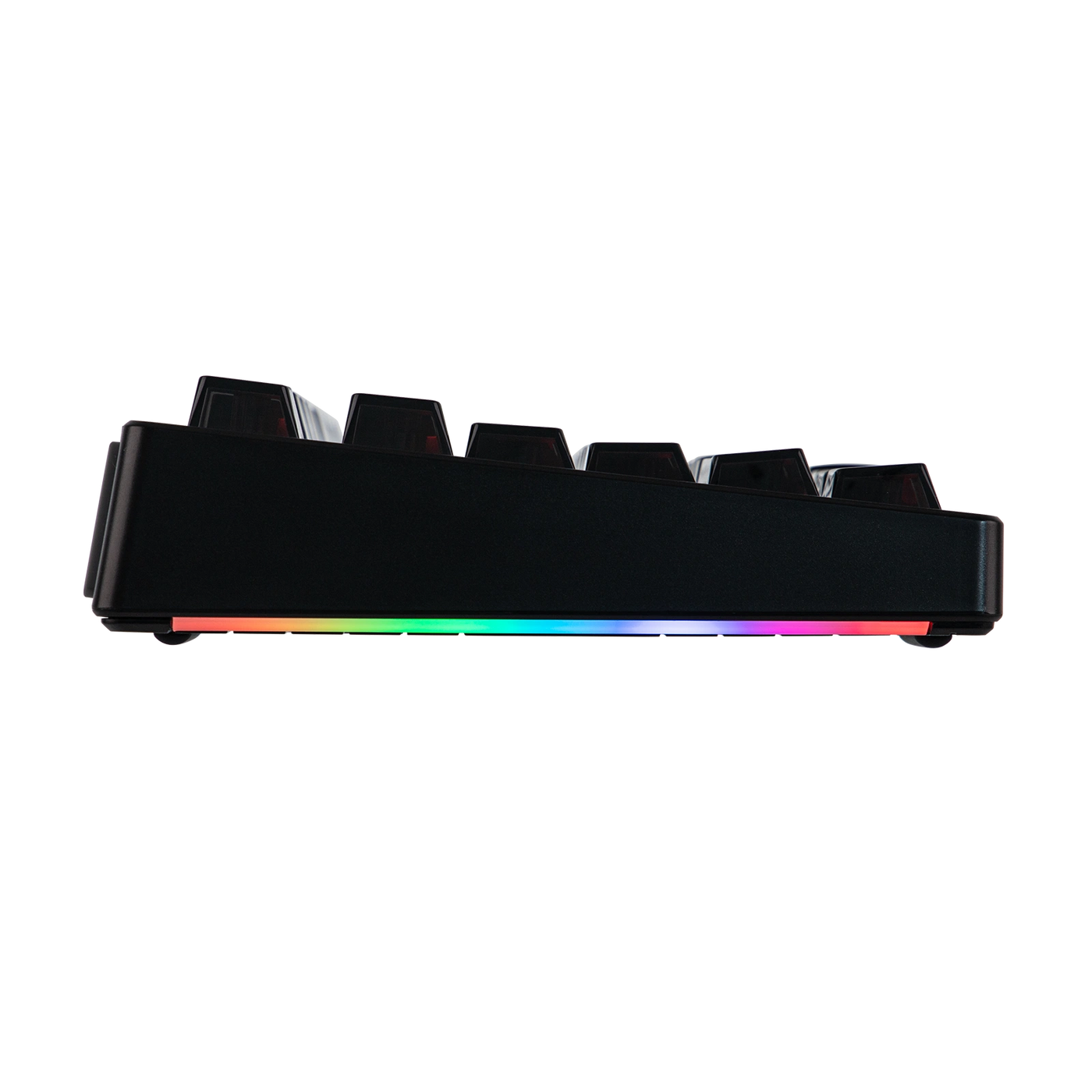

South-facing RGB on a 108-key canvas.

About this Product

Well Thought.Design Features.

UP TO500HOURS

Up to 500 hours of wireless use (RGB off) on the 10,000mAh battery

UP TO5DEVICES

Pair up to 5 devices across 2.4GHz, Bluetooth and wired

Mac & Windows ready

Free Win/Mac software — per-key actuation tuning

Double-Shot PBT Keycaps

Shine-through, grease- and shine-resistant, with Mac legends for crisp backlit RGB in any light.

Solid 1.2kg Full-Size Body

Over 1.2kg of un-moving stability with a full 108-key layout built for gaming and office alike.

Rapid Trigger Analog Switches

Rapid Trigger Analog Switches

Adjust actuation 0.1–3.3mm in 0.005mm steps and reset-fire continuously for the fastest inputs.

SOCD · DKS · MT

SOCD · DKS · MT

Snap Key resolves opposite keys instantly; bind up to four analog actions into a single keystroke.

Tri-Mode Wireless

Tri-Mode Wireless

2.4GHz, Bluetooth and USB-C with 8K polling, 0.2ms response and full anti-ghosting.

Sound & Typing Experience

Creamy thocky thuds.

5-Layer Sound-Optimized Gasket Mount

A soft gasket separates the flex-cut FR4 PCB from the thick ABS shell, ridding the distracting loud clatter of each keypress.

PORON, IXPE & Latex Dampening

These layers fill the hollow space inside the case, further lowering the noise level of every keystroke.

Hall Effect Precision

Factory-lubed magnetic switches deliver consistent feedback without the wear-related sound drift of traditional mechanical switches.

Recorded and tuned in EPOMAKER's acoustic testing, matching the signature creamy sound the HE108 is known for.

Exploded view of the keyboard layers

Why theHE108Sounds this good.

The HE108 pairs hall-effect speed with a gasket-mounted, sound-optimized build — deep, clean keystrokes with zero modifications.

  • Gasket structure isolates the PCB from the shell
  • Multi-layer damping (PORON / IXPE / latex)
  • Flex-cut FR4 PCB with hall-effect sensors
  • Pre-installed magnetic Creamy Jade HE switches
  • Double-shot PBT keycaps for a lower pitch

3D Model View

Smart Design.Made in House.

Drag to Rotate / Scroll to Zoom

About This Product

Technical Specifications.Quality Delivered.

Brand
EPOMAKER x Human Fall Flat
Model
HE108
Layout
Full Sized Gaming Keyboard, 100% Layout, US QWERTY ANSI Layout
Number of Keys
108 Keys
Battery
10000mAh Rechargeable Battery
Battery Life
32 hours (RGB On), 500 hours (RGB Off), 1000 hours (stand by)

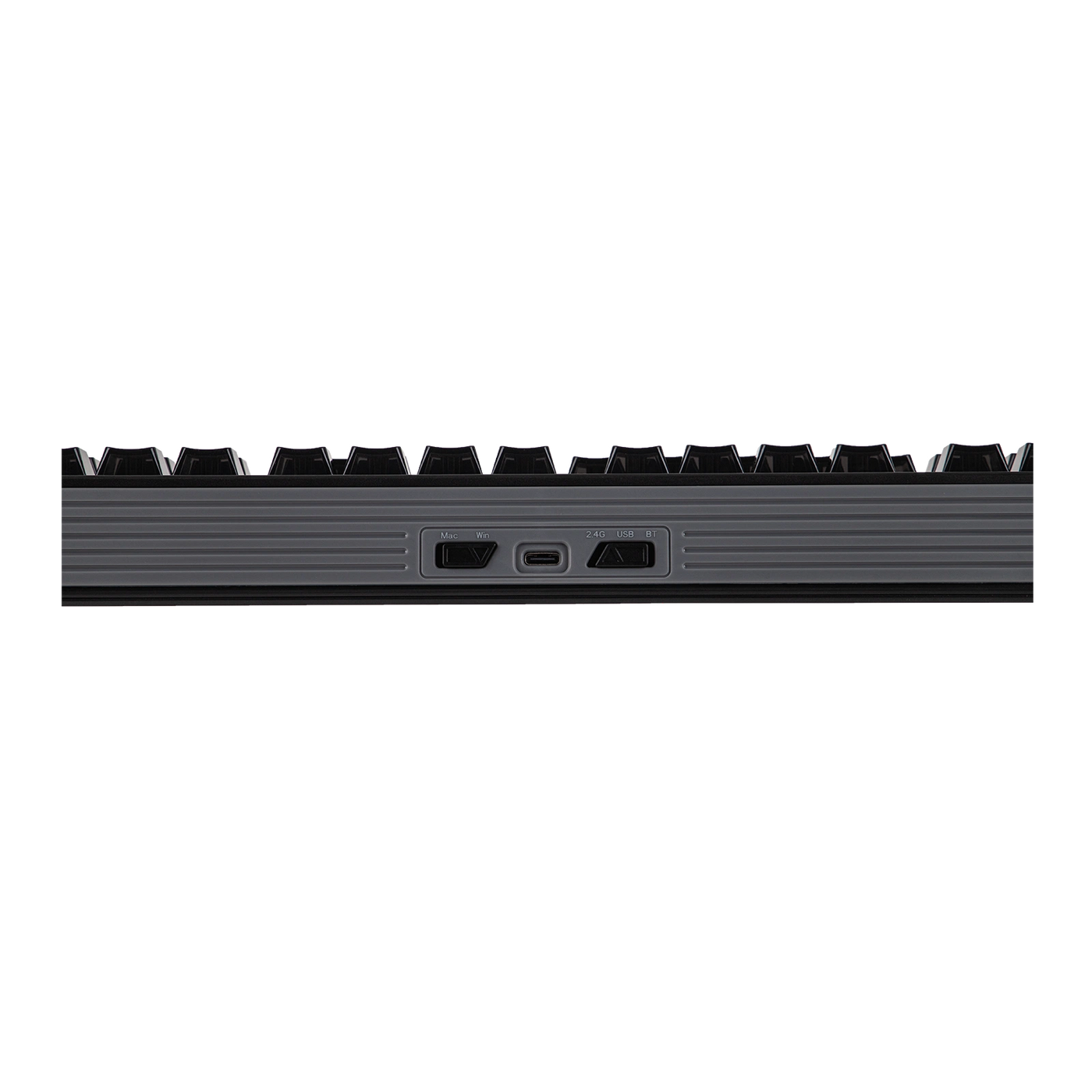

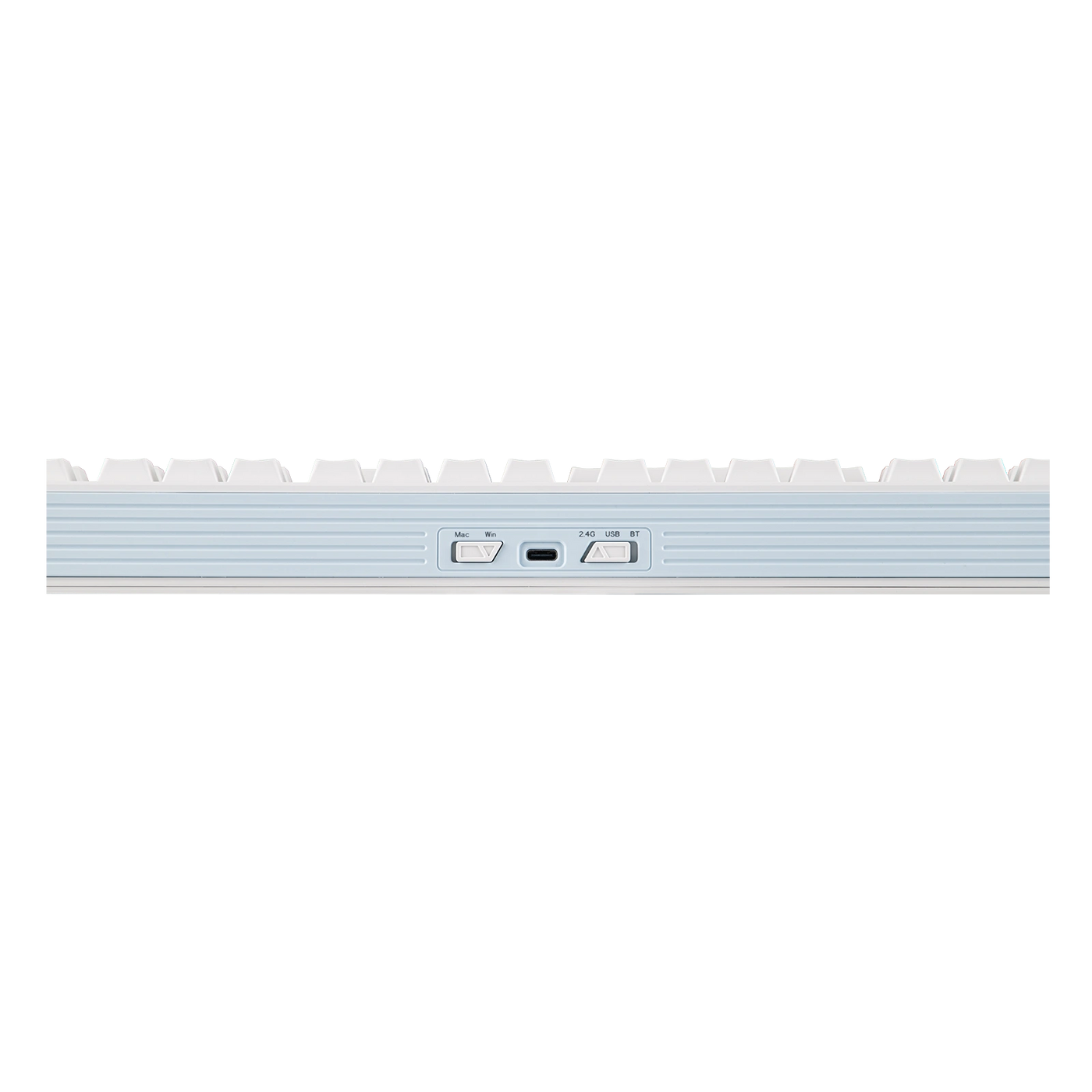

Connectivity
Tri-Mode 2.4Ghz/BT/Wired
Compatibility
Mac/WIN/Android
Mac Modifier Print
Yes

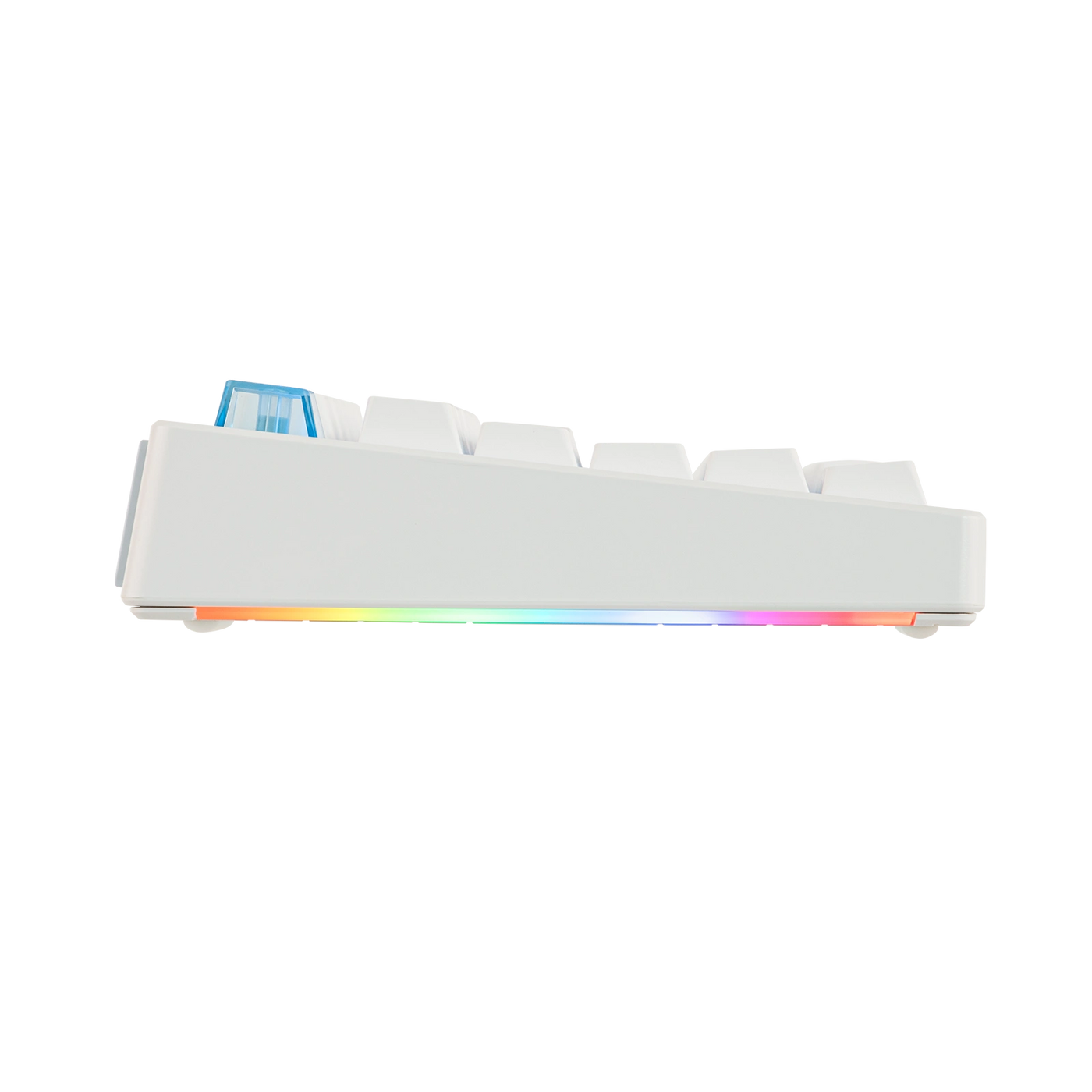

Front Height
1.8cm
Back Height
3.2cm

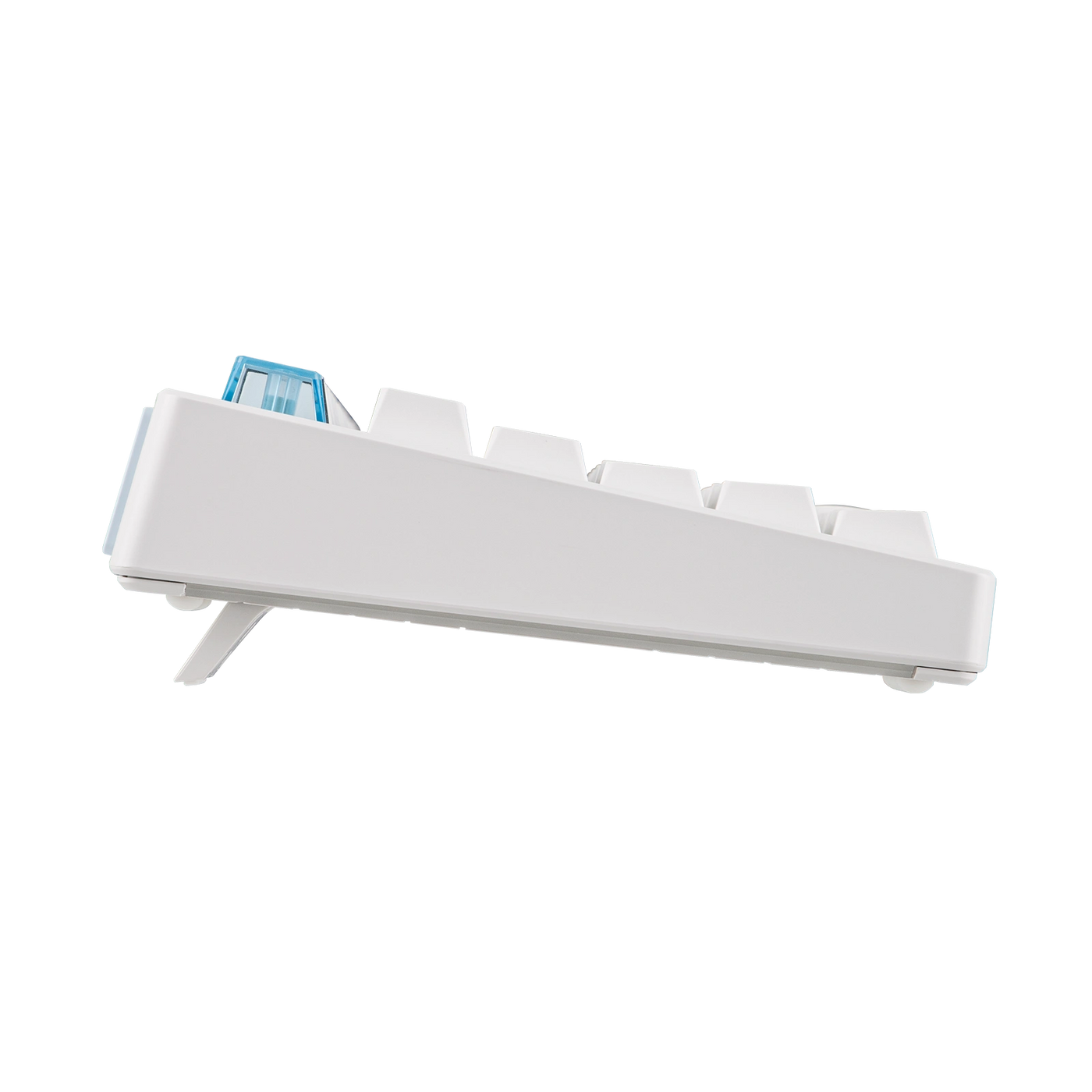

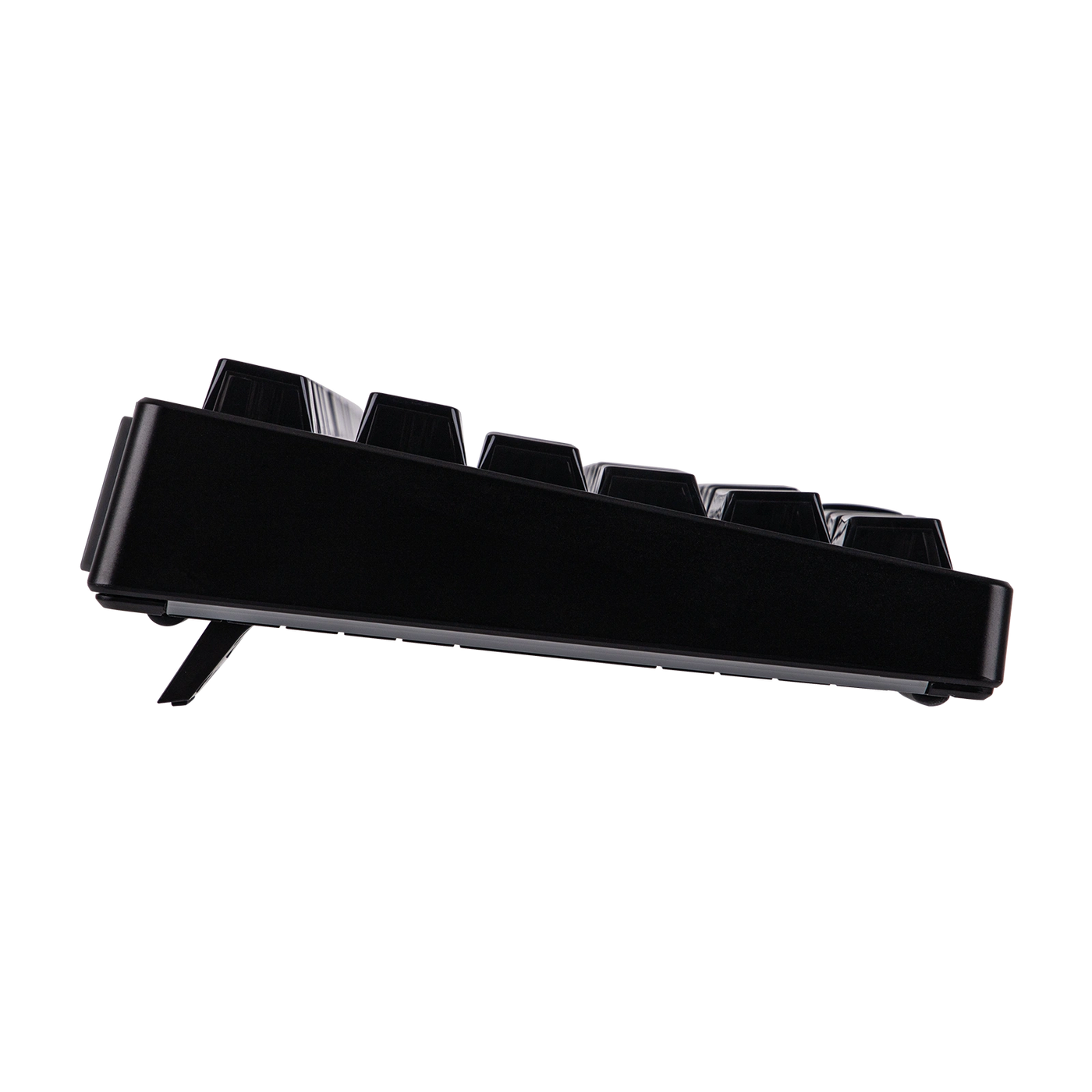

Typing Angle
6 degrees, 8 degrees, and 10.5 degrees.
Case Material
Thick ABS Plastic
Plate Material
PC Plastic
Flex-Cut
Yes, the HE108 has a flex-cut plate in PC and a flex-cut PCB board in FR4.
Stabilizers
The EPOMAKER HE108 has finely tuned plate-mounted stabilizers and is not compatible with PCB or screw-in stabilizers.
Mounting Structure
Gasket-Mounted
Sound Dampening
5 Layers of sound dampening, including PORON sandwich foam, IXPE switch pad, Sound-Enhancement PET, PORON and latex switch socket foam, and bottom silicone.

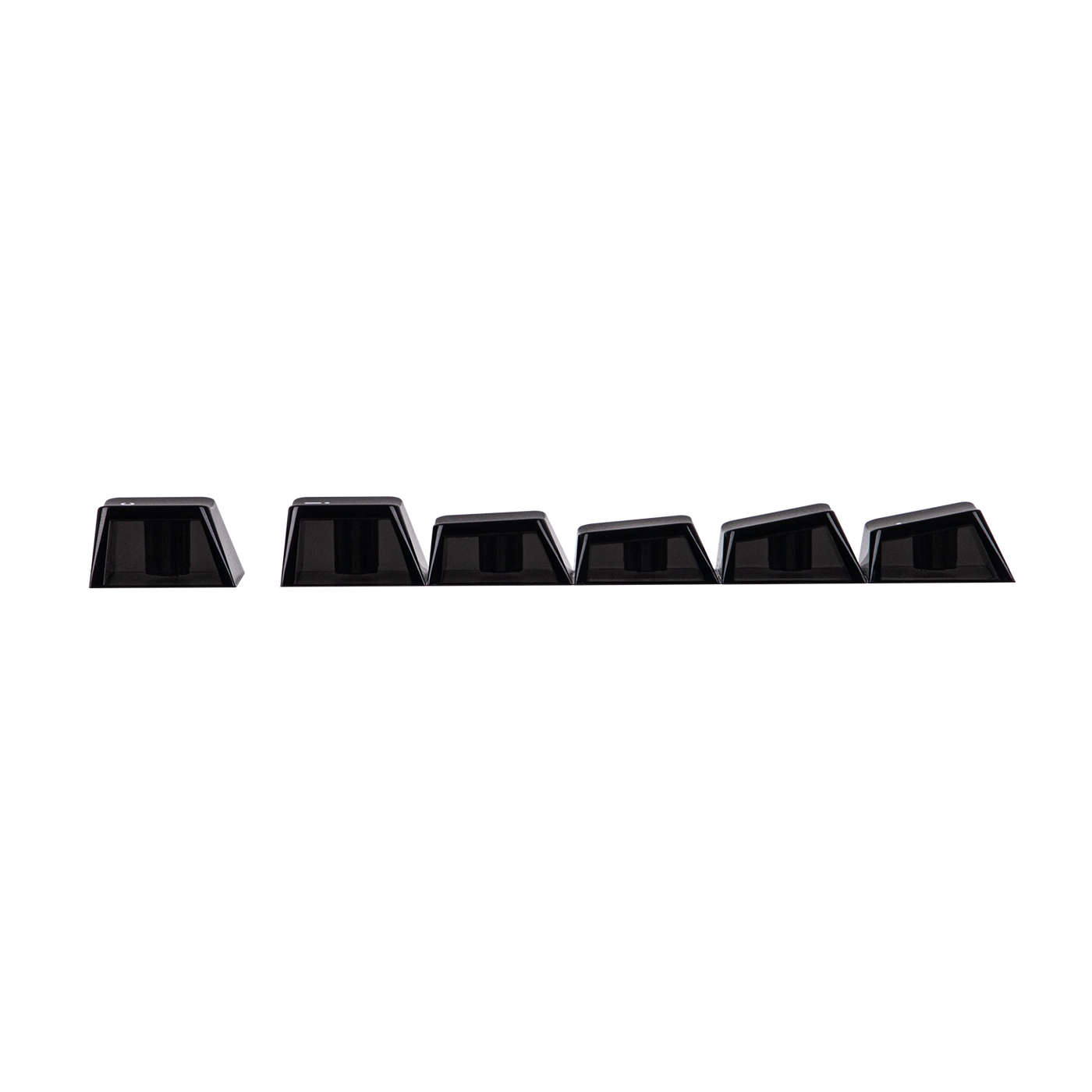

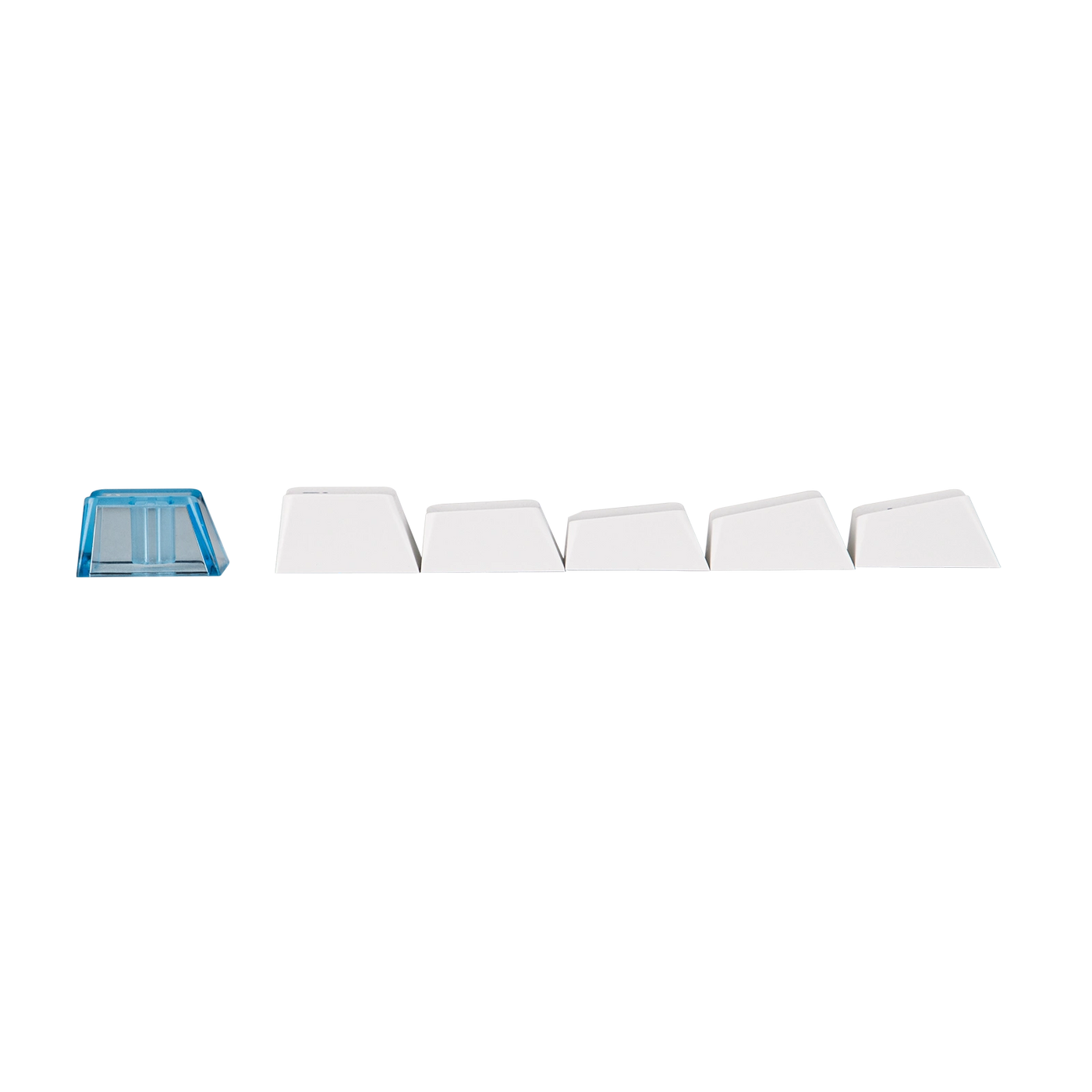

Keycaps Profile
Cherry Profile Keycap
Keycaps Material
PBT Plastic
Keycaps Manufacturing Technique
Double-Shot
Switch
Factory Lubed Magnetic Linear Switch
Hall Effect Accuracy
0.005mm
Rapid Triggering
Yes
Snap Key (SOCD)
Yes
DKS
Yes
Hall Effect Switch Deadzone
0-0.3mm
Hot-Swappable
Yes, the HE108 magnetic keyboard has a hot-swappable PCB and is compatible with same mainstream hall effect switches.

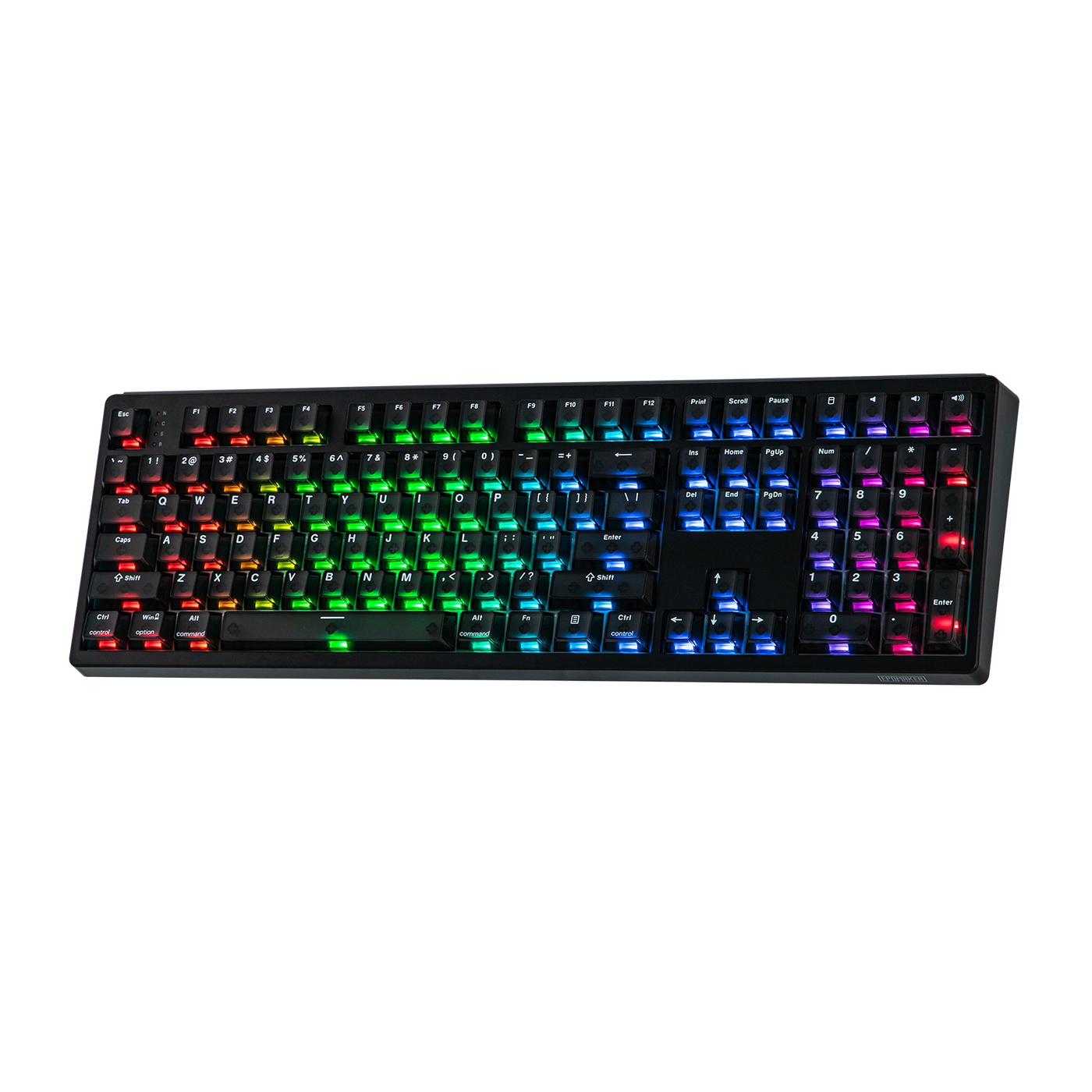

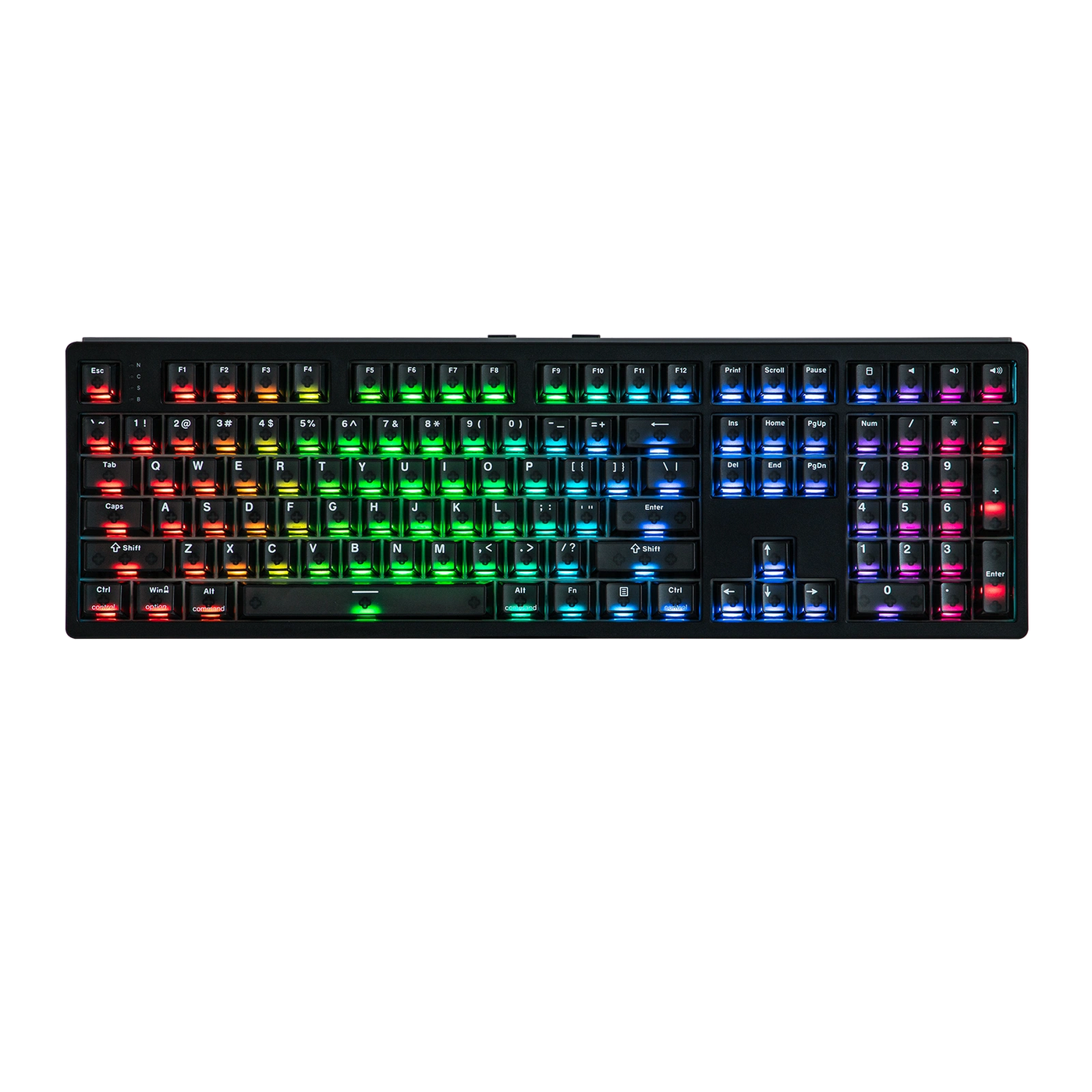

RGB
South-Facing, Per-Key LEDs
Polling Rate
8000hz in USB and 2.4Ghz mode, and 125hz in BT mode.
Scan Rate
16,000hz (full board), 128,000 (per key)
Latency
0.2ms (USB), 0.4ms (2.4Ghz Wireless), 8ms (BT)
Anti-Ghosting
Yes, the HE108 hall effect keyboard supports N-key rollover and is anti-ghosting.
Custom Software
Yes, the HE108 is compatible with EPOMAKER Driver 3.0 (Epomaker driver v4) for key map, macro recording, rgb settings and special settings of hall effect switch such as DKS, SOCD, MT, rapid trigging and deadzone.
Keyboard Package Dimensions
44.5*14.1*4.8cm
Keyboard Package Weight
1.67kg
Keyboard Weight
about 1.2kg

EPOMAKER Creamy Jade HE Switch

Hall Effect magnetic switch with adjustable actuation per 0.005mm from 0.1mm to 3.3mm, factory-lubed for smooth, consistent keystrokes.

Switch TypeHall Effect
Trigger Force30gf Min
Bottom-out Force55gf Max
Pre-TravelAdjustable 0.1–3.3mm
Total Travel3.3±0.1mm
Light DiffuserYes, with transparent acrylic light diffuser

Product Downloads

Keep your Keyboard.Up to Date.

Ready to Use

Everything you Need.Inside the Box.

HE108 Full Sized Gaming Keyboard

HE108 Full Sized Gaming Keyboard

2-in-1 Switch-and-Keycap Puller

2-in-1 Switch-and-Keycap Puller

Detachable USB A-to-C Cable

Detachable USB A-to-C Cable

Extra Switches

Extra Switches

Pictures for reference only. Packaging and included accessories may differ slightly from what you get delivered.

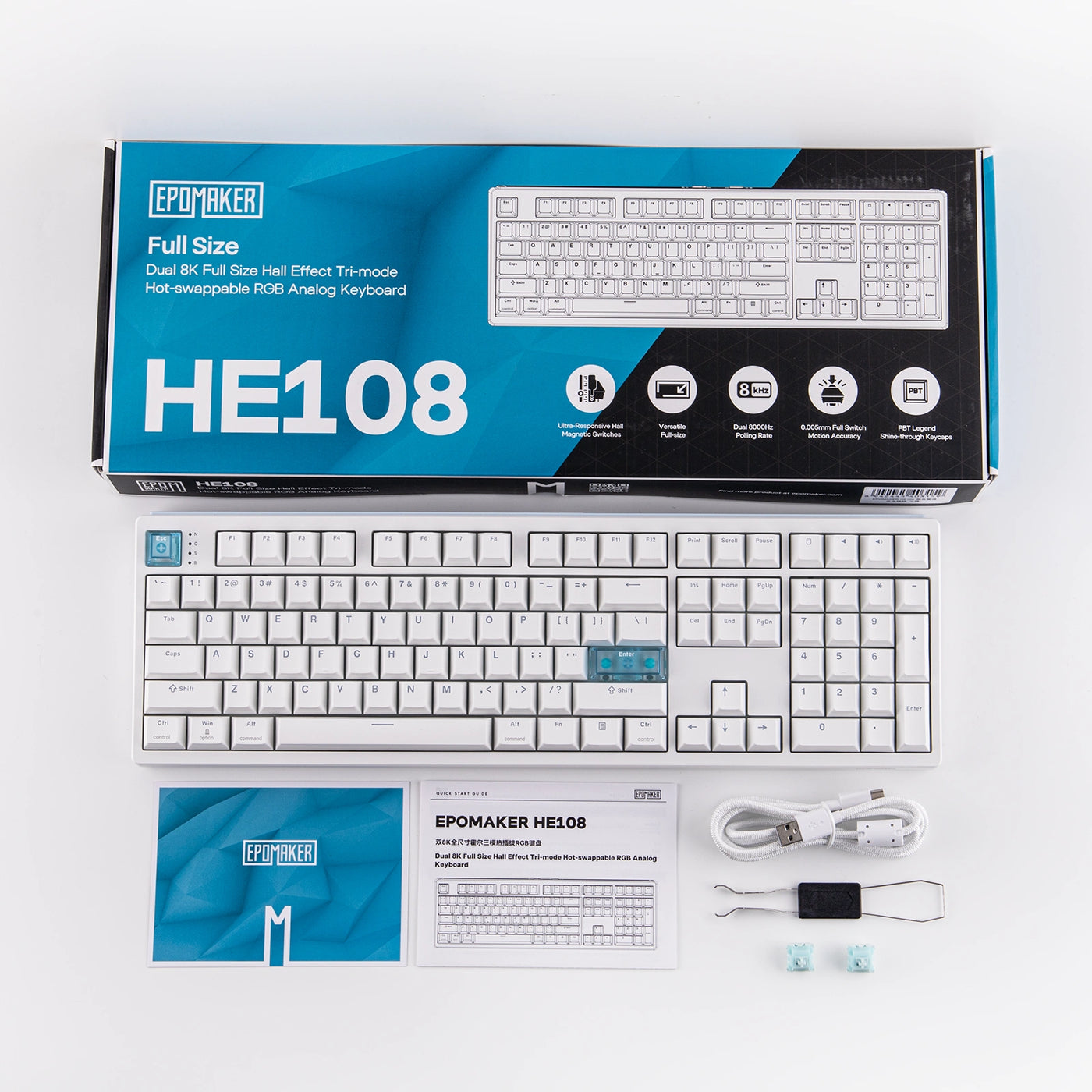

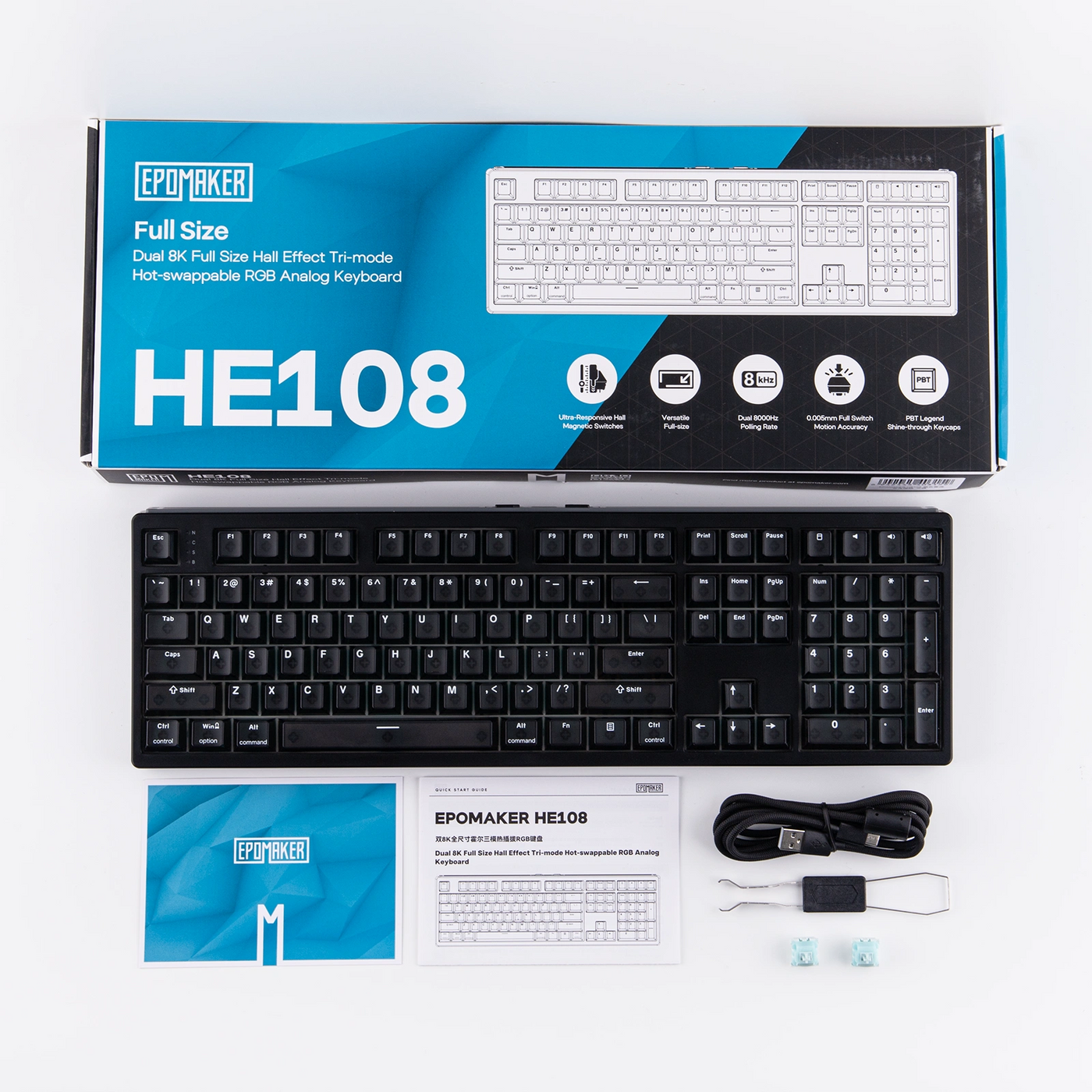

Content List

Content List

  • 1xHE108 Full Sized Gaming Keyboard

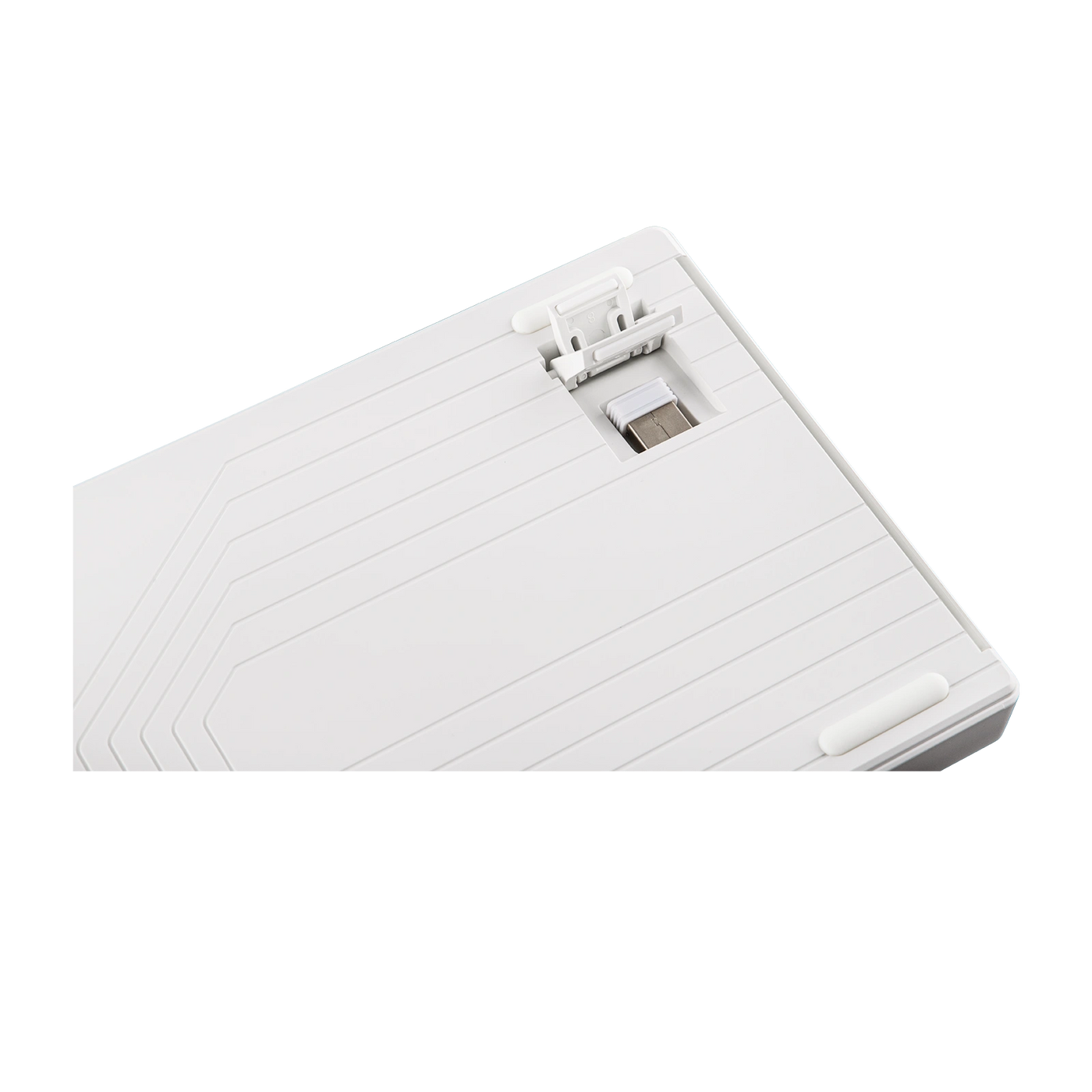

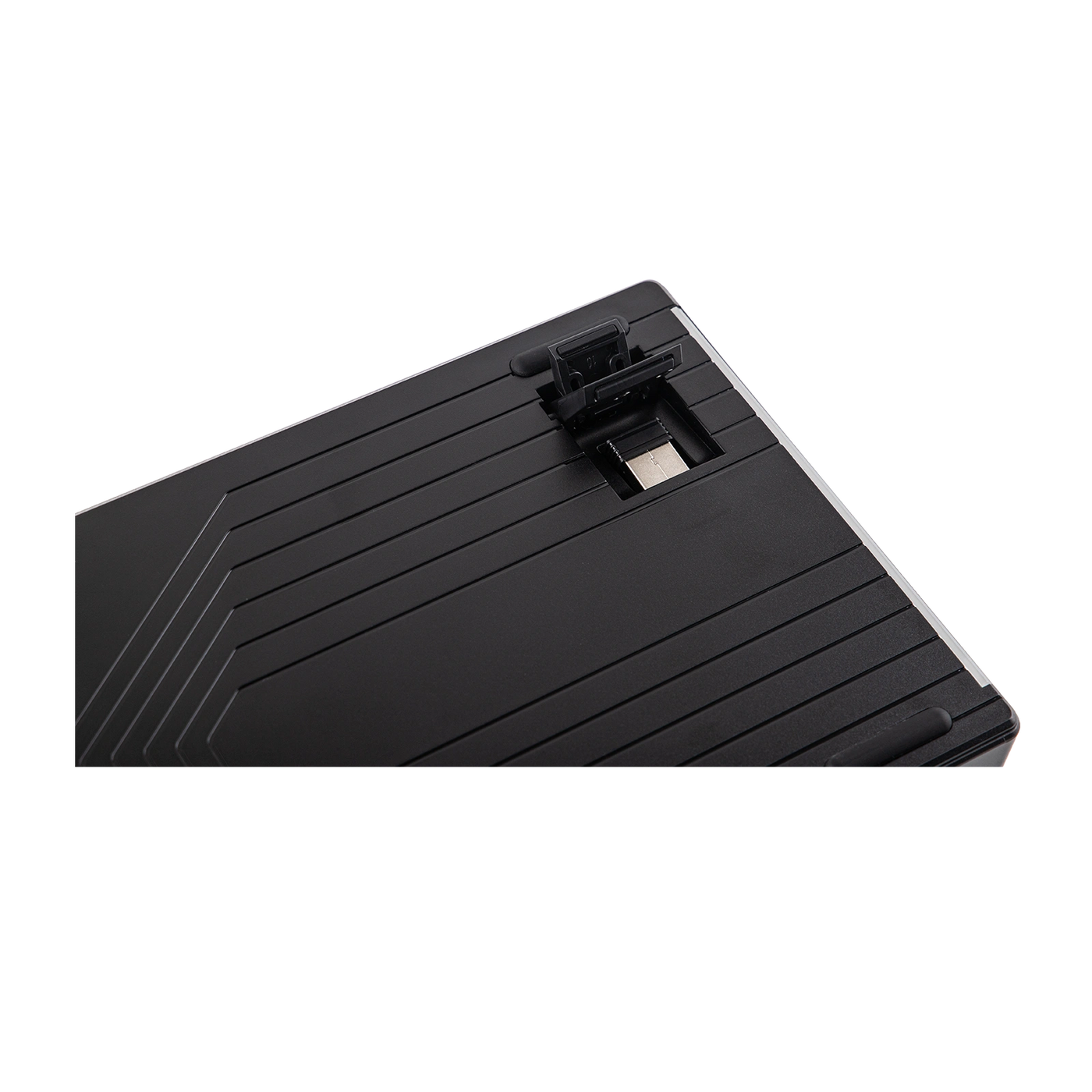

  • 1xDetachable USB A-to-C Cable and Wireless 2.4GHz Receiver (stored under the left kickstand)
  • 1x2-in-1 Switch & Keycap Puller
  • 1xMultilingual User Manual
  • 1xThank-You Card
  • 2xExtra Switches

Your Desk Setup

Perfect Pairings.Complete your Setup.

Around the World

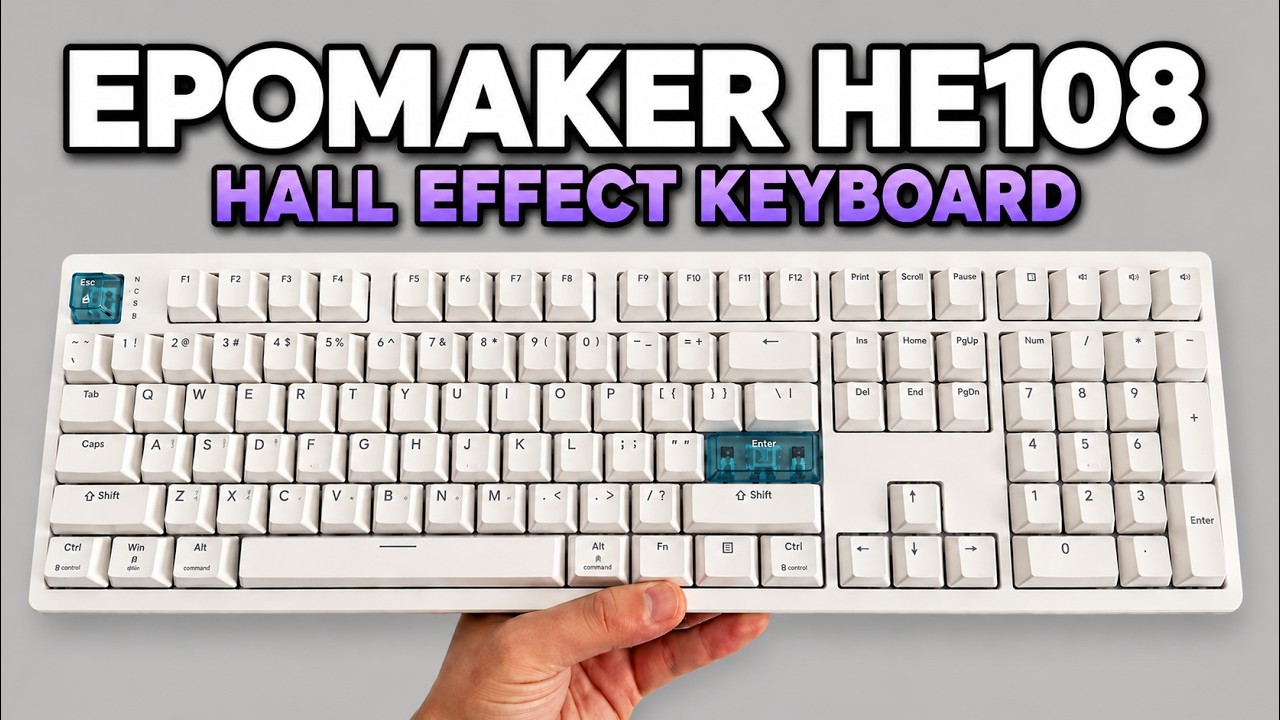

Media Reviews.Product Unboxing.
