CIDOO ABM066
VIA-programmable Hot Swappable Wired/Wireless Mechanical Keyboard
- Alice-layout for ergonomic comfort
- VIA-programmable & TFT-LCD screen for unparalleled customization
- Hot-swappable custom silent switches

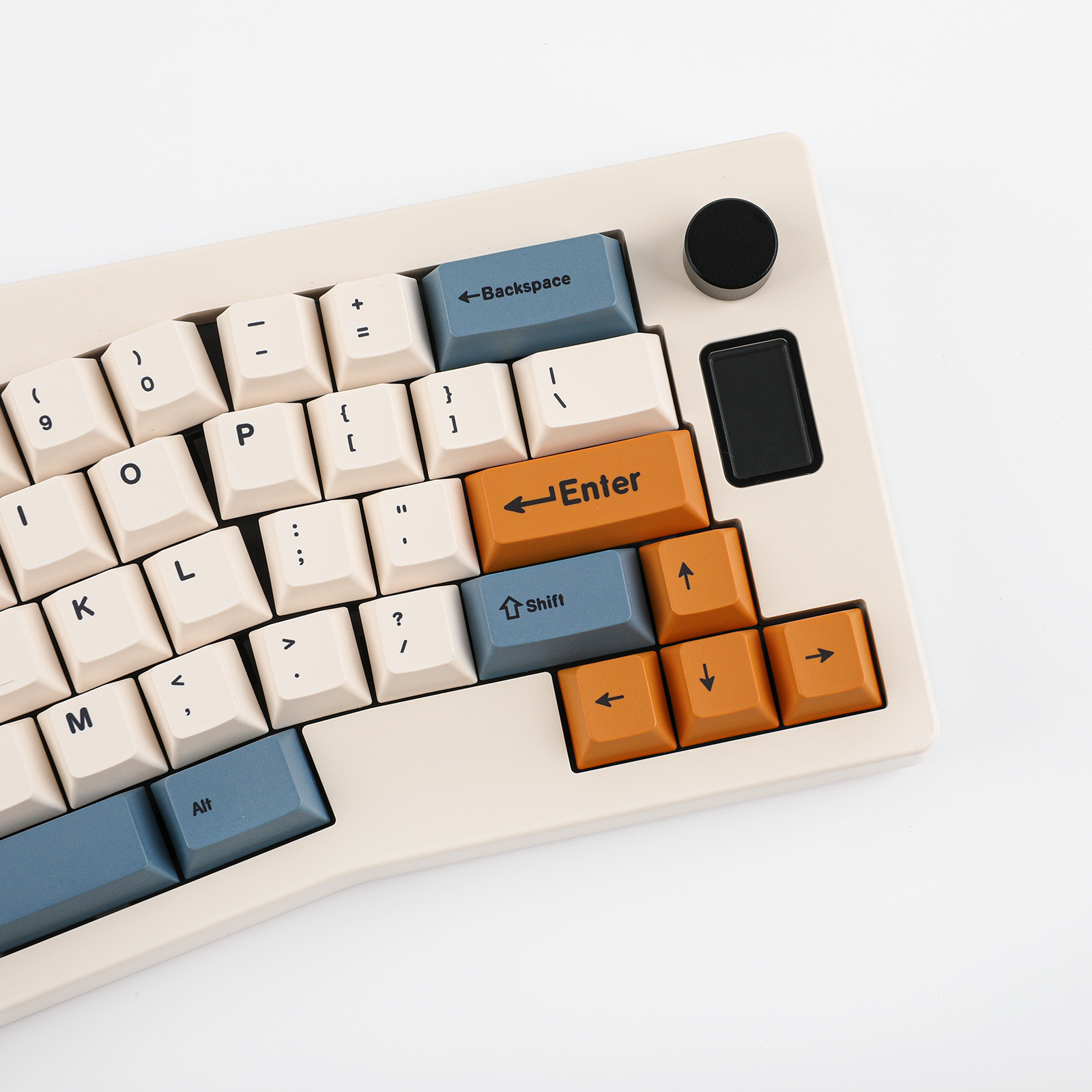

- Rotary knob for easy control
- Multiple connectivity options: Bluetooth, 2.4Ghz, and Type-C
- Dye-sub PBT keycaps for durability
-
Estimated Delivery:Nov 05 - Nov 09

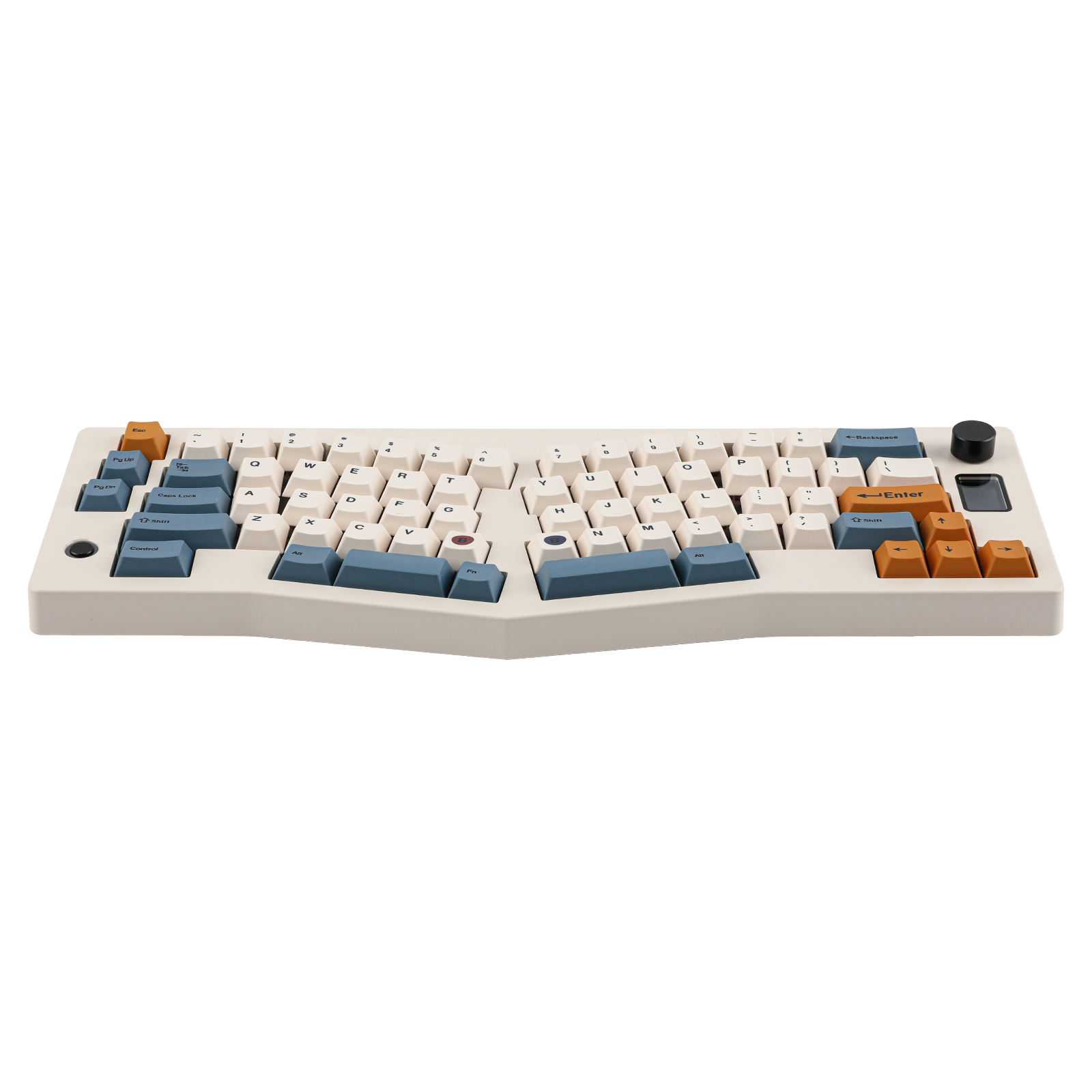

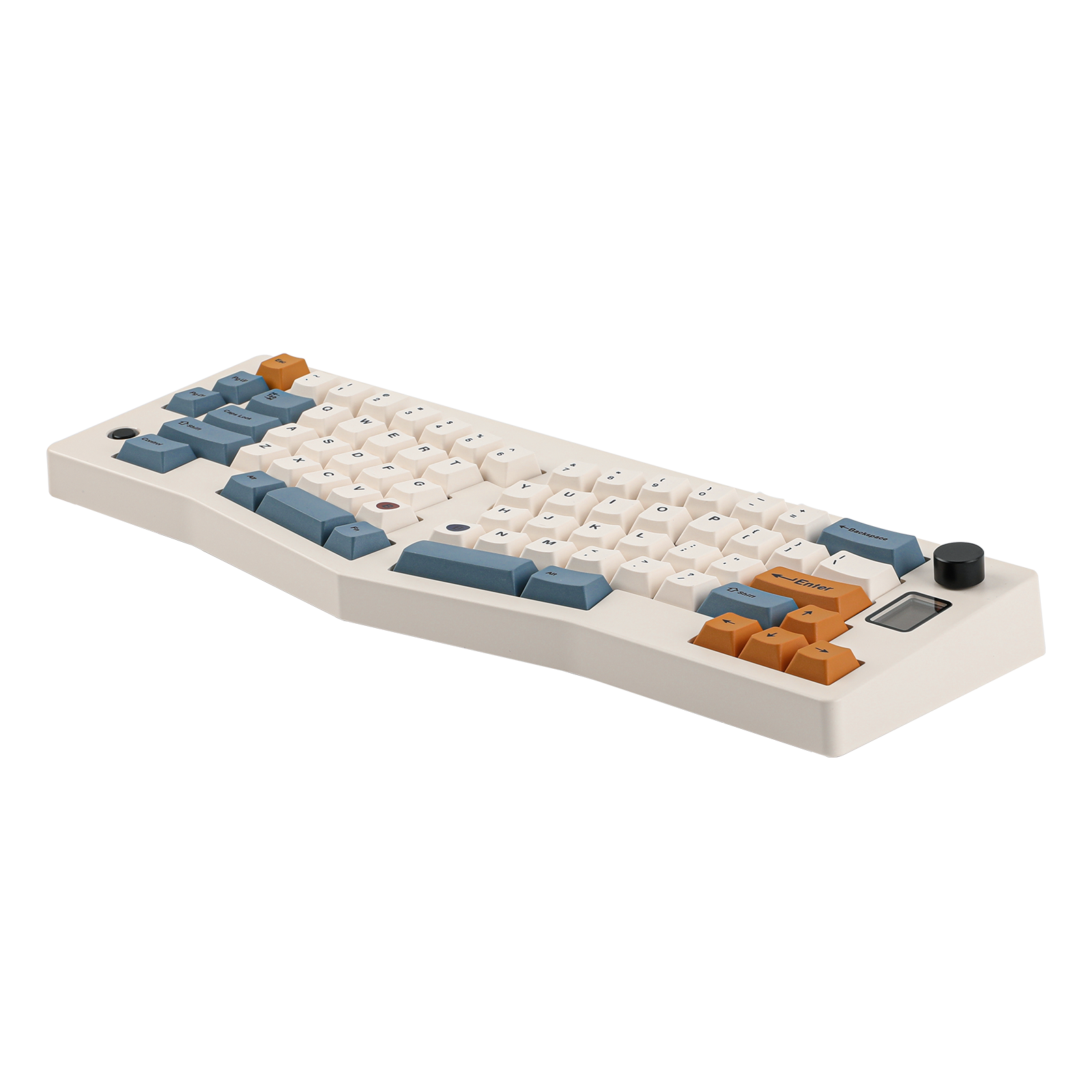

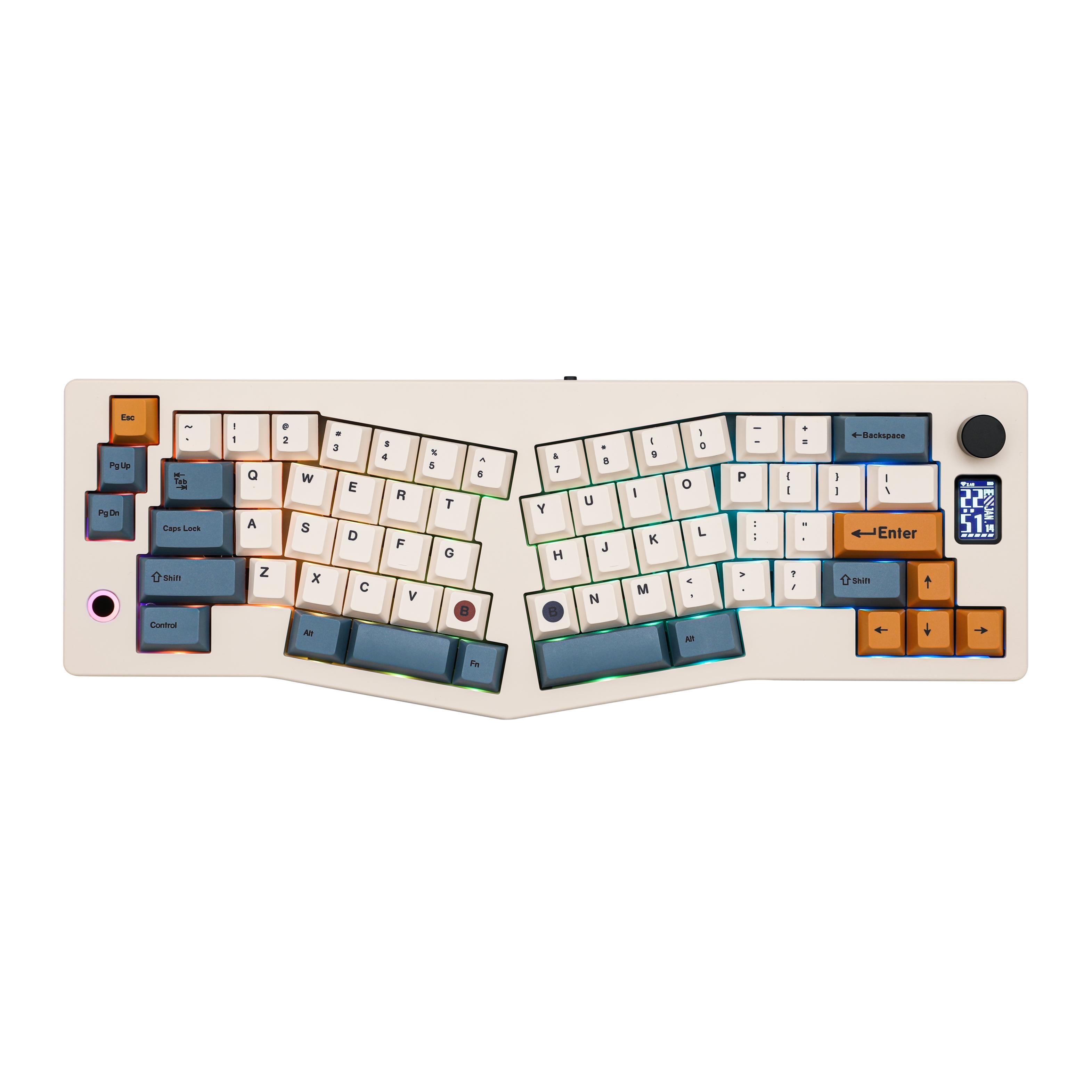

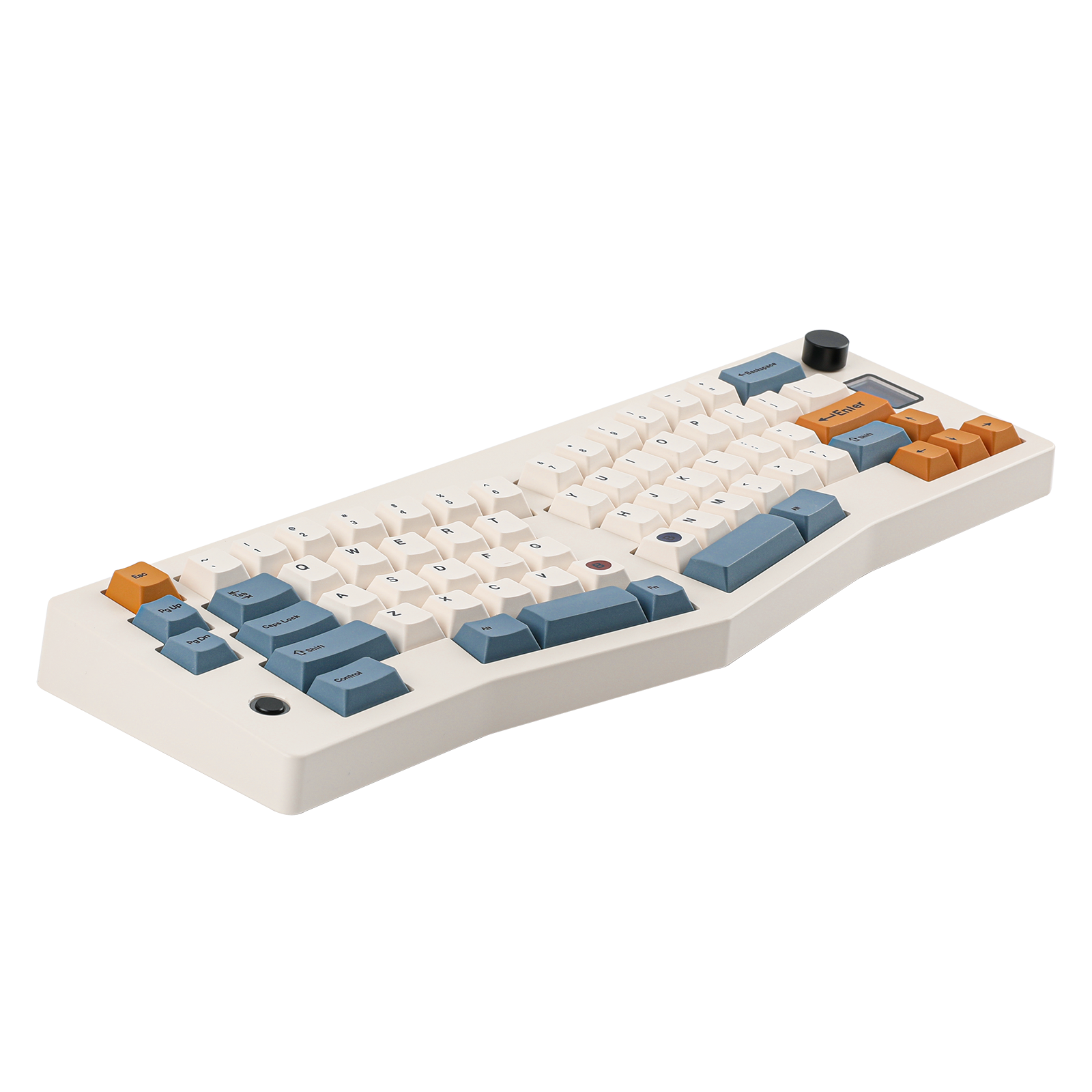

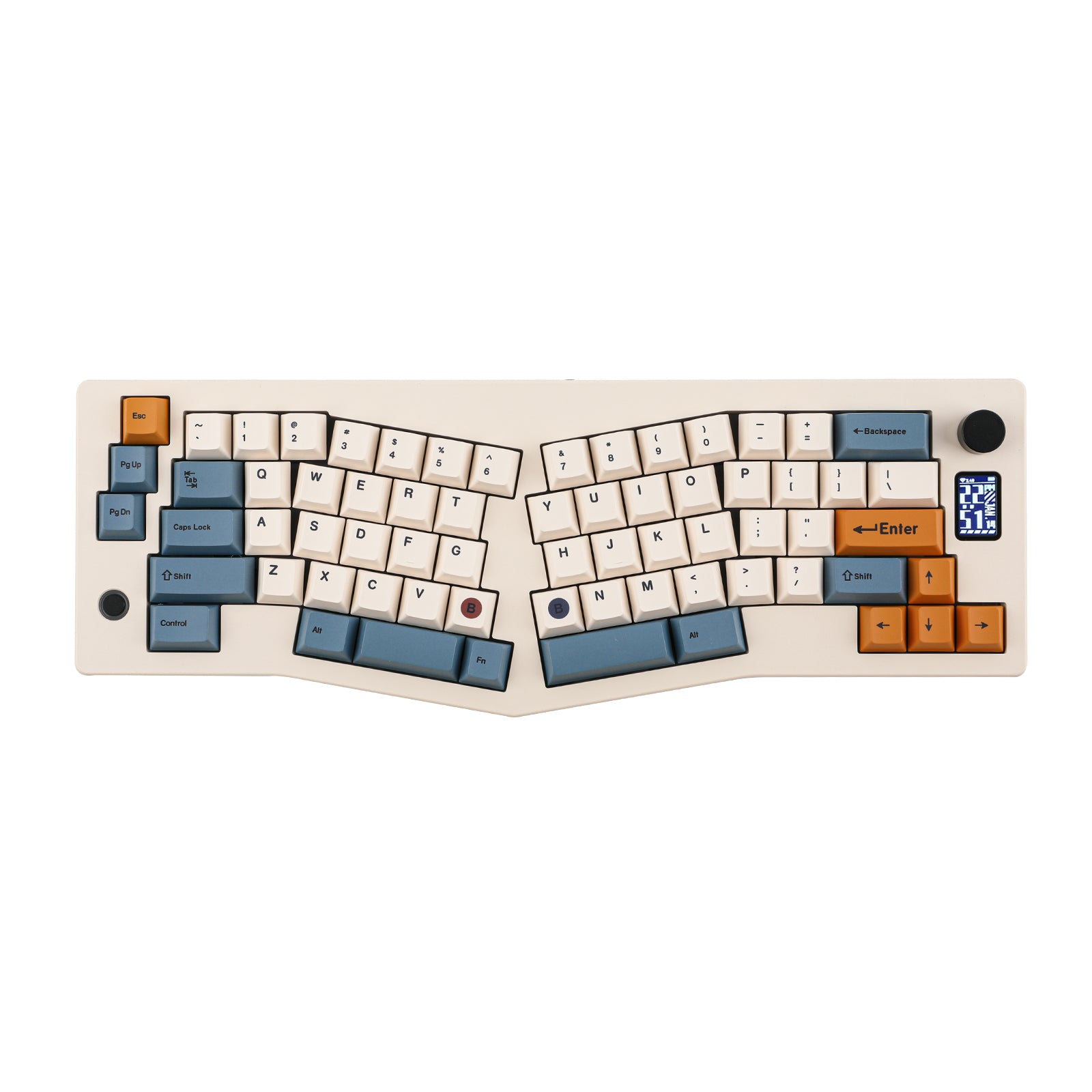

The Unconventional Alice Layout
Step into a new dimension of typing comfort with the ergonomic Alice layout. The CIDOO ABM066 offers a uniquely contoured design that aligns with the natural positioning of your hands for enhanced ergonomics. The Alice layout offers a groundbreaking shift from traditional keyboard designs by providing a contoured, split layout (Spacebar: 2.25u, 2.75u) that dramatically reduces the stress on your wrists and fingers. The shape is engineered to follow the natural curve of your hands as they rest on the keyboard, offering an intuitive and comfortable typing experience.
VIA-Programmable: Your Keyboard, Your Rules
Complementing its ergonomic design, the CIDOO ABM066 also boasts a robust VIA-programmable feature. This open-source software offers an intuitive interface for real-time customization without requiring any coding skills. From key remapping and layer configurations to RGB customization and macro creation, VIA turns your keyboard into a highly personalized device.
Triple Modes: Type-C Wired, Bluetooth 5.0 & 2.4GHz Available
The CIDOO ABM066 supports connection via Bluetooth or 2.4GHz for wireless connectivity, or with the included Type-C USB cable. With Bluetooth 5.0, it easily connects seamlessly with your devices within 10 meters. Equipped with an 3000mAh battery, the keyboard is also easily switched among the three modes for efficient multitasking and speedy performance.

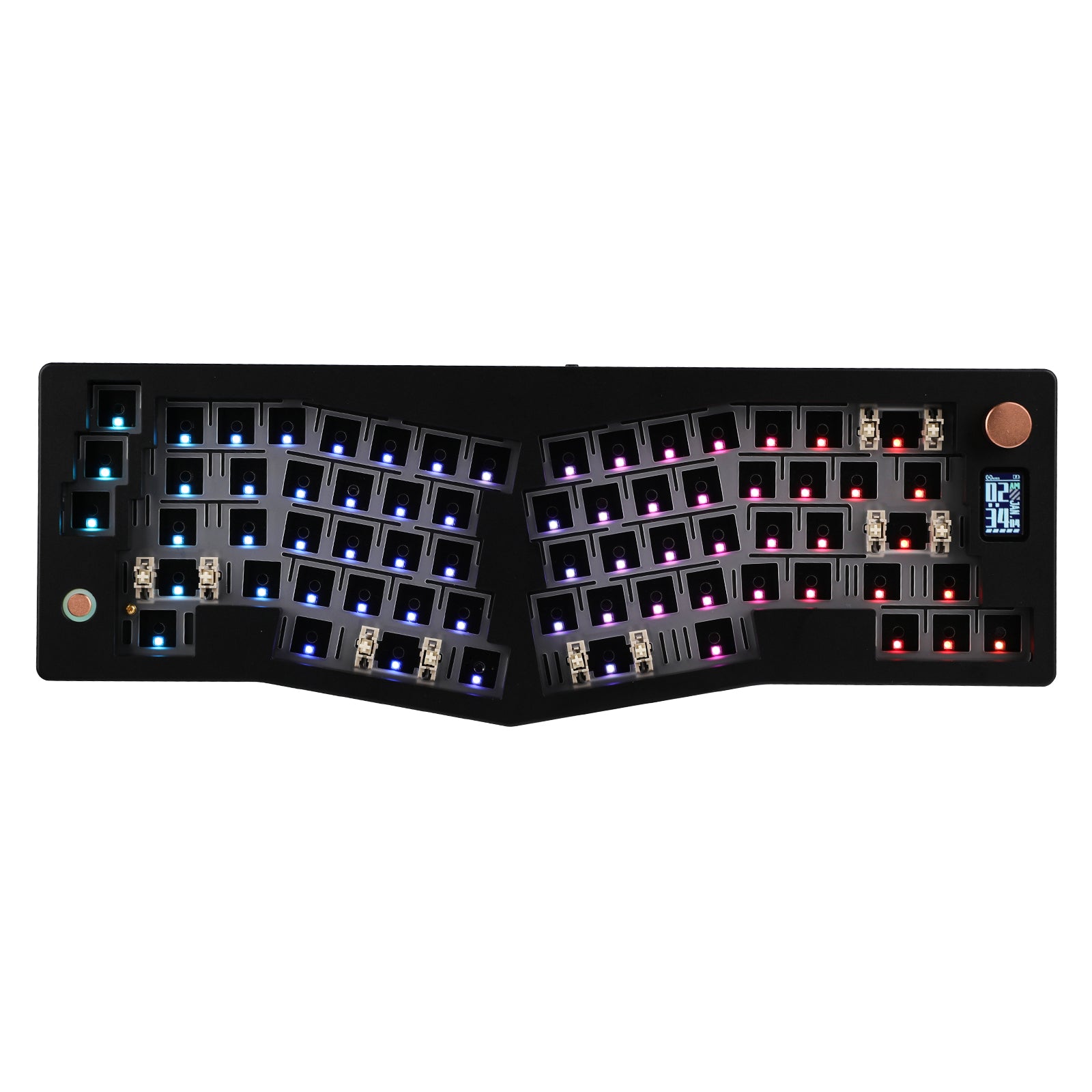

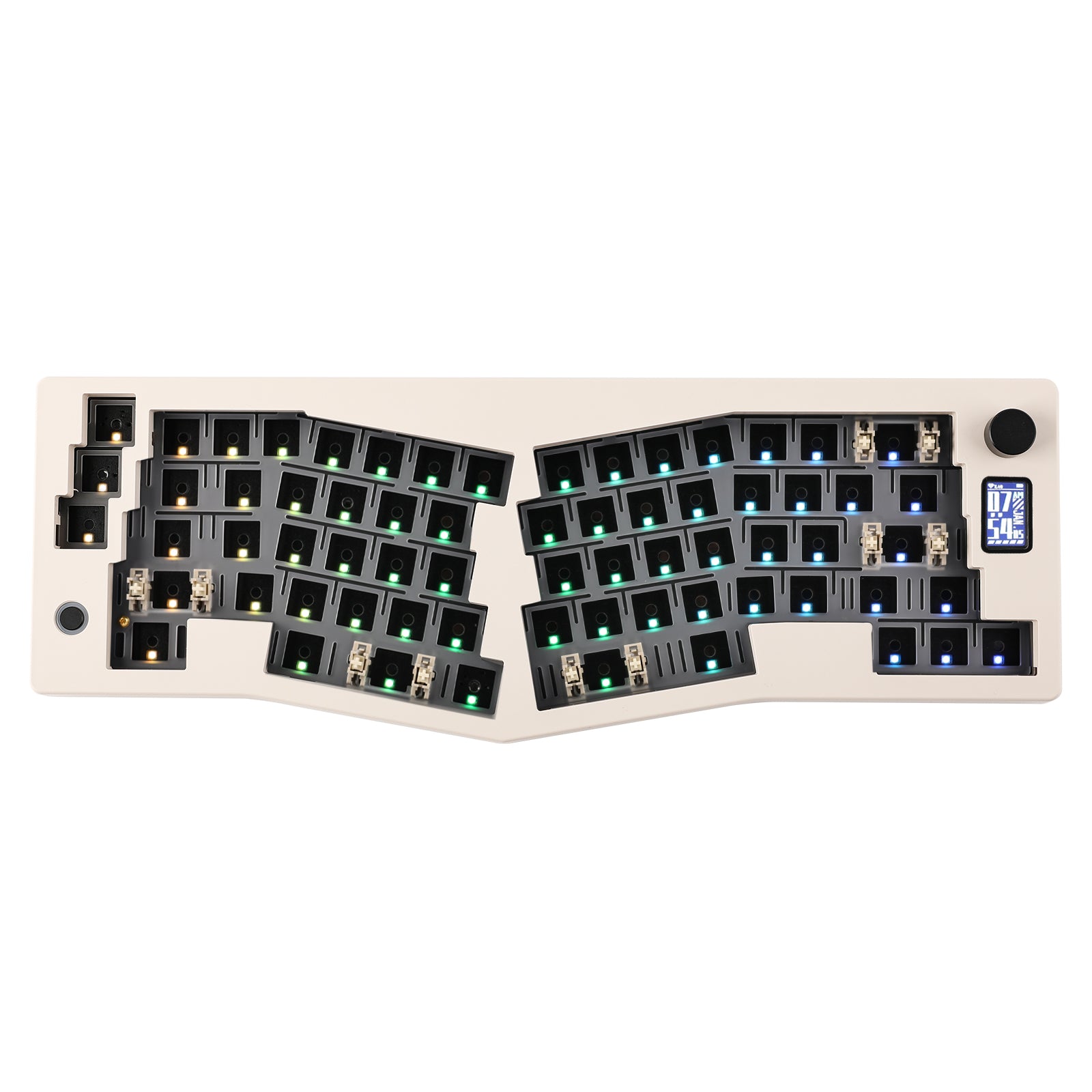

South-facing LED RGB Backlight & Custom Silent Blue Switches
The CIDOO ABM066 features south-facing LED RGB backlights with different light effects. This is also perfect with the custom CIDOO Silent Blue switches which includes LED slot to fit the amazing RGB lights. What’s more, the switches are pre-lubed to increase the smooth sense. With the operating force of 37g and bottom force 45g, the linear switches are perfect on the keyboard to be easily pressed and shine-through.
Gasket mounted with Flex-cut PC Mounting Plate
The CIDOO ABM066 goes above and beyond by incorporating a gasket-mounted mechanism with a flex-cut PC (Polycarbonate) mounting plate. The ABM066 utilizes foam gaskets to cushion the interaction between the plate and the PCB. The result is a softer bottom-out and top-out feel, which reduces typing fatigue and offers a ‘bouncier’ experience compared to traditional tray or top mounts. With the flex-cut PC mounting plate, the keyboard enhances these inherent qualities by adding strategically-placed cuts to allow the plate to flex more when keys are pressed. This results in a feel that many describe as 'cloud-like' or 'cushioned,' providing not just a tactile but almost a 'floating' typing experience.

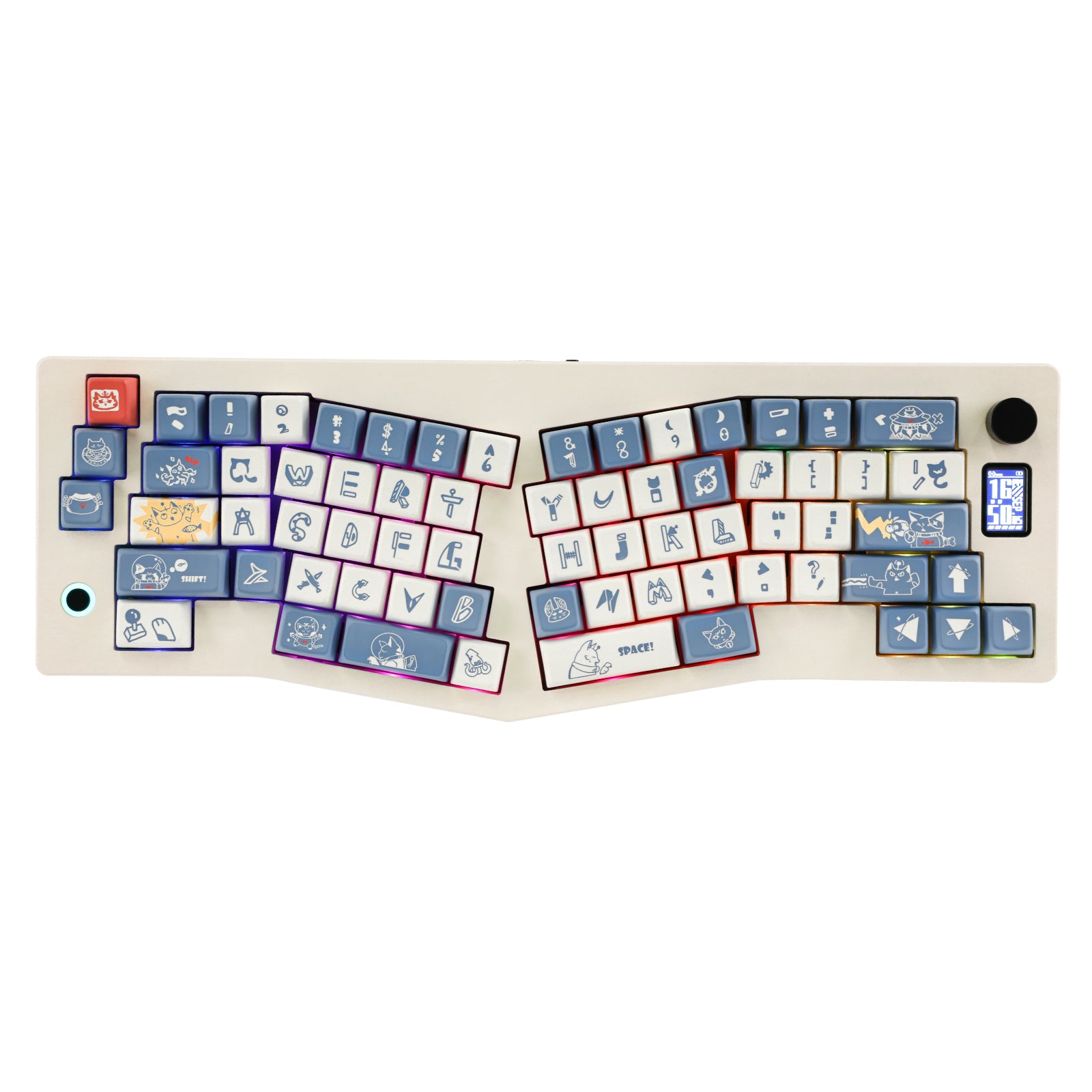

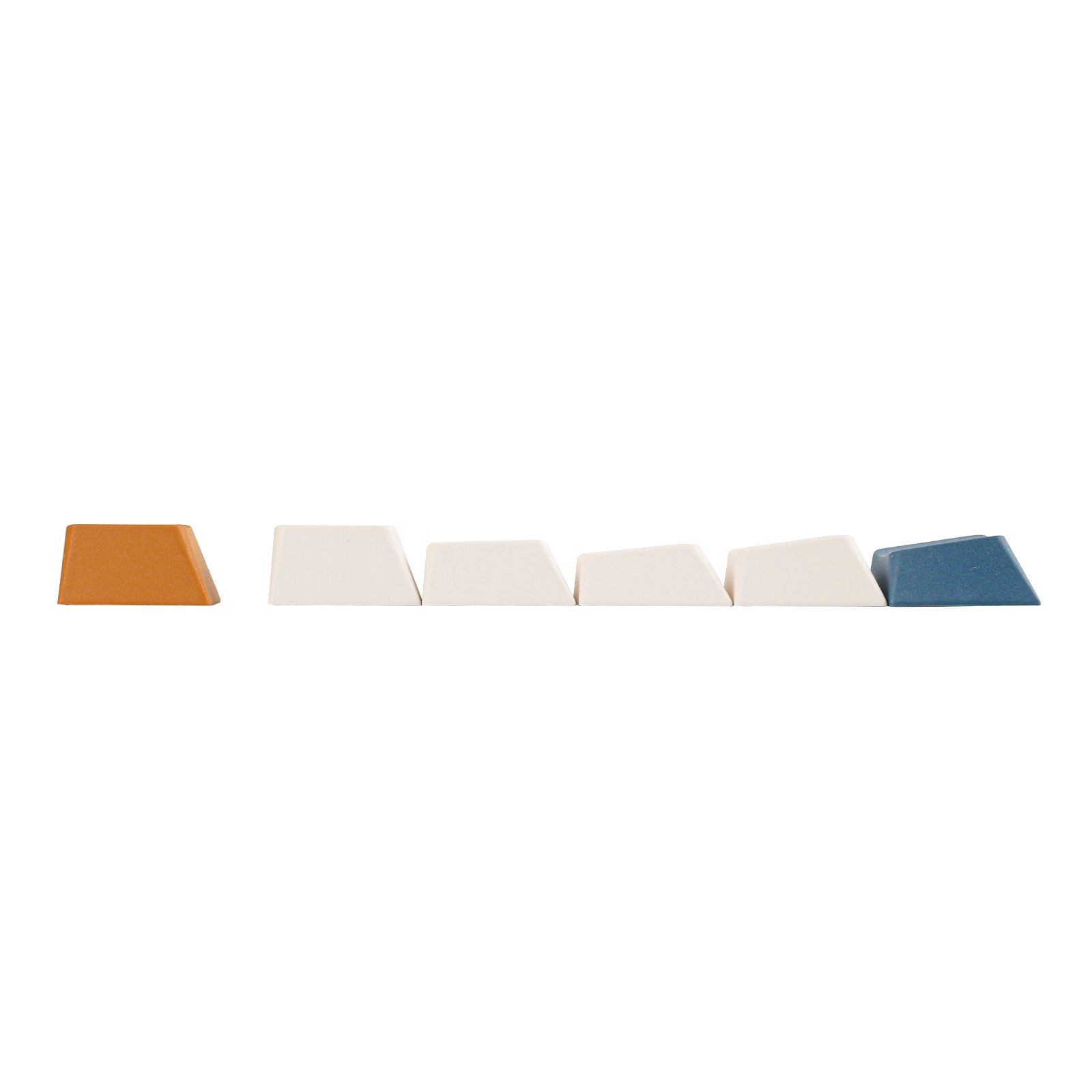

Dye-sub PBT Keycaps: Beauty That Lasts
Durable & Stylish: Made from PBT, these keycaps are known for their longevity, resisting the shine and wear that often comes with ABS keycaps. The dye-sublimation process imprints the legends onto the keycaps, ensuring they never fade over time. This results in keycaps that not only feel premium but also maintain their vibrant and clear legends even after extensive use.
Specifications for Custom Switch
CIDOO Silent Blue Switch
- Type: Linear
- Pin: 5 Pin
- Upper Housing: Nylon
- Bottom Housing: Nylon
- Stem: POM
- Lube: Factory lubed
- Pre-Travel: 2.0±0.5mm
- Total Travel: 3.8±0.3mm
- Initial Force: 35gf Min
- Spring: 15mm Spring
- Bottom Force: 55gf Max
- Lifespan: 1000 million times
Specifications for Custom Switch
CIDOO Carda Switch
- Type: Linear
- Pin: 5 Pin
- Upper Housing: POM
- Bottom Housing: POM
- Stem: UPE
- Lube: Factory lubed
- Pre-Travel: 2.00±0.5mm
- Operating Force: 50gf±5gf
- Initial Force: 35gf Min
- Spring: 18mm dual Spring
- Bottom Force: 60gf Max
- Lifespan: 60 millions Times
Technical Specifications
Downloads

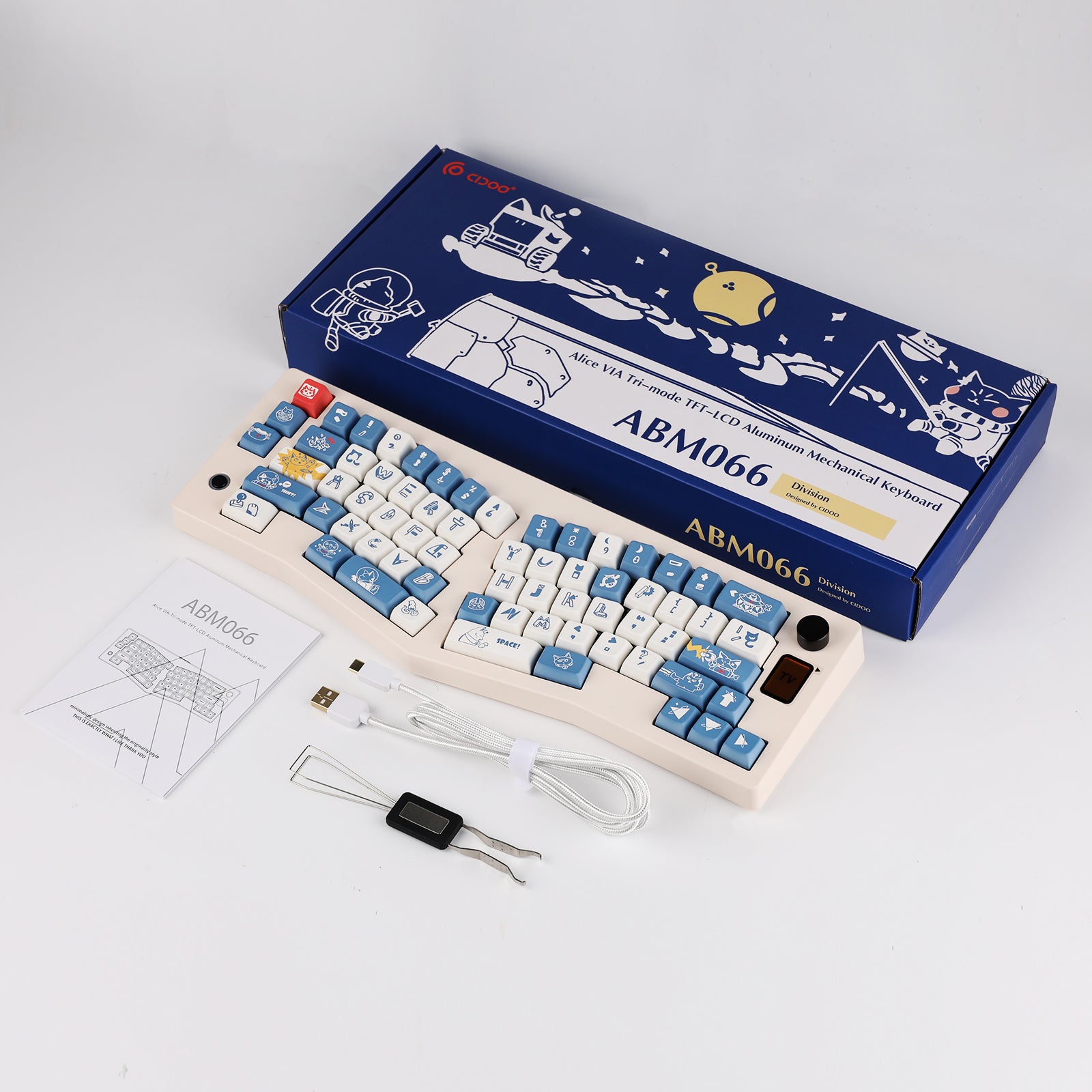

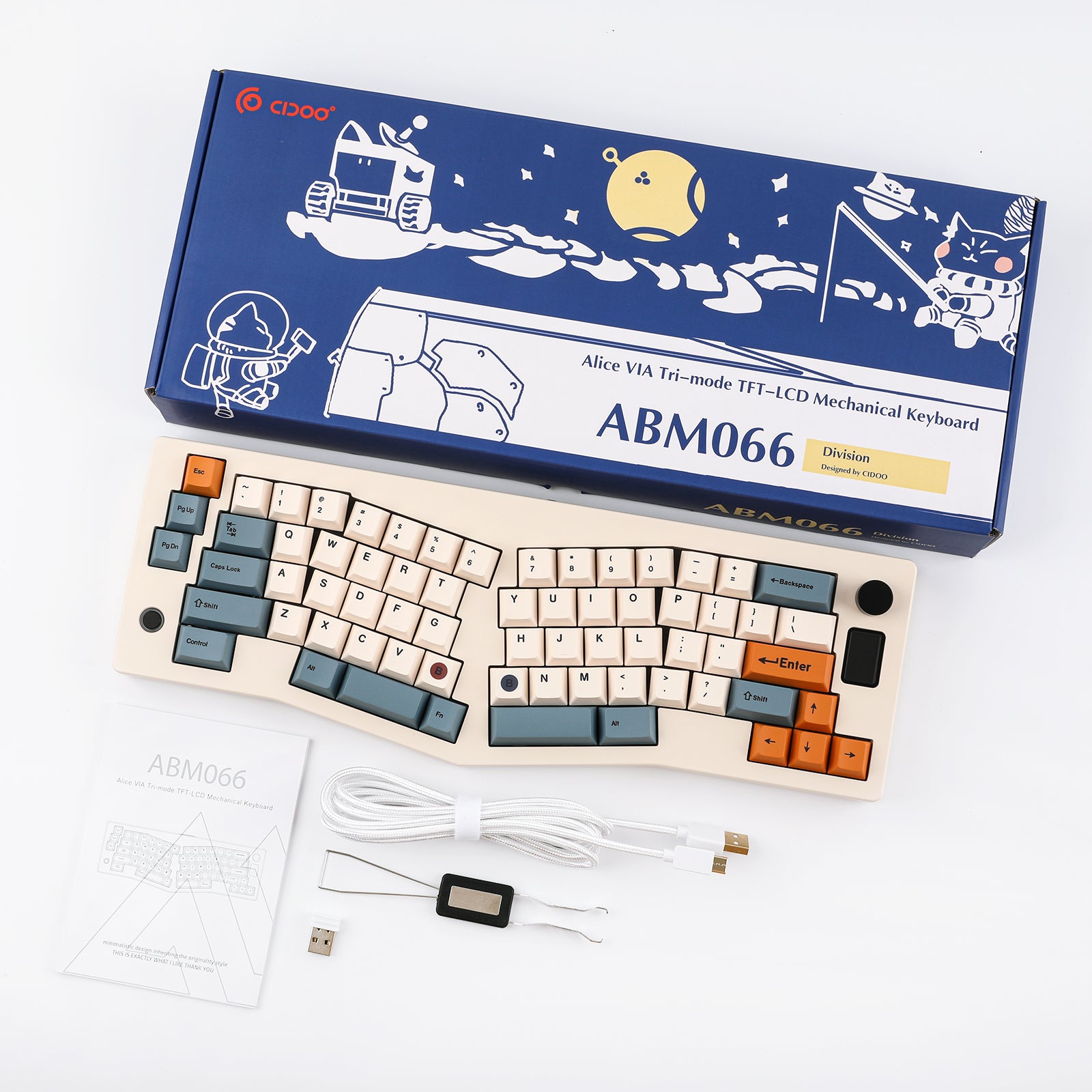

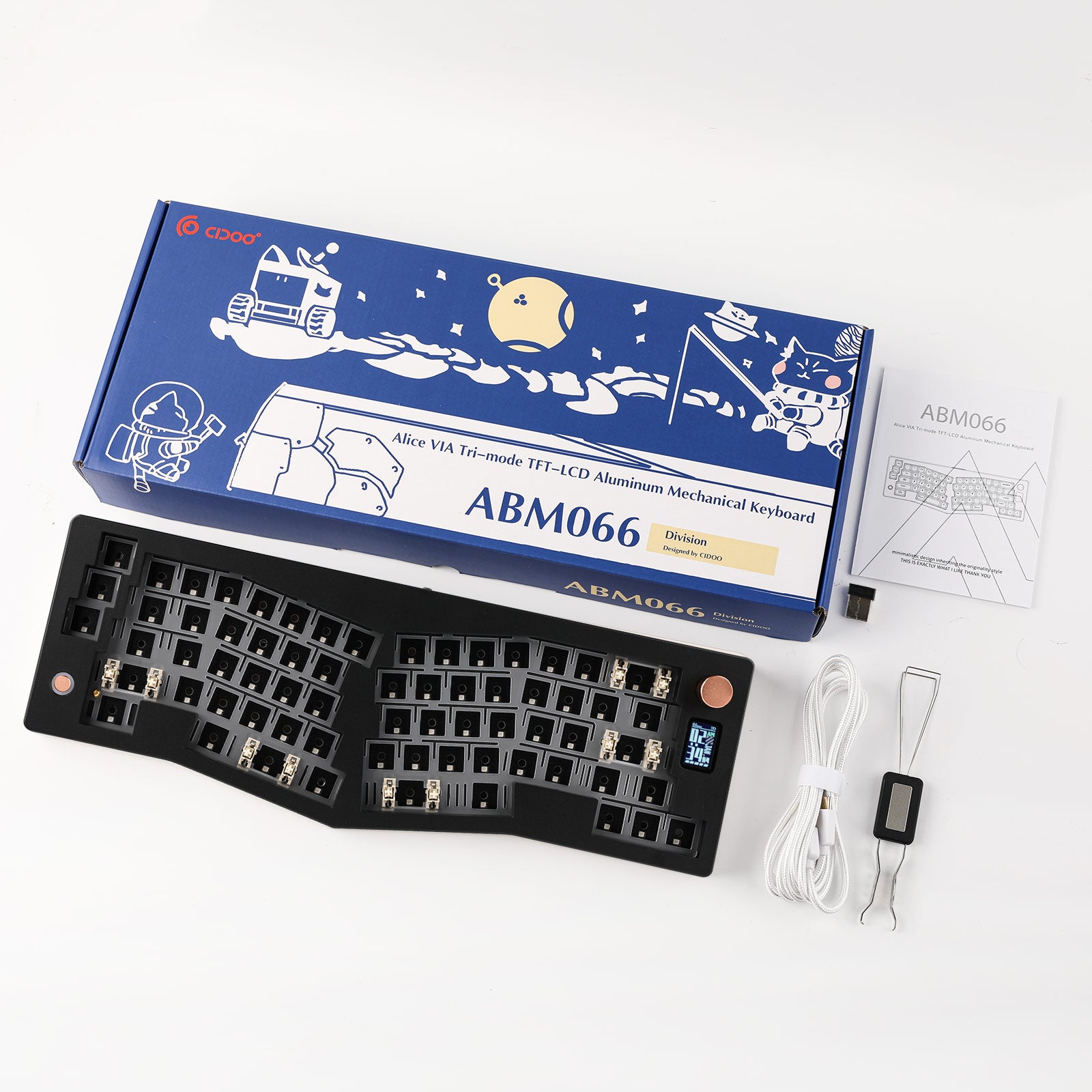

Inside the Box
- 1 * Keyboard
- 1 * USB Cable
- 1 * 2.4G Receiver
- 1 * Instructional Manual
Explore our wide selection of unique and vibrant keycaps to personalize your keyboard. From bold colors to intricate designs, EPOMAKER keycaps offer the perfect way to elevate your typing experience and make your setup truly your own.
Discover EPOMAKER's range of mechanical switches, designed to suit every typing preference. Whether you prefer a tactile, clicky, or linear feel, our switches offer precise performance and customization for the ultimate typing experience.
Upgrade your setup with EPOMAKER's premium cables. Our selection of durable, high-performance cables enhances both functionality and style, offering a seamless connection and added flair to complete your perfect keyboard build.

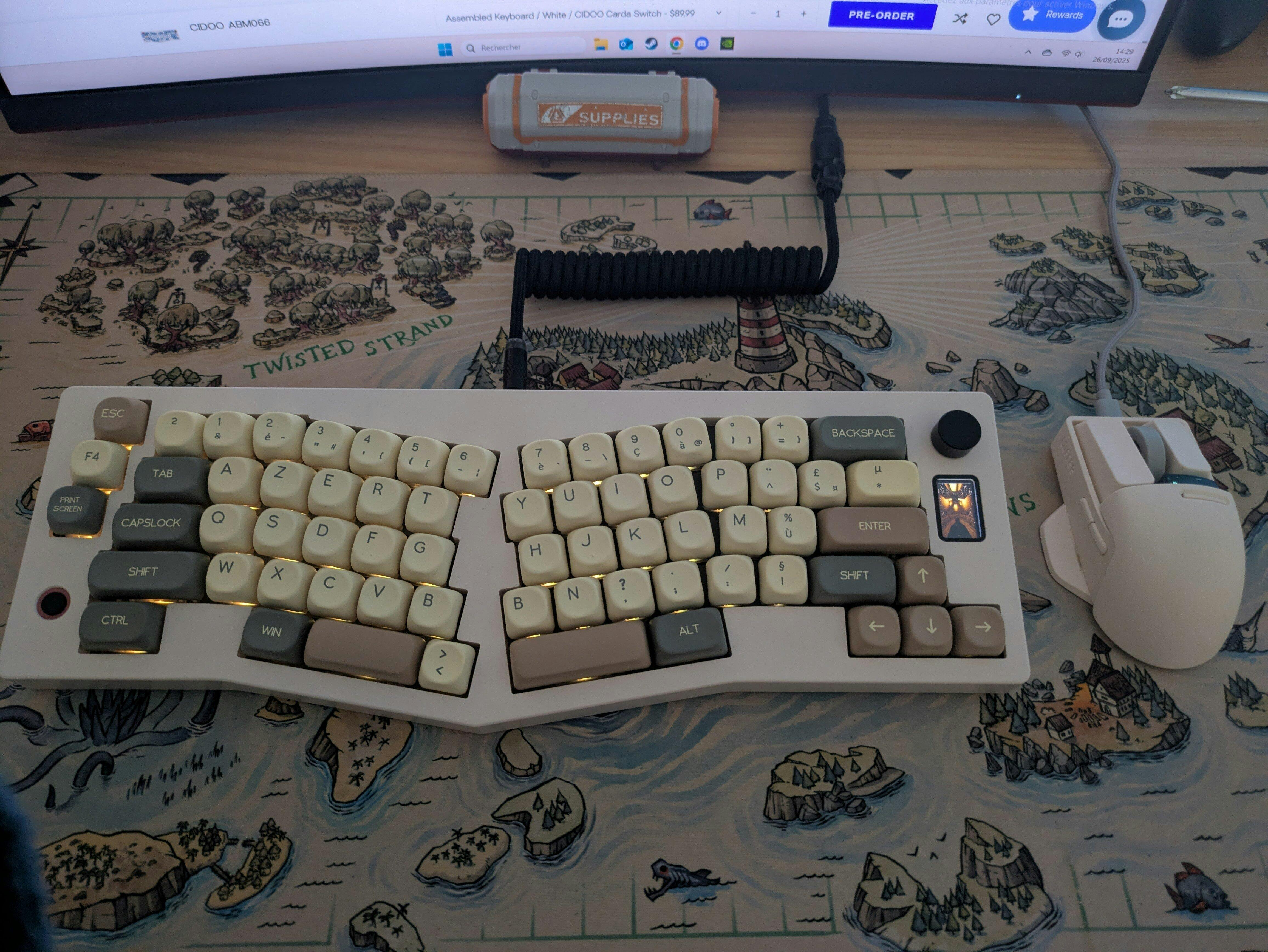

Etant français, je souhaitais un clavier atypique avec des touches silencieuses et comptatibles avec notre clavier national: AZERTY qui n'existe presque pas en clavier custom..
L'ABM066 est une super alternative au clavier standard avec ses deux barres espace, son espace dédié à chaque main en fait un objet rééllement agréable à utiliser au quotidien (avec un temps d'adaptation propre à chacun bien sûr).
Le petit écran est un plus agéable pour y ajouter un GIF, une image pour ajouter de l'ambience à votre setup bien que facultatif. L'application délivrée pour le modifier est très pratique et intuitif, aucun problème de ce côté !
Astuce pour les claviers AZERTY: il n'existe pas notre touche "ALT GR" sur VIA, QMK.. Mais sachez que pour imiter la commande il suffit de maintenir CTRL + ALT et cela revient au même. J'ai mis 3 mois à trouver ça.
J'aimerais témoigner de mon expérience client pour la livraison dans mon pays. Je n'avais le choix qu'entre deux services: Cainiao GRATUIT mais plus long pour desservir, ou DHL Express à plus de 30€.
J'ai donc opté pour la gratuité mais le colis n'est jamais arrivé à destination ! Le service postier a eu le culot de me fournir une "preuve de dépot": Le colis déposée dans la boîte aux lettres du voisin ouverte (il s'était trompé d'adresse). Je suspecte un vol du facteur car la longueur du produit était bien trop grande pour tenir dans cette boîte. Le voisin n'a jamais rien reçu non plus.
Le SAV d'Epomaker m'a donc, après de multiples échanges entre eux et Cainaio renvoyé le colis en me suggérant très fort de payer DHL, étant un service plus sécurisé. Dans ce cas là retirez simplement le service gratuit pour les client résidant en France. J'ai réclamé un geste commercial. Il m'ont relancé dans un second mail que je n'avais pas vu. Je pense donc qu'ils auraient fait un geste si nécessaire. Là dessus, c'est ma faute !
I like the Alice layout and the comfort it brings. I enjoy the sound and feel of the Carda Switches. Unfortunately my unit is plagued with issues regarding one of the space bars injecting extra spaces at random making for an extremely unsatisfying purchase. Some other keys like "+/=" sometimes do not register the key press at all.
Dear Valued Customer,
Thank you for reaching out to us, and we sincerely apologize for the issues you’ve experienced with your CIDOO ABM066 keyboard, particularly the malfunctioning spacebar and inconsistent key registration on the '+/=' key. We understand how frustrating this must be, especially given your appreciation for the Alice layout and the Carda switches’ sound and feel.
How We’ll Resolve This:
Troubleshooting Steps:
1：Check for Firmware Updates: Ensure your keyboard is running the latest firmware, as this may resolve input-related issues.
2：Inspect the Switches: Since the ABM066 supports hot-swappable switches, try swapping the problematic switches (spacebar and '+/=') with spares or replacements to see if the issue persists.
3：Test on Another Device: Verify if the problem occurs across multiple computers to rule out software conflicts.
If you've tried the above steps and the issues persist, please reach out to our customer support team at support@epomaker.com. Provide the following information to expedite the assistance process:
A detailed description of the issues encountered;The steps you've already taken to troubleshoot;Your order number;Any photos or videos illustrating the problems.
We are committed to ensuring your satisfaction and will work diligently to resolve this matter, whether that involves a replacement, repair, or refund.
Thank you for bringing this to our attention, and we appreciate your patience and understanding.
Best regards,
Epomaker Customer Service Team
CIDOO ABM066
The Keyboard itself is great for the money!
From sound to software and build Quality is great.
Service and send times are also good from epomaker.
I was SO excited for this board, but I get constant keyboard chatter... The switches also often pop out of the sockets. I don't know if its my switches (I've swapped them out, cleaned them, etc.) and I still can't fix it. Its a shame, I was so excited this is my dream board :(
Dear Valued Customer,
If you've already tried troubleshooting steps such as replacing switches and cleaning without success, please provide us with any additional details or photos/videos of the problem at support@epomaker.com. This will help us better understand the problem and expedite the resolution process for you.
Your satisfaction is our top priority, and we want you to feel confident in the quality and reliability of our products.
Epomaker Support Team
