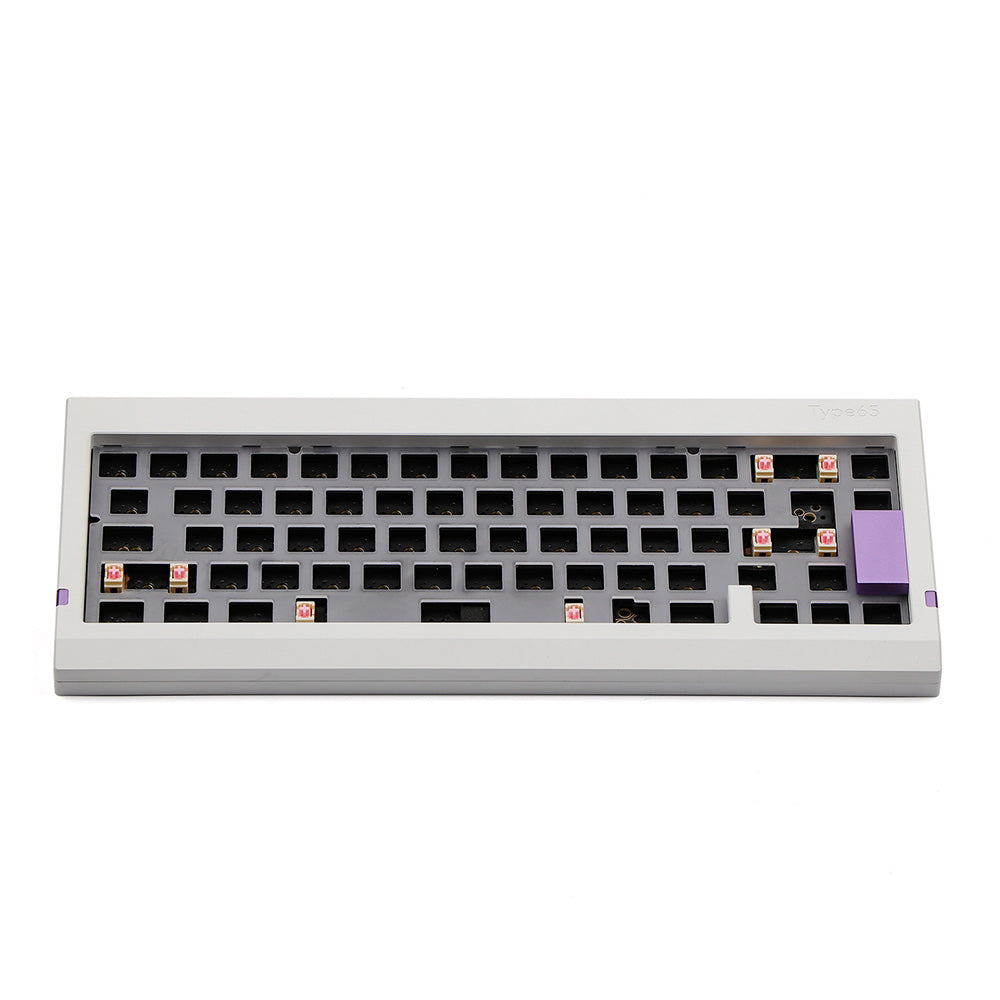

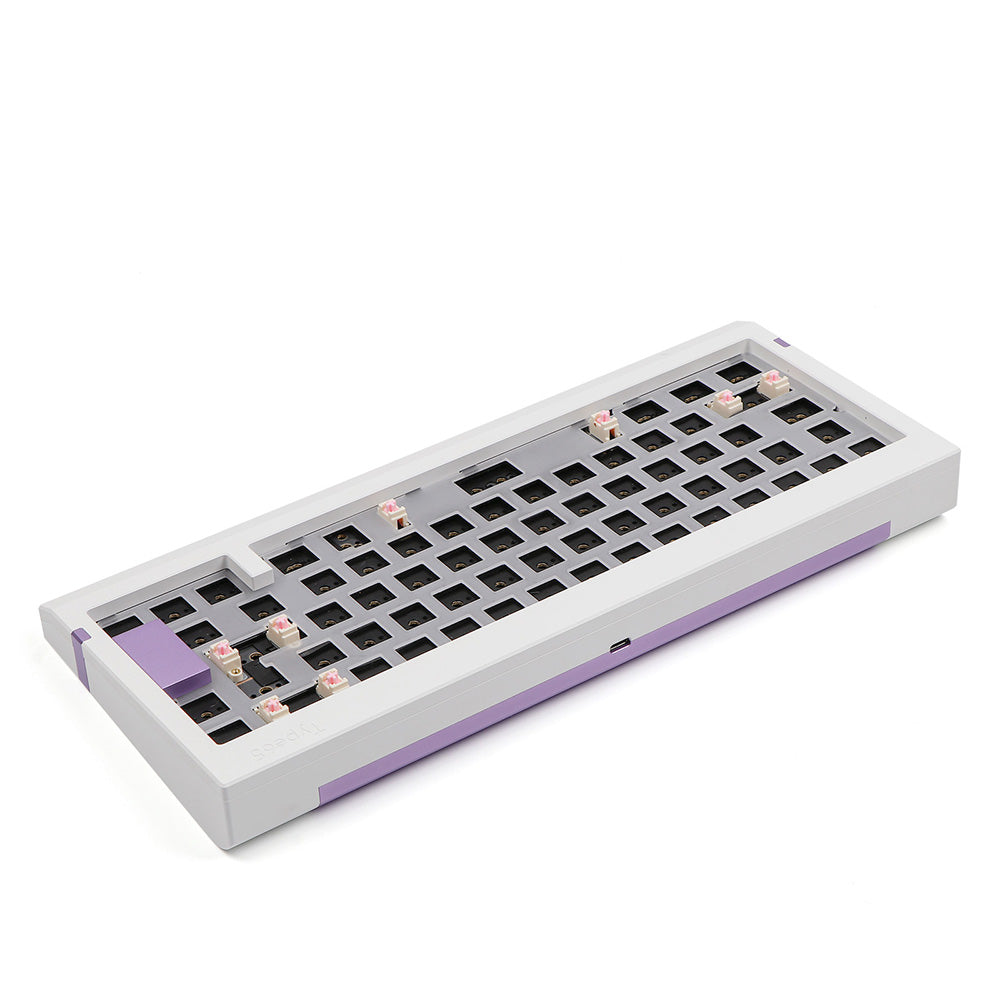

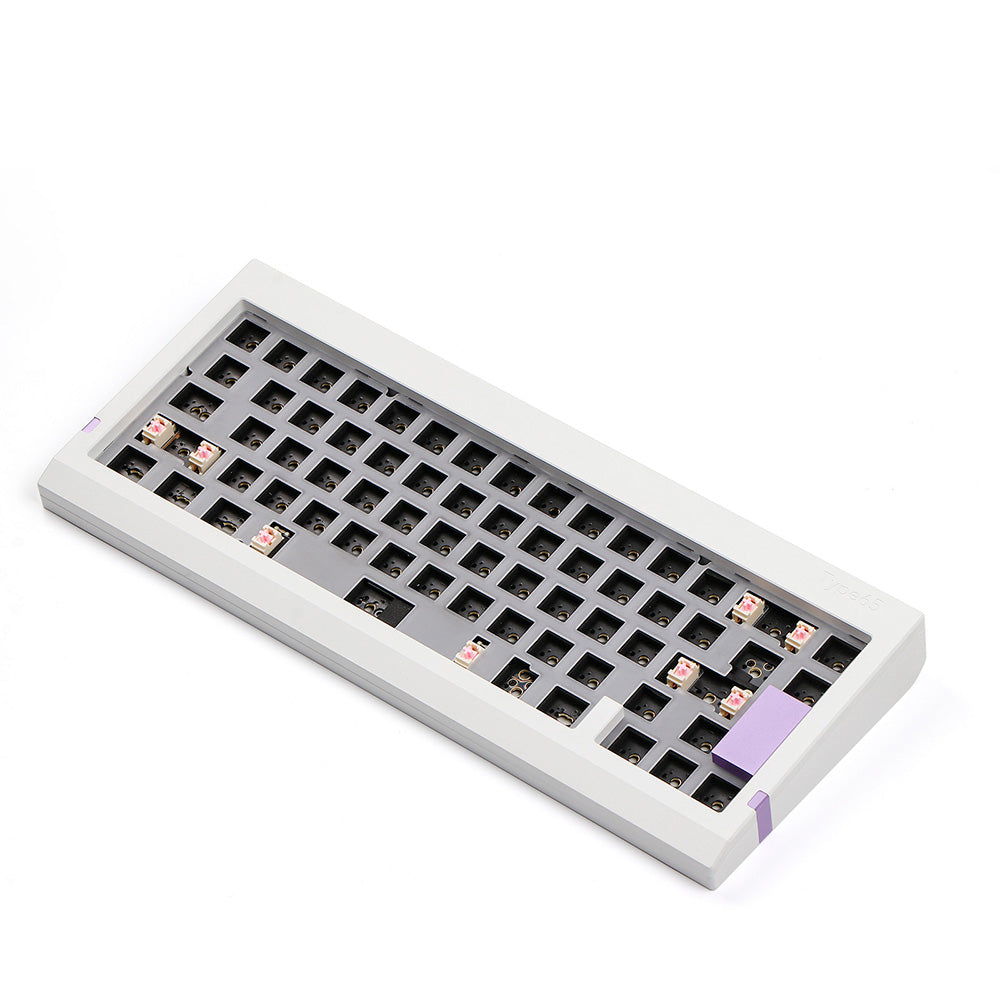

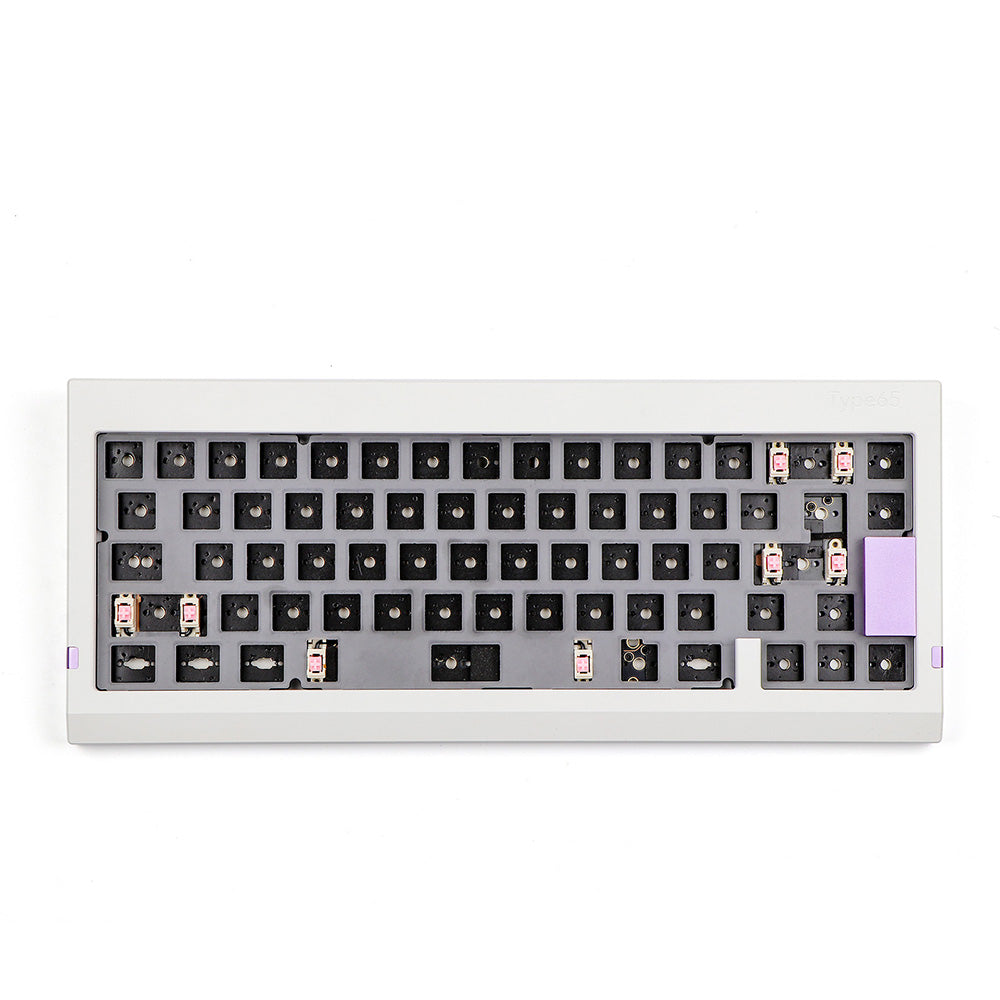

[GB] EPOMAKER Type65 DIY Kit

Innovative Bridge-gasket-mount & PC Plate

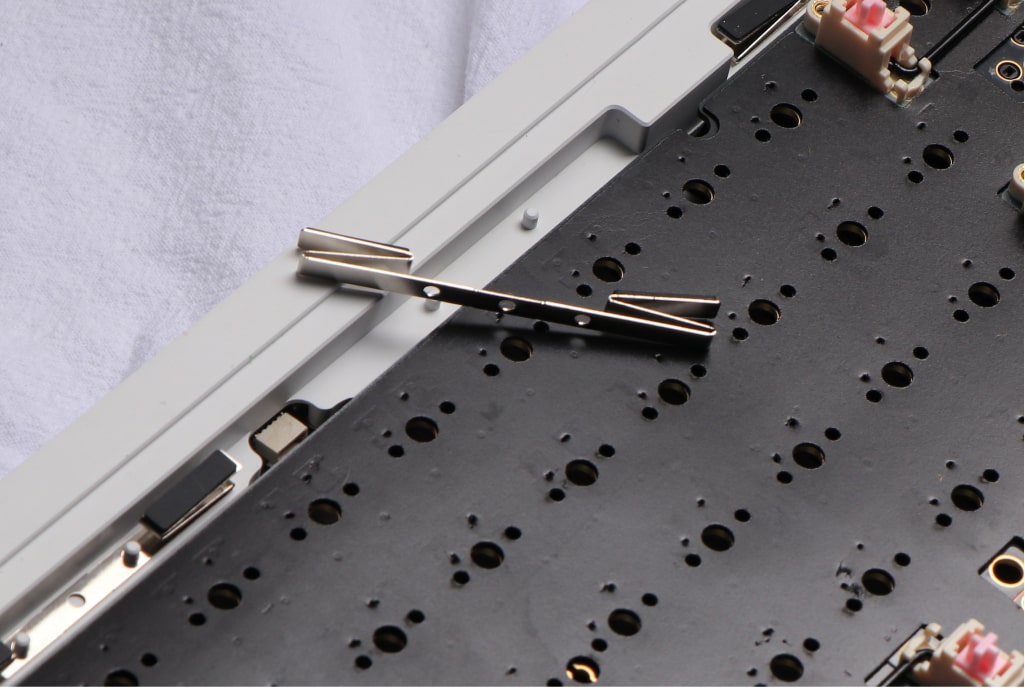

The very feature of Type 65 that stands out among the common gasket-mount keyboard is that the gasket structure has been modified to a “bridge-gasket”. This structure has greatly increased the flexibility and of the mounting plate. By adding the Z-shape bridge, the typing feel can be softer and more bouncing with every key stroke.

The PC plate is firmly built and it is more suitable to the flexible gasket mount keyboards. The PC plate is introduced to reduce cling-clang sounds that are often caused by metal plates, offering a pleasing typing acoustic atmosphere and tactile experience.

Fully Programmable by VIA

As a customized keyboard, the Type 65 supports programming by VIA, which brings more possibilities to play with the keyboard. For those who are not used to the compact layout or need to add more functions, remapping the keys by VIA without re-flashing the firmware is a nice choice. With an on-board memory, you can save the changes on board, and be worry-free about losing your saved memory while unplugging and re-plugging the keyboard.

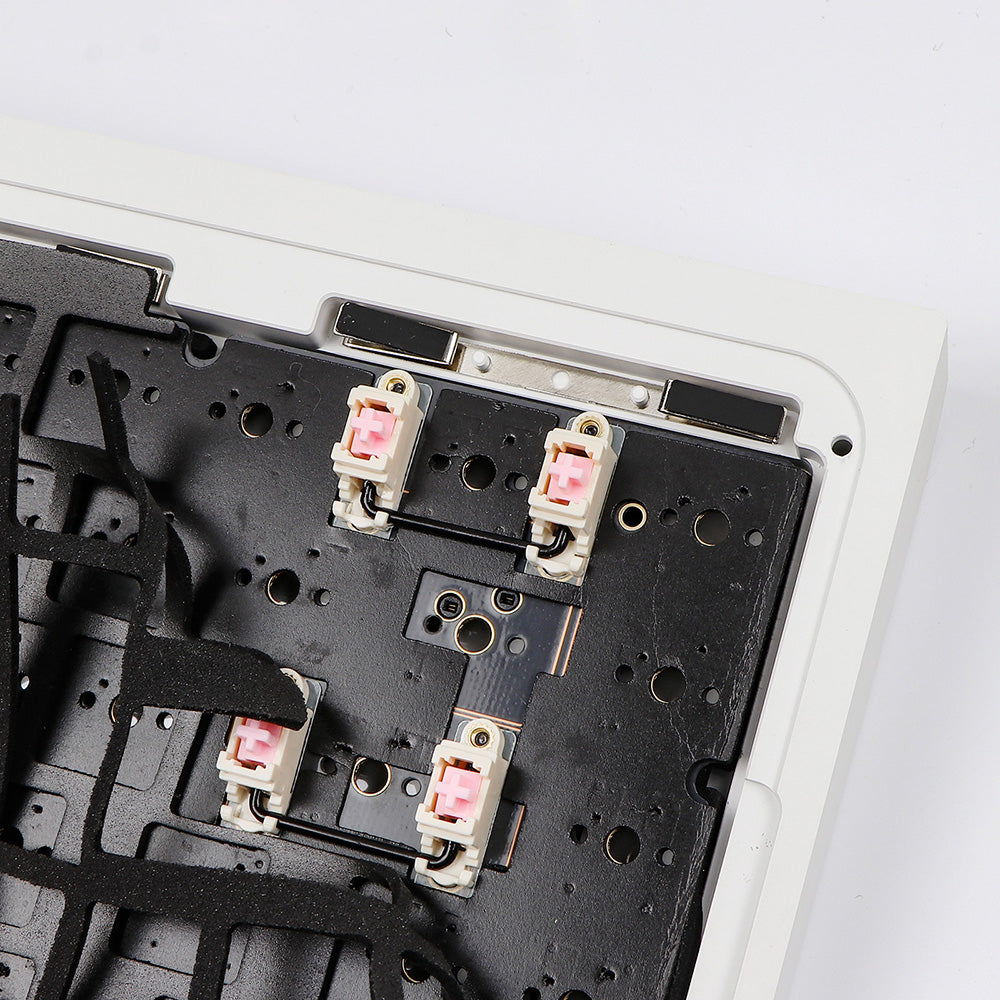

Hotswappable & Screw-in Stabilizers

The PCB of Type 65 is hot-swappable with 3-pin and 5-pin mechanical switches. You can change the switches at will without soldering issues. The keyboard comes with screw-in stabilizers to be an end-game board. Being finely tuned, the stabilizers are offering a top smooth typing feeling and sound. The wire ends and the Nylon housings are completely matched to avoid contacts that usually cause metal noises.

For South-facing Switch & Multiple Noise-Dampening Foams

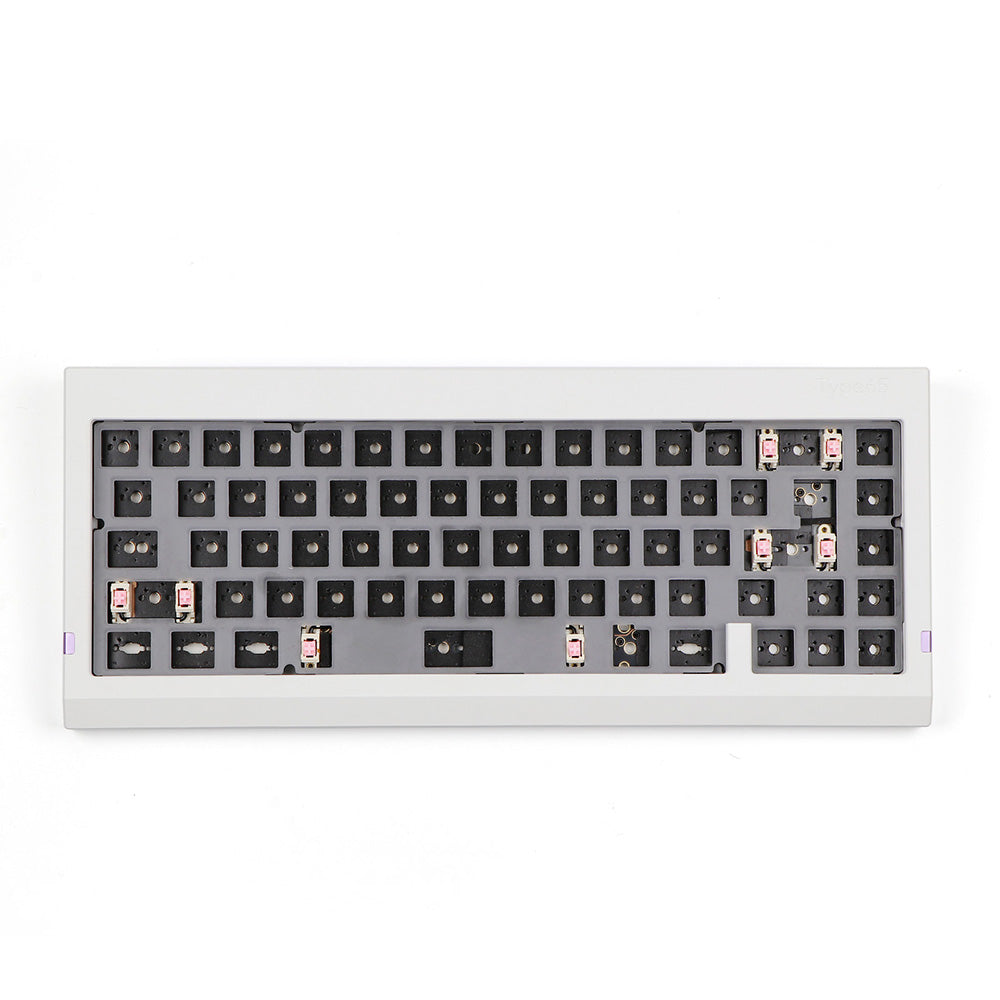

Type 65 is not equipped with LEDs, but the PCB is for south-facing switches to meet the long-term request from our community. The south-facing switches can avoid the interference between the cherry-profile keycaps and switches that is often caused by north-facing switch installation.

In the meanwhile, we have also made a lot of efforts in reducing the unpleasant sounds from key strokes. The keyboard comes with a bottom sheet, a foam under the PCB, a switch pad and a PCB foam to mute the possible noises from keystrokes.

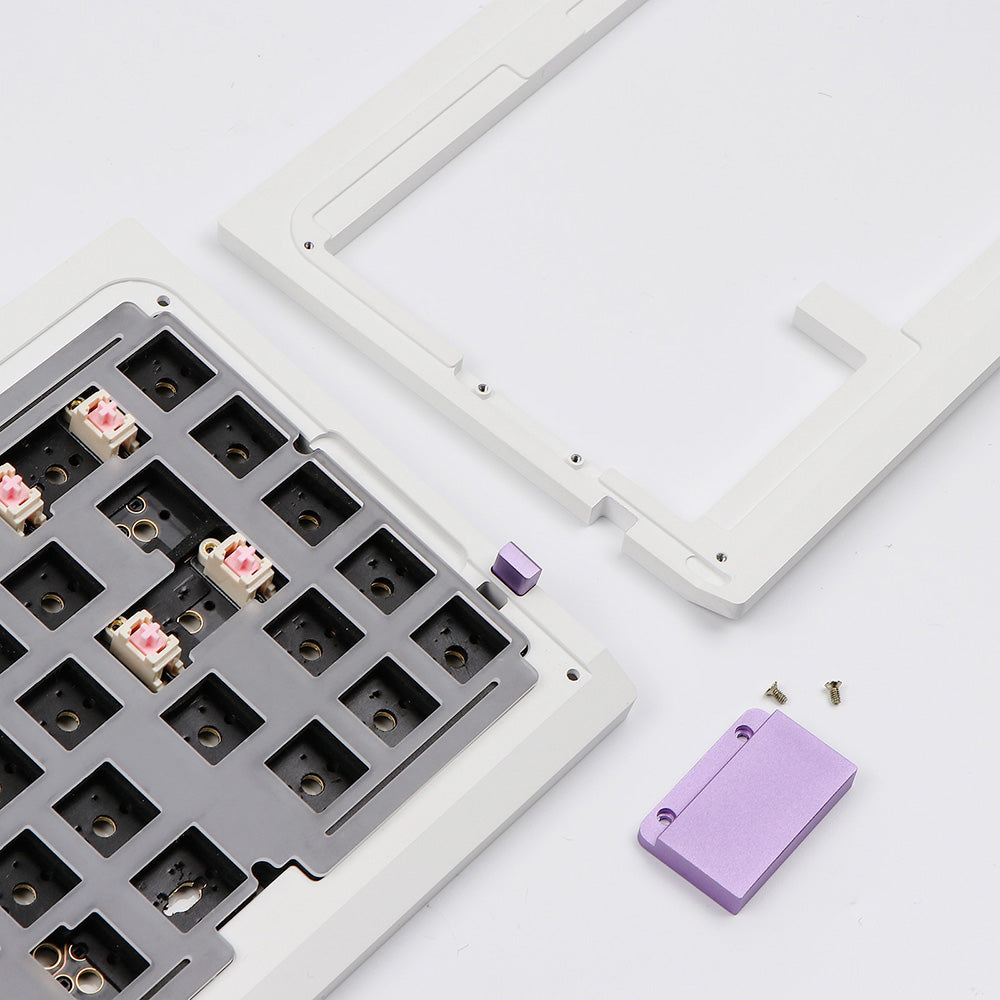

Detachable Alu Badge & Type C Connection

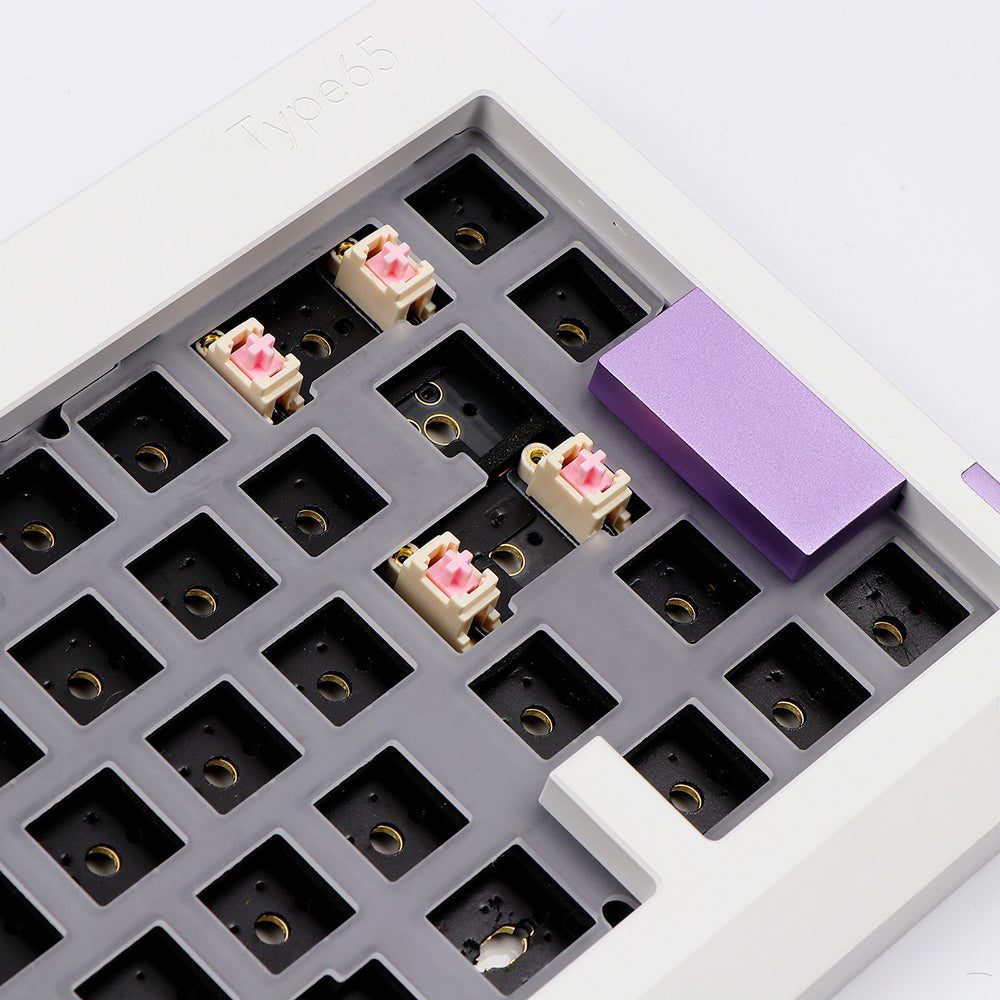

Type 65 includes a detachable 2-u Alu badge on the right. If you want to add more keys like PgUp and PgDn, you can take off the upper case, unscrew the badge and install two more keys in the same place. With the help of VIA, you can set the outputs you like to the new keys.

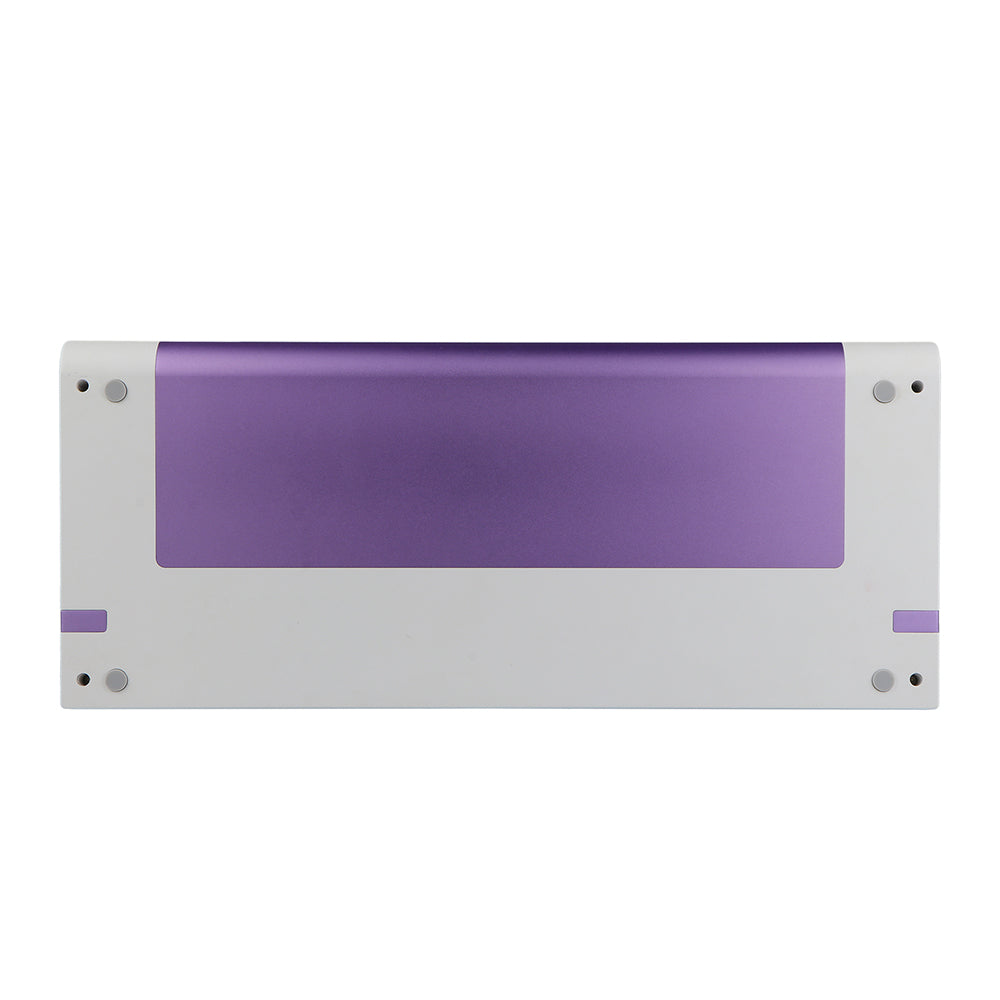

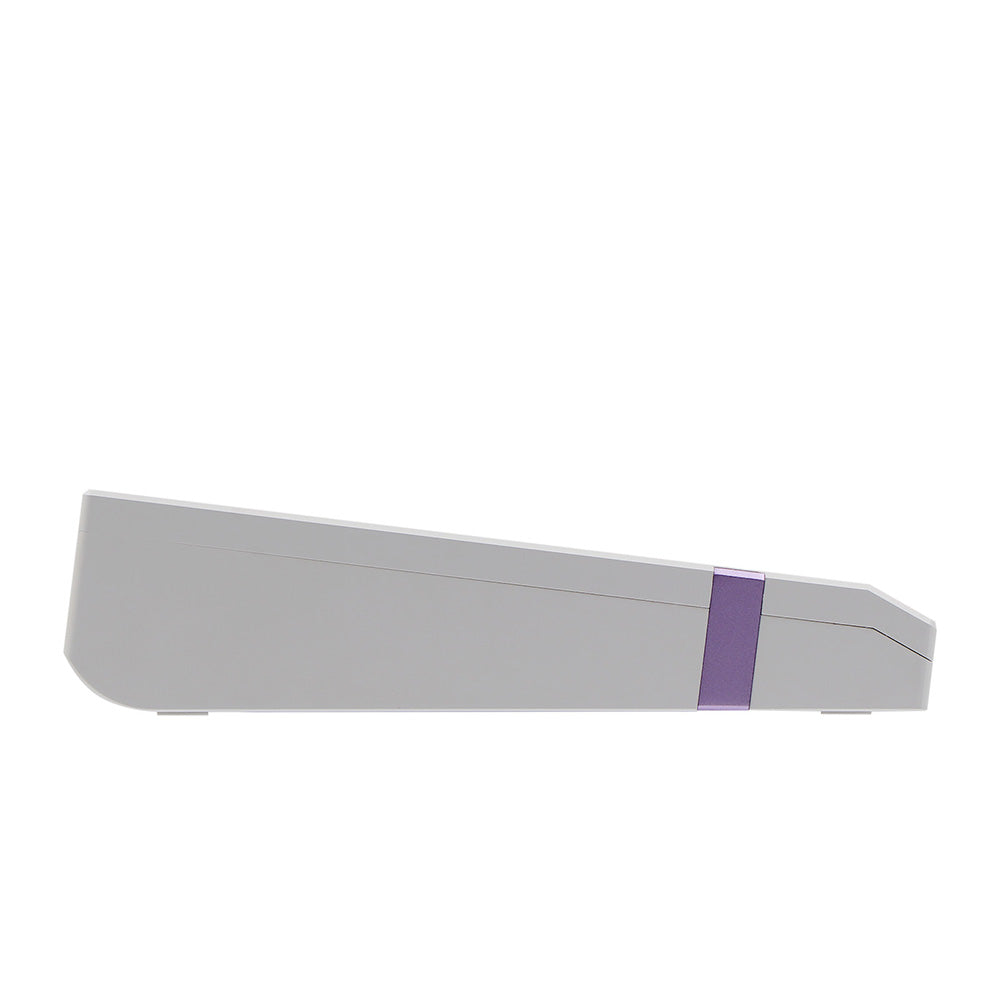

To stay a fast and stable transmission, the keyboard is connected by a detachable type-C cable. More than that, the keyboard is designed with adjustable feet to be more suitable for typing habits. You won’t feel tired even after long time using it.
